Description

We are the official distributor of voestalpine Böhler Welding brand and authorized service in Poland.

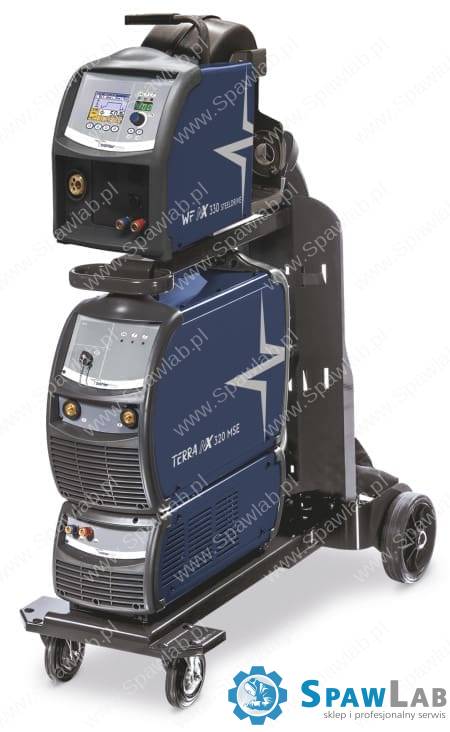

Böhler TERRA NX 320 MSE – Professional MIG/MAG welder with advanced process control.

The Böhler TERRA NX 320 MSE is a state-of-the-art MIG/MAG welder designed for demanding industrial environments. Equipped with advanced arc control functions and digital process management technology, it provides excellent weld quality and optimal productivity. Its compact design, low weight and extensive adaptability make it ideal for workshop production, construction, railroad industry and machine repair and inspection.

⚒ Technical Specifications

Model and power supply:

• Model: Böhler TERRA NX 320 MSE
• Power supply: 3x400V ±15% / 50-60 Hz
• Maximum input power: 16.2 kVA
• Maximum input current: 23.2 A
• Efficiency: 88%
• Fuse: 25 A
• Idle voltage: 61 V DC
• Protection class: IP23S
• Class of insulation: H
• Power cable: 4×2.5mm² – 5m

Welding methods:

• MIG/MAG (including ArcDrive)
• MMA (covered electrode)
• TIG DC Lift

Welding parameters:

• Current regulation: 3A – 320A
• Duty cycle (MIG/MAG – 40°C):
  • 50% @ 320 A
  • 60% @ 310 A
  • 100% @ 260 A
• Duty cycle (MIG/MAG – 25°C):
  • 90% @ 320 A
  • 100% @ 310 A

Wire feeder:

• Number of rolls: 4
• Spool diameter: 200/300 mm (200 mm WF NX 230)
• Wire diameter:
  • Steel: 1.0 – 1.2 mm (optional 0.6 – 1.6 mm)
  • Core: 0.9 – 1.6 mm
  • Aluminum: 0.8 – 1.6 mm
• Wire feed speed: 0.5 – 22.0 m/min

Compatibility:

• Remote controls: yes
• U/D MIG/MAG holders: yes (SteelDrive)
• Push-Pull handles: Yes

? Features and solutions

⚡ ArcDrive

ArcDrive is an advanced arc length control system that provides dynamic adjustment and real-time parameter adjustment. This feature eliminates sudden voltage changes and reduces spatter, resulting in better weld quality.

? RapidDeep

RapidDeep optimizes arc fusion depth, enabling more efficient remelting at lower current levels. This feature is particularly useful when welding thick sheet metal and steel structures.

✨ HotStart and Arc Force

Built-in HotStart and Arc Force functions improve arc stability and facilitate electrode ignition in MMA welding. This avoids ignition problems and accidental arc extinction in difficult conditions.

⚙ Full process control

• Synergistic settings for MIG/MAG
• Advanced control of arc dynamics
• Voltage and inductance regulation
• Compatibility with Weldnet 4.0 digital management system

?️ Generator Ready

The ability to power from generators without the risk of damaging the control electronics. This is an excellent solution for field work and construction sites.

⚡ VRD (Voltage Reduction Device).

The idle voltage reduction (VRD) function enhances welder safety by reducing the risk of electrocution in harsh environments.

? Why is it worth it?

The Böhler TERRA NX 320 PMC SteelDrive welder is a complete system for professional welding. It is ideal for industry, service and workshops. It combines quality, power, digital control and advanced arc technology. It runs on a power unit, communicates with the network, supports less experienced operators and offers aesthetic welds with the latest features.

• State-of-the-art ArcDrive and RapidDeep technology for better fusion and less splintering
• High power and efficiency – up to 320 A at 50% duty cycle
• Compatible with U/D and Push-Pull handles for complete process control
• Ability to run on a generator without the risk of failure
• Ideal for industry, workshops and repair of steel structures

The Böhler TERRA NX 320 MSE is a reliable solution for professionals who demand the highest quality, performance and safety in all working conditions.

Standard set:

Symbol: 55.13.008
