We are the official distributor of TELWIN brand. We guarantee the originality of the product, professional advice and service support.

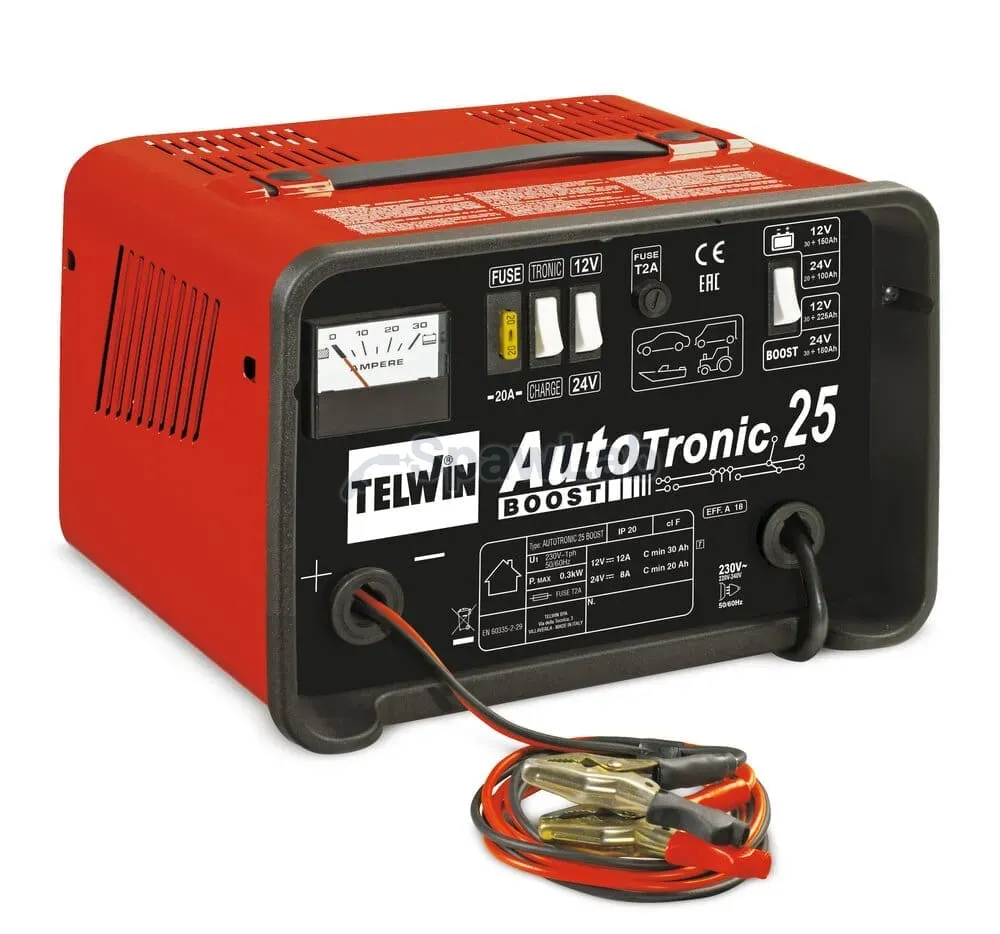

TELWIN AUTOTRONIC 25 BOOST: Reliable Charging and Instant Starting of 12V/24V Batteries! ⚡?
Tired of struggling with discharged batteries at crucial times? TELWIN AUTOTRONIC 25 BOOST is a professional charger with a starting function, designed to give you peace of mind and maximum efficiency. Whether you run an auto repair shop, manage a fleet of vehicles or are a discerning hobbyist who values reliability, this Italian power expert will meet your expectations.
Imagine the situation: a frosty morning, and your customer is waiting for a quick repair. With AUTOTRONIC 25 BOOST, you don’t have to worry about surprises. Thanks to intelligent TRONIC technology, the charging process is fully automated and safe for all types of lead-acid batteries (WET, START-STOP), including modern AGM and EFB. The device automatically controls the charging process, interrupting it when a full charge is reached and resuming it when necessary, protecting the battery from overcharging and extending its life.
When every second counts, the BOOST function becomes your best ally. The powerful starting current will start vehicles with deeply discharged batteries, saving you time and nerves. Robust construction, an easy-to-read ammeter and built-in protection against pole swapping and overloading guarantee safe and trouble-free operation for years.
TELWIN AUTOTRONIC 25 BOOST is not just a charger – it’s an investment in continuity, reliability and professionalism. Choose proven Italian technology and join the ranks of professionals who trust the TELWIN brand. Provide your batteries with the best care, and yourself with comfort and confidence in any situation. ??️
Explore the Advanced Capabilities of TELWIN AUTOTRONIC 25 BOOST 230V 12V/24V
?? TRONIC Technology: Intelligent Care for Your Battery
The TRONIC system in the TELWIN AUTOTRONIC 25 BOOST charger is a guarantee of optimal and safe charging of any lead-acid battery, including modern WET and START-STOP (AGM/EFB) types. The technology involves continuous monitoring of the voltage at the battery terminals and automatic adjustment of charging parameters.
The main advantage of the TRONIC system is that it automatically interrupts the charging process when the battery reaches full charge. This prevents the phenomenon of overcharging, which is one of the main causes of shortened battery life. What’s more, the TRONIC system automatically resumes charging if it detects a drop in voltage, keeping the battery in a constant state of readiness. For the professional, this means the battery can be plugged in for an extended period of time without the risk of damage – ideal for seasonal vehicles or those awaiting repair. It’s a real convenience and reassurance that power will always be available.
?⚡ Instant Start with BOOST Function: Power When You Need It
The BOOST function of the AUTOTRONIC 25 BOOST is a real lifesaver in emergency situations. When the battery is too weak to start the engine on its own, it’s this function that delivers a powerful current boost (up to 150A) to help start cars, vans, and even light agricultural and construction machinery with both 12V and 24V systems.
Operation of the BOOST function is simple and intuitive. All you have to do is connect the charger, select the appropriate voltage and start mode. This is an invaluable support in automotive workshops, where response time is crucial, as well as for private users who want to avoid problems with starting a vehicle when least expected, such as during the cold winter. The speed and efficiency of the BOOST function minimize downtime and allow mobility to be restored immediately. It’s a reassurance that even with a capricious battery, the engine will start without a problem.
?️✅ Safety First: Protecting the Battery and the User
The TELWIN AUTOTRONIC 25 BOOST is designed for maximum safety of both the battery being charged, the vehicle’s electronics and the user himself. The device is equipped with a comprehensive safety system that protects against the most common operating errors and failures.
Key safeguards include terminal swap protection, which prevents damage to the charger and battery if the terminals are connected incorrectly – a special indication indicates the mistake. In addition, the charger has overload protection and terminal short-circuit protection. These features ensure that even in the event of unforeseen situations, the device will remain operational and the charging or starting process will be safe. For the professional, this means smooth operation and less risk of costly breakdowns of the customer’s equipment or vehicle.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Rectifier with starting function |
| Brand | TELWIN |
| Model | AUTOTRONIC 25 BOOST 230V 12V/24V |
| Catalog number | 807540 |
| EAN code | 8004897641423 |
| Supply voltage | 230V – 50/60Hz (1ph) |
| Power (charging / starting) | 0.5 kW / 3 kW |
| Charging voltage | 12V / 24V |
| Effective charging current (12V/24V) | 25 A |
| Medium charging current EN60335-2-29 (12V/24V) | 16 A |
| Maximum starting current (0V CC) | 150 A max |
| Inrush current (1V / C EN60335-2-29) | 100 A |
| Minimum battery capacity (12V charging) | 25 Ah |
| Maximum battery capacity (12V charging) | 300 Ah |
| Minimum battery capacity (24V charging) | 25 Ah |
| Maximum battery capacity (24V charging) | 180 Ah |
| Number of charging current adjustment stages | 2 |
| Supported battery types | WET (lead-acid), START-STOP (AGM, EFB) |
| Protections | Against pole swapping, against overload, against short-circuit at terminals |
| Indicators | Ammeter (indicates charging current) |
| Dimensions (L x H x W) | 200 x 260 x 175 mm |
| Weight | 6.8 kg |
Key Features and Benefits
- ? TRONIC Intelligent Charging: The advanced TRONIC system automatically monitors and controls the entire charging process. When the battery reaches the optimum level of charge, the charger automatically interrupts charging and then resumes when the voltage drops. For the professional, this means the assurance that the battery is always fully operational, protected from overcharging and sulfation, significantly extending its life and eliminating the need for constant monitoring.
- ? Powerful BOOST Starting Function: The built-in starting assistance function (BOOST) delivers a maximum starting current of up to 150A, allowing you to quickly start the engines of cars, vans and even farm machinery with discharged 12V or 24V batteries. This is a key time-saver and eliminates downtime for a workshop or farm, especially in sudden, unforeseen situations.
- ⚡ 12V/24V Voltage Versatility: The ability to work with both 12V and 24V batteries makes the AUTOTRONIC 25 BOOST an extremely versatile tool. It is ideal for servicing a wide range of vehicles – from motorcycles and cars to trucks, buses and construction machinery. For the professional, it’s one charger for multiple applications, optimizing cost and space in the workshop.
- ?️ Comprehensive Safeguards: The device is equipped with a number of protections to protect both the charger, battery and vehicle electronics. These include protection against pole swapping (with signaling), overloading and terminal short circuits. This makes working with the AUTOTRONIC 25 BOOST completely safe, minimizing the risk of equipment damage and costly repairs.
- ? Clear Charge Current Indicator: The built-in ammeter allows you to continuously monitor the current delivered to the battery during the charging process. This gives the user full control and information about charging progress and battery condition, which is especially useful for diagnosing problems with the charging system or the battery itself.
- ?? TELWIN Quality and Reliability: The TELWIN brand is synonymous with Italian engineering and superior workmanship. Robust design, use of proven components and years of experience in manufacturing equipment for professionals guarantee long and trouble-free operation of the charger, even in demanding workshop conditions. This is an investment that pays for itself through reliability and durability.
Product Application
- ? Charging and starting assistance for batteries in passenger cars (12V)
- ? Servicing of batteries in vans and light trucks (12V/24V)
- ? Support for batteries in agricultural and construction machinery (12V/24V)
- ?️ Charging batteries in boats and campers (12V)
- ?️ Essential equipment for professional mechanical workshops and ASO services
- ? Ideal for discerning hobbyists and do-it-yourselfers who care about their vehicles
Contents of the Kit
- ? TELWIN AUTOTRONIC 25 BOOST 230V 12V/24V Rectifier
- ? Cables with terminals for battery connection
- ? User Manual
Summary: TELWIN AUTOTRONIC 25 BOOST 230V 12V/24V – Your Best Investment.
TELWIN AUTOTRONIC 25 BOOST is your reliable partner in taking care of your vehicles’ energy. With TRONIC’s intelligent charging, powerful BOOST starting function and comprehensive support for 12V and 24V batteries, you gain confidence, efficiency and safety. It’s a professional tool that saves you time and protects your investment.
Don’t let a discharged battery derail your plans! Choose proven TELWIN quality and invest in AUTOTRONIC 25 BOOST today. Feel the difference that professional equipment makes! ?
Part number: 807540
EAN code: 8004897641423
