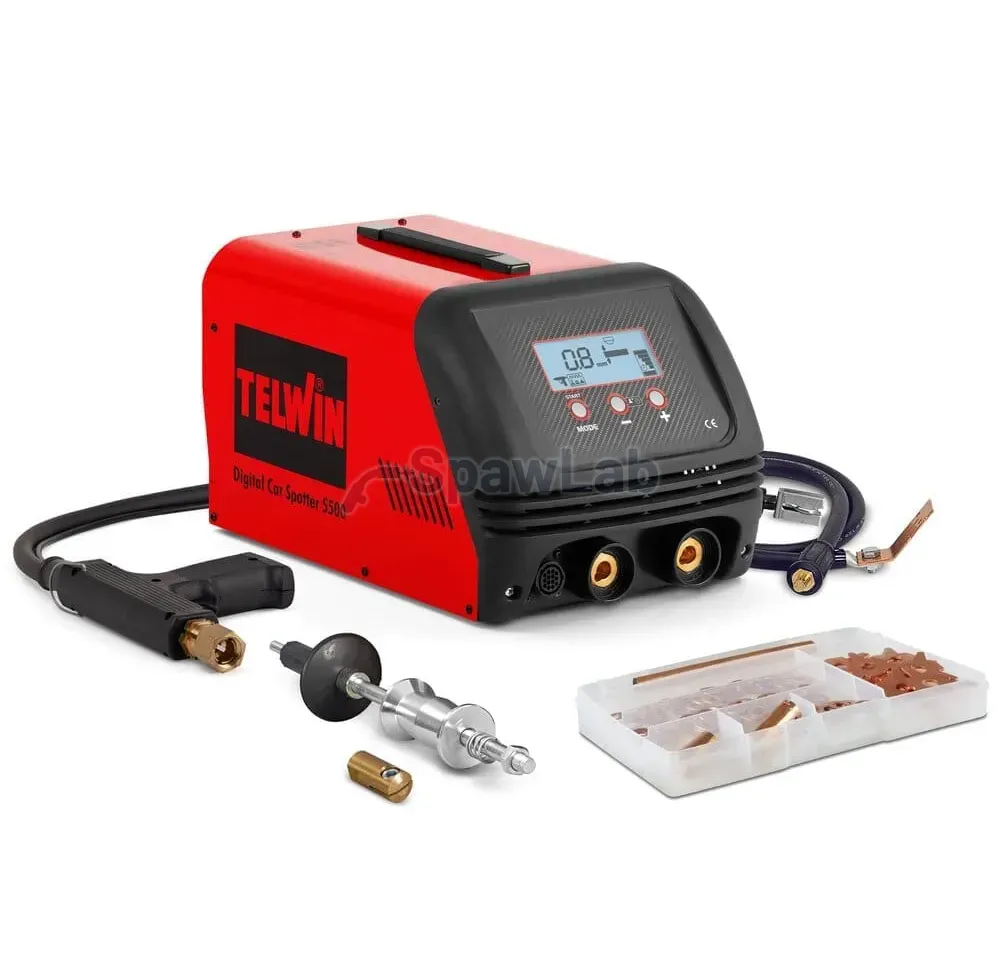

TELWIN DIGITAL CAR SPOTTER 5500: The Automatic Revolution in Body Repair! ??
Introducing the TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC – your new indispensable partner in any professional sheet metal workshop and for the most demanding vehicle restoration enthusiasts. This advanced, microprocessor-controlled device is designed to radically simplify and speed up the repair processes of steel sheets, while guaranteeing the highest quality and precision of each weld. Forget time-consuming and inefficient methods – with the DIGITAL CAR SPOTTER 5500 you’ll enter a new level of efficiency.
Every professional knows how crucial it is to have tools that not only do the job, but do it intelligently. The TELWIN DIGITAL CAR SPOTTER 5500 with AUTOMATIC technology is just such a solution. By automatically adjusting the welding parameters, the machine adjusts the settings itself depending on the chosen tool and material thickness. This means less trial and error, faster work and the assurance of optimal results every time. Focus on perfect sheet metal shaping and leave the rest to Telwin’s intelligent system.
The innovative LCD control panel is the heart of this device. Clear and intuitive, it allows you to instantly select programs and monitor the welding process. Whether you’re performing one-sided welding of nails or washers, working with corrugated wire, or need the bubble function to shrink stretched sheet metal, this spotter offers the versatility you need. Its compact design and relatively light weight make it mobile and easy to maneuver even in tight workshop spaces.
TELWIN DIGITAL CAR SPOTTER 5500 is not just a tool, it is an investment in the quality, speed and professionalism of your services. Raise the standards of your repairs, minimize the time it takes to complete orders, and gain the trust of your customers with perfectly executed auto body work. Join the ranks of professionals who have chosen Telwin smart solutions and feel the difference every day. ??️
Explore the Advanced Capabilities of TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC
?? Revolutionary Microprocessor Control: Precision and Repeatability at Your Fingertips
At the heart of the TELWIN DIGITAL CAR SPOTTER 5500 is an advanced microprocessor that constantly monitors and controls welding parameters in real time. Thanks to this system, the device automatically adjusts the energy and pulse time to the selected tool (e.g. washer, nail, carbon electrode) and, in some programs, to the thickness of the sheet to be processed. The operator only has to select the appropriate program on the easy-to-read LCD panel, and the rest is taken care of by intelligent electronics.
This technology eliminates the risk of errors due to incorrect settings, which is particularly valuable when working with thin and delicate body sheets. This ensures unmatched repeatability of each weld, which translates into high quality final repairs and minimizes the need for corrections. For the professional, this means faster turnaround, less wear and tear on consumables and greater customer satisfaction.
?⏱️ “AUTOMATIC” System and Gun with Automatic Start: Maximum Work Efficiency
The unique “AUTOMATIC” function, combined with an ergonomic gun equipped with an automatic welding start system, is the key to drastically increasing productivity. Welding starts automatically when the tip of the gun is pressed with sufficient force against the surface of the sheet metal. There is no need to press the button on the handle each time, significantly reducing operator fatigue and reducing the time needed to complete a series of welds, such as when attaching corrugated wire or numerous washers.
This intelligent system not only speeds up work, but also increases precision. The operator can fully focus on accurate tool positioning, with both hands free to manipulate the part or inertial hammer. For the body shop, this means being able to service more vehicles in less time, while maintaining the highest quality standards. This directly translates into profitability and comfort.
?️? Repair Versatility: From Minor Dents to Complex Reconstructions
The TELWIN DIGITAL CAR SPOTTER 5500 is not just a welding machine, but a complete body repair center in a compact package. With a wide range of compatible accessories (often included in the “STUDDER KIT” or available as an option), the device can handle a variety of tasks. It is possible to precisely trim triangular washers, round washers, straight washers and bits for pulling out dents with a slide hammer.
The device is ideal for fixing corrugated wire to repair larger, elongated damage, as well as for one-sided welding of nails, screws or rivets. A special carbon electrode enables effective bubbling, or thermal shrinking of stretched sheet metal, restoring its original shape. This versatility makes the DIGITAL CAR SPOTTER 5500 an indispensable tool that allows you to carry out comprehensive sheet metal repairs with a single, reliable device, optimizing your work space and equipment investment.
Technical Specifications
| Parameter | Value |
|---|---|
| Full Product Name | TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC |
| Catalog number | 823233 |
| EAN code | 8004897962610 |
| Supply voltage | 230V (50/60Hz) |
| Delayed network protection | 16 A |
| Rated power (at 50% duty cycle) | 2 kW |
| Maximum power | 10.5 kW |
| Maximum welding current (peak) | 3800 A |
| Idle output voltage (U0) | 5,6 V |
| Maximum thickness of single-sided welding (to sheet metal) | 1.5 + 1.5 mm (for double-sided welding, typically for spotters refers to single-sided attachment of components to sheet metal of comparable overall thickness) |
| Duty cycle (according to EN 60974-1 at 40°C) | 3% |
| Degrees of current regulation | Stepless (microprocessor control) |
| Protection class | IP22 |
| Power factor (cos φ) | 0,8 |
| Dimensions (L x W x H) | 390 x 260 x 225 mm |
| Weight of the device | 16 kg |
| Display | LCD, digital |
| Cooling system | Fan (forced air circulation) |
Key Features and Benefits
- ? Intelligent Microprocessor Control: The machine is equipped with an advanced microprocessor that precisely manages the entire welding process. This makes it possible to automatically adjust the parameters depending on the chosen tool and sheet thickness, guaranteeing optimal and reproducible results. For the professional, this means significant time savings, the elimination of human error and the certainty of obtaining strong, aesthetic welds without the risk of burning through material.
- ⚙️ “AUTOMATIC” Function with Automatic Gun Start: The innovative AUTOMATIC system, working with an automatic-start gun, initiates the welding process when the tool is pressed against the workpiece. This eliminates the need to press the button manually, which significantly speeds up work, especially for serial welding, and increases operator comfort. It’s convenience and efficiency you’ll appreciate on any job.
- ?️ Clear LCD Control Panel: A large, backlit LCD display and intuitive control panel provide easy access to all functions and programs. Graphical icons make it easy to select the right tool and mode, and the digital parameter readout allows full control of the process. Even a less experienced user will quickly master operation of the device, and a professional will appreciate the speed of setup.
- ?️ Versatile Sheet Metal Applications: the DIGITAL CAR SPOTTER 5500 is a truly multifunctional tool. It allows a wide range of work: one-sided welding of nails, rivets, screws, washers (triangular, round, straight), corrugated wire to pull out larger dents, and bubbling (shrinking) of sheet metal with a carbon electrode. It replaces many tools, optimizing work in the workshop.
- ? Robust Design and Mobility: The Telwin unit features Italian build quality, which guarantees its durability and reliability even under heavy use. Despite its robust design, the spotter is relatively lightweight and compact, making it easy to carry and maneuver within the work area.
- ✅ Optimized Duty Cycle and Energy Efficiency: With a duty cycle of 3% at maximum current and efficient power management, the unit is designed for intensive sheet metal tasks while minimizing electricity consumption. This translates into lower operating costs and longer component life.
Product Application
- ? Professional low carbon steel auto body repairs.
- ? Pulling out dents by welding pulling elements (washers, nails, corrugated wire).
- ? Single-sided welding of nails, rivets, dowels, screws and washers.
- ? Bubbling (thermal shrinking) of stretched sheet metal surfaces using a carbon electrode.
- ⚙️ Preparatory and finishing work in sheet metal work.
- ?️ Restoration of antique and specialty vehicles.
Contents of the Kit
- ? TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC welding machine (Cat. No. 823233)
- ? Gun with automatic welding start
- ? Ground wire with mounting lug
- ?️ Sliding hammer (drift) with washer hook
- ⭐ “STUDDER KIT” accessory kit including electrodes, pads of various types (e.g., triangular), corrugated wire electrode, bubble electrode (the exact contents of the accessory kit may vary depending on the supplier’s offer, it is recommended to check before purchase).
- ? Power cord
- ? Operating instructions and warranty card
Summary: TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC – Your Best Investment.
TELWIN DIGITAL CAR SPOTTER 5500 230V AUTOMATIC is synonymous with modernity, precision and efficiency in the field of auto body repair. Thanks to its intelligent microprocessor control and automatic start function, work becomes faster, easier and more efficient than ever before. Whether you run a professional workshop or are an enthusiast striving for perfection, this device will give you the tools to achieve masterful results. Invest in technology that works for you – choose the TELWIN DIGITAL CAR SPOTTER 5500 and raise the quality of your services to the highest level. Contact us today to learn more and place your order! ?
Part number: 823233
EAN code: 8004897962610
