Description
We are the official distributor of TELWIN brand. We guarantee the originality of the product, professional advice and service support.

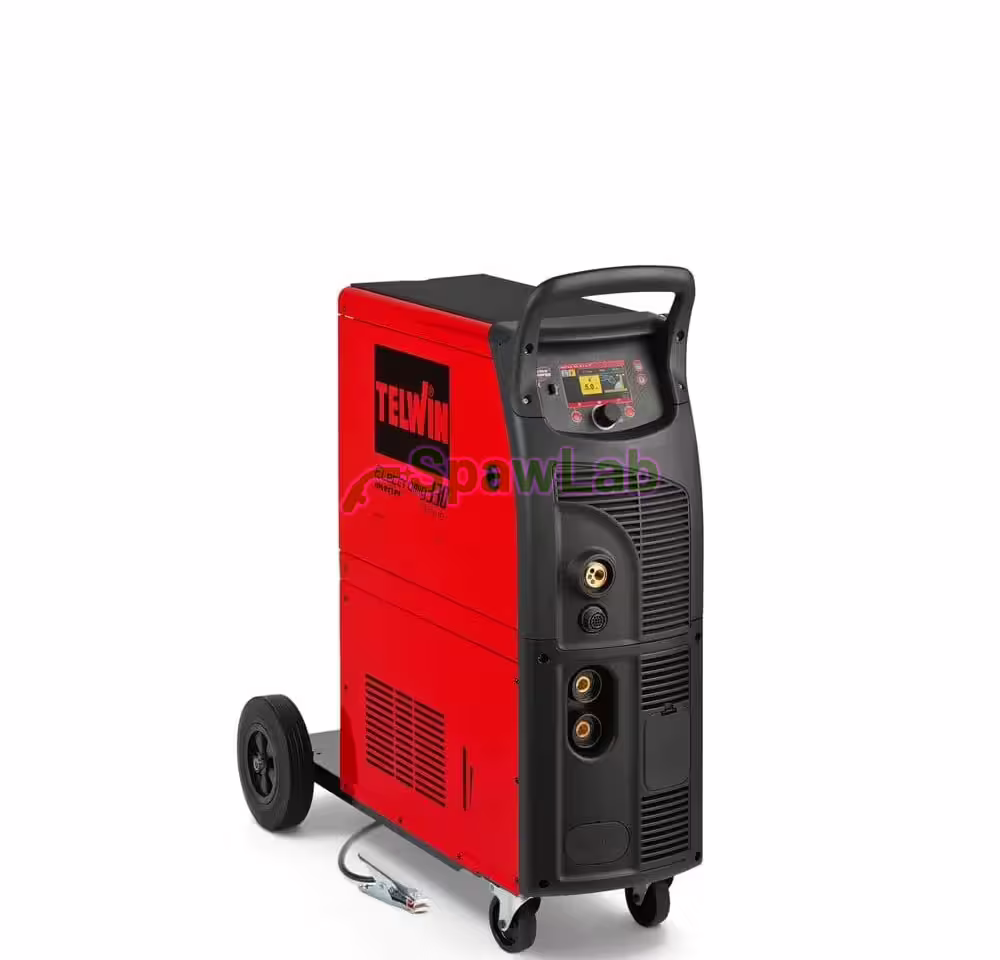

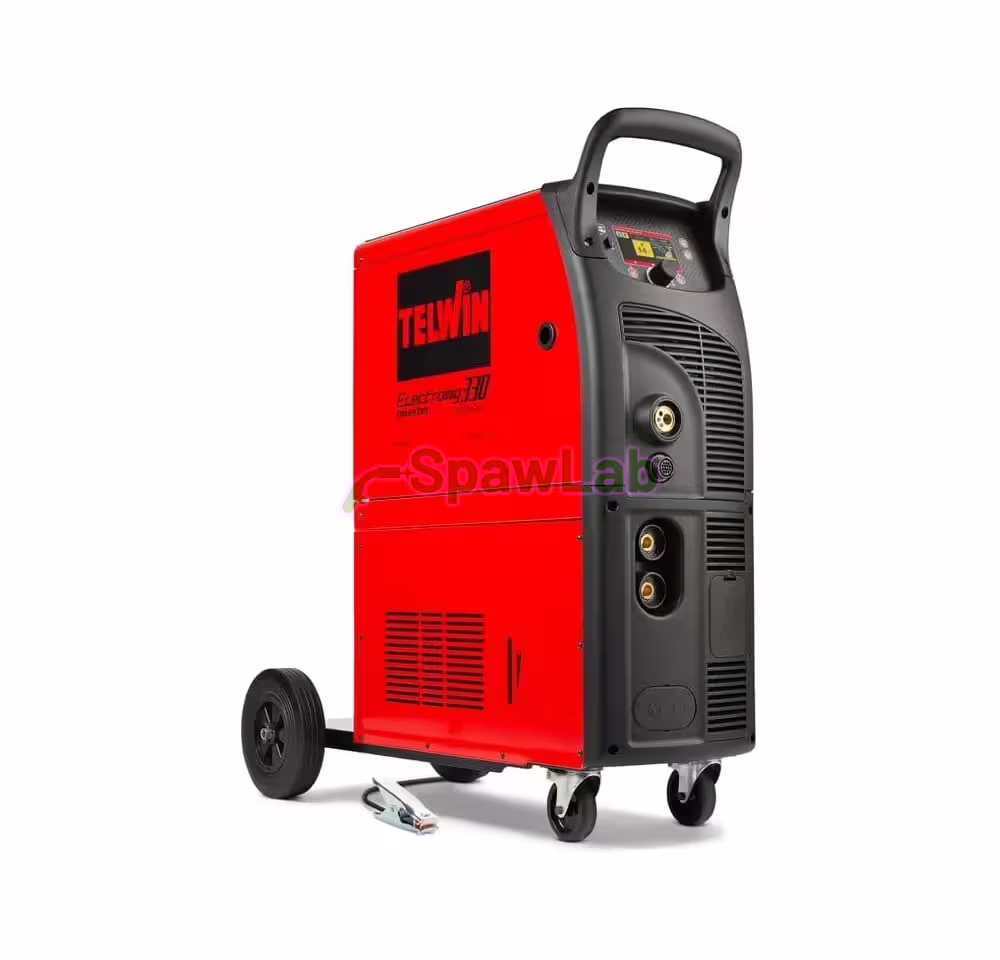

TELWIN ELECTROMIG 330 WAVE 400V BASE: Intelligent Welding Power for the Professionals of the Future! ?✨
Introducing the TELWIN ELECTROMIG 330 WAVE 400V BASE – a revolutionary semi-automatic welding machine that redefines the standards of performance, precision and versatility in professional welding. Designed for the most demanding industrial applications, this synergistic MIG/MAG inverter is your key to achieving unparalleled weld quality, optimizing processes and raising productivity to unprecedented levels. Imagine a machine that not only adapts to your skills, but actively supports you in even the most complex welding projects, from heavy steel structures to precision work on thin aluminum sheets.
At the heart of the ELECTROMIG 330 WAVE is the innovative WAVE OS, which transforms the way you interact with the welder. With its intuitive TFT color display, parameter setup becomes child’s play, even for complex processes. WAVE OS offers a wide range of advanced synergy programs for different materials and shielding gases, as well as the ability to create and save your own personalized settings. What’s more, monitoring and recording functions for welding data (via USB) provide full traceability and quality control, crucial for certified production complying with EN 1090, for example.
Forget about compromises. The TELWIN ELECTROMIG 330 WAVE is not just a MIG/MAG welder. It’s a versatile welding center that’s ready for MMA (shielded electrode) and TIG DC-LIFT methods, providing the flexibility needed in dynamic production environments. Advanced arc modes, such as pulse welding (PULSE, PoP – Pulse on Pulse), ATC (Advanced Thermal Control) technologies for thin materials, or specialized programs for root-over welding (ROOT-MIG) and deep-draw welding (DEEP-MIG), open up new possibilities, guaranteeing excellent results on steel, stainless steel, aluminum, galvanized sheets and many other materials.
When you invest in the TELWIN ELECTROMIG 330 WAVE, you are investing in the future of your workshop. It’s a machine built to meet the challenges of today’s industry, offering not only raw power, but more importantly, intelligent support that translates into real savings in time, materials and energy. Feel the difference that tomorrow’s technology brings, available today. ??️
Explore the Advanced Capabilities of TELWIN ELECTROMIG 330 WAVE 400V BASE
??? WAVE OS: Your Intelligent Welding Assistant
WAVE OS is a true revolution in welding machine interaction. Forget complicated tables and tedious parameter setting. The large color TFT display guides you step-by-step, allowing you to select material, thickness, wire type and shielding gas graphically and intuitively. Synergistic control automatically selects the optimal parameters, but WAVE OS goes a step further, allowing you to fine-tune them and save them as personalized programs (up to 99 custom settings!).
With WAVE OS, you have access to advanced features such as adjustment of arc dynamics, wire burn-back time, and approach speed. The system also supports real-time parameter monitoring and the recording of welding data on a USB drive. This is an invaluable tool for companies implementing quality management systems, such as ISO 3834, or needing full process documentation according to EN 1090.
?✨ Pulsed Welding and Special Arc Processes: Precision at the Highest Level
TELWIN ELECTROMIG 330 WAVE takes welding quality to a new level with advanced arc processes. Pulsed (PULSE) welding is ideal for joining thin sheet metal and heat-sensitive materials such as aluminum and stainless steel. It provides excellent control over the weld pool, minimizes spatter and guarantees an aesthetically pleasing, smooth weld face. The PoP (Pulse on Pulse) mode is a double pulse that further improves the appearance of the weld, giving it a distinctive, scaly shape, while reducing line energy.
The machine also offers specialized modes such as ATC (Advanced Thermal Control), which intelligently modulates arc energy to prevent overheating and deformation of thin materials. For demanding applications, there are ROOT-MIG (optimal welding of boundary layers with excellent fusion) and DEEP-MIG (for deep fusion and high productivity when welding thicker sections) programs. These technologies allow professionals to achieve results previously unattainable, increasing the quality and efficiency of their work.
?? Material Versatility and Readiness for Industry 4.0
The ELECTROMIG 330 WAVE is a true multitalent when it comes to welded materials. In addition to standard carbon steel, the device can perfectly handle stainless steels (inox), aluminum and its alloys (AlSi, AlMg), galvanized sheets (with dedicated programs to minimize zinc burning), and allows soldering with CuSi3 and CuAl8 wires, ideal for joining sheets with protective coatings without damaging them, which is crucial in the automotive industry.
The device is prepared for the challenges of modern industry. The integrated USB port allows not only to save welding data, but also to update the WAVE OS software, so your welder will always have the latest features and synergy programs. Optional connectivity to Welding Data Management (WDM) systems or integration with welding robots (via a suitable interface) paves the way for automation and full control of production processes in the spirit of Industry 4.0.
Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Name | TELWIN ELECTROMIG 330 WAVE 400V BASE |
| Catalog number | 816064 |
| EAN code | 8004897973425 |
| Power supply | Three-phase 400V AC – 50/60 Hz |
| MIG/MAG welding current adjustment range | 20 – 300 A |
| MMA welding current adjustment range | 10 – 300 A |
| TIG DC-LIFT welding current adjustment range | 10 – 300 A |
| MIG/MAG duty cycle (EN60974-1 @ 40°C) | |
| Maximum welding current (MIG/MAG) | 300 A |
| Idle state voltage | 70 V |
| Rated power (60% / max) | 6 kW / 9.5 kW |
| Power factor (cos φ) | 0.9 |
| Degree of protection | IP23 |
| Steel wire diameter | 0.6 – 1.2 mm |
| Stainless wire diameter | 0.8 – 1.2 mm |
| Aluminum wire diameter (Mg/Si) | 0.8 – 1.2 mm |
| Diameter of core wire (FLUX) | 0.8 – 1.2 mm |
| Wire diameter for soldering (CuSi3, CuAl8) | 0.8 – 1.2 mm |
| Maximum wire spool size | 15 kg (Ø 300mm) |
| Number of feeder rolls | 4 (optional) |
| Dimensions (L x H x W) | 845 x 450 x 1030 mm (estimated based on WAVE series) |
| Weight | approx. 42 kg (estimated based on WAVE series) |
| Operating system | WAVE OS with color TFT display |
| Technologies | Inverter, Synergy, Pulsed (PULSE, PoP) welding, ATC, Root-MIG, Deep-MIG, VRD, Arc Force, Hot Start, Anti-Stick |
Key Features and Benefits
- ? WAVE OS Intelligent Operating System with TFT Color Display: Simplifies setup with intuitive interface and parameter visualization. Advanced synergy programs (more than 40 predefined) automatically select the optimal settings for the selected material, wire and gas, significantly reducing preparation time. For the professional, this means a faster start, less risk of errors, repeatability of welds, and the ability to personalize and save your own programs (up to 99), which is invaluable for diverse orders.
- ? Versatility of Welding Processes (MIG/MAG, PULSE/PoP MIG, MMA, TIG DC-LIFT): One machine replaces several, offering a full range of welding methods. From standard MIG/MAG, to advanced pulse welding ideal for aluminum and stainless steel, to shielded electrode welding (MMA) and precision TIG DC-LIFT welding. This flexibility allows for a wide range of tasks, from mass production to specialized repairs, minimizing the need to invest in additional equipment.
- ⚙️ Advanced Arc Modes and Special Technologies (ATC, Root-MIG, Deep-MIG): The ATC (Advanced Thermal Control) function provides superior control of linear energy, minimizing thermal distortion when welding thin materials. The Root-MIG and Deep-MIG programs optimize the welding of boundary layers and ensure deeper fusion while maintaining excellent quality. For the welder, this means easier quality welds in difficult conditions, reduced stresses and better penetration, which is critical in responsible designs.
- ? Monitoring, Recording and Managing Welding Data: An integrated USB port and WAVE OS enable the recording of parameters for each welding cycle. This data can be archived, analyzed and used to ensure full process traceability, which is essential in industries requiring certification (e.g. EN 1090, ISO 3834). It is not only a quality control, but also a tool for optimization and standardization of production.
- ? Robust Design and 400V Industrial Performance: The 400V three-phase power supply guarantees stable operation and high power output (up to 300A), necessary for welding thicker materials and continuous operation in industrial conditions. The sturdy housing and high-quality components ensure a long service life of the device, even under intensive use. Professionals gain a reliable tool ready to tackle the toughest tasks, ensuring continuous production.
- ? Synergistic Control and Ease of Adaptation: More than 40 advanced synergistic programs for steel, stainless steel, aluminum, galvanized materials and brazing. Ability to work with a variety of handle types, including Push-Pull and Spool Gun (optional), making it much easier to weld aluminum over longer distances. This adaptability reduces changeover time and allows quick adaptation to the specific task, increasing efficiency.
Product Application
- ? Industrial and mass production (e.g., steel structures, agricultural machinery, metal components)
- ?️ Locksmith and mechanical workshops (medium and heavy welding work)
- ? Automotive repairs and modifications (welding of bodies, frames, exhaust systems, soldering)
- ?️ Construction and assembly of structures (including work requiring certification)
- ? Maintenance and reconditioning of machine parts (surfacing, joining of different grades of steel)
- ? Shipbuilding and offshore industry (welding parts of ships, platforms)
- ? Welding of aluminum and its alloys (tanks, frames, light structures)
- ✨ Work on stainless steel (balustrades, food tanks, chemical installations)
Contents of the Kit
- (BASE version includes as standard:)
- ? TELWIN semi-automatic welding machine ELECTROMIG 330 WAVE 400V (816064)
- ?️ Ground wire with clamp
- ? User Manual
- (Note: MIG/MAG welding torch, reducer, welding wire and other accessories are usually sold separately for the BASE version, allowing you to configure your workstation individually)
Summary: TELWIN ELECTROMIG 330 WAVE 400V BASE – Your Best Investment.
TELWIN ELECTROMIG 330 WAVE 400V BASE is more than a welder – it’s your partner in the pursuit of welding perfection. With the intelligent WAVE OS, advanced arc processes and unmatched versatility, you gain complete control over every weld, save time and materials, and elevate the quality of your work to an elite level. Don’t wait for the competition to overtake you. Invest in the technology that drives growth and see how ELECTROMIG 330 WAVE will revolutionize your shop. Contact us today to learn more and choose the perfect configuration for your needs! ?
Part number: 816064
EAN code: 8004897973425
