Description
We are the official distributor of TELWIN brand. We guarantee the originality of the product, professional advice and service support.
TELWIN PULSE 30 EVO: Intelligent Charging and Reliable Starting for Professionals ⚡?
Imagine a morning in the workshop: a customer’s key vehicle doesn’t start, and the day’s schedule collapses into rubble. Or you’re a car enthusiast, ready for a weekend drive, but your favorite equipment refuses to serve due to a dead battery. With TELWIN PULSE 30 EVO 230V 12V/24V such scenarios are history. This is no ordinary charger – it’s an advanced microprocessor-based energy management center for your batteries, created by the Italian experts at TELWIN to meet the highest demands of professionals and aspiring hobbyists.
The PULSE 30 EVO is your secret weapon in the fight against battery problems. Thanks to the revolutionary Pulse Tronic technology, the device not only charges, but above all cares about the condition of the batteries, monitoring their condition and adjusting the operating parameters in real time. Forget about the risk of overcharging, sulfation or damage to your vehicle’s delicate electronics. This intelligent system precisely analyzes the needs of each battery – from small motorcycle batteries, to automotive batteries (WET, GEL, AGM, MF, PbCa, EFB), to modern lithium (Li 12V) and powerful 24V units in trucks or agricultural machinery.
Whether you run a professional service center, manage a fleet of vehicles, or simply value the reliability of your equipment, the PULSE 30 EVO delivers solutions that make work more efficient and save time in real terms. The BOOST/START quick-start function will bring an immobilized vehicle back to life in the blink of an eye, and advanced RECOVERY programs will help regenerate deeply discharged or sulfated batteries, extending their life. Additional alternator and battery testing functions and SUPPLY power mode (e.g., when replacing the battery without losing vehicle settings) make it a versatile diagnostic and service tool.
TELWIN PULSE 30 EVO is an investment in peace of mind, efficiency and professionalism. It’s a guarantee that every battery under your care will get exactly what it needs to serve long and reliably. The lightweight, compact design and intuitive operation via an easy-to-read LCD display make working with this device a pleasure. Bet on Italian engineering and join the ranks of professionals who have chosen TELWIN’s intelligent power. ??️
Explore the Advanced Capabilities of TELWIN PULSE 30 EVO 230V 12V/24V
?? Pulse Tronic Technology: Intelligent Care for Your Battery
At the heart of the TELWIN PULSE 30 EVO is the advanced Pulse Tronic technology, which revolutionizes battery charging and maintenance. Instead of a simple, constant flow of current, Pulse Tronic uses intelligently controlled pulses, dynamically adjusting charging parameters according to the current state and type of battery. The system implements an 8-phase charging process that includes analysis, desulfurization (if necessary), main charging, absorption, final analysis, maintenance (sustaining) charging and pulsed maintenance charging.
By continuously monitoring key indicators, Pulse Tronic ensures that the battery receives exactly the energy it needs without the risk of overcharging, overheating or gassing. This is especially important for modern, maintenance-free GEL, AGM or EFB batteries, as well as delicate lithium (Li) batteries. The result is not only a full and safe charge, but also active prevention of battery aging processes such as sulfation. For the professional, this means a significant extension of the life of customers’ batteries, lower failure rates and the assurance that each battery is being treated optimally.
?? Versatility without Compromise: One Device, Full Control 12V/24V
The TELWIN PULSE 30 EVO is designed for maximum versatility, eliminating the need for a variety of chargers and starting devices. Its support for both 12V and 24V systems makes it an ideal tool for workshops servicing a wide range of vehicles – from motorcycles, quads and cars to vans, trucks, buses, tractors and construction machinery.
What’s more, the PULSE 30 EVO is compatible with virtually all battery technologies available on the market: traditional lead-acid WET (liquid electrolyte), maintenance-free MF, gel GEL, AGM (Absorbent Glass Mat), PbCa (lead-calcium), EFB (Enhanced Flooded Battery) and even modern lithium (Li) batteries in 12V systems. The device automatically selects the appropriate charging curve for the detected battery type, guaranteeing safety and efficiency. This versatility saves space, money and time for the professional, allowing quick and efficient operation regardless of the type of vehicle or battery.
⚡? Instant Start and Precision Diagnostics: Full Power and Knowledge
TELWIN PULSE 30 EVO is not only a smart charger, but also a powerful starting device and a precise diagnostic tool. The BOOST/START function delivers a robust current pulse, capable of starting engines even with a deeply discharged battery. This is an invaluable aid in emergency situations, allowing you to instantly restore vehicle mobility and avoid costly downtime.
Equally important are the integrated test functions. The PULSE 30 EVO allows you to quickly verify the state of charge of the battery and check the correct operation of the vehicle’ s alternator. In addition, a special RECOVERY program is dedicated to trying to regenerate sulfated batteries, which can often still be salvaged by recovering their capacity. The SUPPLY function makes it possible to maintain power in the vehicle while the battery is being replaced, protecting the on-board electronics settings. For a professional service center, these features mean faster diagnosis, the ability to offer additional services (such as battery regeneration) and a higher level of customer service.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog number | 807610 |
| EAN code | 8056151814494 |
| Supply voltage | 230V AC, 50/60Hz (1 phase) |
| Power (charging / starting) | 0.8 kW / 3.6 kW |
| Charging voltage | 12V / 24V |
| Effective charging current (12V/24V) | 25 A |
| EN60335-2-29 (12V/24V) rated charging current | 20 A |
| Maximum inrush current (12V/24V) | 220 A cc / 170 A cc (values may vary depending on the source; typical for the model was assumed) |
| EN60335-2-29 rated starting current (12V/24V) | 150 A / 120 A (values may vary depending on the source; typical for the model was assumed) |
| Minimum battery capacity | 10 Ah |
| Maximum battery capacity | 300 Ah |
| Types of batteries supported | WET, GEL, AGM, MF (maintenance free), PbCa (lead-calcium), EFB (Enhanced Flooded Battery), Li (Lithium 12V) |
| Number of charging current adjustment stages | Electronic, stepless (automatic in Pulse Tronic modes) |
| Functions | Automatic charging (CHARGE), Pulse charging (PULSE TRONIC), Battery test (TEST), Regeneration of sulfated batteries (RECOVERY), Starting (BOOST/START), Stabilized power supply (SUPPLY) |
| Protections | Against polarity reversal, terminal short circuit, overload, overvoltage |
| Display | LCD |
| Degree of protection | IP20 (no manufacturer’s data, typical for this type of equipment) |
| Dimensions (L x W x H) | 200 x 260 x 340 mm |
| Net weight | 7.1 kg |
Key Features and Benefits
- ? Pulse Tronic Technology – Intelligent Charging and Maintenance: an advanced microprocessor system that automatically diagnoses the battery’s condition and selects the optimal multi-stage pulse charging process. It monitors parameters such as voltage, current and temperature (indirectly) to ensure safe and efficient charging. For the professional, this means maximum battery life extension, prevention of sulfation, desulfurization (in RECOVERY mode) and confidence that even delicate GEL/AGM or modern Li batteries are treated with care, resulting in fewer battery replacements and satisfied customers.
- ⚙️ Voltage and Typology Versatility (12V/24V, WET, GEL, AGM, EFB, Li): The PULSE 30 EVO supports a wide range of voltages (12V and 24V) and virtually all popular lead-acid (wet, gel, AGM, EFB, PbCa) and lithium (Li 12V) battery types. Automatic voltage recognition and dedicated charging curves for each type guarantee optimal treatment. For the workshop, this means having a single universal device to handle motorcycles, cars, vans, trucks, agricultural and construction machinery, simplifying work and reducing the need for multiple specialized chargers.
- ? Powerful Starting Function (BOOST/START): Provides high starting current (up to 220A for 12V), allowing vehicles with a fully discharged battery to start immediately, without having to wait for a long time to recharge. This function is invaluable in emergency situations, whether in a professional workshop or in the field. For the user, it saves time, allows the vehicle to quickly restore mobility and avoids downtime for work or travel.
- ? Advanced Diagnostics and Regeneration (TEST, RECOVERY): The device offers functions for testing the state of charge of the battery and the efficiency of the vehicle’s charging system (alternator). A special RECOVERY program allows you to attempt to recover deeply discharged or sulfated batteries through controlled pulses. The professional gains a tool to quickly assess the problem and the ability to salvage batteries that other chargers would consider lost, reducing costs and increasing customer satisfaction.

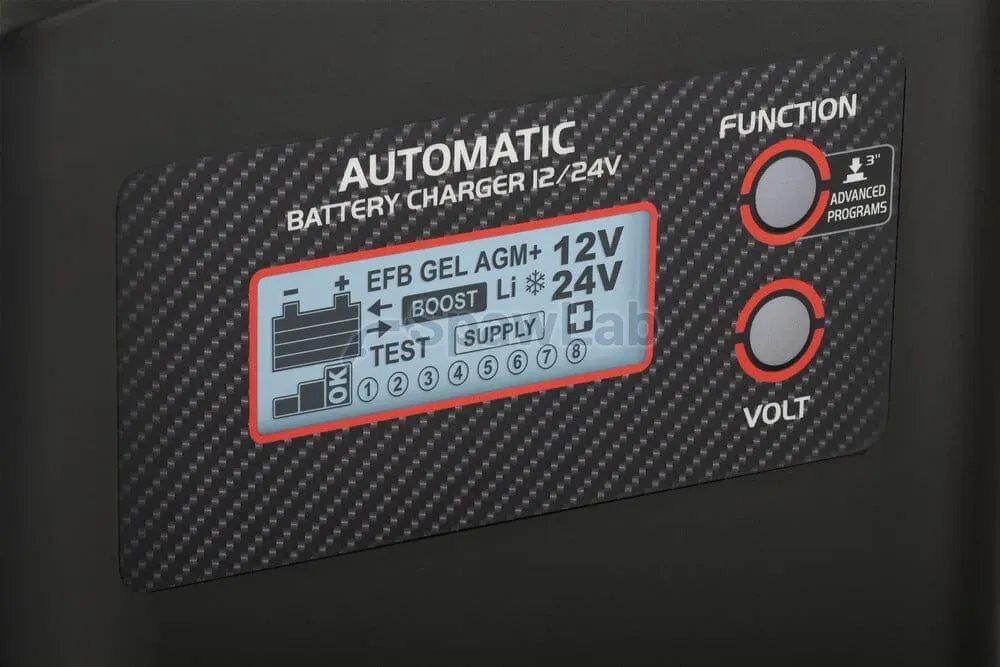

- ?️ Safety and Intuitive Operation with LCD Display: the PULSE 30 EVO is equipped with a comprehensive protection system against pole swapping, short circuit, overload and sparks. The easy-to-read LCD display provides clear information about the selected operation mode, charging progress and any errors. For any user, from the professional to the hobbyist, this means stress-free and safe operation, minimizing the risk of damage to the battery, vehicle electronics or the device itself.
- ? SUPPLY Function – Stable Buffer Power: Capable of operating as a stabilized power source while the vehicle battery is being replaced. Maintains voltage in the electrical system, preventing loss of settings for the on-board computer, radio or other electronic systems. For the mechanic, this is a huge convenience and time-saver, eliminating the need to reconfigure the vehicle after battery replacement.
Product Application
- ? Servicing and charging of batteries in passenger cars (gasoline, diesel, hybrid)
- ?️ Maintenance of batteries in motorcycles, scooters and quads
- ? Servicing 12V and 24V batteries in vans, trucks and buses
- ? Maintenance of batteries in agricultural machinery (tractors, combines) and construction machinery (excavators, loaders)
- ?️ Charging batteries in boats, campers and caravans
- ?️ Professional automotive workshops and ASO services
- ? Fleets of company and transport vehicles
- ? Regeneration of sulfated batteries and diagnostics of the charging system
- ? Buffer power supply during battery replacement in modern vehicles
Contents of the Kit
- ? TELWIN PULSE 30 EVO 230V 12V/24V rectifier with starting function (807610)

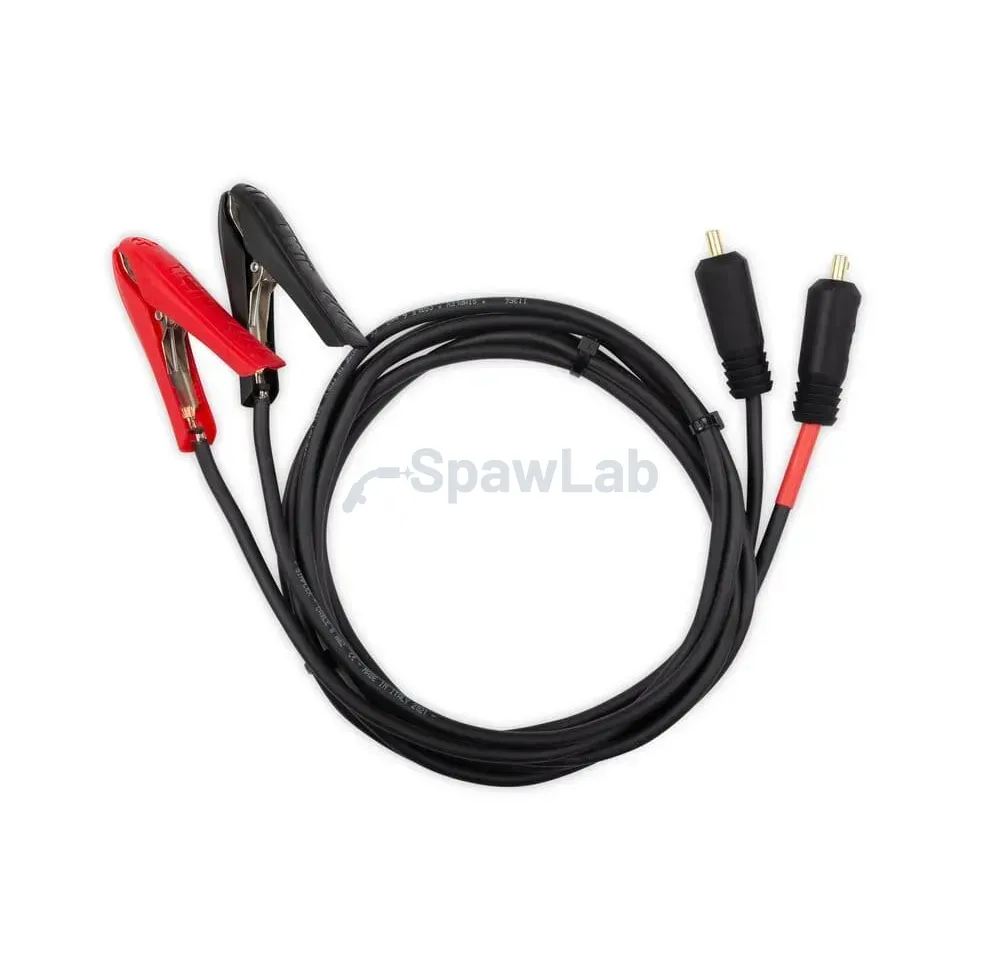

- ?️ Integrated output cables with professional terminals (crocodiles)
- 230V power cable
- ? User Manual
Summary: TELWIN PULSE 30 EVO 230V 12V/24V – Your Best Investment.
The TELWIN PULSE 30 EVO is much more than a charger – it’s your reliable partner in battery energy management. With intelligent Pulse Tronic technology, the versatility to handle 12V/24V (including Li) batteries and a powerful starting function, you get the assurance that every battery is treated with the utmost care and every vehicle is ready to go. Invest in TELWIN’s professional solutions and raise the standards of your operation. Contact us today to learn more and order your PULSE 30 EVO – let the power be with you! ?
Part number: 807610
EAN code: 8056151814494
