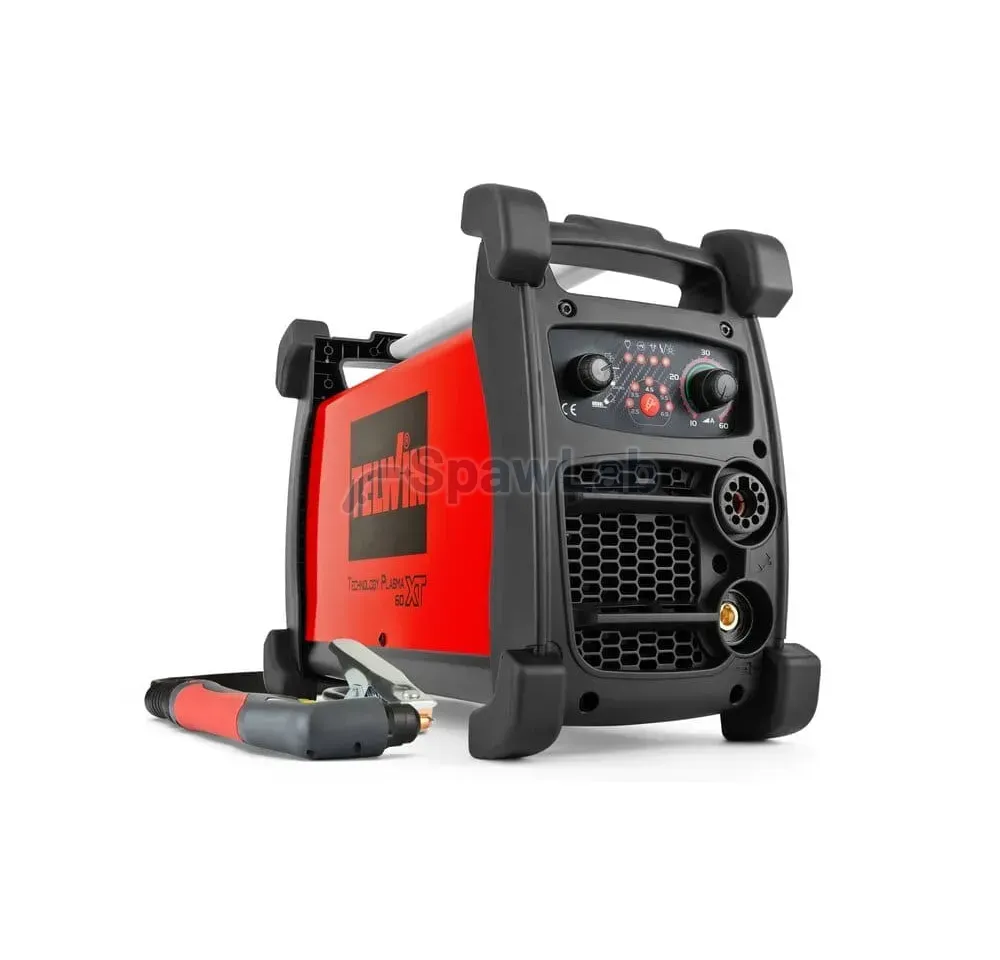

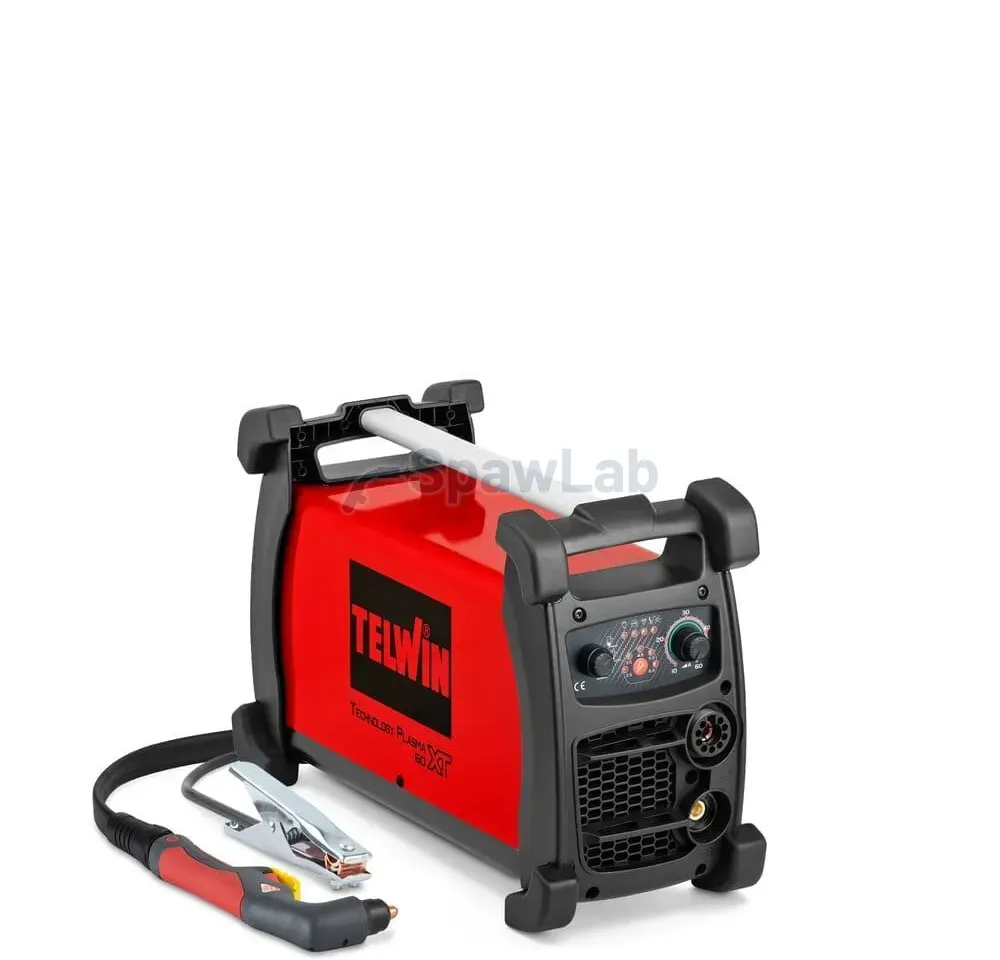

TELWIN TECHNOLOGY PLASMA 60 XT 230V: Professional Power and Precision Plasma Cutting for Demanding Jobs! ✨?
Discover a new definition of productivity and precision in metal cutting with the TELWIN TECHNOLOGY PLASMA 60 XT 230V plasma cutter. Designed by Italian engineers, this machine is the answer to the needs of the most demanding professionals and advanced hobbyists who do not accept compromises in the quality and efficiency of their work. If you’re struggling with time-consuming cutting of thick materials, imperfect edges that require further processing, or the mobility limitations of heavy equipment, PLASMA 60 XT is the solution that will revolutionize your workshop.
Imagine being able to instantly cut through structural steel, stainless steel, aluminum or copper with surgical precision, leaving clean, smooth edges ready for the next steps in your work, minimizing the need for grinding. With 60 Amperes of power and 230V single-phase power, the TECHNOLOGY PLASMA 60 XT combines powerful cutting performance for materials of considerable thickness with extreme portability and ease of connection in almost any work environment – from the stationary workshop to dynamic tasks in the field.
Synonymous with innovation and reliability in the welding industry, TELWIN has equipped the PLASMA 60 XT with a range of advanced technologies that not only make your work easier, but also guarantee the highest quality and safety. From the intelligent arc ignition system, to efficient cooling, to comprehensive safety features, every detail has been carefully considered to ensure your comfort, confidence and satisfaction with a perfectly executed task. It’s not just a tool, it’s your partner in realizing your boldest projects to save time, reduce costs and raise the standards of your services.
Whether you work in construction, automotive, manufacturing or create unique works of metal, TELWIN TECHNOLOGY PLASMA 60 XT will deliver the power, precision and reliability you can rely on every day. Invest in technology that works for you, transforming challenges into opportunities and taking your productivity to the next level. ??️
Explore the Advanced Capabilities of TELWIN TECHNOLOGY PLASMA 60 XT 230V
⚙️? Telwin Plasma Cutting Technology: Cleanliness, Speed and Precision Without Compromise
The TELWIN TECHNOLOGY PLASMA 60 XT cutting machine uses advanced plasma cutting technology, which involves melting and ejecting material using a highly concentrated, ionized stream of gas (plasma) at very high temperatures. The key element here is a precision-engineered plasma torch and an intelligent arc control system, which together provide an extremely narrow heat-affected zone. This results in minimal deformation of the material being cut, which is particularly important when working with thin sheet metal or temperature-sensitive materials.
Thanks to the high energy of the plasma arc, the cutting process is significantly faster compared to traditional mechanical methods such as disc or saw cutting. What’s more, the edges obtained with TECHNOLOGY PLASMA 60 XT are exceptionally smooth and clean, often eliminating or significantly reducing the need for additional finishing, such as grinding or deburring. This directly translates into savings in time and abrasives, as well as higher aesthetics of the final product.
The non-contact pilot arc ignition system (HF Pilot Arc) is another distinguishing feature that increases comfort and efficiency. It makes it possible to start cutting without physical contact between the nozzle and the material, which is invaluable when cutting materials covered with paint, rust, or when cutting mesh and perforated sheets, where the main arc must be stably supported. For the professional, this means easier work, longer nozzle and electrode life, and reliable cutting in all conditions.
??⚡ Intelligent Control and Work Safety: Your Reliable Partner

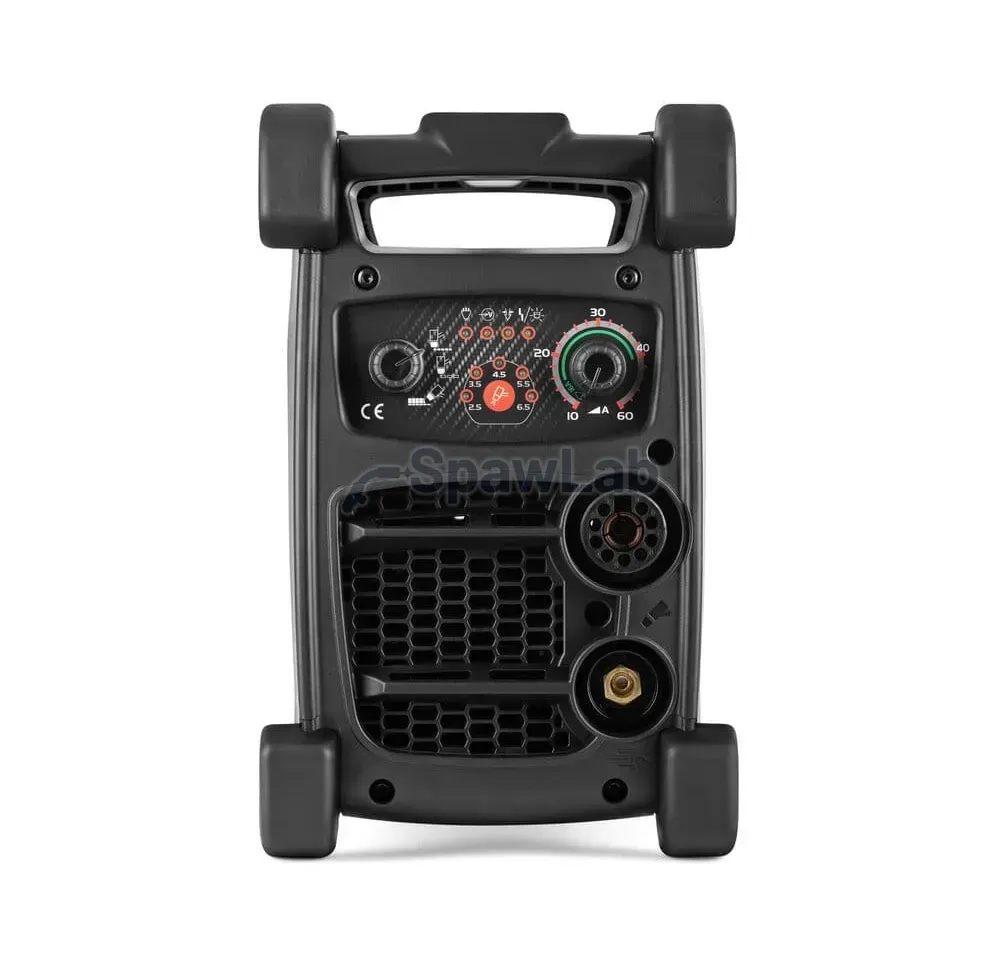

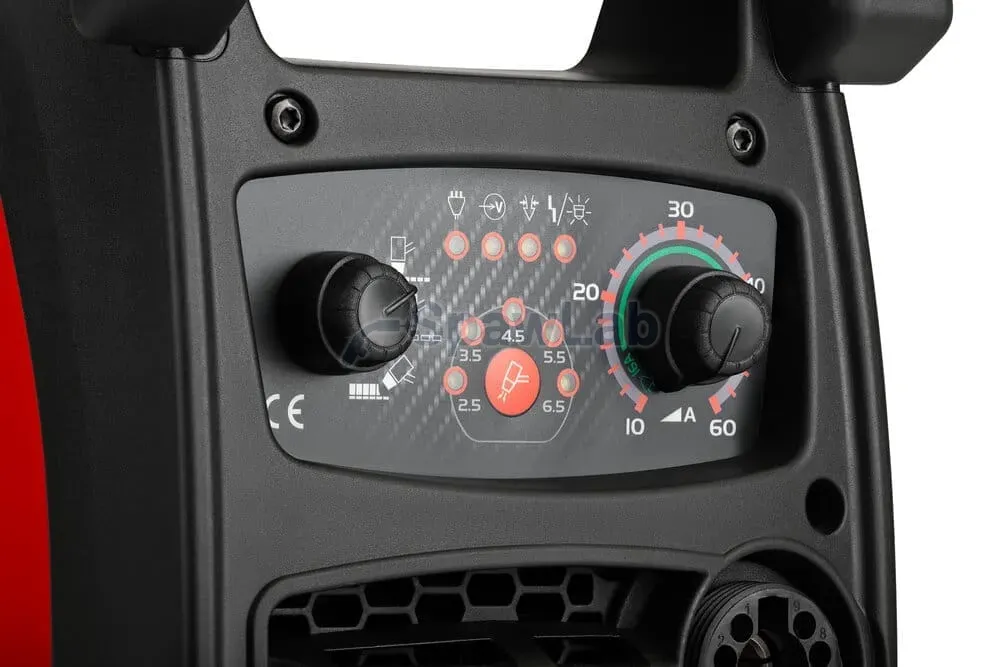

The TELWIN TECHNOLOGY PLASMA 60 XT is designed for maximum ease of use and user safety. The intuitive control panel allows the user to instantly set key cutting parameters, such as current intensity, which is precisely adjusted via a dial and displayed on an easy-to-read digital indicator. The device also features an air pressure indicator and a safety trip indication, allowing the operator to monitor the cutter’s operating status in real time.
A key aspect is the integrated diagnostic and protection system. The machine is protected against the effects of power supply voltage fluctuations (overvoltage and undervoltage protection), overheating (thermostatic protection) and overload. If an abnormality is detected, the machine automatically stops operation, signaling the problem and protecting its internal components. For the professional, this means peace of mind and confidence that the investment is protected and work is carried out under safe conditions.
In addition, the automatic post-flow torch cooling function contributes to extending the life of torch consumable parts, such as the nozzle and electrode. By continuing the air flow for a specified period of time after the arc is extinguished, the torch is cooled efficiently, minimizing the risk of damage and reducing operating costs. These are details that demonstrate the refinement of the design and concern for long-term user satisfaction.
??️ Mobility and 230V Performance: Cut Wherever You Need It
One of the biggest advantages of the TELWIN TECHNOLOGY PLASMA 60 XT cutting machine is its exceptional mobility combined with high power. The 230V single-phase power supply means that the device can be used virtually anywhere a standard electrical outlet is available – from professional workshops to construction sites or field service interventions. This eliminates the need for a three-phase installation, which can often be a barrier for smaller companies or for traveling work.
Despite its ability to cut materials as thick as 20-25 mm, the PLASMA 60 XT features compact dimensions and relatively light weight (estimated at about 10.9 kg). This, combined with the ergonomic transport handle, makes it extremely easy to carry and maneuver. The professional will appreciate the ability to quickly move the device between workstations or take it directly to the site of construction installation or repair.

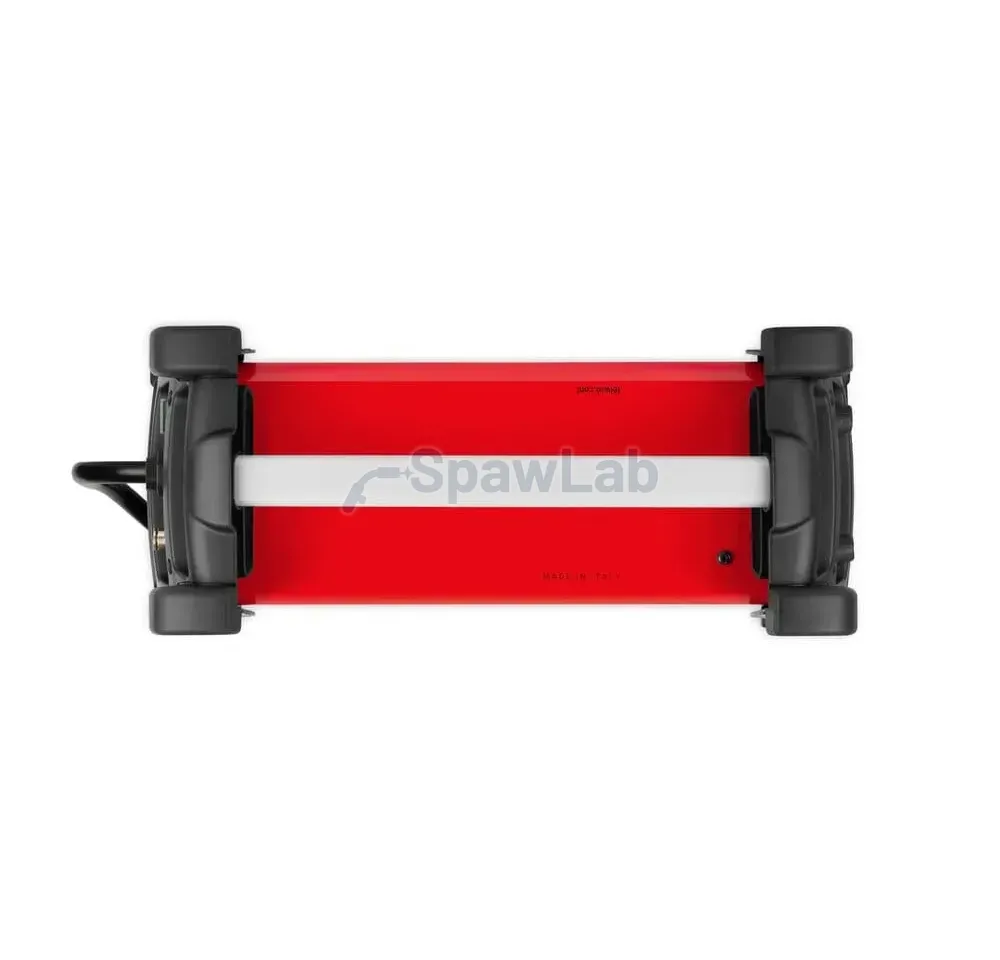

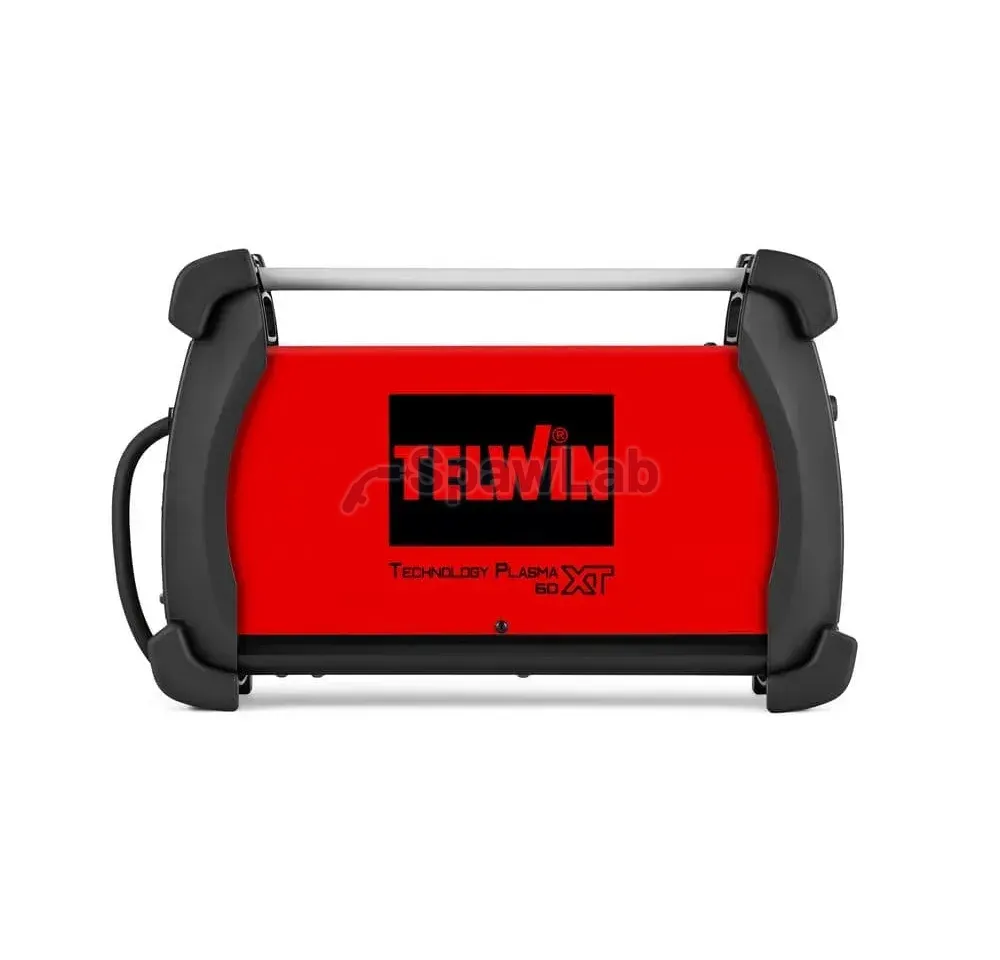

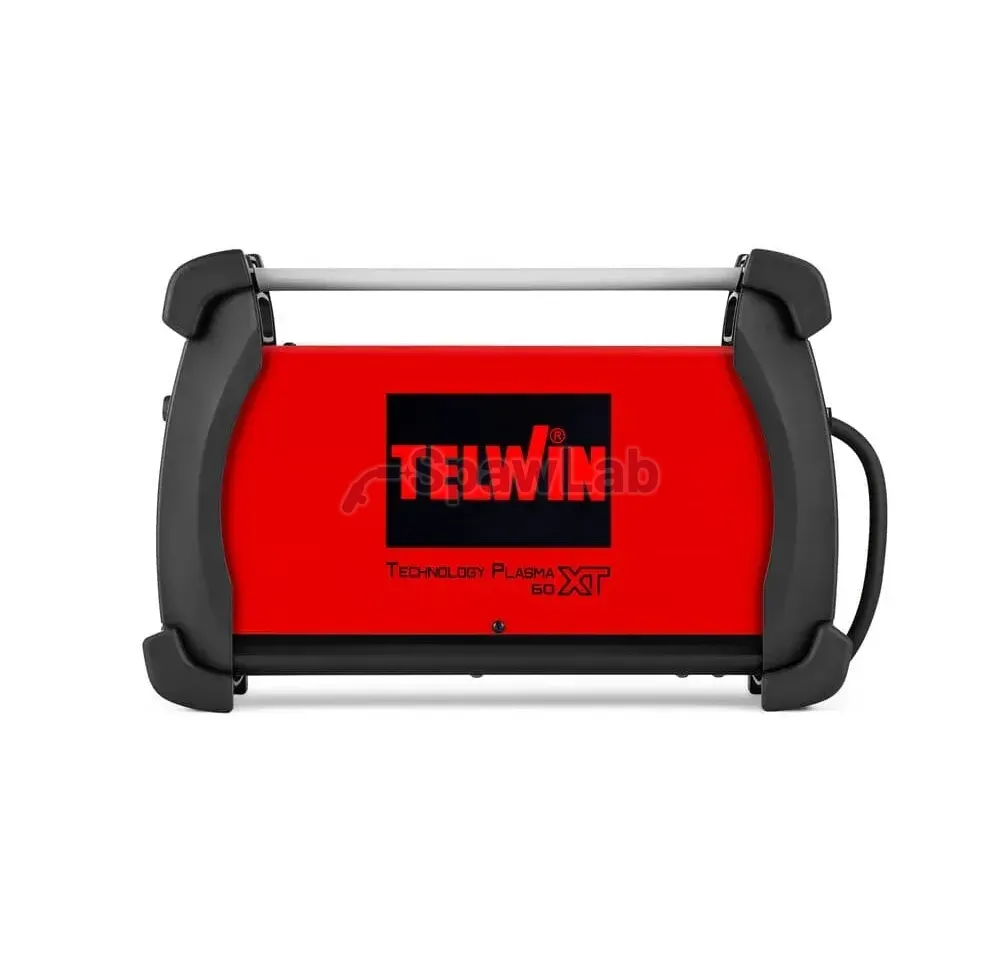

The rugged metal housing provides adequate protection for internal components against mechanical damage and harsh conditions in industrial or construction environments. This is a guarantee that the device will stand up to daily challenges and serve reliably for a long time. This combination of power, mobility and durability makes the TECHNOLOGY PLASMA 60 XT an extremely versatile tool that significantly increases the flexibility and efficiency of any metalworking professional.
Technical Specifications
| Parameter | Value |
|---|---|
| Full Name | TELWIN TECHNOLOGY PLASMA 60 XT 230V |
| Catalog number | 816148 |
| EAN code | 8056151812445 |
| Power supply | Single phase 230V – 50/60Hz |
| Rated current drawn from the mains | 33 A |
| Rated power | 4.8 kW |
| Power factor (cos φ) | 0,7 |
| Cutting current adjustment range | 20 – 60 A |
| Maximum current (duty cycle) | 55 A (at 50% duty cycle) |
| Current at 60% duty cycle (EN60974-1 at 40°C) | 45 A |
| Maximum cutting thickness (carbon steel) | 20 mm (qualitative) |
| Maximum thickness of cut (carbon steel, separating) | 25 mm |
| Arc ignition | Non-contact high frequency (HF Pilot Arc) |
| Required compressed air pressure | 4 – 5 bar |
| Required compressed air flow | 120 l/min |
| Degree of protection | IP23 |
| Dimensions (L x S x W) | 475 x 170 x 340 mm |
| Weight | 10.9 kg |
| Network protection | 20 A |
| Idle state voltage | 313 V |
Key Features and Benefits
- ? Powerful 60A Cutting Power and Material Versatility: The cutter generates a stable cutting current of up to 60 Amper, allowing it to efficiently and quickly cut through a wide range of conductive metals, including carbon steel up to 20 mm (quality) and 25 mm (separating), stainless steel, aluminum, copper or brass. For the professional, this means the ability to tackle a diverse range of projects, from lightweight structures to thicker parts, without having to change equipment, resulting in significant time savings and increased productivity on the jobsite.
- ⚡ Advanced HF (High Frequency Pilot Arc) Initiating: The high-frequency non-contact pilot arc ignition system eliminates the need for nozzle contact with the material, making it significantly easier to start cutting, especially on painted, rusted or uneven surfaces. This provides a cleaner cut from the start, extends the life of consumables (nozzle and electrode), and enables the cutting of meshes and perforated materials without interrupting the arc. This results in lower operating costs and higher cutting quality.
- ?️ Comprehensive Device Protection: The TECHNOLOGY PLASMA 60 XT is equipped with multi-level protection systems, including thermostatic, overvoltage, undervoltage and overload protection. These intelligent systems monitor the operation of the device in real time, protecting it from damage in the event of an unstable power supply or exceeding acceptable operating parameters. For the user, this guarantees long and trouble-free operation even in harsh industrial environments, minimizing downtime and service costs.
- ?️ Efficient Cooling System and High Duty Cycle: Optimized cooling airflow and high-quality components ensure efficient heat dissipation from key machine components. This allows the machine to achieve a high duty cycle (e.g., 55A at 50%), which is crucial for prolonged cutting tasks. The professional gains confidence that the machine will not overheat during intensive use, enabling continuous operation and on-time job completion.
- ? Intuitive Control Panel with Precision Adjustment: A simple and easy-to-read control panel with digital display of cutting current and LED indicators (e.g., air pressure, tripping of safety devices) allows easy and precise setting of cutting parameters. The user can quickly adjust the current to the type and thickness of the material, guaranteeing optimal results and minimizing the risk of errors. This means less setup time and greater repeatability of cut quality.
- ? Compact and Rugged Design for Mobility: Despite its high power output, the cutter has a relatively compact size and weight, which, combined with its rugged housing, makes it an ideal tool for mobile and field work. The 230V single-phase power supply further enhances its versatility. For the professional, this means ease of transport to the job site, the ability to operate in various locations and the ability to withstand workshop conditions, which is invaluable for travel assignments.
Product Application
- ? Manufacturing industry and locksmith workshops: fast and precise cutting of sheet metal, steel, stainless steel and aluminum profiles.
- ? Automotive and sheet metal industry: cutting body parts, exhaust systems, vehicle frames.
- ?️ Steel structures and construction: preparing structural components, cutting rebar, field assembly work.
- ?️ Arts and crafts and metalwork: precise cutting of intricate shapes in metals, creation of decorations.
- ⚙️ Maintenance and repairs: cutting worn machine parts, dismantling old installations, quick emergency repairs.
- 船舶 Shipbuilding and offshore industry: cutting sheet metal plating, structural components of ships and platforms.
- ? Ventilation and air conditioning installations: cutting ventilation ducts and fittings.
Contents of the Kit
- ? TELWIN TECHNOLOGY PLASMA 60 XT 230V plasma cutter (cat. no. 816148)
- ?️ Plasma cutting chuck type PT-60 with 6m cable (or other compatible standard Telwin chuck)
- ? Ground wire with tick clamp
- ? Built-in pressure regulator with pressure gauge and air filter (or external included, depending on manufacturer’s configuration)
- ? User manual in Polish and warranty card
Summary: TELWIN TECHNOLOGY PLASMA 60 XT 230V – Your Best Investment.
TELWIN TECHNOLOGY PLASMA 60 XT 230V is not just a plasma cutter – it’s an investment in your productivity, precision and professionalism. With the combination of impressive cutting power up to 20-25mm, Telwin’s signature reliability and the mobility that comes from 230V power, you get a tool that can handle the toughest challenges. Reduce your work time, increase the quality of your cuts and enjoy trouble-free operation for years to come.
Don’t wait! Revolutionize your approach to metal cutting. Choose TELWIN TECHNOLOGY PLASMA 60 XT and experience the difference that superior Italian technology can make. Contact us today to learn more or find your nearest authorized distributor! ?
Part number: 816148
EAN code: 8056151812445
