Description
We are the official distributor of TELWIN brand. We guarantee the originality of the product, professional advice and service support.
TELWIN TECHNOLOGY TIG 230 DC: Your Professional Welder for Perfect TIG Welds! ??
Discover the TELWIN TECHNOLOGY TIG 230 DC (852055) – a revolutionary inverter welder designed for the most demanding professionals and ambitious hobbyists who do not accept compromises in TIG DC and MMA welding quality. Manufactured in Italy by the legendary manufacturer TELWIN, this machine is the quintessence of precision, power and reliability, packaged in a compact and durable housing.
Imagine a job where every weld is a work of art and control over the welding arc is absolute. The TECHNOLOGY TIG 230 DC makes this possible. Thanks to advanced microprocessor control, the device provides unparalleled arc stability and dynamic response to changing conditions, which is crucial when welding stainless steel, carbon steels, copper, nickel, titanium and their alloys. Forget the frustrations of an unstable arc or the difficulty of achieving clean and aesthetically pleasing welds – this model is your partner in the pursuit of perfection.
Innovative features such as pulsed DC TIG welding, arc dynamics adjustment, and a complete set of advanced TIG settings (2T/4T, Bi-Level, current rise and fall times, gas discharge before and after welding) give you complete control over the process. It’s not just a tool, it’s an extension of your skills, allowing you to complete the most complex welding projects with ease and precision you could only dream of before.
The TECHNOLOGY TIG 230 DC + ACC model. (852055) comes with a complete set of accessories, which means you’re ready to go almost as soon as you unpack it. Invest in technology that will improve the quality of your work, optimize your time and ensure satisfaction with every weld you make. It’s the choice of professionals who value Italian quality, innovation and reliability for heavy-duty daily use. ??️
Explore the Advanced Capabilities of TELWIN TECHNOLOGY TIG 230 DC 230V + ACC.
??? Full Control of the DC TIG Arc – Precision in Every Inch.

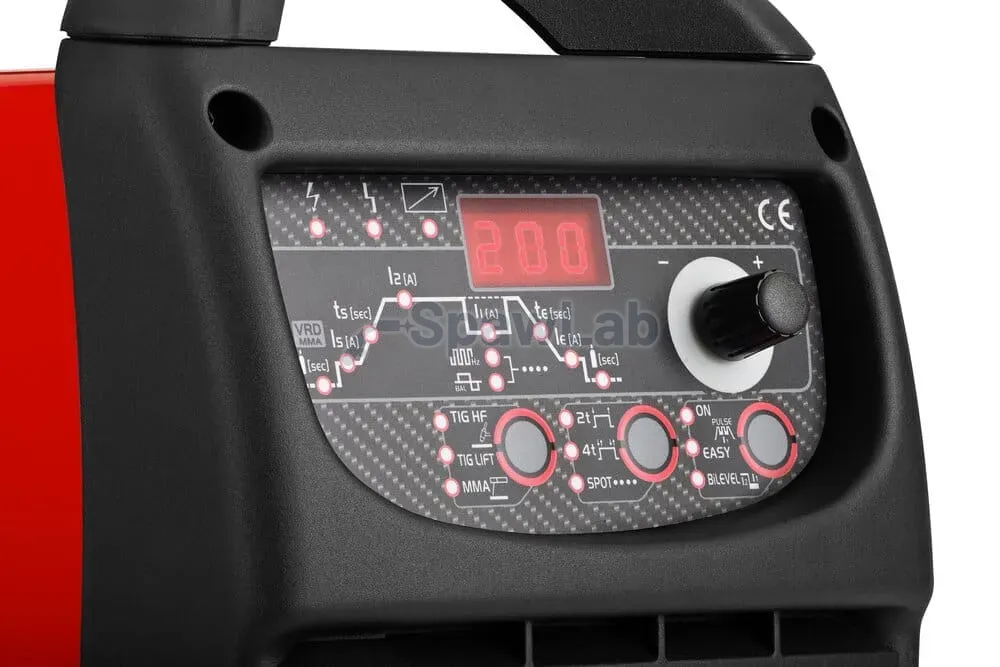

TELWIN TECHNOLOGY TIG 230 DC redefines the concept of control in DC TIG welding. With an advanced control panel, you have access to precise adjustment of all key process parameters. The pulse welding function (Puls TIG) allows you to optimize the heat introduced into the material, which is invaluable when welding thin sheet metal, stainless steel or materials sensitive to overheating. You can precisely set the base current, peak current, pulse frequency and pulse filling, which translates into less distortion, better control of the weld pool and an aesthetically pleasing weld face.
In addition, full control of arc dynamics, pre-weld (pre-gas) and post-weld (post-gas) gas discharge times, as well as slope-up and slope-down times, enables perfect start and finish of each weld. These features protect the tungsten electrode from oxidation and prevent welding defects such as crater cracks. This is the tool for welders who expect absolute perfection.
⚙️? Advanced Arc and Occlusion Modes
The TECHNOLOGY TIG 230 DC welder offers the flexibility needed for professional applications. A choice between high-frequency (HF) non-contact arc ignition and contact ignition (LIFT) allows you to tailor the starting method to your specific job. HF is ideal for clean, precision applications, eliminating the risk of contaminating the weld. LIFT, on the other hand, is preferred in environments with increased sensitivity to electromagnetic interference or when welding in hard-to-reach areas.
Another convenience is the 2T (two-touch) and 4T (four-touch) operating modes. The 2T mode is standard for short welds, while the 4T mode greatly enhances comfort for long welds by eliminating the need to constantly hold the button on the handle. In addition, the Bi-Level function allows you to quickly switch between two pre-programmed welding current levels with the push of a button on the handle, which is extremely useful, for example, when welding materials with varying thicknesses or when making grafting and filling welds without interrupting the process.
?️? Reliability and Mobility – Willingness to Work Under Any Condition
TELWIN TECHNOLOGY TIG 230 DC is not only advanced technology, but also the robust design and reliability for which the Italian manufacturer is famous. The device is designed for intensive use in workshop conditions and light field work. The IP23 rating means it is resistant to solids over 12.5 mm in diameter and to water sprays up to 60° from the vertical, ensuring safety and durability.
Built-in thermostatic, overvoltage, undervoltage and overcurrent protections protect the welder from damage in case of unfavorable operating conditions or instability of the power supply. Despite its power and advanced features, the device has compact dimensions and a relatively low weight (9.8 kg), which makes it easy to transport and store. It is the ideal combination of power, precision and mobility for professionals who value performance and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Name | TECHNOLOGY TIG 230 DC 230V + ACC. |
| Catalog number | 852055 |
| EAN code | 8004897965888 |
| Supply voltage | 230V (50/60Hz, 1ph) |
| Maximum current consumption | 34 A |
| Current consumption (60%) | 21 A |
| Maximum power consumed | 5.5 kW |
| Power consumed (60%) | 3.5 kW |
| Power factor (cos φ) | 0.7 |
| Mains fuse | 20 A |
| DC TIG welding current | 10 – 230 A |
| DC TIG duty cycle (at an ambient temperature of 40°C) | |
| DC MMA welding current | 10 – 200 A |
| MMA DC duty cycle (at an ambient temperature of 40°C) | |
| Idling voltage (Uo) | 82 V |
| MMA covered electrode diameter | 1.6 – 4.0 mm |
| TIG parameter adjustment | full (gas discharge before/after, current rise/fall, end current, pulse current, pulse frequency) |
| TIG arc ignition | LIFT / HF (high frequency) |
| TIG operating modes | 2T / 4T / Bi-Level |
| MMA functions | Arc Force, Hot Start, Anti-Stick (factory set). |
| Degree of protection | IP23 |
| Insulation class | H |
| Dimensions (L x W x H) | 420 x 170 x 340 mm |
| Weight of the device | 9.8 kg |
| Weight with packaging and accessories | approx. 15 kg (estimated) |
Key Features and Benefits
- ? Advanced Microprocessor Control: At the heart of the welder is a state-of-the-art microprocessor that monitors and optimizes welding parameters in real time. What this means for you is an exceptionally stable and precisely controlled arc, even when welding challenging materials or thin sheet metal. This results in fewer spatters, deeper fusion, excellent weld quality and reduced finishing time.
- pulsing_heart Versatile Pulse DC TIG Welding: The TIG DC pulse welding function gives you full control over the arc line energy. The ability to precisely adjust base current, pulse current, pulse frequency and pulse fill allows you to weld very thin materials without the risk of burn-through, minimizes heat distortion, and enables you to create aesthetically pleasing, regular welds, especially on stainless steel. The result? Perfect welds, even in difficult positions.
- ⚡ Dual TIG Arc Initiating System (HF and LIFT): Choose the arc ignition method that fits your needs and work environment. High frequency (HF) non-contact ignition is ideal for precision work, eliminating the risk of tungsten contamination of the weld. LIFT contact ignition is preferred in environments sensitive to electromagnetic interference. This flexibility guarantees a clean start and high weld quality under all conditions.
- ⚙️ Comprehensive TIG Features for Professionals (2T/4T, Bi-Level, gas and current control): The welder offers a full suite of features to make work easier and more efficient. The 2T/4T mode allows you to comfortably weld long lengths, the Bi-Level function allows you to switch between two levels of welding current without interrupting the arc, and the precise adjustment of pre- and post-weld gas discharge time and current rise and fall protects the weld pool and electrode. You get full control over every step of the welding process.
- ? TELWIN Reliability and Security: The unit is equipped with a number of protections: thermostatic, overvoltage, undervoltage and overcurrent. Its robust design and high IP23 protection make it resistant to harsh workshop and field conditions. This is an investment in a reliable tool that will serve you for years, minimizing downtime and maintenance costs.
- ? Efficient Metal-Modulated Electrode (MMA) Welding: In addition to its excellent TIG capabilities, the TECHNOLOGY TIG 230 DC also offers high performance in the MMA method. Built-in Hot Start (easier electrode ignition), Arc Force (arc stabilization and short-circuit prevention) and Anti-Stick (electrode sticking prevention) functions significantly simplify welding and provide excellent results with rutile, alkaline, stainless or cast iron electrodes.
Product Application
- ? Production and installation of stainless steel structures (balustrades, tanks, decorative elements)
- ? Precision repair and reconditioning work in mechanical and locksmith workshops
- 管道 Welding of pipelines and industrial installations (carbon steel, stainless steel).
- ? Manufacturing components for the food, chemical and pharmaceutical industries
- ?️ Advanced hobby and artistic work with metals (excluding aluminum and its alloys by TIG)
- ? Repairs to automotive components made of steel (e.g., exhaust systems, structural components)
- ?️ Light and medium construction and assembly work on facilities

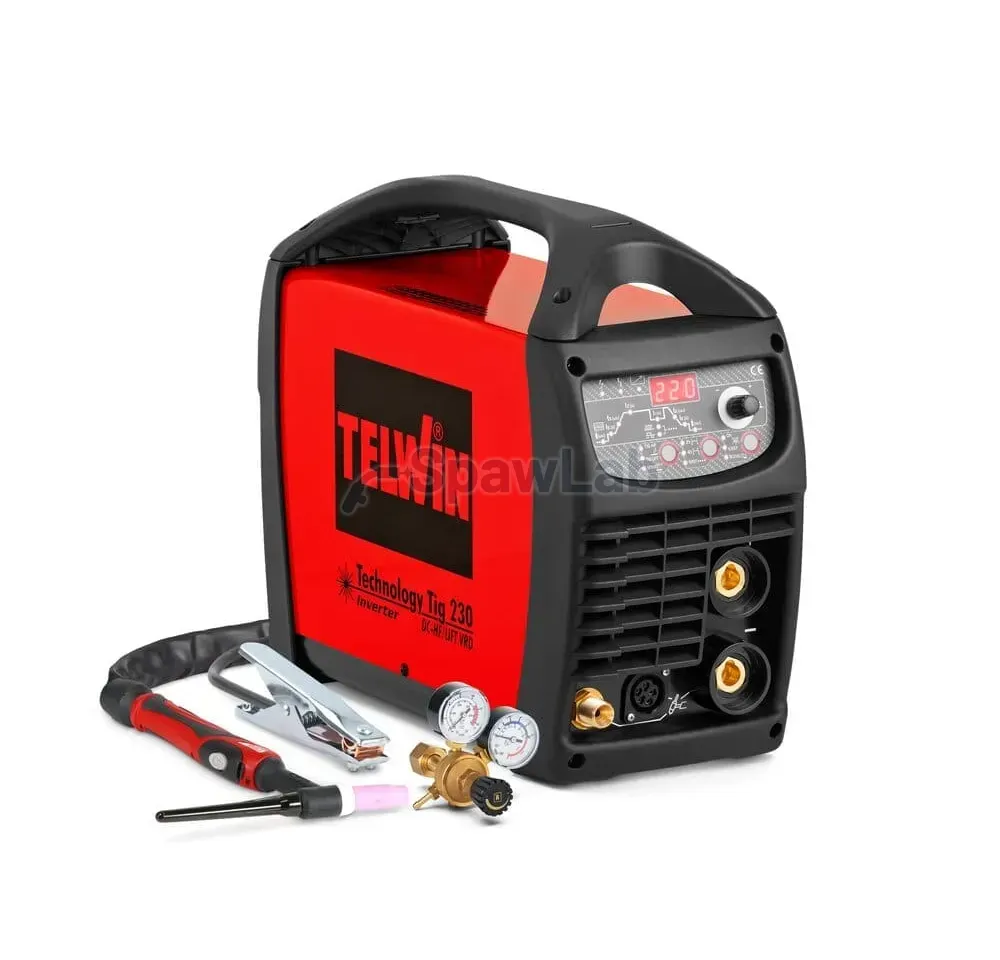

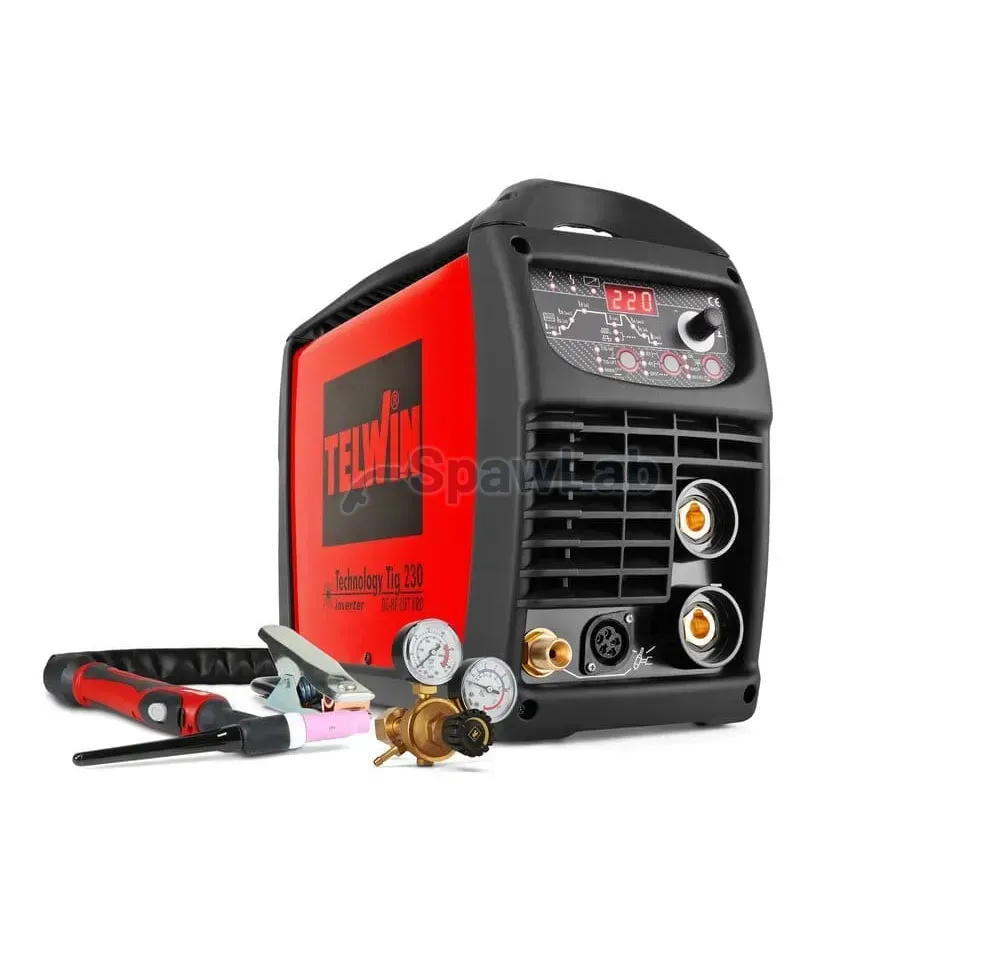

Contents of the Kit
- ? TELWIN TECHNOLOGY TIG 230 DC 230V welder (852055)
- ?️ TIG welding chuck (e.g. ST26 or equivalent, 4 meters)
- ? Ground wire with clamp (e.g. 3 meters)
- ? Gas line
- ? User Manual
- (Depending on the specific configuration of the “ACC.” kit. may include basic consumable parts for the TIG chuck, e.g. electrodes, nozzles, connectors)
Summary: TELWIN TECHNOLOGY TIG 230 DC 230V + ACC. – Your Best Investment
TELWIN TECHNOLOGY TIG 230 DC is an investment in the highest quality, precision and reliability of TIG DC and MMA welding. Advanced features such as TIG pulse, full arc parameter adjustment and rugged construction make it the ideal choice for professionals striving for perfection in every detail. Raise the standards of your work, reduce machining time and enjoy unparalleled control over the welding process. Choose Italian TELWIN technology and join the ranks of satisfied experts! Order today and see how TECHNOLOGY TIG 230 DC will revolutionize your approach to welding! ?
Part number: 852055
EAN code: 8004897965888
