Description
We are the official distributor of voestalpine Böhler Welding brand and authorized service in Poland.

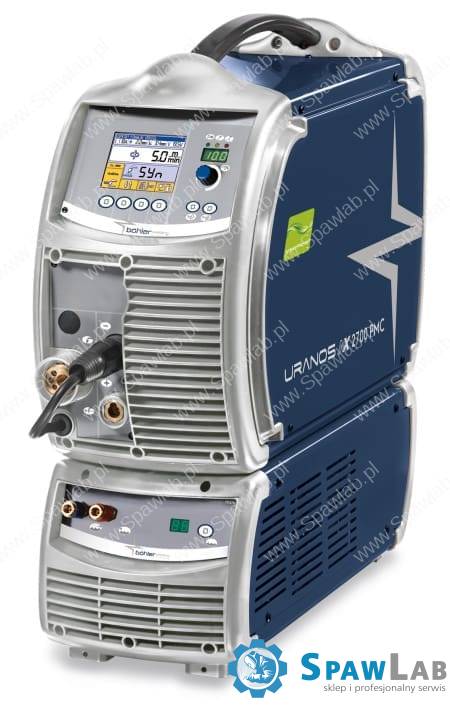

The Böhler URANOS NX 2700 PMC is a state-of-the-art digitally controlled inverter welder designed for professionals looking for reliability, precision and maximum efficiency. Thanks to greenWave® technology, the device provides optimal control over the welding process while reducing energy consumption. This model combines advanced automation with intuitive operation, making it an ideal choice for industry, workshops and the repair sector.
Key features and benefits:
1. versatility and excellent weld quality
-
It supports MIG/MAG, Pulsed MIG/MAG, MMA and TIG DC Lift, allowing it to work with carbon steel, stainless steel, aluminum and copper.
-
Synergistic welding programs – 16 predefined settings for various applications (expandable).
-
Precise arc control – Hot Start, Arc Force, Anti-Sticking functions ensure smooth ignition and stable operation.
-
Ideal for a variety of industries, including shipbuilding, automotive, rail, machine construction and construction.
2. GreenWave® technology – Energy saving and efficient
-
The advanced inverter optimizes welding processes, increasing efficiency while reducing energy consumption.
-
Built-in P.F.C. (Power Factor Controller) improves the power factor, reducing energy loss.
-
Intelligently controlled cooling – the fan runs only when necessary, reducing noise and saving energy.
3. modern interface and full digital control
-
Color 3.5″ LCD display with intuitive control panel.
-
Settings memory – automatically saves the last parameters when the device is turned off.
-
Programmable welding parameters and set operational limits for greater safety.
-
Password access lock option – protection against unauthorized change of settings.
-
Remote control and integration via Ethernet, allowing you to manage multiple devices simultaneously.
4. rugged construction – Ready for extreme conditions
-
Heat-, impact- and abrasion-resistant housing made of top-quality plastic.
-
An airtight PC board and optimized airflow protect the interior from dust and dirt.
-
Robust built-in 4-roller wire feeder with the ability to handle Ø 200/300 mm spools ensures even feeding and arc stability.
5. advanced welding support functions
-
Adjustable wire feed speed (0.5-22.0 m/min)
-
Bilevel MIG/MAG – advanced layer welding mode
-
Spot and intermittent welding modes
-
Burn-back and automatic drop detachment correction – better control over the end of the weld.
-
Crater Filler – a crater filling function to prevent defects.
-
Synergistic settings for optimal work with covered electrodes
Key technical parameters:
Power supply:
- Voltage: 3×400/230V ±15% (50/60 Hz)
- Max power consumption: 9.1/9.1 kVA
- Max current draw: 13.1/22.8 A
- Power factor: 0.94/0.96
- Efficiency: 88/86 %
- Fuse: 16/20 A
- IP protection: IP23S
Welding
- Current control range: 3-270A
- Duty cycle (40°C): 45% – 270A | 60% – 250A | 100% – 230A
- Duty cycle (25°C): 100% – 270A
- Wire diameter: 1.0 -1.2 mm (optional 0.6-1.6 mm)
- Diameter of the core wire: 0.9 – 1.6 mm
- Aluminum wire diameter: 0.8 – 1.6 mm
- Wire feed speed: 0.5 – 22.0 m/min
- Number of feeder rolls: 4
- Spool diameter: Ø 200/300 mm
- Program memory: 240 settings
Böhler URANOS NX 2700 PMC is a welder that combines high quality, performance and reliability, meeting the expectations of even the most demanding users. If you are looking for a device that will provide you with precise and efficient welding in various conditions, this model is an excellent choice.
Standard set:
Symbol: 55.05.023
