TELWIN TECHNOLOGY 236 XT: professional MMA/TIG welding power and reliability in typical workshop conditions.
Imagine a welder that keeps up with you on the most demanding projects and goes a step beyond what you expect. TELWIN TECHNOLOGY 236 XT 230V ACX+CARRY CASE is more than a tool, it is a reliable partner in professional welding. Built for specialists who accept no compromise on quality, output and mobility, this MMA and TIG DC inverter with LIFT arc striking is the essence of Italian engineering and of long experience of the TELWIN brand.
Every welder knows how frustrating an unstable power source on site can be, how much the transport of heavy equipment limits the work, and how much trouble arc striking gives on difficult materials. TECHNOLOGY 236 XT was designed to remove those problems. With its compact, light build and a solid transport case it is always ready to work where you need it. XT technology, eXTreme, keeps the machine stable even with mains voltage fluctuations, with generator sets and with long extension leads, which makes it a sound choice for assembly, refurbishment and service work in typical workshop conditions.
At the heart of the machine is an advanced inverter circuit that delivers welding current up to 200A at a high duty cycle. You can weld longer and more efficiently, without worrying about overheating the machine. Whether you work with carbon steel, stainless steel, cast iron or other weldable metals, TECHNOLOGY 236 XT gives you a stable arc that is easy to control. Arc Force, Hot Start and Anti-Stick are not marketing slogans, they are real support that makes the start of the weld easier, gives deeper penetration and removes the problem of the electrode sticking.
Switching between MMA and precise TIG DC welding with LIFT arc striking is intuitive and quick, which opens up a broad field of use, from solid steel structures to precise joining of thinner parts. Thermostatic, overvoltage, undervoltage and overload protection look after the long service life of the welder and the safety of your work.
By choosing TELWIN TECHNOLOGY 236 XT you invest in reliability, precision and working comfort that let you focus on what matters most, a perfectly made weld every time. This is a tool made by professionals for professionals and for demanding hobby users who value the highest quality.
The advanced features of TELWIN TECHNOLOGY 236 XT230V ACX+CARRY CASE
TELWIN inverter: compact power and precision of a new generation
At the heart of the TECHNOLOGY 236 XT welder is advanced inverter technology. Unlike traditional heavy transformers, an inverter uses modern electronic components to convert the mains current. That process allows a large reduction in the weight and the size of the machine, while its efficiency and its ability to control welding parameters precisely both rise.
Thanks to inverter technology the welder produces an exceptionally stable output current, which gives a smooth, even welding arc. This keeps spatter low, makes the electrode easier to guide and gives very good weld quality. Inverters are also far more economical with energy than their transformer counterparts, which means lower running costs. For a professional, the TELWIN inverter means high quality work, mobility and savings, whatever the place and the type of the job.
Arc Force, Hot Start, Anti-Stick: your intelligent welding assistant
The TECHNOLOGY 236 XT welder comes with a set of advanced functions that make welding easier, more effective and less prone to error. Hot Start automatically raises the welding current for a fraction of a second at the moment the arc is struck. This makes the electrode ignite more easily, in particular on difficult materials, with damp electrodes or on cold material.
Arc Force (arc dynamics) is a system that adjusts the welding current dynamically according to the arc length. When the arc shortens, for example when the electrode comes close to the weld pool, the system raises the current and prevents the arc from fading and the electrode from sticking. This allows smooth welding even in difficult positions and gives better penetration. Anti-Stick in turn is a protection that cuts the current to a minimum the moment the electrode sticks to the material, so it can be freed easily without damage to it and without overheating the welder. The three functions work together as an intelligent support system that genuinely raises the comfort and the quality of every welder's work.
Reliability built for site work: protection systems and generator operation (XT)
The TECHNOLOGY 236 XT model carries the "XT" marking, which in TELWIN nomenclature stands for "eXTreme". It is a guarantee that the welder has been designed for reliable work in the hardest conditions. The machine has a complete set of protections, among them thermostatic protection against overheating and protection against mains voltage that is too high or too low (tolerance +/- 15%). This shields sensitive electronic components from damage caused by an unstable power source.

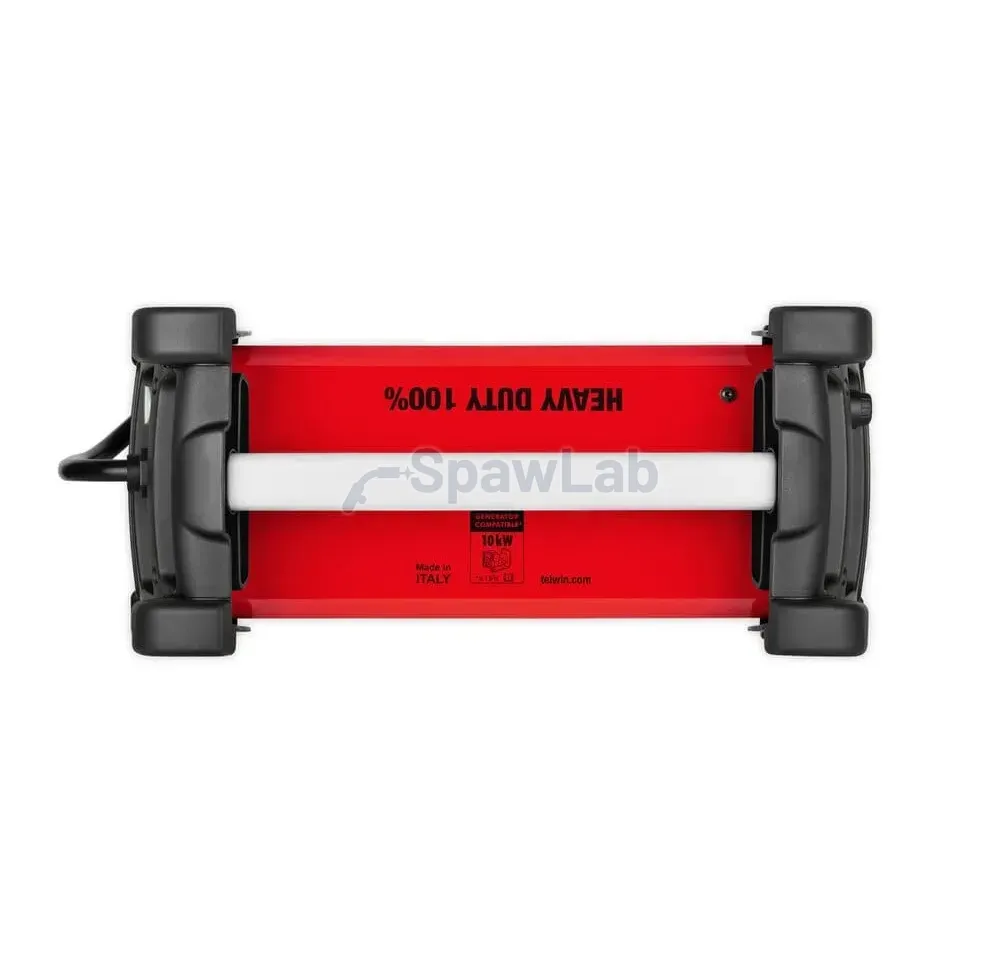

A key feature for professionals working on site is full compatibility with generator sets (rated at least 10 kW). The welder can therefore be used practically anywhere, whether or not mains power is available. The XT design also allows effective work with long extension leads, keeping voltage drops small and welding parameters stable. These features make the TECHNOLOGY 236 XT a sound choice for assembly and service crews and for everyone who needs a dependable, robust welding power source in changing conditions.
Versatile in use: from delicate TIG joints to solid MMA structures
TELWIN TECHNOLOGY 236 XT is a genuinely versatile tool that copes with a broad set of welding tasks. In MMA (Manual Metal Arc) mode the welder handles covered electrodes from 1.6 mm to 4.0 mm in diameter (and occasionally even 5.0 mm). It works with different types of electrode: rutile (universal, easy to use), basic (for joints of high strength), stainless steel electrodes and cast iron electrodes. That covers welding of steel structures, machine repair, metalwork and much more.
For tasks that call for more precision and a better looking weld, the machine offers TIG DC mode with LIFT arc striking. The TIG method (Tungsten Inert Gas) in direct current (DC) suits carbon and low alloy steels, stainless steel, copper, nickel and titanium. LIFT striking, where the tungsten electrode touches the material and is then lifted, is gentler on the electrode and on the material than traditional short circuit striking and keeps the risk of tungsten contamination of the weld low. It is a very good answer for thin sheet, pipework or decorative parts, where the quality and the cleanliness of the joint decide.
Technical specification
| Parameter | Value |
|---|---|

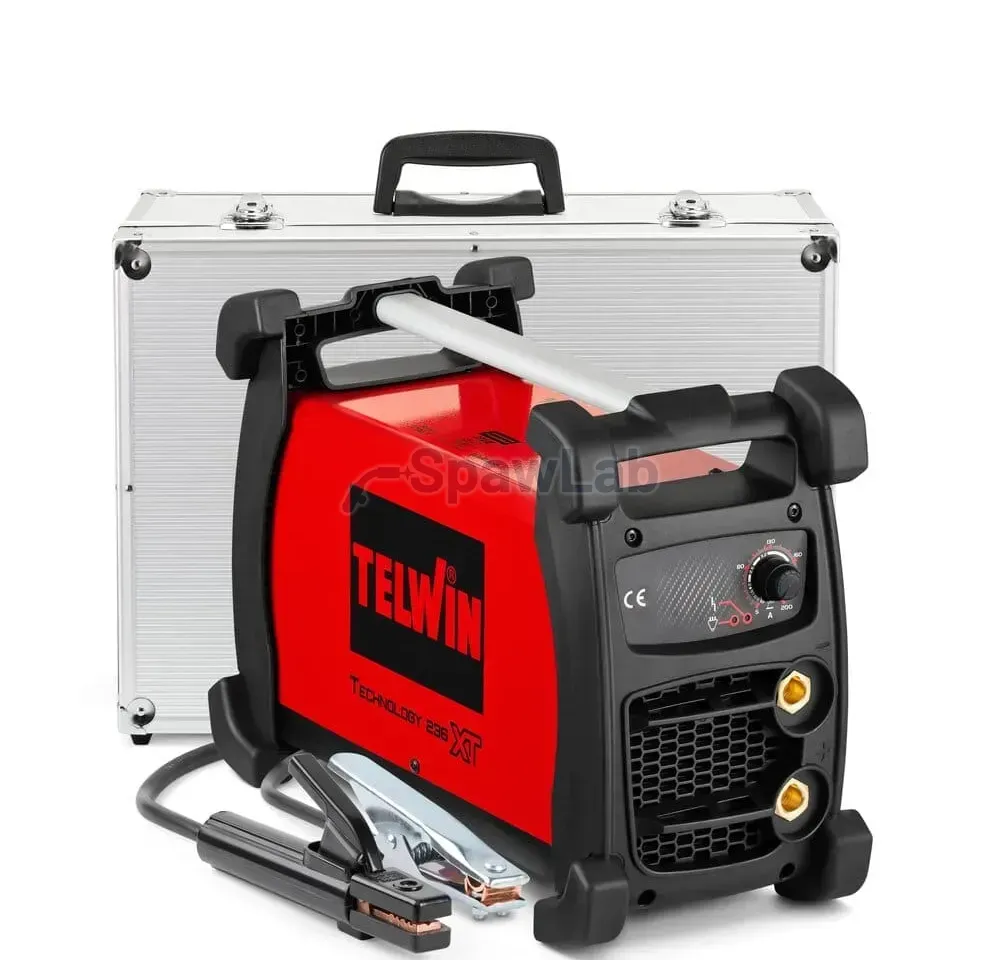

| Full model name | TELWIN TECHNOLOGY 236 XT 230V ACX+CARRY CASE |
| Part number | 816251 |
| EAN code | 8004897165783 |
| Supply voltage | 230V AC (50/60Hz) |

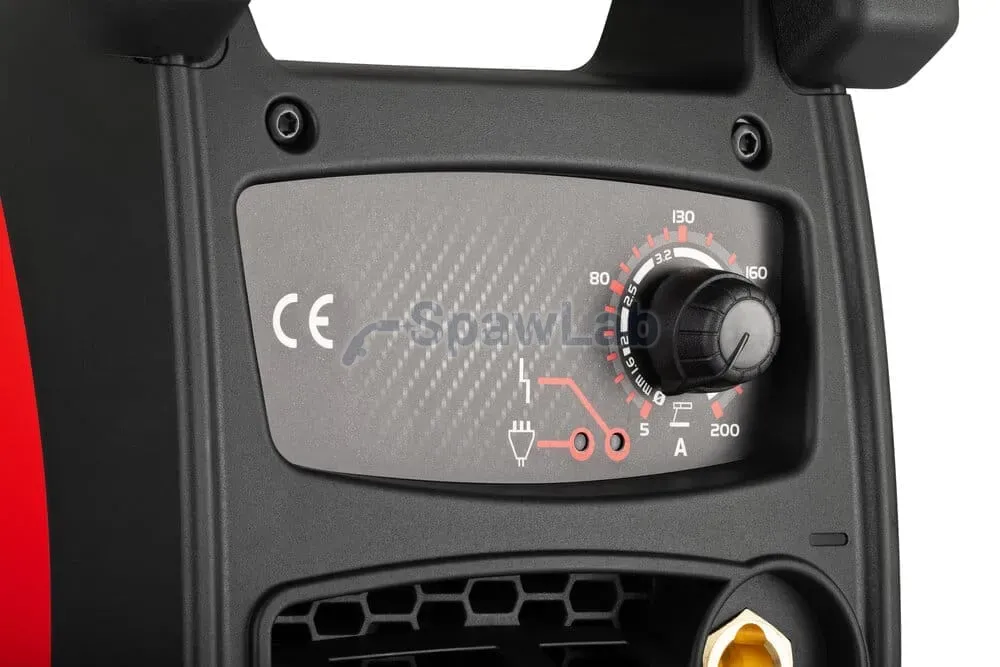

| MMA welding current range | 5 - 200 A |
| TIG welding current range | 5 - 200 A |
| Maximum current (MMA, 40°C) | 200 A (at 30% duty cycle) |
| Duty cycle (EN60974-1, 40°C) | 200A @ 30% ; 150A @ 60% |
| Open circuit voltage (Uo) | 75 V |
| MMA electrode types | rutile, basic, stainless, cast iron |
| Maximum power input | 7 kW |
| Power input at 60% duty cycle | 4.4 kW |
| Minimum generator rating | 10 kW |
| Efficiency | 86% |
| Power factor (cos φ) | 0.7 |
| Mains fuse | 16A (C characteristic) / 20-25A |
| Enclosure protection rating | IP23 |
| Machine dimensions (L x W x H) | 385 x 150 x 265 mm |
| Machine weight | 6.8 kg |
| Weight with case and accessories | approx. 10.5 kg |
| Standards | CE, EN 60974-1, EN 60974-10 |
Key features and benefits
- Strong 200A inverter output with a high duty cycle: advanced inverter technology delivers a stable welding current up to 200A and joins materials of different thickness effectively. The high duty cycle (200A@30%, 150A@60%) means you can work longer without breaks to cool the machine down. For a professional that means output even on intensive tasks, the option of welding with electrodes up to 4.0 mm (and even 5.0 mm) and the certainty that the welder will meet the hardest demands.
- Intelligent support for the welder (Arc Force, Hot Start, Anti-Stick): these built in functions actively optimise the welding process. Hot Start makes arc striking easier by raising the current briefly at the beginning. Arc Force regulates the short circuit current dynamically, prevents the arc from going out and keeps it stable, in particular with a short arc and in difficult positions. Anti-Stick protects the electrode against sticking to the material by reducing the current automatically. The result is easier work, fewer mistakes, better weld quality and lower material consumption, even for less experienced users.
- Two welding methods in one machine: MMA and TIG DC LIFT: the welder runs MMA with many types of covered electrode (rutile, basic, stainless, cast iron) and the precise TIG DC method with contact LIFT striking. That versatility covers projects of many kinds, from heavier structural work to joints in stainless steel or thin sheet where precision and appearance count, all with one compact machine.
- XT technology (eXTreme), reliability in hard conditions: a special design and advanced electronic circuits give resistance to mains voltage fluctuations (±15%) and trouble free work with generator sets. The machine is also protected against overheating, overload and mains voltage that is too high or too low. You can rely on the TECHNOLOGY 236 XT in typical workshop conditions, from the workshop to the building site, with the certainty of uninterrupted work and a protected investment.

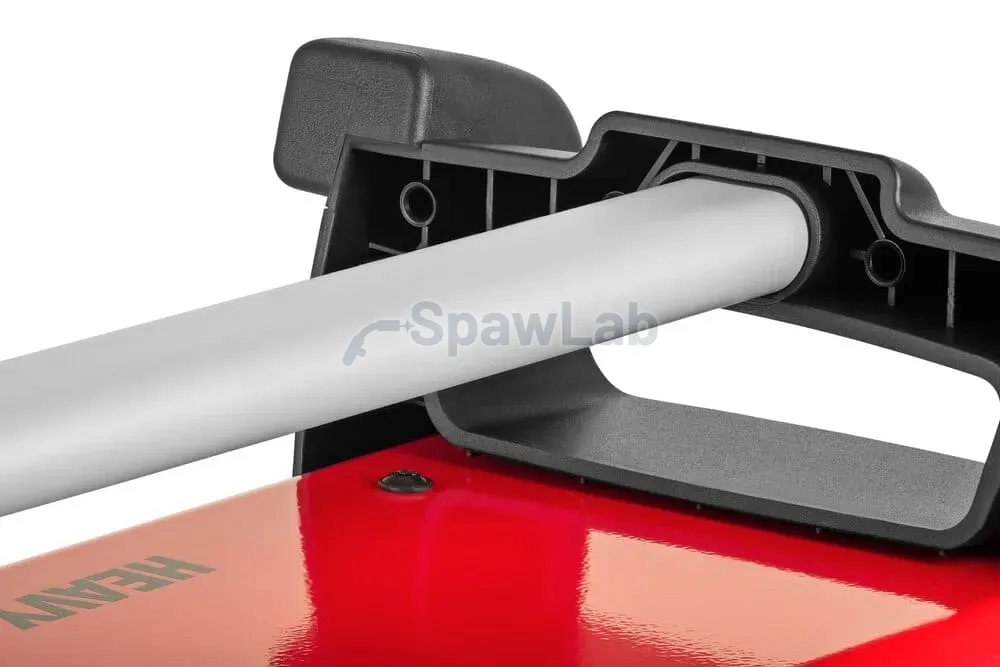

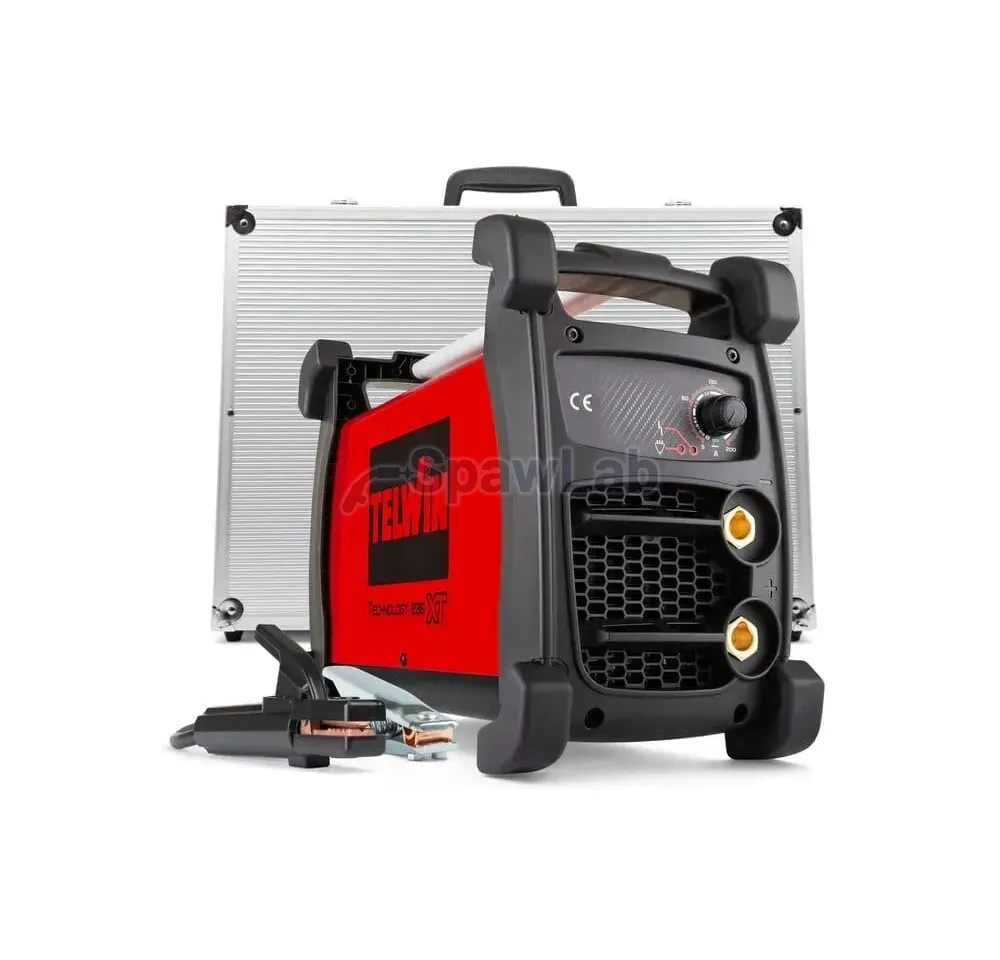

- Mobility and a compact build with the ACX case: the low weight (6.8 kg) and ergonomic dimensions, together with a durable transport case and a set of welding leads (ACX version), make this welder very mobile. Easy carrying and storage is the key to effective work on site, at height or in tight spaces, with no compromise on power and function.
Product applications
- Assembly and installation work on site (for example steel structures, railings, fences)
- Servicing and repair of agricultural and construction machinery and industrial equipment
- Welding of light and medium steel structures, frames and platforms
- Precise metalwork and workshop jobs
- Repairs of vehicle bodywork and vehicle parts (with the right techniques)
- Small shipyard jobs and repairs on boats
- Welding of pipework and small tanks with the TIG DC LIFT method
- Artistic metalwork and one off production that needs high quality welds
Summary: TELWIN TECHNOLOGY 236 XT230V ACX+CARRY CASE - your best investment
TELWIN TECHNOLOGY 236 XT 230V ACX+CARRY CASE is not only a welder, it is an investment in your efficiency, the quality of your work and your professional image. With 200A of output, advanced functions that support the welder (Arc Force, Hot Start, Anti-Stick) and unusual mobility and resistance to hard conditions (XT technology), this machine is ready for every task. Whether you work in the workshop or on site, you will appreciate its versatility (MMA/TIG LIFT) and the reliability that comes with the TELWIN name.
Do not let equipment limits hold your potential back. Choose TELWIN TECHNOLOGY 236 XT and see the difference a professional tool made with a passion for welding can make. Order today and take your skills to a higher level.
Part number: 816251
EAN code: 8004897165783
