Description

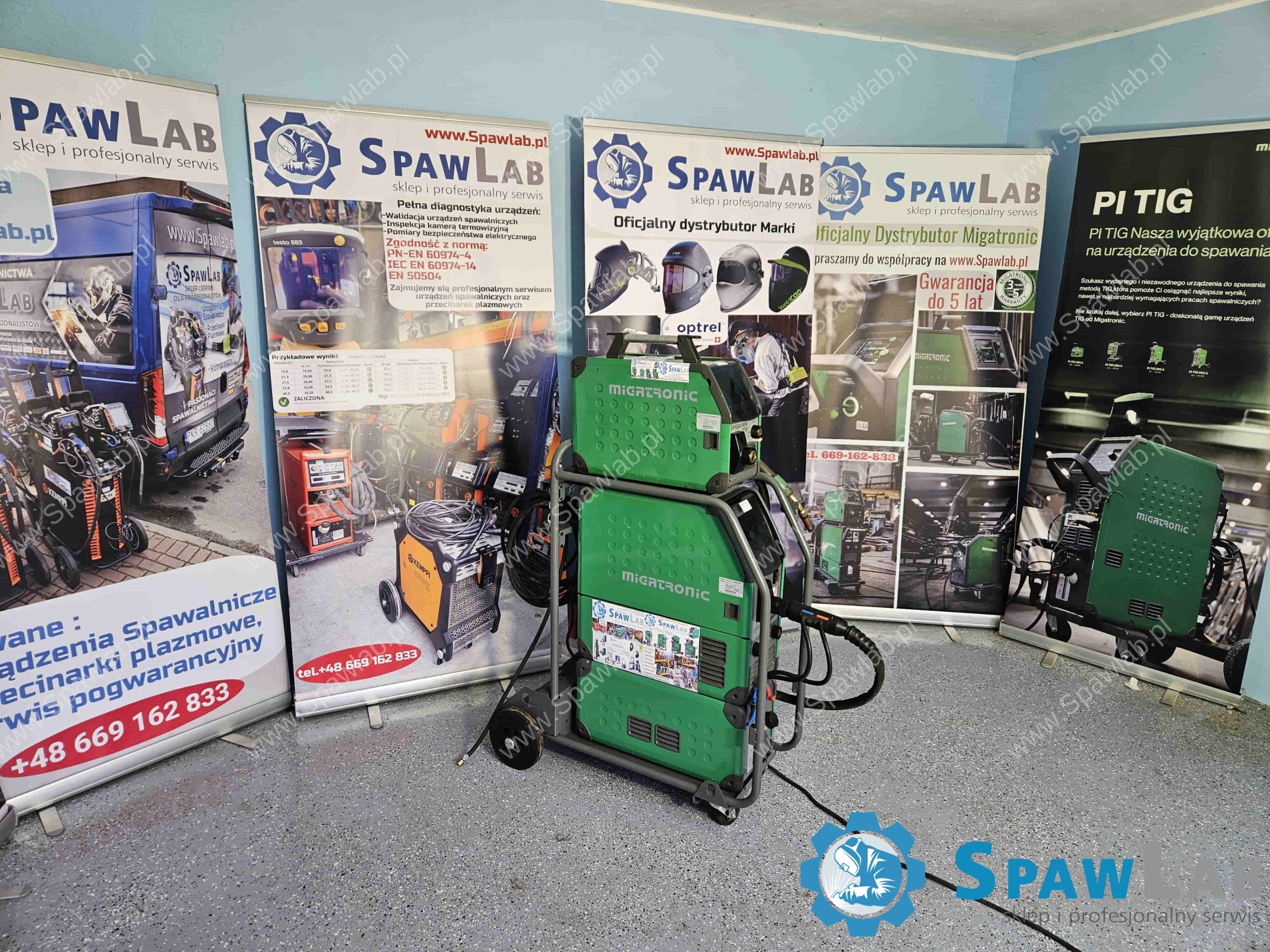

? Migatronic Omega Mini 270 – compact power and advanced MIG/MAG technology! ?
The Migatronic Omega Mini 270 is a modern premium inverter welder designed for mobile workshops and professionals working in the field. With its compact design, Advanced panel, DUO Plus™ function and the ability to work with self-cutting wire, the Omega Mini 270 combines mobility, versatility and TIG quality in MIG/MAG welding.
✅ Key features
-
Welding current range: up to 270 A
-
Synergistic programs with Advanced panel – automatic adjustment of parameters
-
DUO Plus™ function – TIG-like weld effect
-
Reverse polarity – possibility to weld with gasless wire
-
4-roll wire feeder – stable feeding at any diameter
-
Compact housing – space for a 5 kg spool (⌀ 200 mm)
-
Energy efficient – standby power consumption of only 30 watts
-
IGC® (optional) – intelligent shielding gas control
-
MMA capability – with the addition of an adapter, support for electrodes up to 4 mm
-
Updates via SD card – always the latest features
?️ Application
-
Mobile service and repair workshops
-
Welding of carbon, stainless and galvanized steel
-
Welding of thin and medium metal sheets
-
Field welding without gas (self-consuming wire)
-
Workshop work requiring arc stability and weld aesthetics
? Technical specifications
| Parameter | Value |
|---|---|
| Welding current range | 15 – 270 A |
| 100% efficiency @ 40°C | 160 A |
| Efficiency 60% @ 40°C | 180 A |
| Duty cycle max at 270 A | 22% |
| Network protection | 10 A (delayed protection) |
| Power supply current (effective) | 6,8 A |
| Supply current (max.) | 13,2 A |
| Maximum power | 9.1 kVA |
| Power at 100% load | 4.7 kVA |
| Idling voltage | 52 V |
| Power factor (cos φ) | 0,93 |
| Energy efficiency | 0,88 |
| Supply voltage | 3~400 V (±15%), 50/60 Hz |
| Dimensions (L × W × H) | 610 × 250 × 450 mm |
| Weight of the device | 18 kg |
? Special features
-
DUO Plus™ digital arc control that creates even, aesthetically pleasing welds even when welding by hand
-
IGC® – Intelligent Gas Control (optional) – reduced gas consumption and better weld protection
-
MIG-A Twist – ergonomic handle with current control on the handle (optional)
-
Rugged housing and cables – suitable for mobile operation
? Compatible accessories
-
MIG-A Twist chuck with current control function
-
Transport cart
-
MMA adapter for welding with covered electrodes
-
Liquid cooling system (optional)
-
Self-stripping wire work kit
