Description
We are the official distributor of TELWIN brand. We guarantee the originality of the product, professional advice and service support.
TELWIN TECHNOLOGY PLASMA 41 XT 230V: Master Plasma Cutting Precision and Power Within Your Reach ✨?
Meet the revolutionary TELWIN TECHNOLOGY PLASMA 41 XT 230V plasma cutter – your new indispensable partner in every professional workshop and demanding hobby project. Forget the limitations of traditional cutting methods, the tiresome grinding of uneven edges and the frustration of machining difficult materials. This Italian engineering gem is designed to bring you the unmatched power, precision and versatility you expect from top-of-the-line equipment.
With advanced inverter technology, the TECHNOLOGY PLASMA 41 XT provides a concentrated and stable plasma arc that cuts through carbon steel, stainless steel, aluminum, copper or brass with surgical precision. Imagine smooth, clean cut edges, minimal thermal distortion of the material and a significant reduction in the time required for further processing. This not only saves time and materials, but above all guarantees the highest quality of the final product, which will delight your customers and give you a competitive advantage.
Mobility and convenience of use are other advantages of this model. The 230V single-phase power supply means that you can use it virtually anywhere, from a stationary workshop to assembly work in the field. The compact and lightweight design makes it easy to transport and store, and the intuitive control panel allows you to quickly adjust the cutting parameters to suit your current needs. TELWIN TECHNOLOGY PLASMA 41 XT is an investment that quickly pays for itself, increasing the efficiency of your work and opening up new possibilities for you to complete even the most ambitious projects.
Whether you’re fabricating steel structures, auto body repairs, installations or creating unique works of art from metal, this plasma cutter will give you the tools to achieve perfection. Trust the TELWIN brand, a leader in welding technology, and experience the difference that equipment created with passion and attention to detail can make. ??️
Explore the Advanced Capabilities of TELWIN TECHNOLOGY PLASMA 41 XT 230V
⚙️ Perfect Cutting of Steel and Nonferrous Metals with the XT Series
TELWIN TECHNOLOGY PLASMA 41 XT is designed for professionals who require the highest quality cutting on a variety of materials. With advanced plasma arc control, the machine provides extremely clean and smooth edges, minimizing the need for further machining. Whether you’re cutting carbon steel, high-strength stainless steel or delicate aluminum alloys, the PLASMA 41 XT delivers concentrated energy where it’s needed.
The secret to this precision is a stable plasma arc and optimized shielding gas (air) flow. The LIFT ARC contact ignition system guarantees a clean start, with no tungsten contamination of the material, which is crucial when cutting stainless steel or aluminum. In practice, this means a smaller heat affected zone (HAZ), which translates into minimal deformation of the material and preservation of its original mechanical properties, which is invaluable for precision designs.
? TELWIN Intelligent Protection and Reliability
The TECHNOLOGY PLASMA 41 XT cutting machine is synonymous with reliability and safe operation. TELWIN engineers have equipped it with a number of intelligent safety systems that monitor key operating parameters in real time. Thermostatic protection protects the unit from overheating by automatically stopping operation and signaling the need to cool down. Surge and undervoltage protections protect the electronics from voltage fluctuations in the grid, which is particularly important when working with generators.
In addition, the burner air pressure control system ensures that cutting is always carried out under optimal conditions. Signaling of missing or incorrect pressure avoids damage to torch consumables and guarantees repeatable cutting quality. These comprehensive safeguards translate into long machine life and minimal downtime, which for the professional means greater productivity and lower operating costs in the long term.
?? Mobility and Ergonomics for Demanding Users
TELWIN TECHNOLOGY PLASMA 41 XT redefines the concept of a mobile plasma cutter. Its low weight (only 6.3 kg) and compact dimensions make it extremely easy to transport and does not take up much space in the workshop or service vehicle. Power from a standard 230V outlet eliminates the need for a three-phase system, making it ideal for smaller workshops, assembly crews and hobbyists.

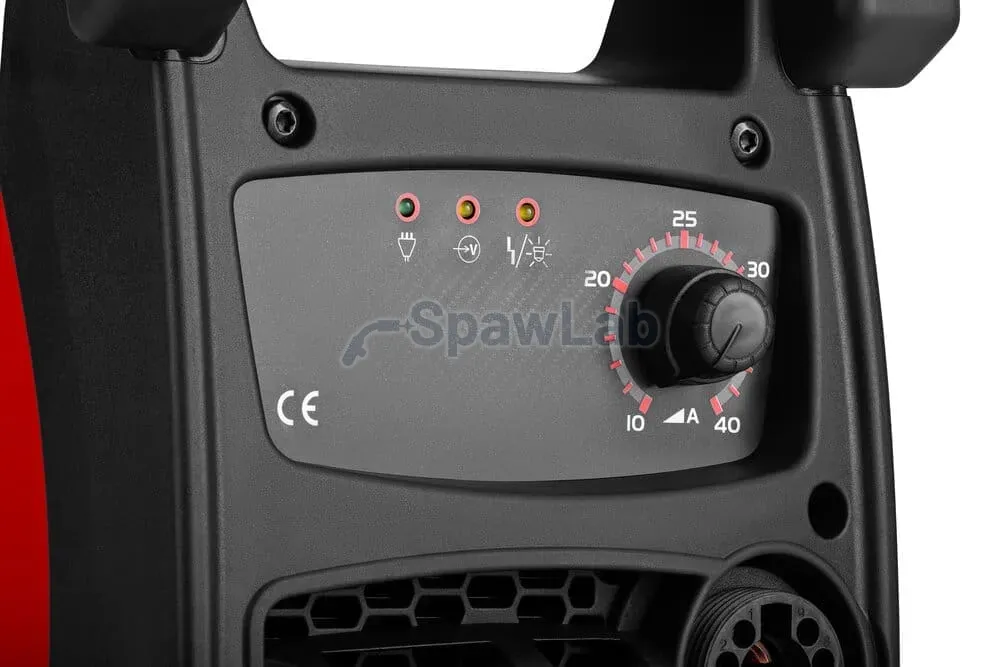

The ergonomic PH plasma torch handle, which is part of the kit, is designed for comfort and precise handling, even during prolonged operation. An intuitive control panel with easy-to-read indicators makes it quick and easy to set the cutting current and monitor the machine’s status. For the professional, this means less fatigue, more control over the cutting process and the ability to work efficiently in all conditions, even in hard-to-reach areas.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | TELWIN |
| Model | TECHNOLOGY PLASMA 41 XT 230V |
| Full Name | TELWIN TECHNOLOGY PLASMA 41 XT 230V |
| Catalog number | 816146 |
| EAN code | 8056151812469 |
| Supply voltage | 230V (50/60Hz) – single-phase |
| Cutting current adjustment range | 10 – 40 A |
| Maximum cutting current (at 40°C) | 35 A (at 20% duty cycle) |
| Duty cycle (EN60974-1 at 40°C) | 20% @ 35A, 60% @ 20A |
| Maximum cutting thickness (steel) | 15 mm (separating), about 10-12 mm (qualitative). |
| Maximum thickness of cut (stainless steel) | approx. 8-10 mm |
| Maximum thickness of cut (aluminum) | ca. 8 mm |
| Type of arc ignition | Contact (LIFT ARC) |
| Required compressed air pressure | 4 – 5 bar |
| Required compressed air flow | 100 l/min |
| Idle voltage | 325 V |
| Rated power | 4 kW |
| Minimum power of the generator set | 6 kW |
| Degree of protection | IP23 |
| Dimensions (L x W x H) | 380 x 155 x 265 mm |
| Weight of the device | 6.3 kg |
| Weight with accessories | approx. 7.7 kg |
| Mains fuse | 16 A |
| Standards | CE, EAC |
Key Features and Benefits
- ? Powerful Cutting Power in a Compact Form: With a cutting current of up to 40A, the TECHNOLOGY PLASMA 41 XT can easily handle cutting steel up to 15 mm thick (split). Advanced inverter technology ensures a stable and concentrated arc, which translates into fast, efficient cutting and minimal energy consumption. For the professional, this means the ability to work with a wide range of material thicknesses while maintaining the mobility of a 230V mains-powered machine, without the need to invest in expensive three-phase systems.
- ? Contact Arc Occlusion (LIFT ARC): The LIFT ARC contact arc ignition system is reliable and safe, eliminating high-frequency (HF) interference that could affect sensitive electronics nearby. This ensures precise cutting starts without damaging the material and extends the life of the nozzle and electrode. For the user, this assures an easy start, reduced operating costs and the ability to work safely around other electronics.
- ?️ Advanced Protection Systems: The device is equipped with comprehensive thermostatic, overvoltage, undervoltage and overload protection. These systems protect both the cutter and the user, ensuring long and trouble-free operation even in harsh workshop conditions. The professional gains peace of mind and confidence that his investment is well protected, minimizing the risk of downtime and costly repairs.
- ? Efficient Cooling and Airflow Optimization: A clever internal design and powerful fan ensure optimal cooling of key components to maintain a high duty cycle. In addition, the unit signals when there is no or improper air pressure in the chuck, which protects the torch and ensures the best cutting quality. This means longer operation without interruptions and consistent high quality cutting, which is crucial for series jobs.
- ? Mobility and Application Versatility: Its low weight (just 6.3 kg) and compact dimensions, combined with its 230V single-phase power supply, make the TECHNOLOGY PLASMA 41 XT the ideal tool for both stationary and mobile work. The ability to work with a generator further expands its use in the field. For the professional, this means flexibility and the ability to take on jobs in different locations without compromising on cutting performance.
Product Application
- ? Lightweight steel and aluminum structures, small batch production.
- ? Automotive workshops: cutting body parts, exhaust systems, frames.
- ?️ Installation and repair work: cutting pipes, profiles, sheet metal on site.
- ⚙️ Arts and crafts and blacksmithing: precision cutting of shapes in metal.
- ? Maintenance and repair of agricultural and construction machinery.
- ? Advanced hobby and DIY projects requiring precision metal cutting.
Contents of the Kit

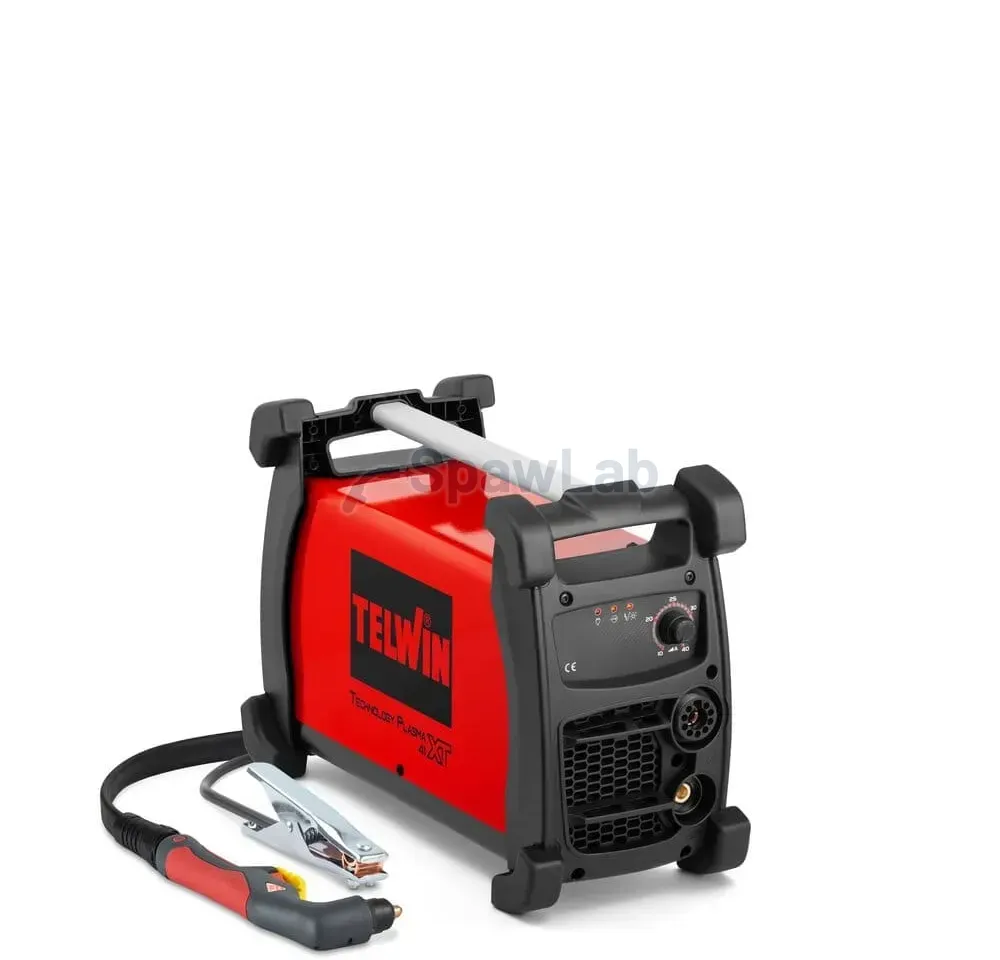

- ? TELWIN TECHNOLOGY PLASMA 41 XT plasma cutter (816146)
- ? PH 4m plasma cutting chuck (with consumable starter kit)
- ? Ground wire with clamp

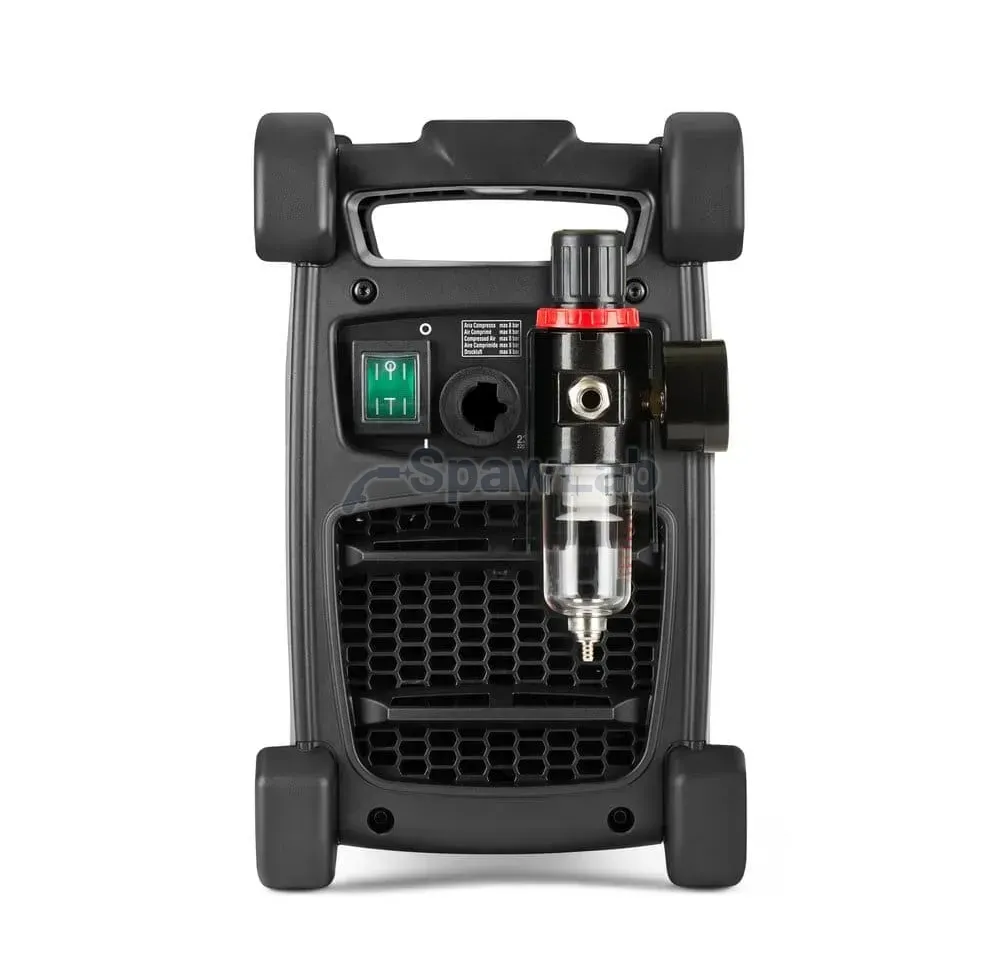

- ? (Built-in) Pressure regulator with pressure gauge (or for mounting on a cylinder – depending on the manufacturer’s configuration, usually built into the device or as part of the kit)
- ? Operating instructions and warranty card
Summary: TELWIN TECHNOLOGY PLASMA 41 XT 230V – Your Best Investment.
TELWIN TECHNOLOGY PLASMA 41 XT 230V isn’t just a plasma cutter – it’s your key to faster, more precise and more efficient metalworking. Experience unparalleled cutting quality, mobility and Italian reliability to take your projects to the highest level. Invest in technology that works for you and feel the difference from the first cut. Choose TELWIN and cut without compromise! ?
Part number: 816146
EAN code: 8056151812469
