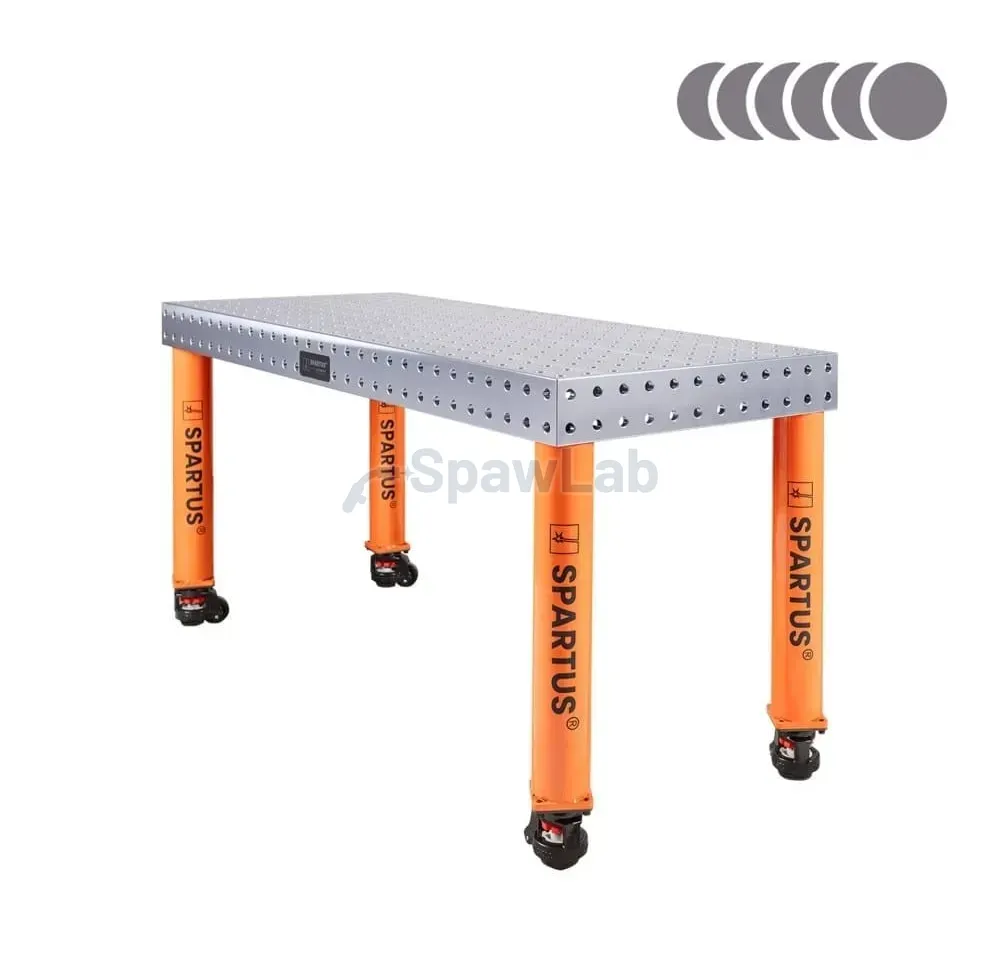

Spartus [Outlet] Spartus Hermes 3D 1500x600x100mm welding table | D16 system | 4 legs with castors L=650mm

SPARTUS welding table in the D16 system

The SPARTUS HERMES D16 welding table is a precise and sturdy base for welding, assembly and metalworking. It is made of tough S355J2+N steel with a Ø16 mm hole system and gives you maximum stability, accuracy and ease of work.

Welded S355J2+N steel top, built to last

At the heart of every SPARTUS HERMES D16 table is a welded top made of high-grade S355J2+N structural steel, which stands out for its resistance to distortion and mechanical damage. Precision machining gives the top a flatness accuracy of 0.1 mm/m², so you get a perfectly level work surface, even under heavy loads.

This ensures full stability when you position workpieces and maximum welding accuracy, whatever the size of the structure.

A 12-14 mm thick top is the ideal compromise between mass and accuracy. This design resists impact, high temperatures and distortion, and keeps the surface perfectly flat for many years.

Drilled and milled Ø16 mm hole system

The work surface has precisely drilled and milled 16 mm diameter holes, laid out in the regular grid of the D16 system. Each hole is made to an accuracy of +0.05 mm, and the hole spacing is 50 mm.

This level of precision ensures full compatibility with system accessories and lets you clamp workpieces quickly, repeatably and securely with clamps, squares and stops.

Millimetre scale for fast, accurate positioning

A clearly legible millimetre scale is marked on the work surface, which makes it easier to set up parts and fixtures precisely. This practical feature improves repeatability and cuts set-up time.

Modular 3D sides for flexible workstation layouts

The SPARTUS HERMES D16 table is based on a system of modular 3D sides that let you extend the work surface in any direction. This makes it easy to enlarge the working area or adapt the shape of the table to a specific project, from precision parts to large steel structures.

Stable D16 welding table legs with castors and brake, five length options

SPARTUS D16 tables are available with legs in five lengths, so you can choose the right height for the type of work you do.

SPARTUS D16 welding tables are fitted with legs with castors and an integrated parking brake, so you can move the table easily around the workstation.

Once the table is in place, a mechanical brake that locks both swivel and travel lets you "park" it securely and keeps the structure fully rigid during welding.

This combines mobility with safe use: you can move the table freely and then lock it in the working position in seconds.

Applications of SPARTUS D16 welding tables

SPARTUS D16 welding tables are used in:

• structural welding,
• assembly and machining of steel components,
• production workshops,
• assembly lines,
• training and educational facilities.

SPARTUS D16, a precise base for your work

When you choose a SPARTUS welding table in the D16 system, you invest in accuracy, durability and reliability. It streamlines every stage of welding and assembly and gives you repeatable results and a high level of working comfort.

Accessories for SPARTUS D16 welding tables

SPARTUS offers an extensive selection of accessories for D16 system welding tables that help you make full use of your workstation. We offer single items as well as ready-made accessory sets matched to users' needs. The range includes welding clamps, squares, prisms, clamping pins, sockets, stops and clamping blocks, all compatible with the D16 hole system. With them you can fix parts easily and precisely, extend the work surface and work more accurately and efficiently at your SPARTUS D16 table.
