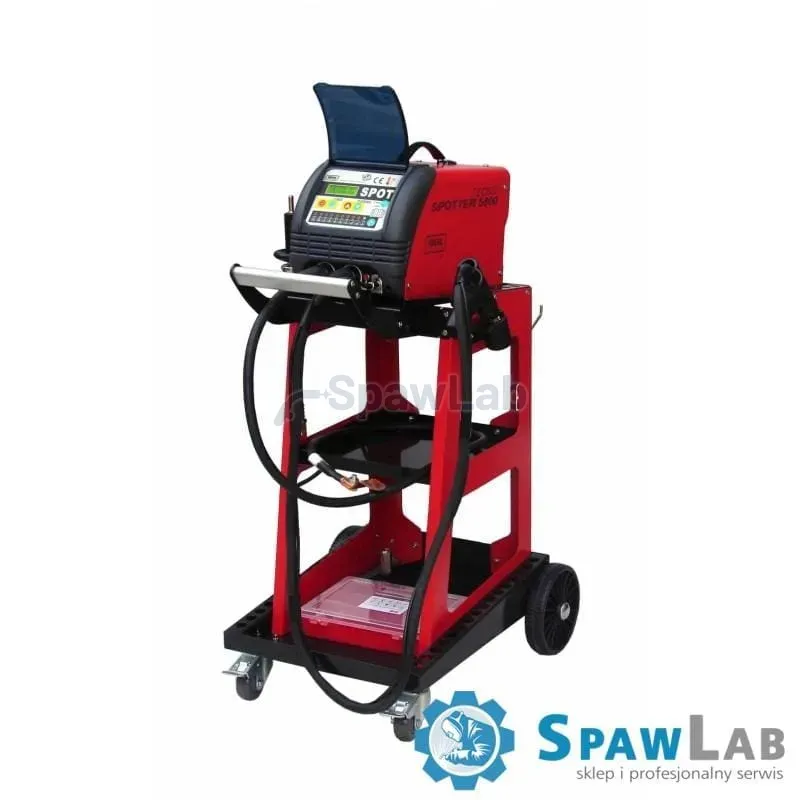

Tecno Spotter 5800 is a microprocessor-controlled machine for pulling, single-sided spot welding, patching and heating sheet metal with a carbon electrode. It is mainly for car body repairs. Two-phase 400 V supply, without plug.
Technical data
- Welding current: maximum 3800 A, rated 3000 A, stepless adjustment
- Welding time: 0 to 99 ms
- Max. sheet thickness for single-sided spot welding: 0.8 + 0.8 mm
- Power: 10 kW
- Power supply: 400 V, 50 Hz, input current 32 A
- Weight: 27 kg
- Dimensions (L x W x H): 350 x 220 x 250 mm
Features
Control and operating modes
You change the settings on the panel. Once you select the tool, the machine sets the welding current and work cycles, and you can also set the time and current by hand. Operating mode: automatic (starts on contact with the material) or manual (starts with the button on the gun).
Cooling and protection
A fan cools the machine. It has overload protection and overvoltage and undervoltage protection.
In the set
- trolley
- work cable with gun
- earth cable with clamp
- accessory box: M10 washers, triangle washers, shrinking electrodes
- hook for M8 to M12 washers
- slide hammer with holder for triangle washers
- rubber suction cup for shallow dents
12-month warranty for professional use, door-to-door service with no transport costs on your side.
