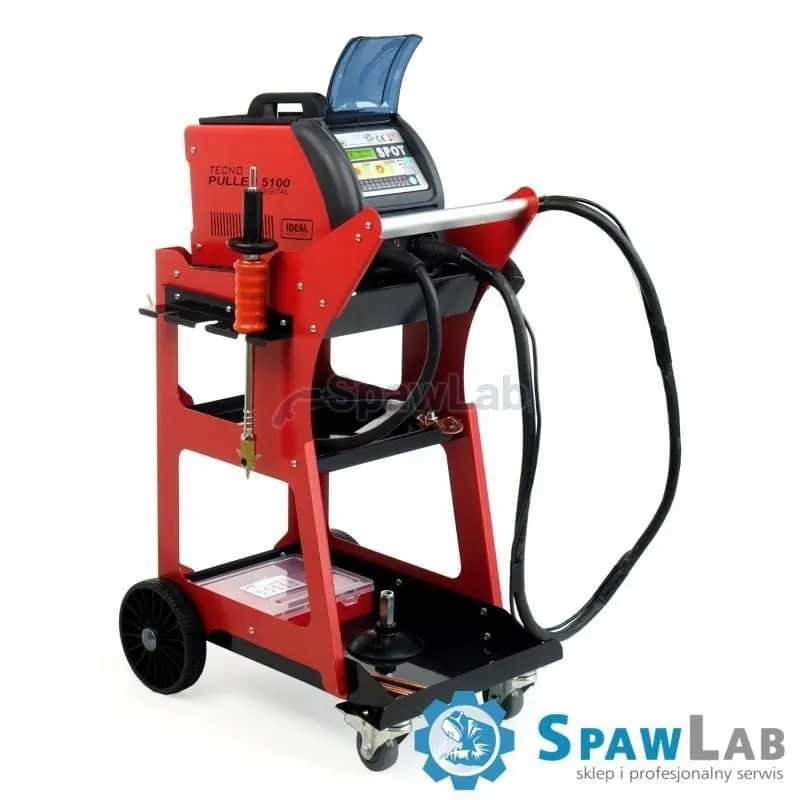

TECNO PULLER 5100 is a microprocessor-controlled machine for pulling, patching and heating sheet metal with a carbon electrode. It is mainly for car body repairs. Once you select the tool, it sets the welding current and work cycles. You can also set the time and current by hand on the panel.
Technical data
- Power supply: two-phase 400 V, 50/60 Hz (2ph), without plug
- Power: 10 kW
- Input current: 30 A
- Maximum welding current: 3000 A
- Rated welding current: 2500 A
- Welding current adjustment: stepless
- Welding time: 0 to 99 ms
- Protection: overload, overvoltage and undervoltage
- Weight of machine / set: 20 / 42 kg
- Dimensions (L x W x H): 460 x 480 x 1050 mm
- Warranty: 12 months for professional use, door-to-door service with no transport costs
Features
You choose the operating mode yourself. In automatic mode, work starts when the tool touches the material. In manual mode, it starts when you press the button on the gun.
In the set
- Trolley
- Work cable with gun
- Earth cable with clamp
- Accessory box: M10 washers, triangle washers, shrinking electrodes
- Hook for M8 to M12 washers
- Slide hammer with holder for triangle washers
- Rubber suction cup for shallow dents
