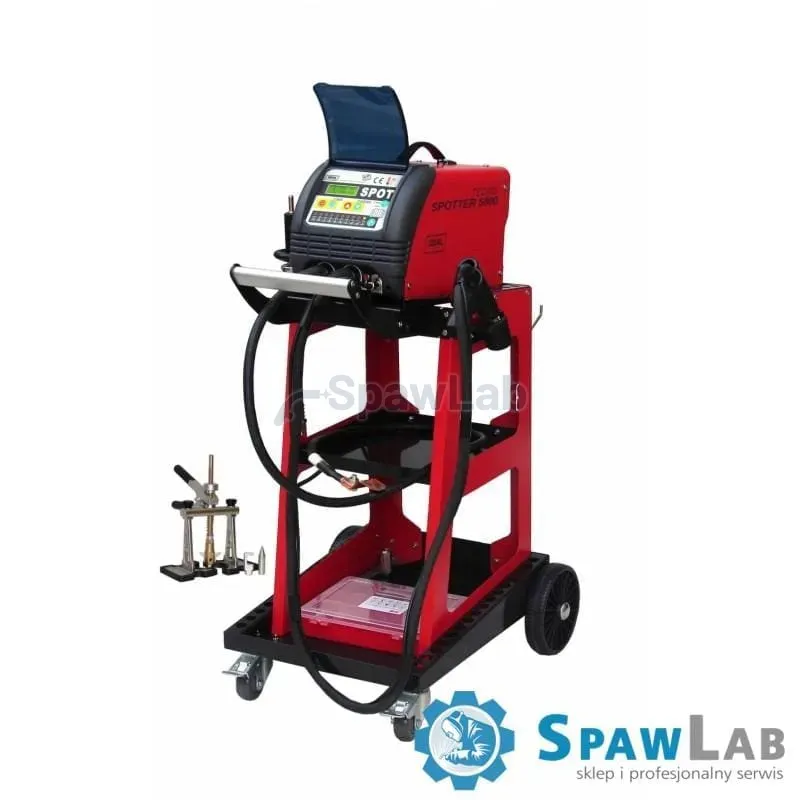

TECNO SPOTTER 5800 is a microprocessor-controlled machine for pulling, single-sided spot welding, patching and heating sheet metal with a carbon electrode. It is designed mainly for car body repairs. Maximum welding current is 3800 A, supply 400 V, power 10 kW.
Specifications
- Power supply: 400 V, 50 Hz, two-phase, without plug
- Input current: 32 A
- Maximum power: 10 kW
- Welding current: rated 3000 A, maximum 3800 A, stepless adjustment
- Welding time: 0 to 99 ms
- Sheet thickness for single-sided spot welding: 0.8 + 0.8 mm
- Weight: 27 kg
- Dimensions (L x W x H): 350 x 220 x 250 mm
Features

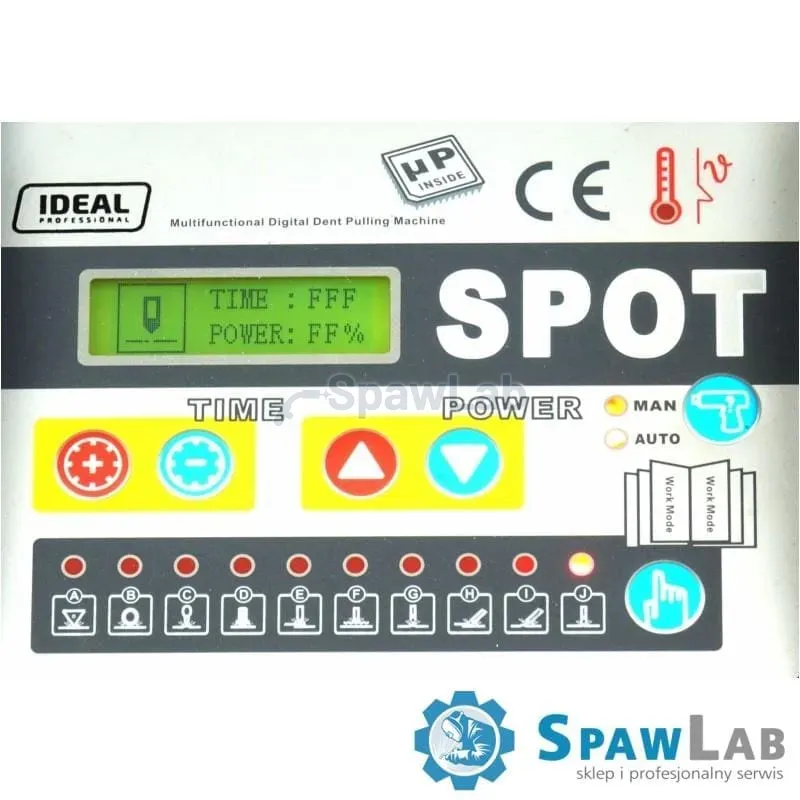

- Control panel: once you choose the tool, the machine selects the welding current and work cycles itself. You can also set time and current manually.
- Automatic mode: work starts on contact with the material.
- Manual mode: work starts when you press the trigger on the gun.
- Cooling and protection: fan, overload, overvoltage and undervoltage protection.
Included
- Trolley
- Work cable with gun
- Earth cable with clamp

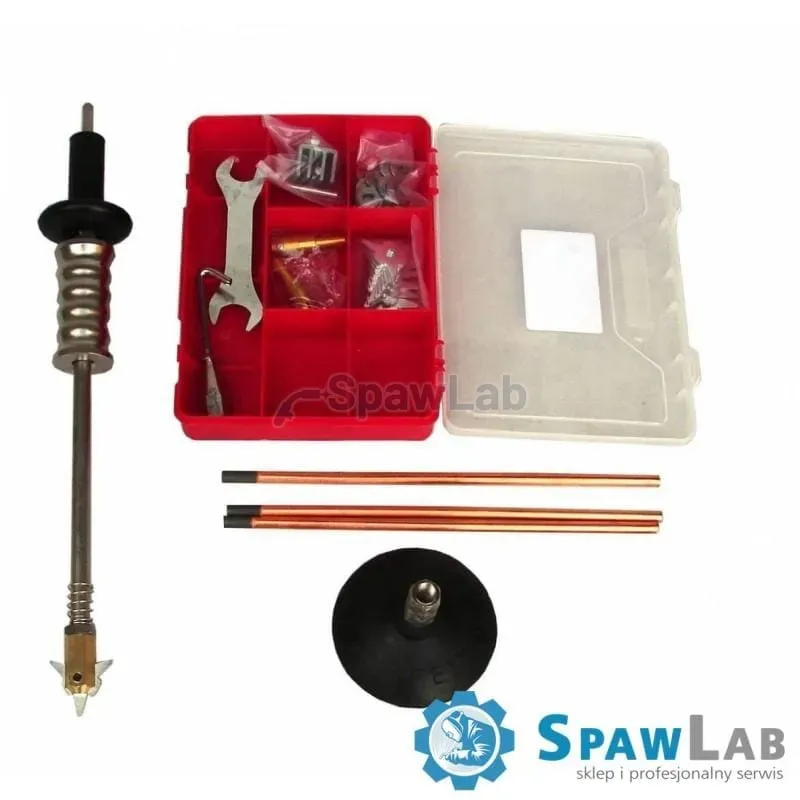

- Accessory case: M10 washers, triangular washers, shrinking electrodes
- Hook for M8 to M12 washers
- Slide hammer with holder for triangular washers
- Rubber suction cup for shallow dents
- QuickPuller
Warranty
12 months for professional use, door-to-door service with no transport costs.
