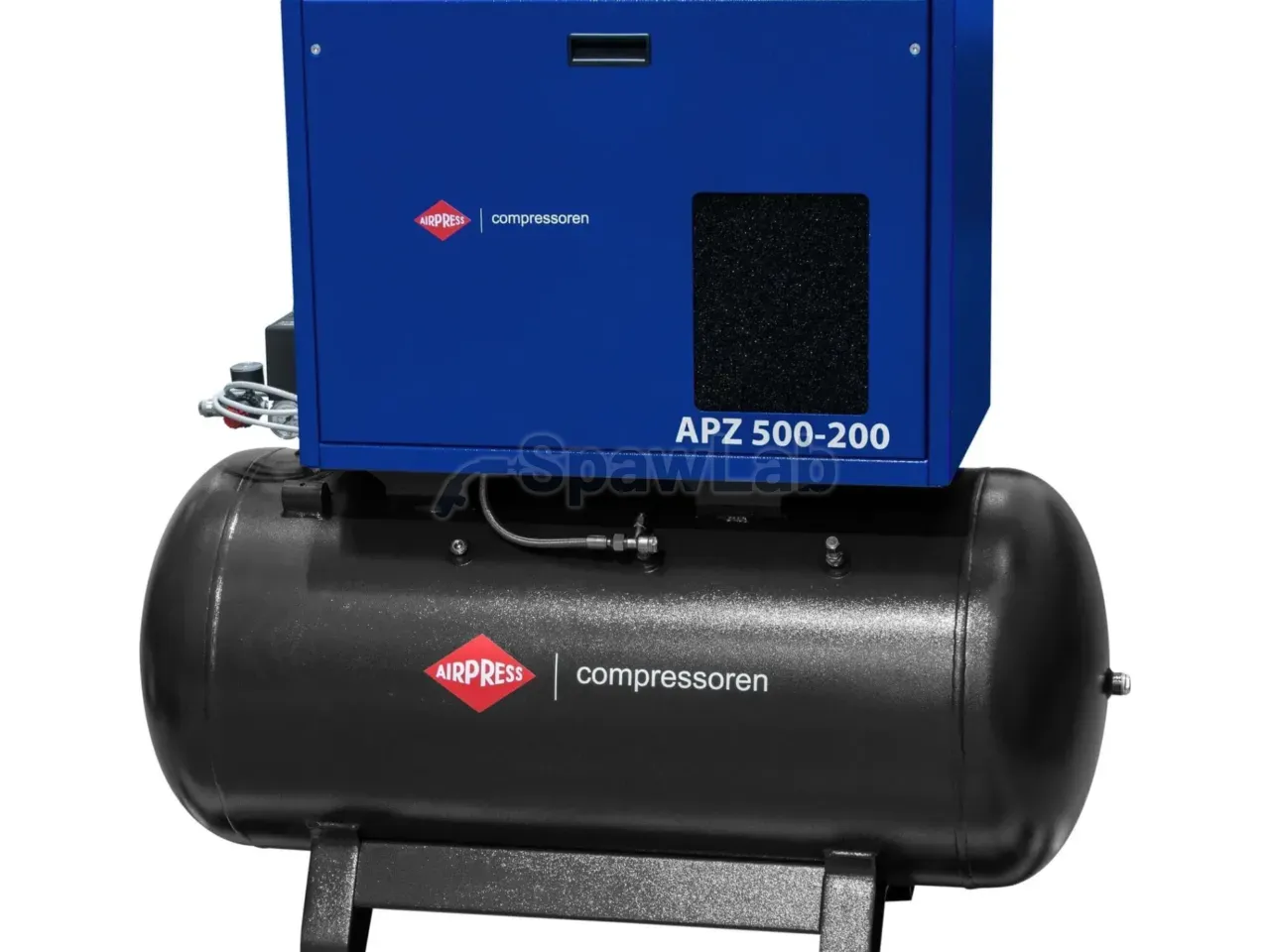

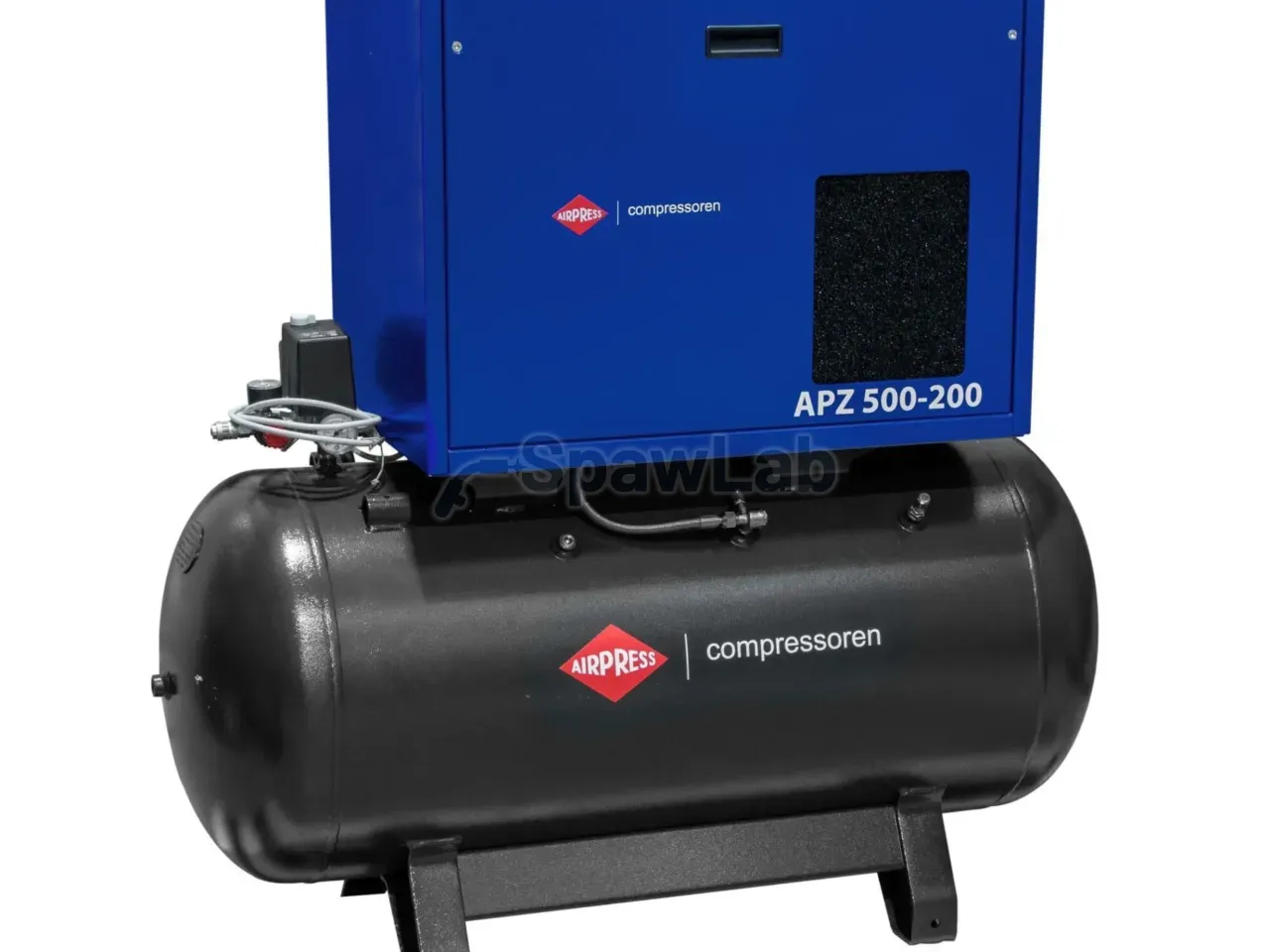

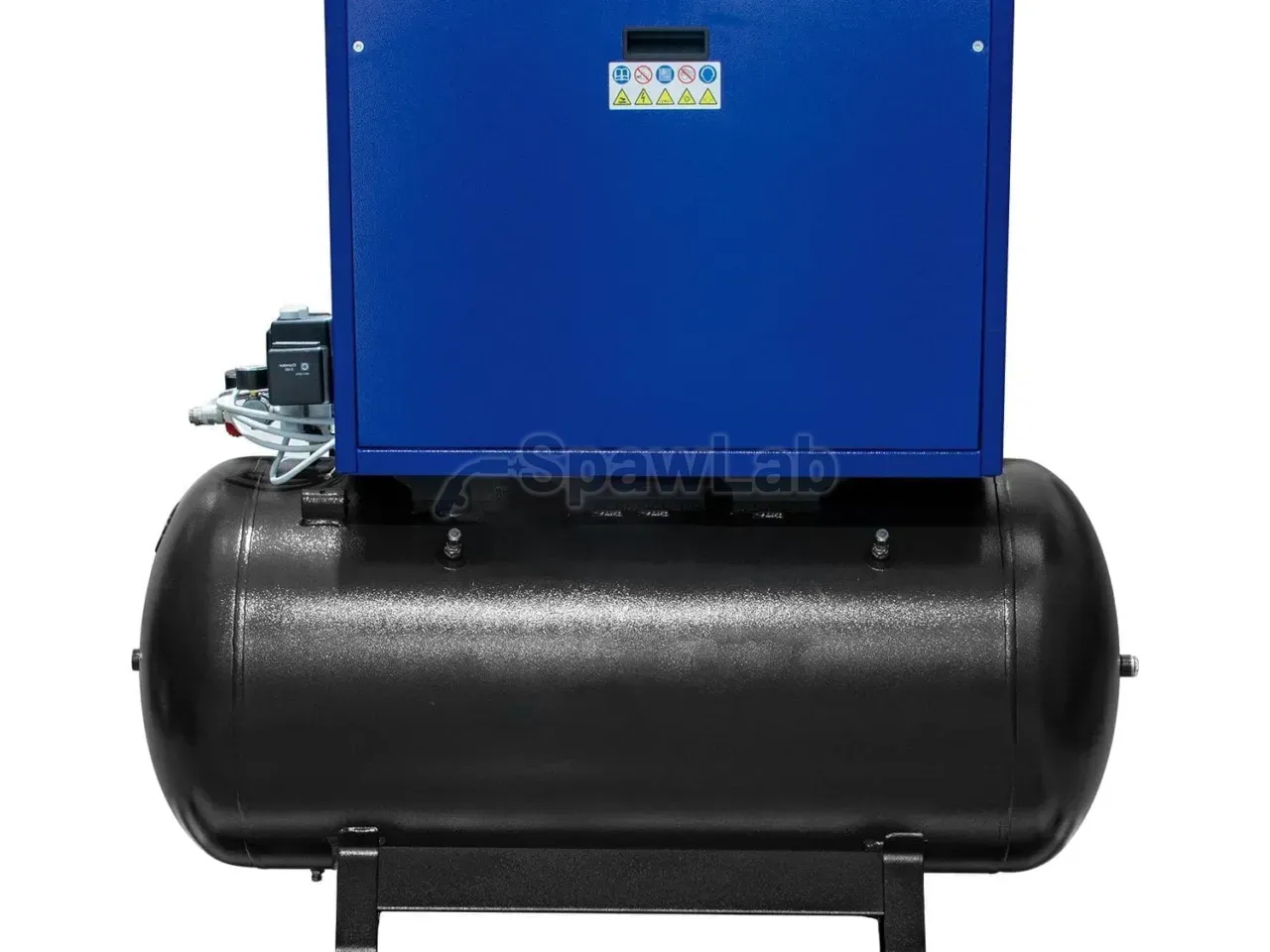

APZ 500-200 silent twin-piston compressor 10 bar 4 HP/3 kW 378 l/min 200 l
The APZ 500-200 10 bar compressor is a professional piston unit with a 200 litre tank, designed for industrial applications that call for high output, stable operation and low noise. The twin-piston compression mechanism and advanced cooling system give very high operating efficiency, especially in confined spaces and at low temperatures, where screw compressors can have limitations.
Key technical features

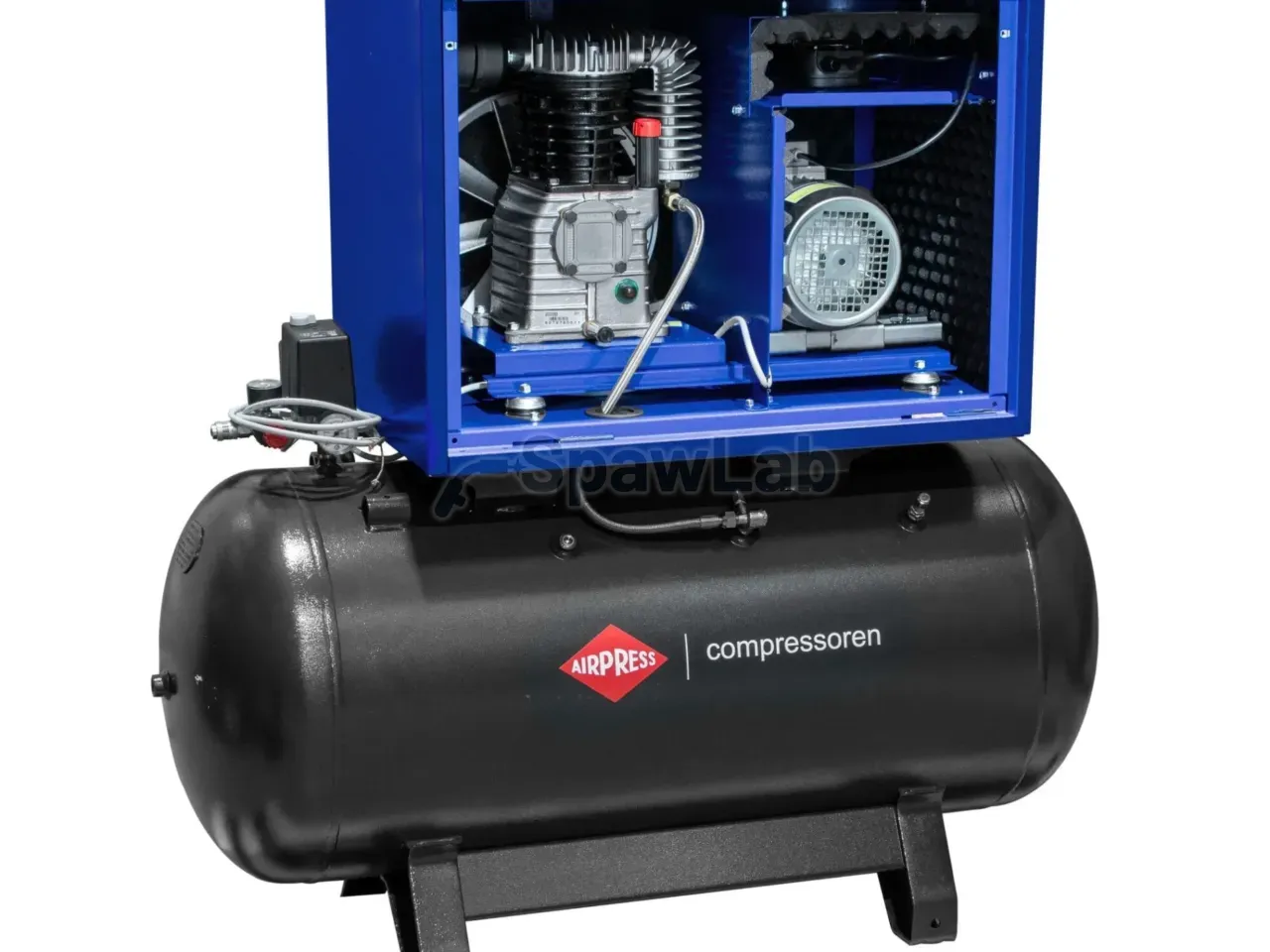

- Twin-piston compression mechanism: fitted with a K18 series pump, the compressor provides optimised single-stage compression, which translates into stable operation under intensive use.
- Acoustic insulation: an inner layer of acoustic foam in the housing effectively reduces operating noise to 68 dB(A), so the compressor can be safely installed close to workstations.
- Thermostatic fan control: temperature sensors switch on the cooling fan automatically, adjusting the cooling airflow to maintain the optimum operating temperature with minimal energy consumption.
- Built-in heat exchanger: keeps the compressed air temperature stable, reducing condensation and extending the life of internal components.
Technical specifications
- Motor power: 4 HP / 3.0 kW
- Maximum pressure: 10 bar
- Air delivery: 378 l/min
- Power supply: 400 V / 50 Hz / 3-phase
- Tank capacity: 200 litres (integrated)
- Noise level: 68 dB(A)
Applications
The APZ 500-200 10 bar model is well suited to many industrial and service applications where quiet operation and reliability are required. It is recommended for production plants, mechanical workshops, the automotive sector and any area that needs a constant supply of compressed air in intensive duty cycles. Thanks to its compact design and advanced acoustic insulation, it is also ideal for work in confined spaces and wherever safe working close to the equipment is essential.
Efficiency and operating economy
Thanks to direct drive technology, the APZ 500-200 10 bar compressor minimises energy losses while delivering high output and durability. A rugged piston mechanism, advanced thermal and acoustic insulation and a thermostatic cooling system ensure efficient operation even in the toughest industrial conditions. The APZ 500-200 10 bar is an ideal solution if you are looking for reliability, a compact design and lower operating costs in environments with high compressed air demand.
