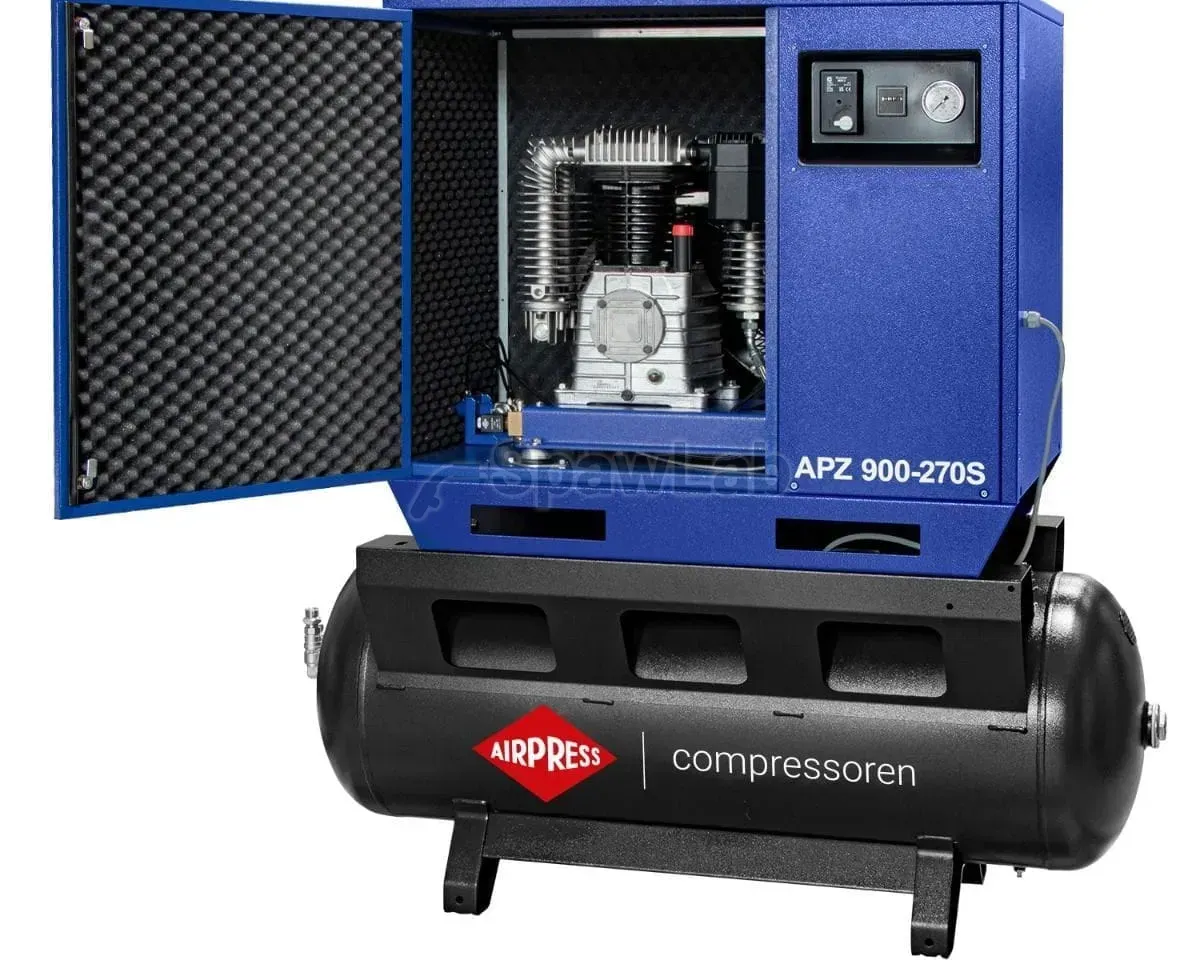

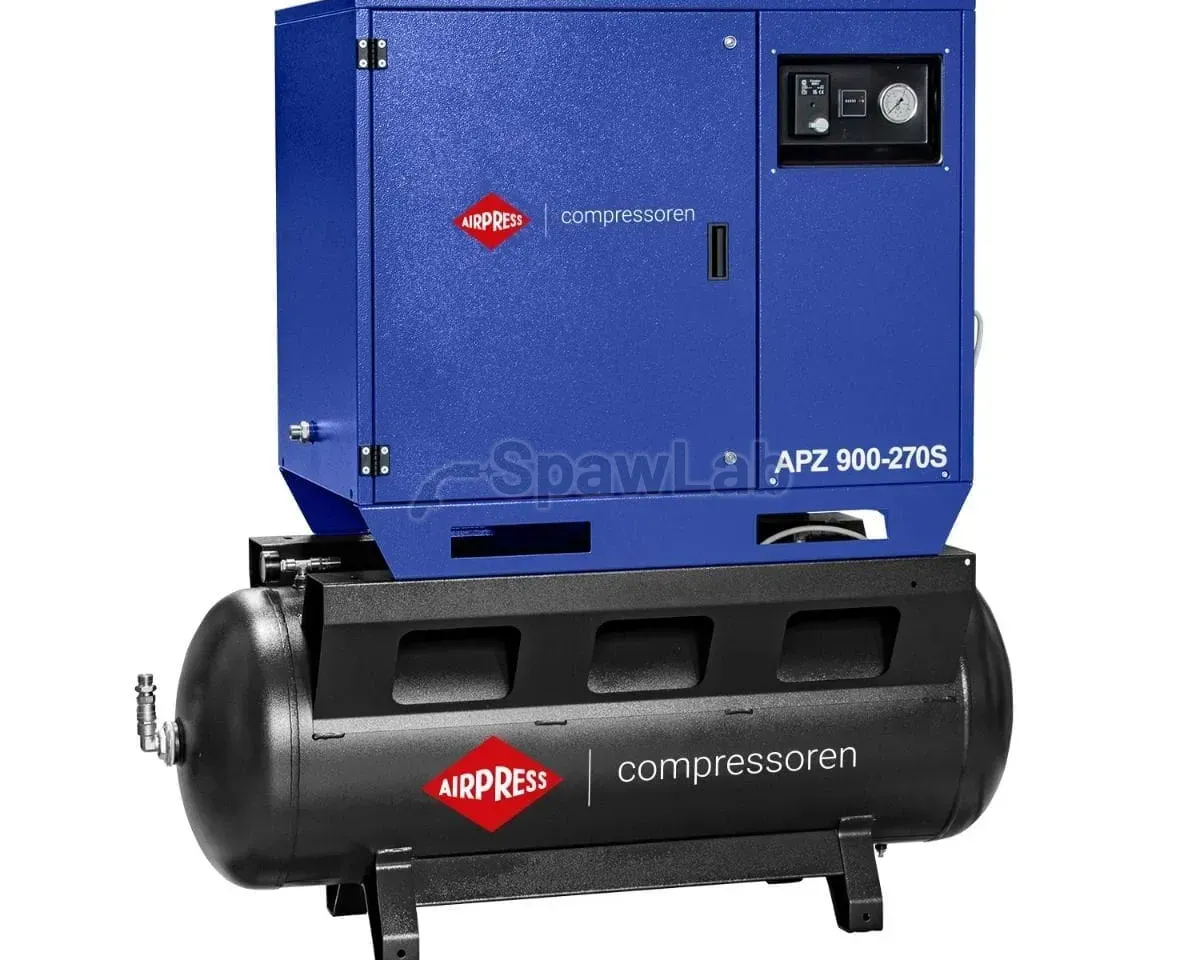

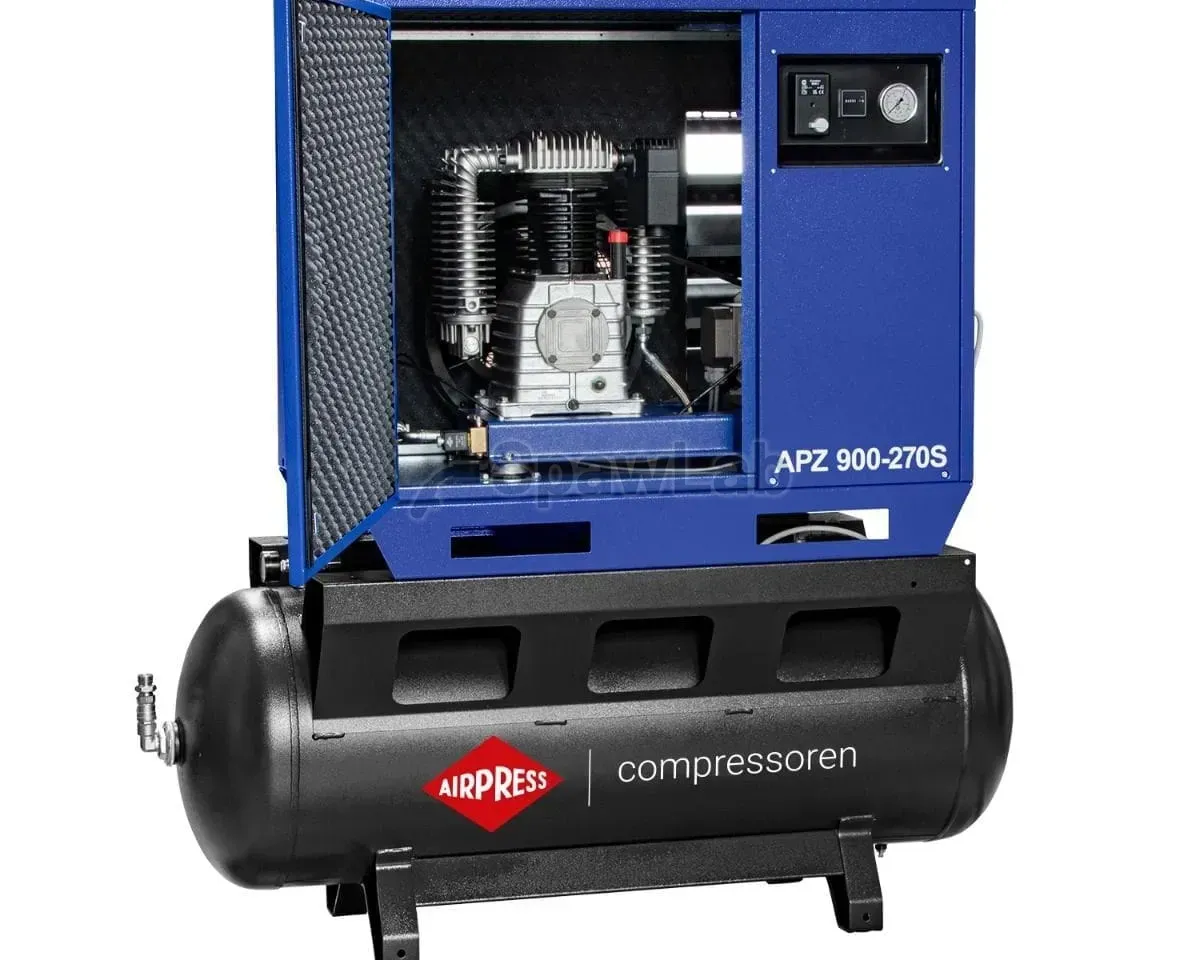

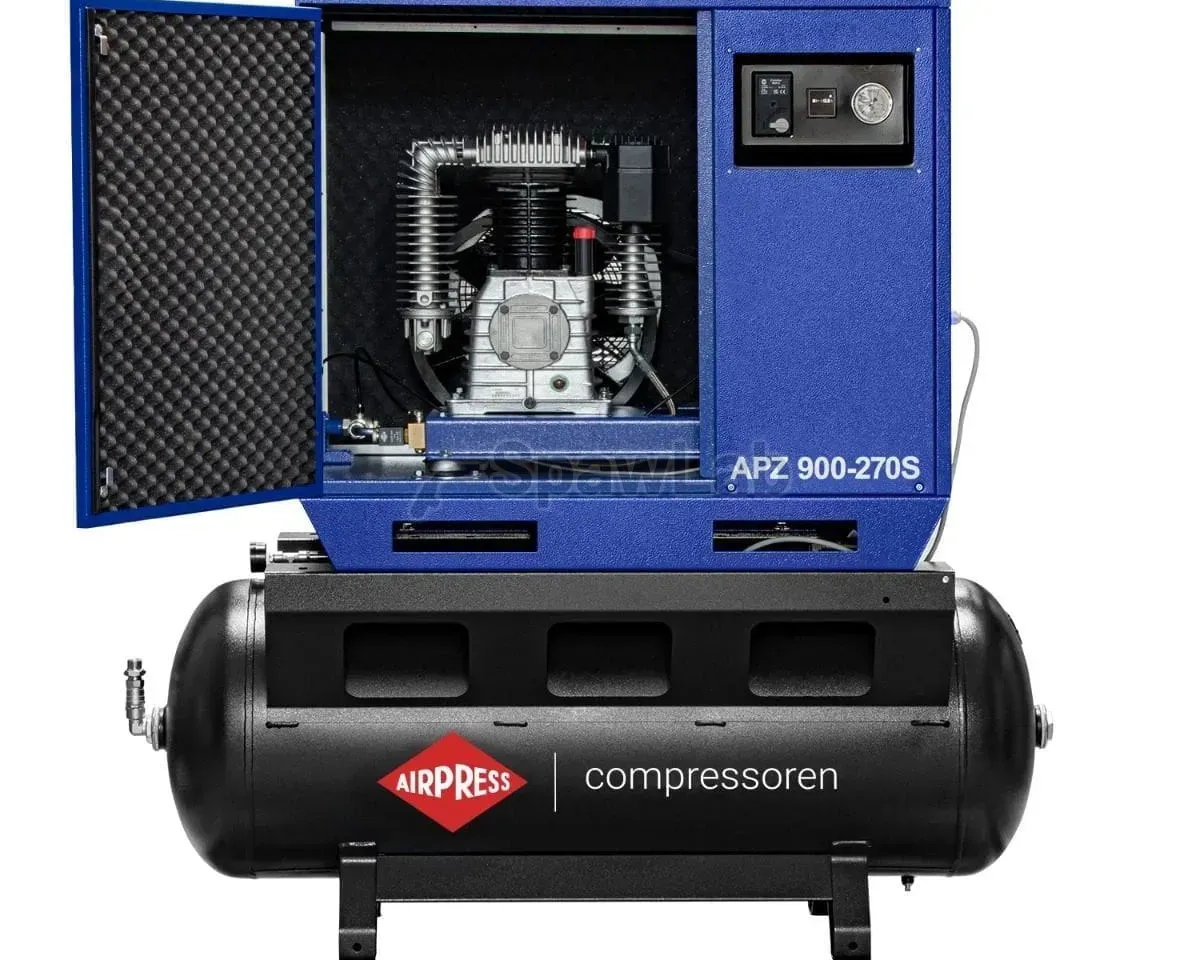

APZ 900-270S silent twin-piston compressor 10 bar 7.5 HP/5.5 kW 611 l/min 270 l
The APZ 900-270S 10 bar compressor is a professional piston unit with a 270 litre tank and a star-delta connection, which gives a smooth start and reduces the load on the power grid. It is designed for heavy work in demanding industrial conditions where high output, stable operation and low noise are key. The twin-piston, two-stage compression mechanism and advanced cooling system ensure reliable operation, even in confined spaces and at low temperatures.
Key technical features

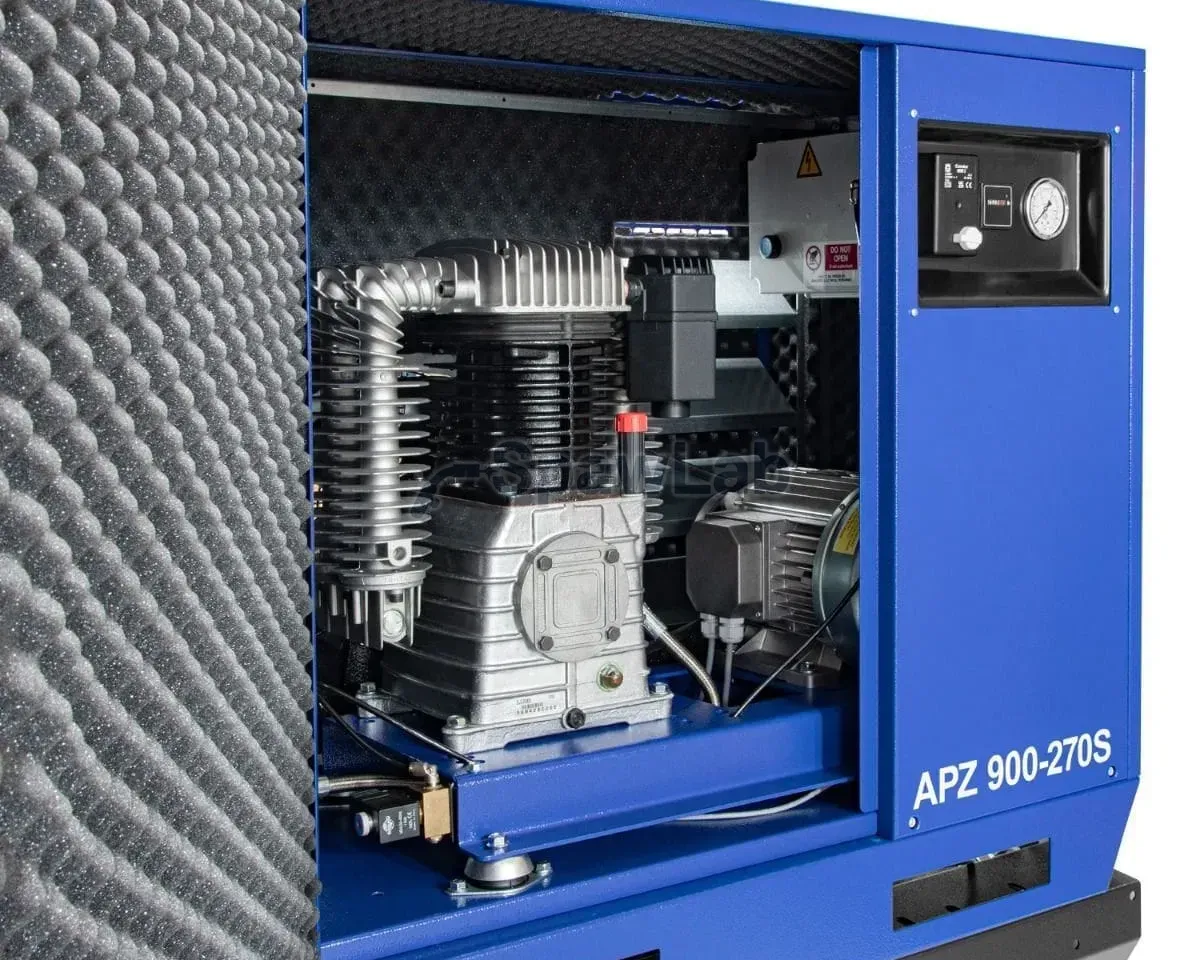

- Twin-piston, two-stage compression mechanism: equipped with an advanced K30 series pump, it ensures efficient, stable operation under heavy use.
- Acoustic insulation: special acoustic foam in the housing effectively lowers operating noise to 68 dB(A), so the compressor can be safely installed close to workstations.
- Thermostatic fan control: temperature sensors switch on the cooling fan automatically, providing optimum cooling and minimising energy consumption.
- Built-in heat exchanger: stabilises the compressed air temperature, reducing condensation and increasing the life of the unit.
- Star-delta connection: allows a soft motor start, reducing the current load and protecting components from current surges.
Technical specifications
- Motor power: 7.5 HP / 5.5 kW
- Maximum pressure: 10 bar
- Air delivery: 611 l/min
- Power supply: 400 V / 50 Hz / 3-phase
- Tank capacity: 270 litres
- Noise level: 68 dB(A)
Applications
The APZ 900-270S 10 bar is very well suited to industrial applications such as production plants, mechanical workshops and the automotive sector, where quiet, efficient operation is required. With its large 270 litre tank and advanced design, this compressor performs well in confined spaces and in environments that demand reliability in intensive duty cycles.
Efficiency and operating economy
Thanks to the star-delta connection and direct drive, the APZ 900-270S 10 bar compressor minimises energy losses while offering high output and durability. A rugged piston mechanism, advanced acoustic insulation and the cooling system ensure stable operation even in the toughest conditions. The APZ 900-270S 10 bar is an ideal solution if you are looking for equipment that is reliable, compact and economical to run.
