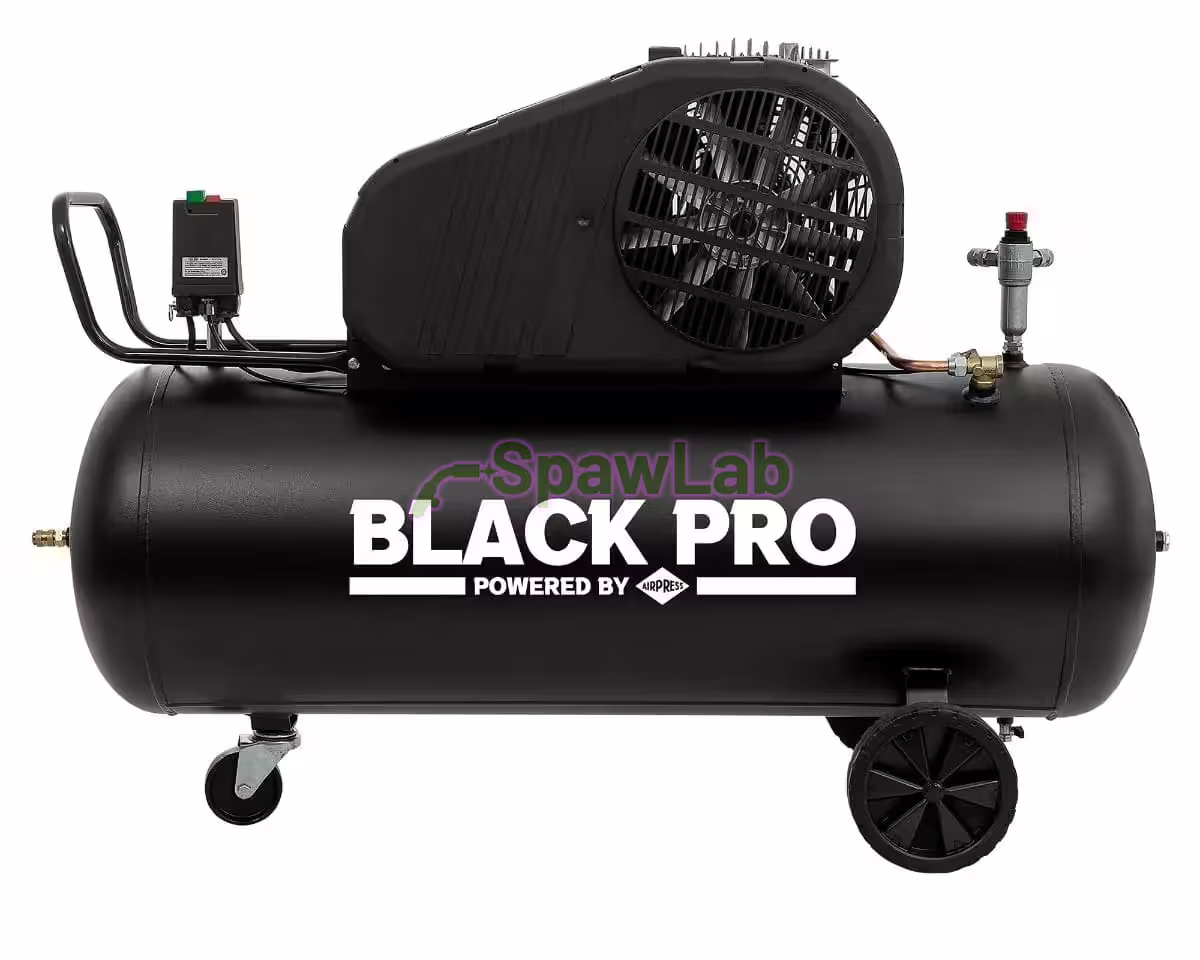

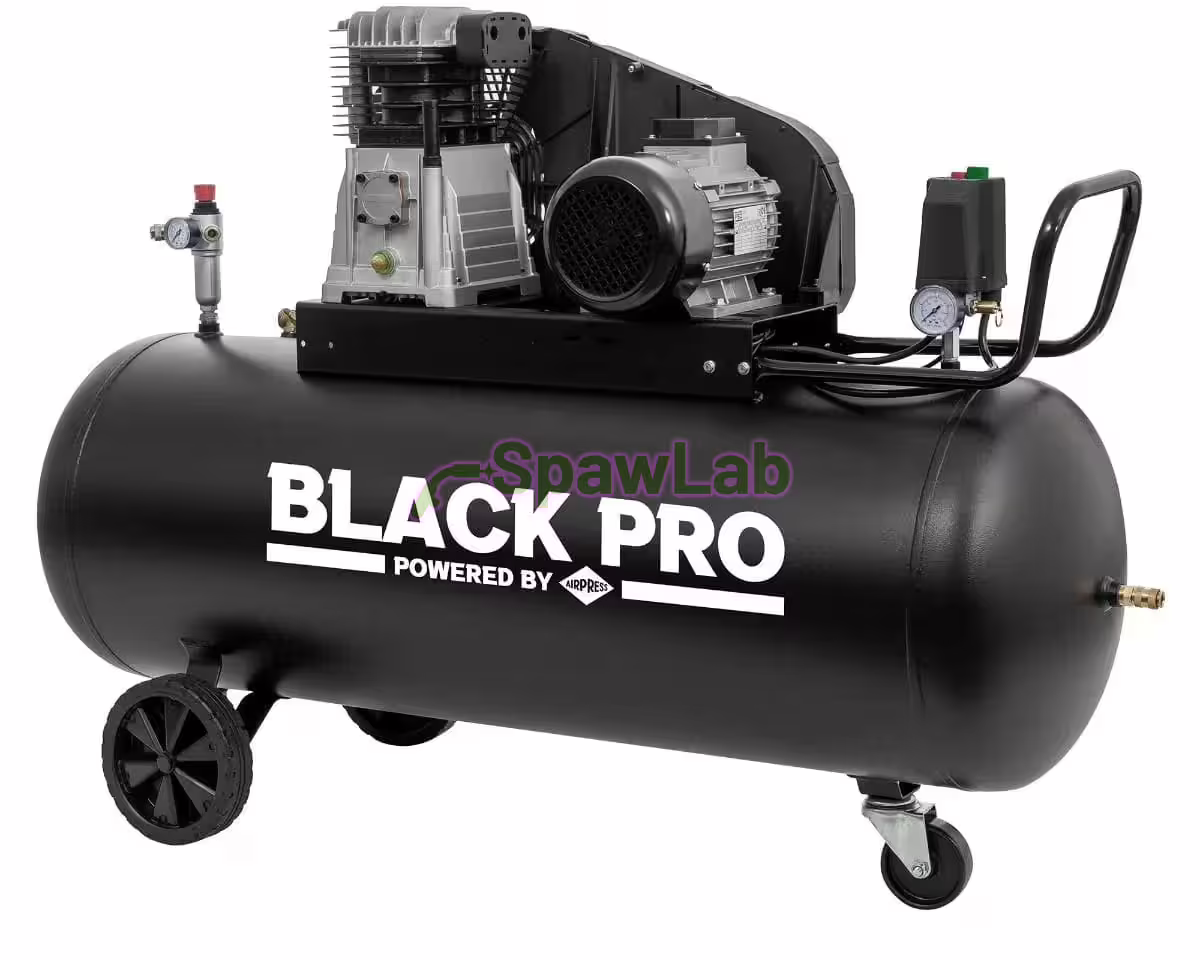

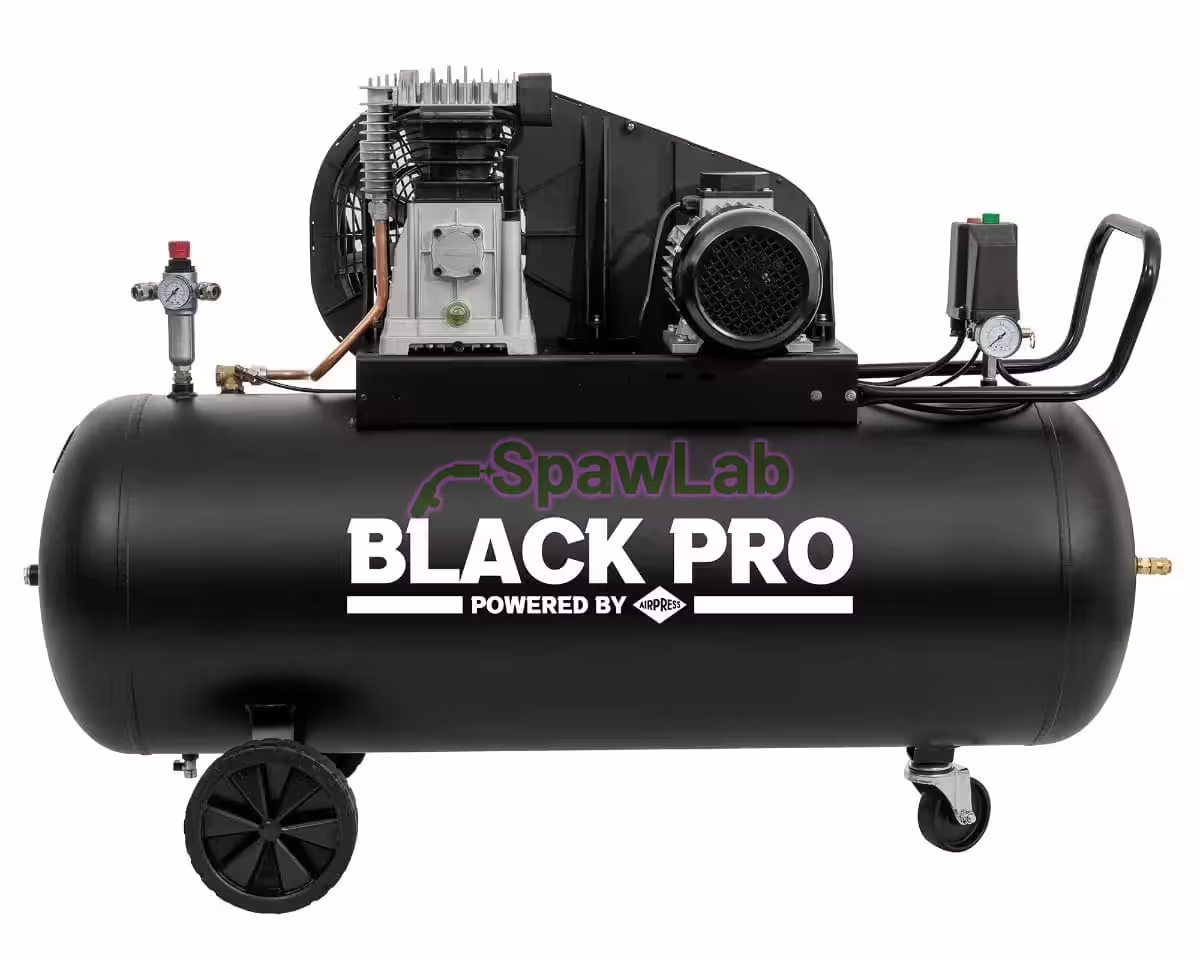

Black Pro B3800B twin-piston compressor 10 bar 3.0 HP / 2.2 kW 289.3 l/min 200 l
Black Pro piston compressors are professional twin-piston compressors that compress air by means of a V-belt driven by an electric motor. Compressors in the Black Pro series are fitted with pressure switches, pressure regulators, pressure gauges and universal quick coupling valves for maximum and minimum pressure, as well as overload protection. Modern engineering makes the compressor reliable and efficient in harsh working conditions.
The compressors are designed for supplying air tools over longer periods, painting, blowing off surfaces and inflating.
Key technical features
- Belt drive: helps to reduce wear on some components and lowers the speed of the
pump, which extends the life of the compressor. - V-belt in a sturdy housing: improves safety, reduces
noise and improves pump cooling thanks to additional ventilation channels. - 200 l tank: lets you work longer without frequent breaks.
- Fitted with wheels and a handle: for easy transport and mobility of the compressor.
- Compressor powered at 230 V / 50 Hz / 1 Ph: the supply found in most household power networks. Ideal for small workshops or garages without access to an industrial power supply.
- Made in Europe
- 2-year warranty: from installation and commissioning of the compressor
Individual technical data
| Property | Value |
|---|---|
| SKU | 360109 |
| Intake capacity (l/min) | 390 l/min |
| Air delivery (l/min) | 289.3 l/min |
| Max. pressure (bar) | 10 bar (145 PSI) |
| Motor power (HP/kW) | 3.0 HP / 2.2 kW |
| Pump type | B3800B |
| Number of pistons | 2 |
| Compression stages | 1 |
| SKU | Intake capacity (l/min) | Air delivery (l/min) | Max. pressure (bar) | Motor power (HP/kW) | Pump type | Number of pistons | Compression stages |
|---|---|---|---|---|---|---|---|
| 360109 | 390 l/min | 289.3 l/min | 10 bar (145 PSI) | 3.0 HP / 2.2 kW | B3800B | 2 | 1 |
Individual installation data
| Property | Value |
|---|---|
| SKU | 360109 |
| Air tank (l) | 200 l |
| Length (mm) | 1440 mm |
| Width (mm) | 480 mm |
| Height (mm) | 1130 mm |
| Weight (kg) | 110 kg |
| Power supply | 230 V / 50 Hz / 1 Ph |
| SKU | Air tank (l) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Power supply |
|---|---|---|---|---|---|---|
| 360109 | 200 l | 1440 mm | 480 mm | 1130 mm | 110 kg | 230 V / 50 Hz / 1 Ph |
