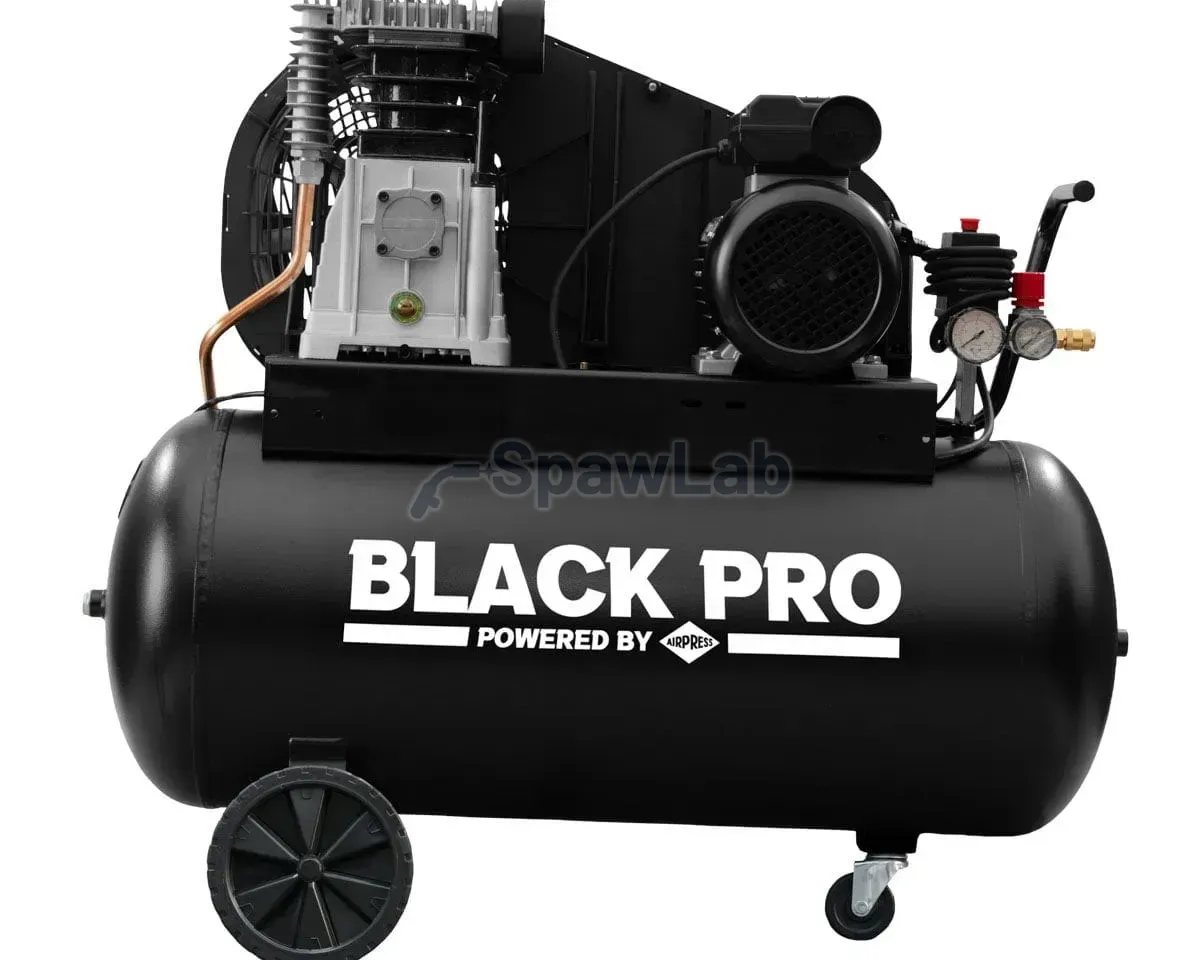

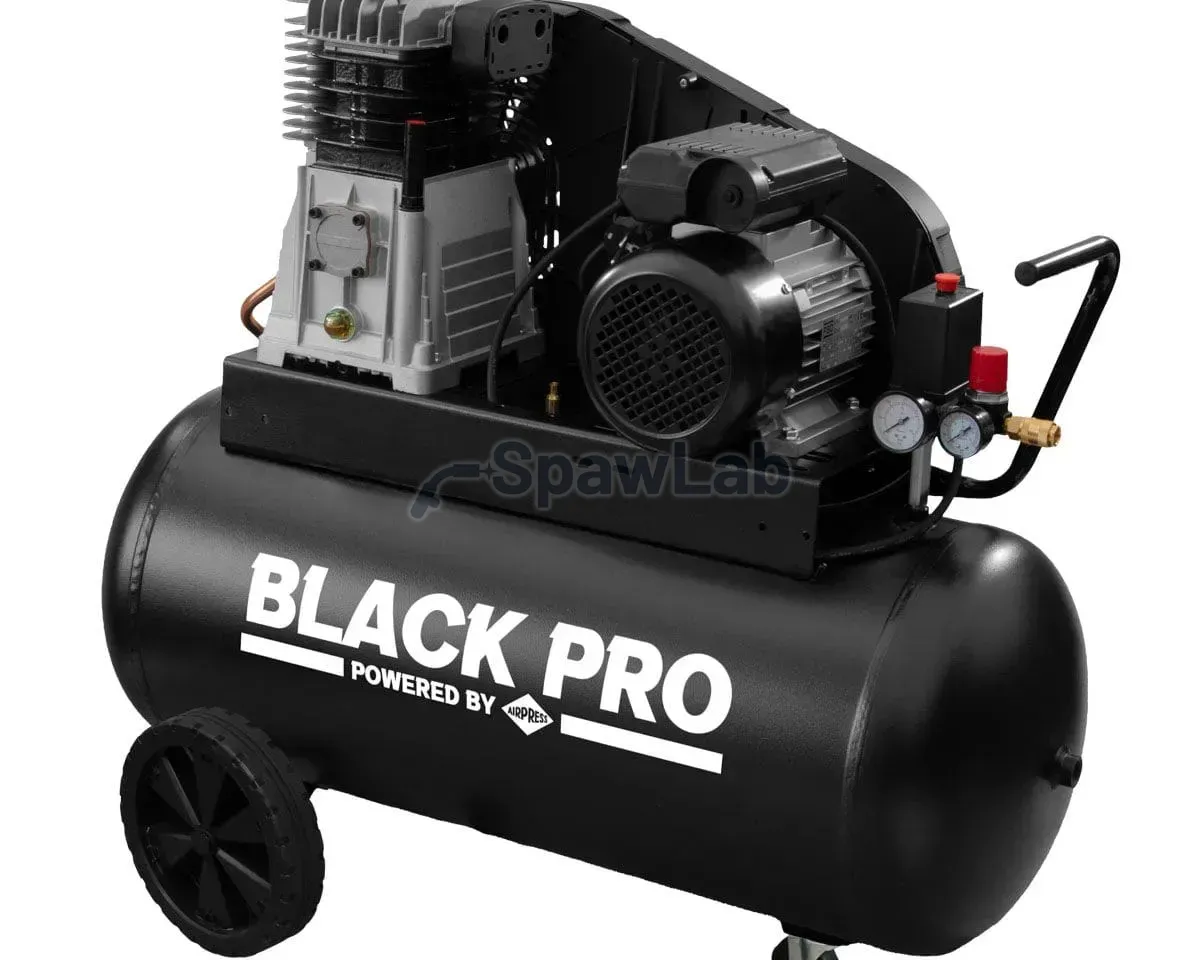

Black Pro B3800B twin-piston compressor 10 bar 3.0 HP / 2.2 kW 289.3 l/min 90 l

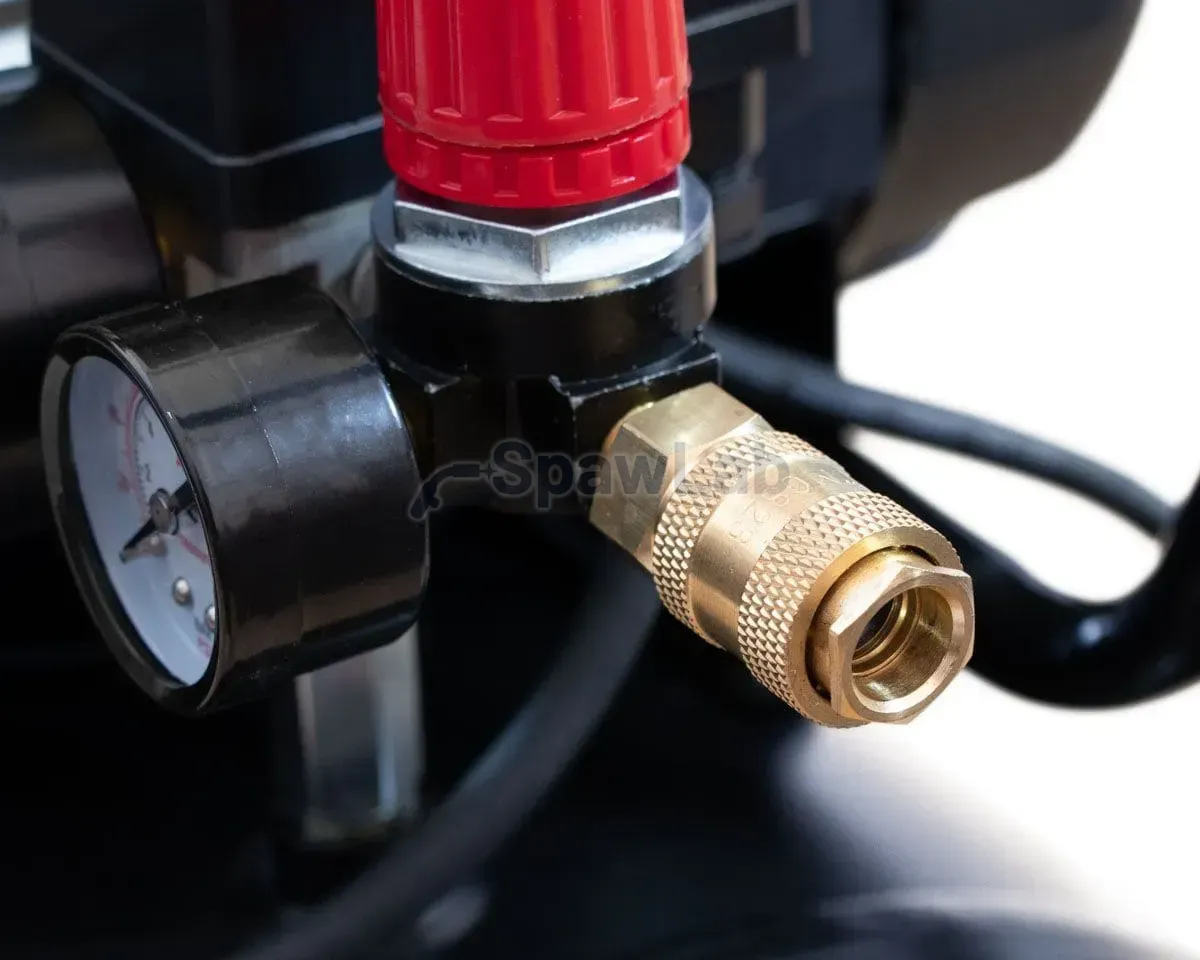

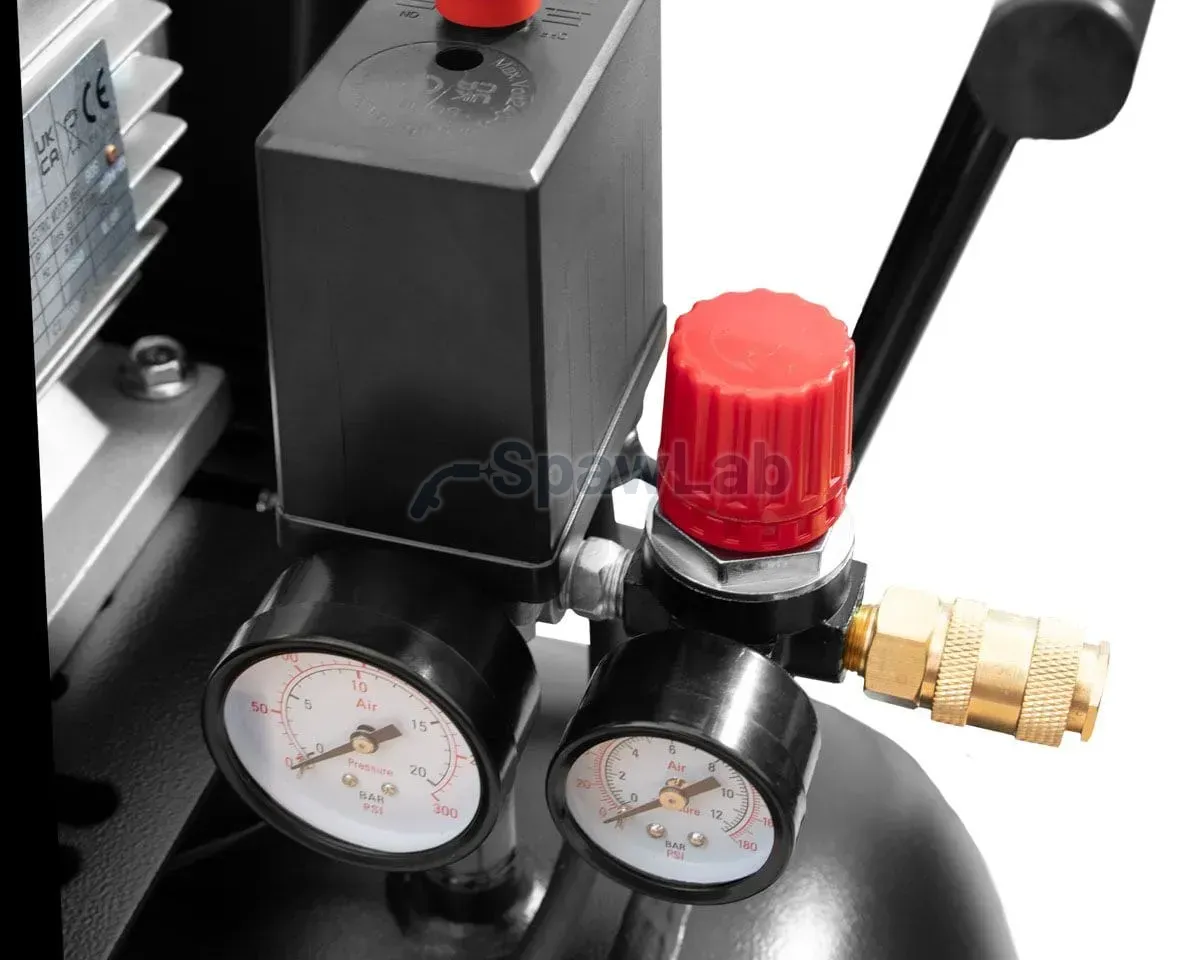

Black Pro piston compressors are professional twin-piston compressors that compress air by means of a V-belt driven by an electric motor. Compressors in the Black Pro series are equipped with pressure switches, pressure regulators, pressure gauges and universal quick coupling valves for maximum and minimum pressure, as well as overload protection. Modern engineering makes the compressor reliable and efficient in demanding working conditions.
The compressors are designed for extended operation of air tools, spray painting, blowing off surfaces and inflating.
Key technical features
- Belt drive: helps reduce wear on some components and lowers the speed

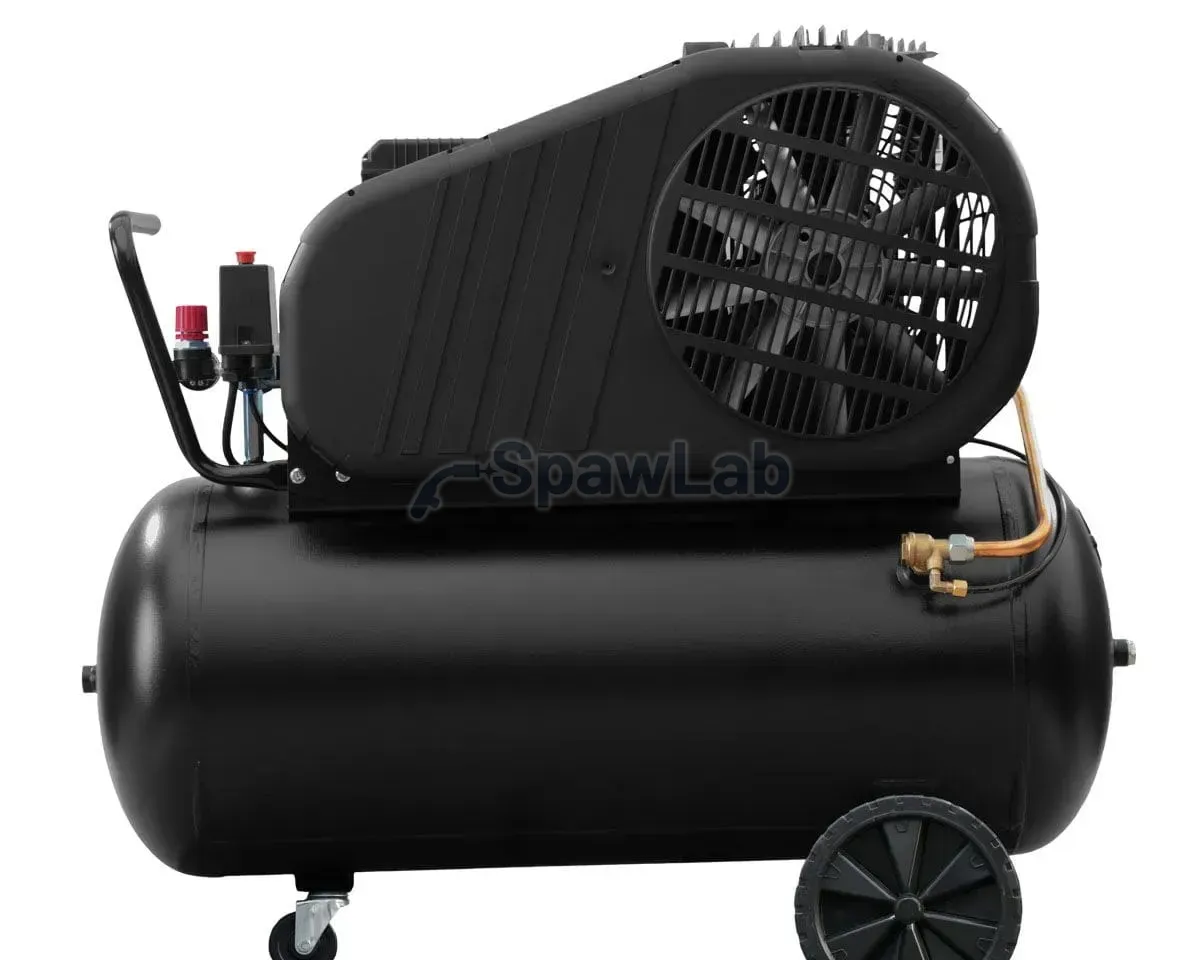

of the pump, which extends the life of the compressor. - V-belt in a sturdy housing: increases safety, cuts
noise and improves pump cooling thanks to additional ventilation channels. - Compact tank: one of the smallest tanks in the series, ideal for work with medium or low air demand (duty cycle: 50% running time and 50% rest).
- Fitted with wheels and a handle: for easy transport and good mobility of the compressor.
- 230 V / 50 Hz / 1 Ph power supply: the voltage found in most standard mains installations. Ideal for small workshops or garages without access to an industrial power supply.
- Made in Europe
- 2-year warranty: from installation and commissioning of the compressor
Model-specific technical data
| Property | Value |
|---|---|
| SKU | 360120 |
| Intake capacity (l/min) | 390 l/min |
| Air delivery (l/min) | 289.3 l/min |
| Max. pressure (bar) | 10 bar (145 PSI) |
| Motor power (HP/kW) | 3.0 HP / 2.2 kW |
| Pump type | B3800B |
| Number of pistons | 2 |
| Compression stages | 1 |
| SKU | Intake capacity (l/min) | Air delivery (l/min) | Max. pressure (bar) | Motor power (HP/kW) | Pump type | Number of pistons | Compression stages |
|---|---|---|---|---|---|---|---|
| 360120 | 390 l/min | 289.3 l/min | 10 bar (145 PSI) | 3.0 HP / 2.2 kW | B3800B | 2 | 1 |
Model-specific installation data
| Property | Value |
|---|---|
| SKU | 360120 |
| Air tank (l) | 90 l |
| Length (mm) | 1030 mm |
| Width (mm) | 440 mm |
| Height (mm) | 920 mm |
| Weight (kg) | 73 kg |
| Power supply | 230 V / 50 Hz / 1 Ph |
| SKU | Air tank (l) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Power supply |
|---|---|---|---|---|---|---|
| 360120 | 90 l | 1030 mm | 440 mm | 920 mm | 73 kg | 230 V / 50 Hz / 1 Ph |
