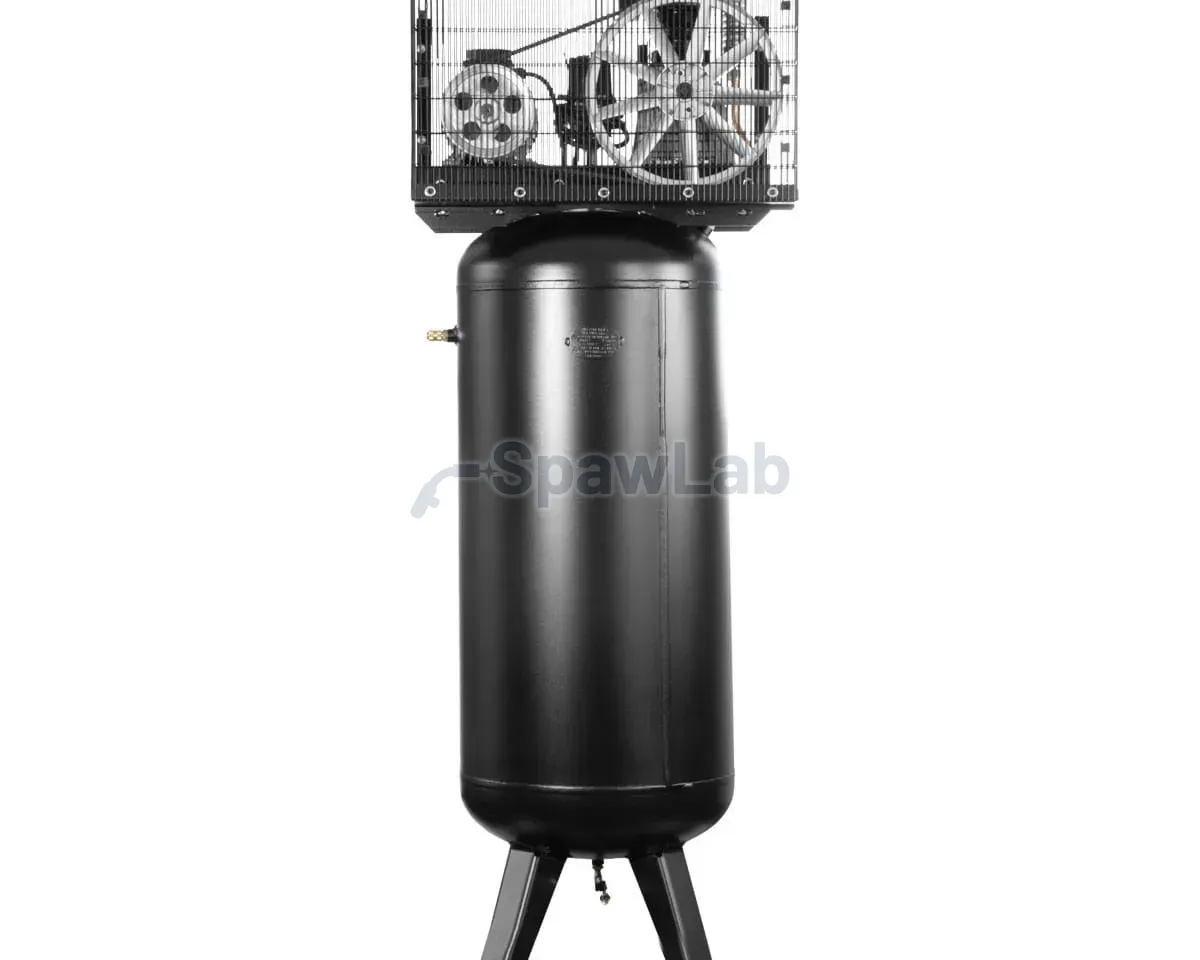

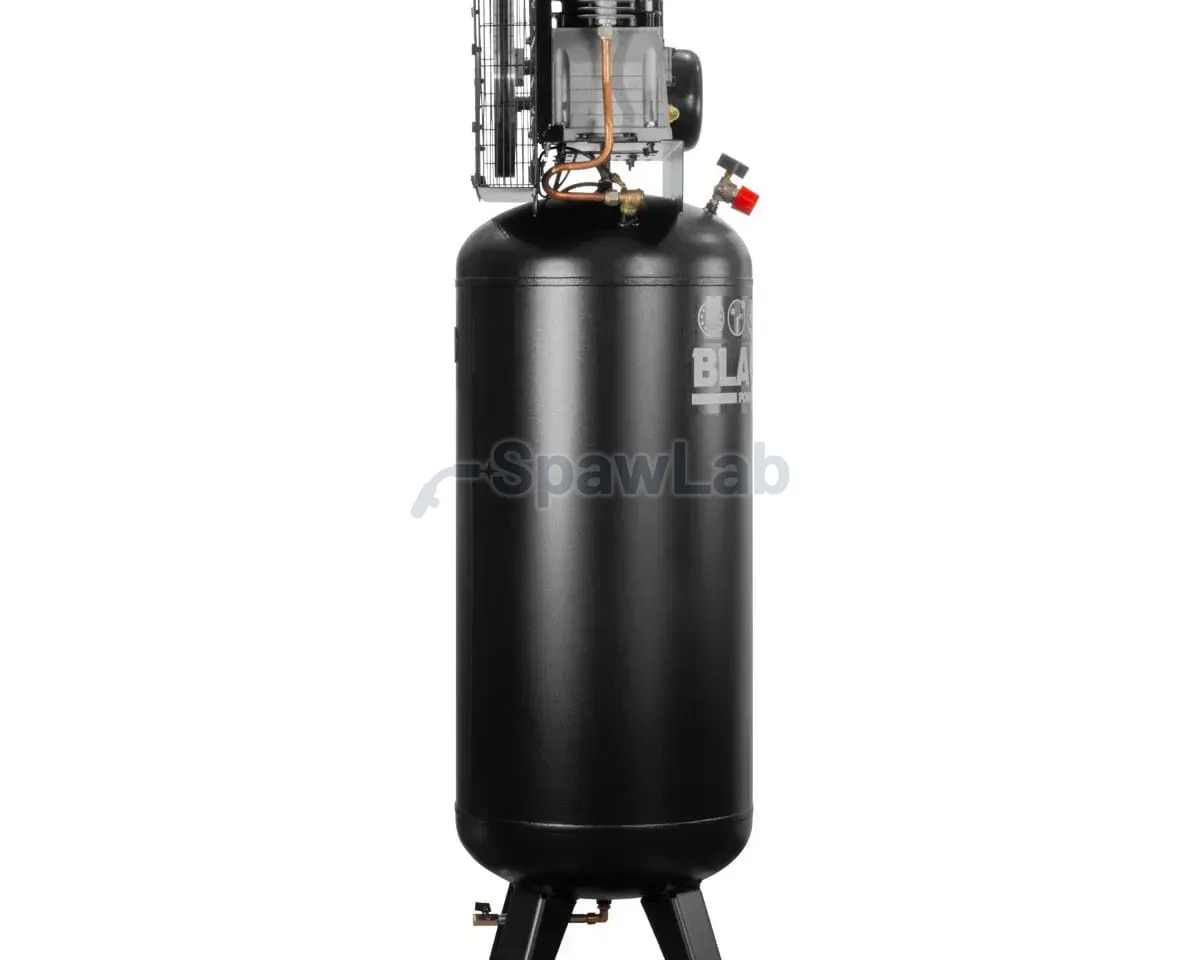

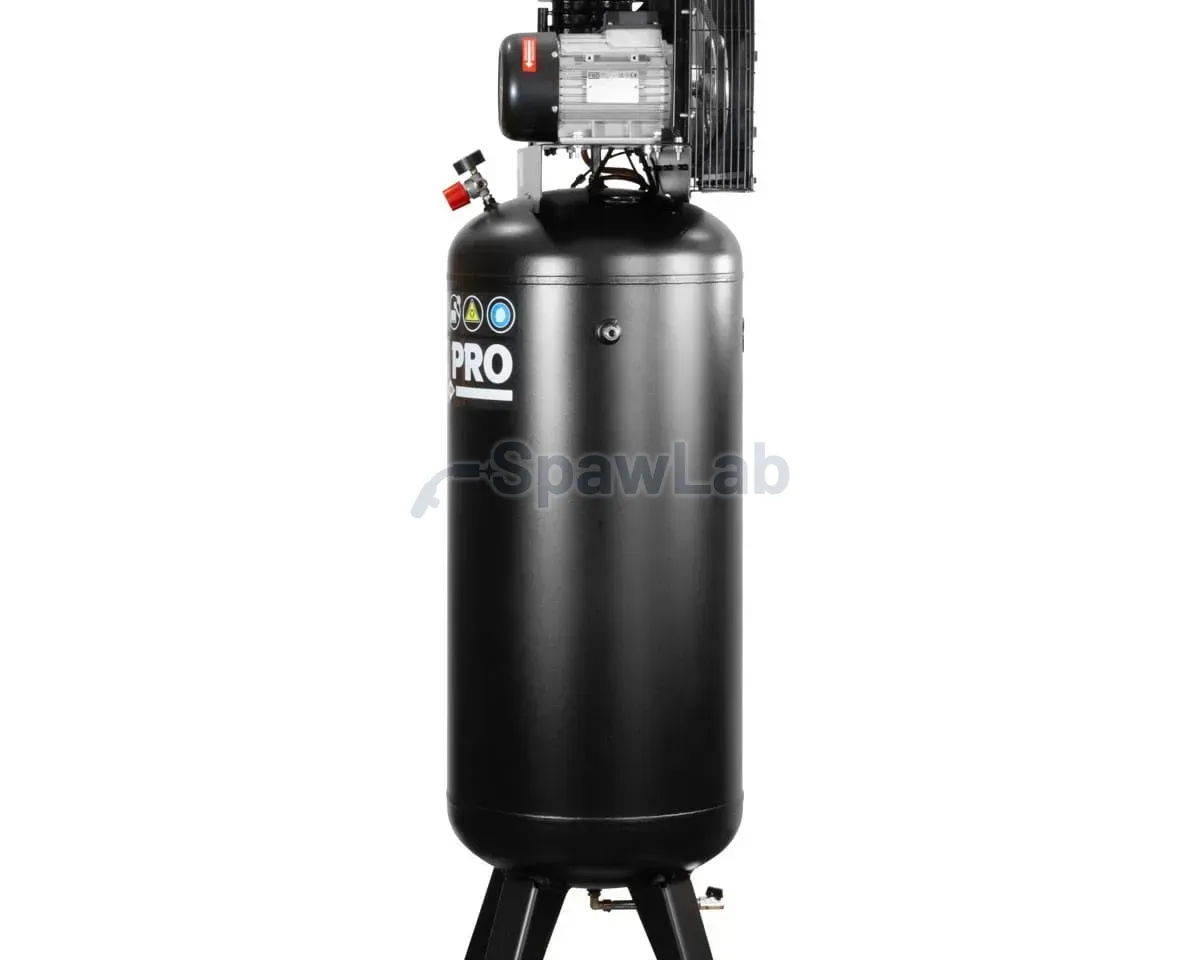

Black Pro B3800B two-cylinder piston compressor 10 bar 4.0 HP / 3.0 kW 368.2 l/min 200 l vertical

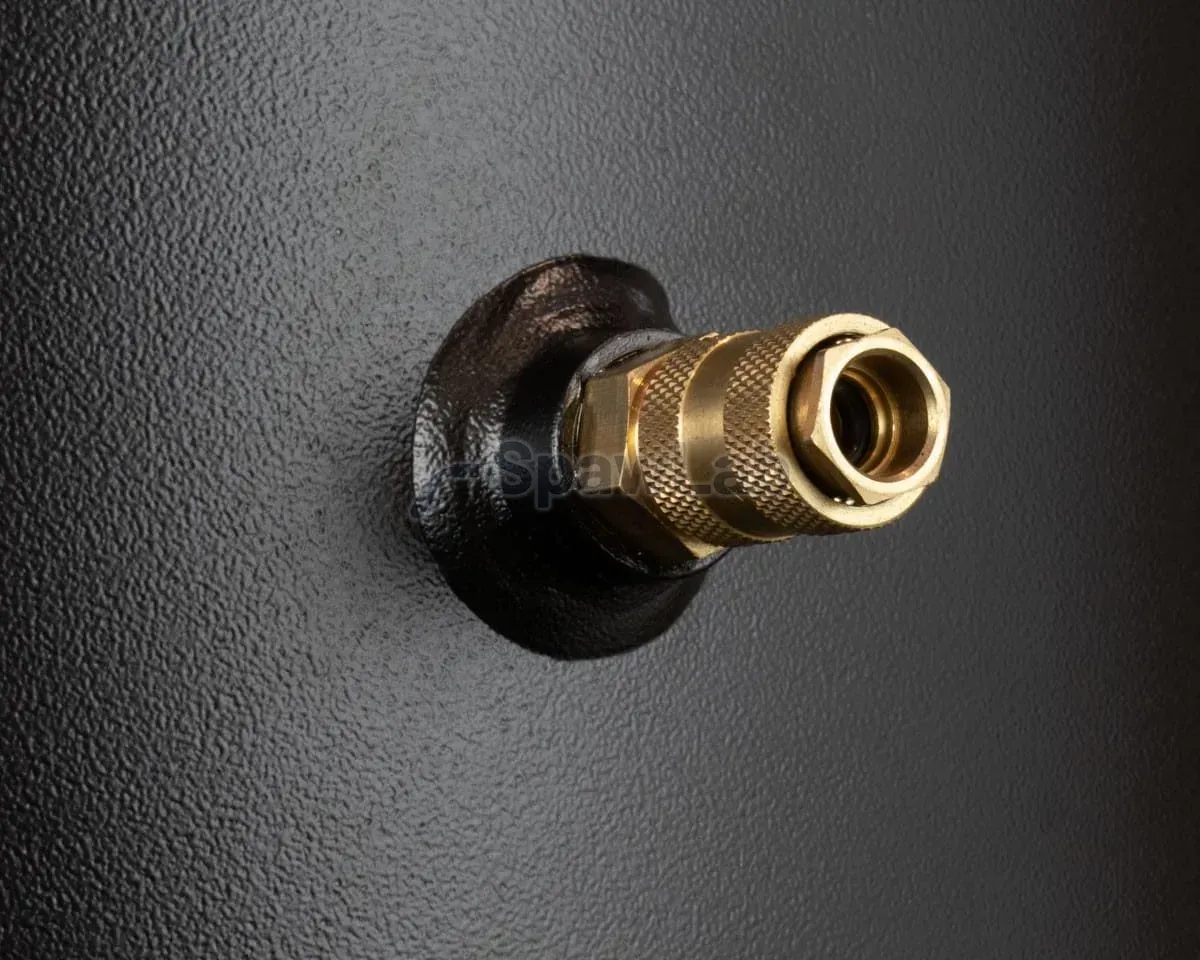

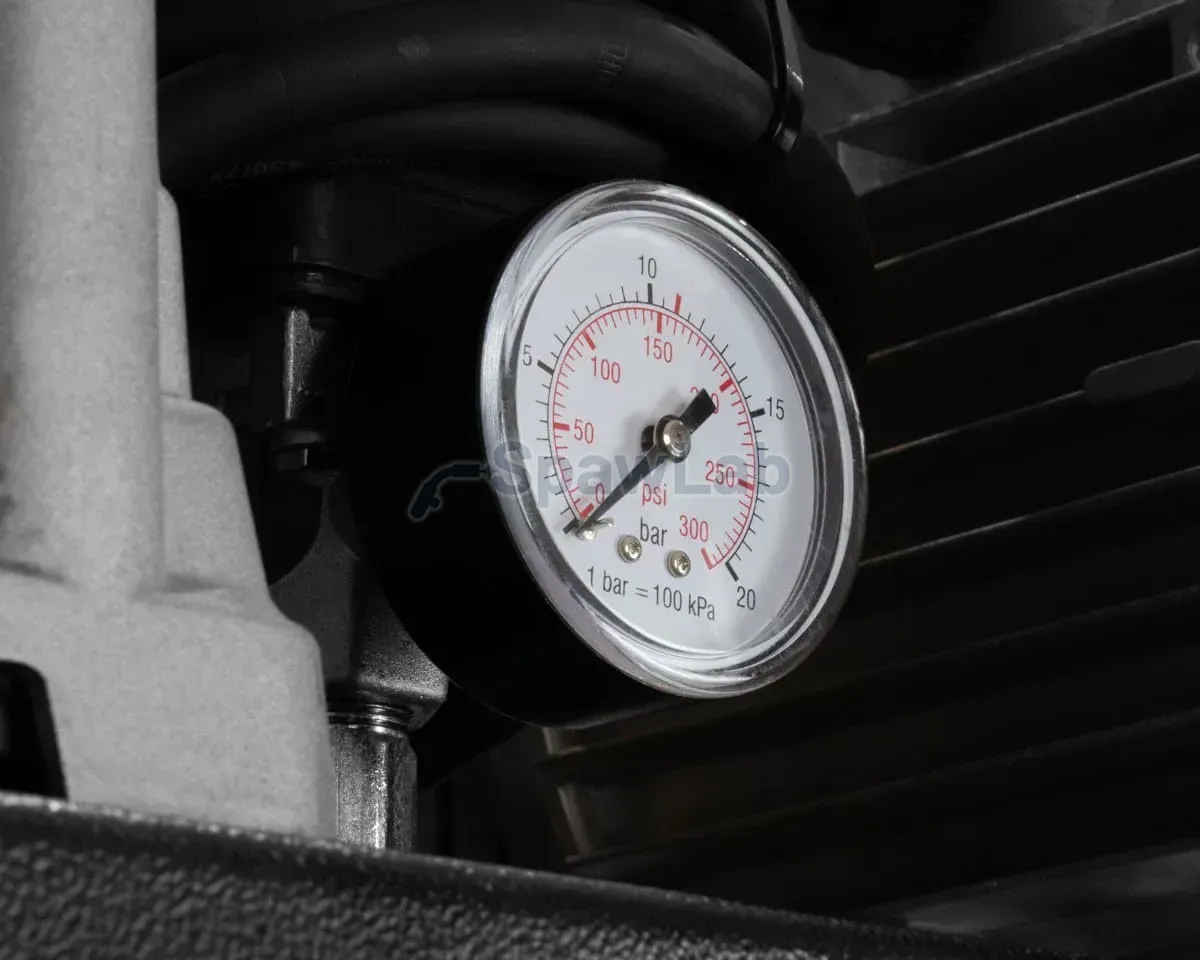

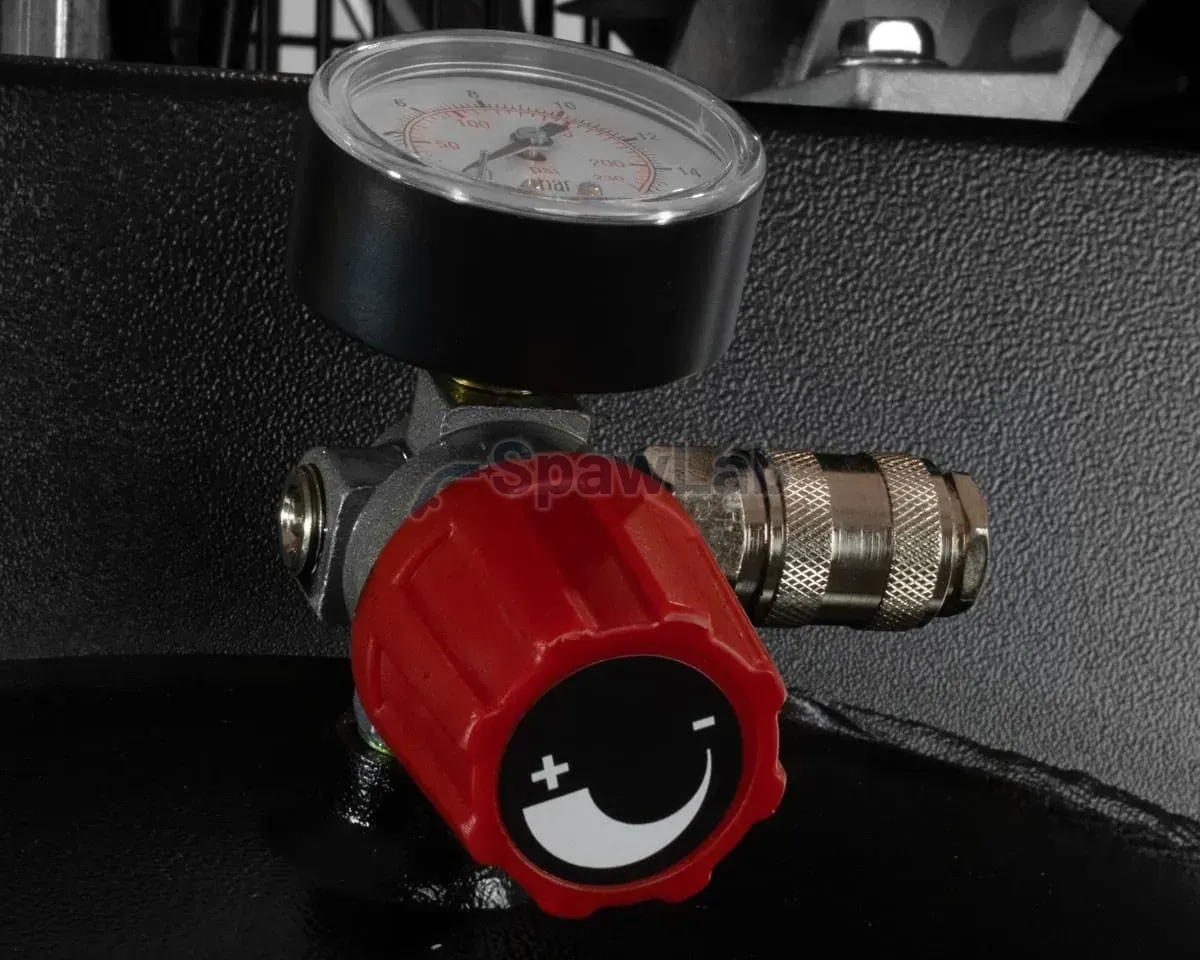

Black Pro piston compressors are professional two-cylinder compressors that compress air using a V-belt drive powered by an electric motor. Compressors in the Black Pro series are fitted with pressure switches, pressure regulators, pressure gauges and universal quick coupling valves for maximum and minimum pressure, as well as overload protection. Modern engineering makes the compressor reliable and efficient in demanding conditions.
The compressors are designed for extended operation of air tools, spray painting, blowing down surfaces and inflating.
Key technical features
- Belt drive: helps reduce wear on some components and lowers the speed
of the pump, which extends the life of the compressor. - V-belt in a sturdy housing: increases safety, reduces
noise and improves pump cooling thanks to additional ventilation channels. - Vertical 200 l tank: allows longer operation without frequent breaks, and the vertical layout makes the compressor convenient to use where space is limited.
- Fitted with wheels and a handle: for easy transport and mobility of the compressor.
- Compressor powered at 400 V / 50 Hz / 3 Ph: well suited to industrial installations with access to a higher-capacity supply. This allows a more powerful motor and a higher flow of compressed air.
- Made in Europe
- 2-year warranty: from installation and commissioning of the compressor
Model-specific technical data
| Property | Value |
|---|---|
| SKU | 360111 |
| Intake capacity (l/min) | 480 l/min |
| Air delivery (l/min) | 368.2 l/min |
| Max. pressure (bar) | 10 bar (145 PSI) |
| Motor power (HP/kW) | 4.0 HP / 3.0 kW |
| Pump type | B3800B |
| Number of pistons | 2 |
| Number of compression stages | 1 |
| SKU | Intake capacity (l/min) | Air delivery (l/min) | Max. pressure (bar) | Motor power (HP/kW) | Pump type | Number of pistons | Number of compression stages |
|---|---|---|---|---|---|---|---|
| 360111 | 480 l/min | 368.2 l/min | 10 bar (145 PSI) | 4.0 HP / 3.0 kW | B3800B | 2 | 1 |
Model-specific installation data
| Property | Value |
|---|---|
| SKU | 360111 |
| Air tank (l) | 200 l |
| Length (mm) | 760 mm |
| Width (mm) | 600 mm |
| Height (mm) | 1980 mm |
| Weight (kg) | 143 kg |
| Power supply | 400 V / 50 Hz / 3 Ph |
| SKU | Air tank (l) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Power supply |
|---|---|---|---|---|---|---|
| 360111 | 200 l | 760 mm | 600 mm | 1980 mm | 143 kg | 400 V / 50 Hz / 3 Ph |
