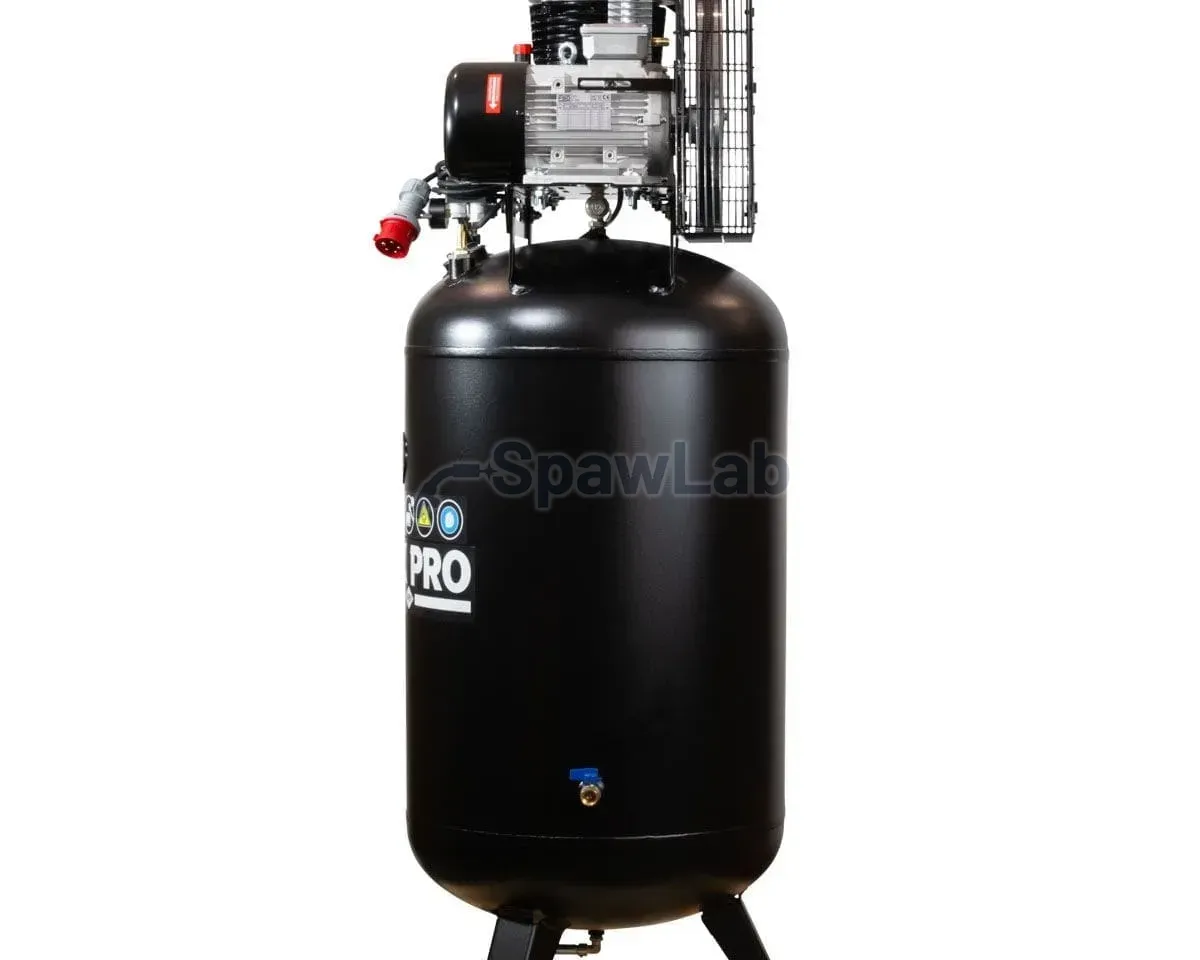

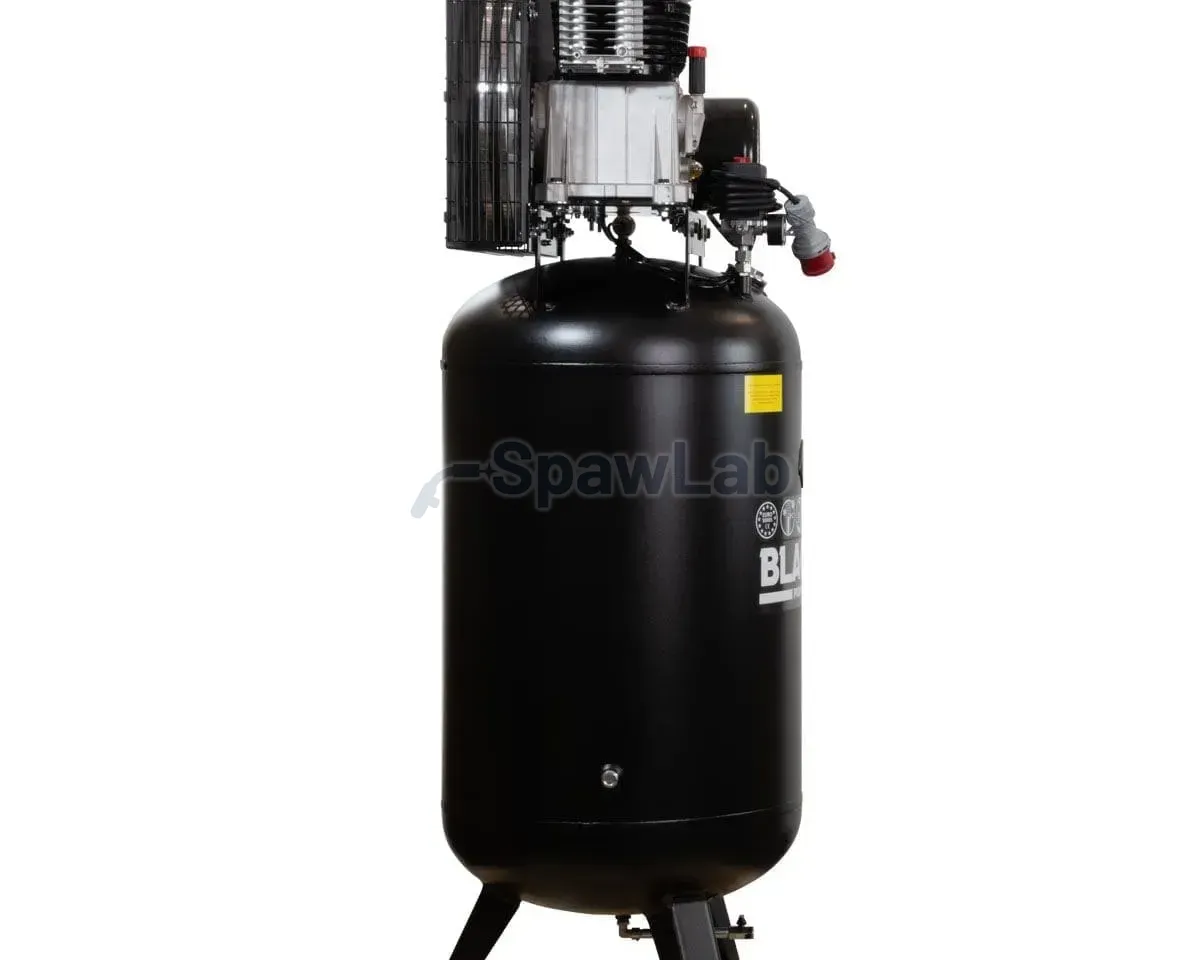

Black Pro NB5 twin-piston compressor 11 bar 5.5 HP / 4.0 kW 502 l/min 270 l vertical
Black Pro piston compressors are professional twin-piston compressors in which an electric motor drives the pump through a V-belt. Compressors in the Black Pro series are equipped with pressure switches, pressure regulators, pressure gauges and universal quick coupling valves for maximum and minimum pressure, as well as overload protection. Modern engineering makes the compressor reliable and efficient in harsh working conditions.
The compressors are designed for supplying air tools over longer periods, spray painting, blowing off surfaces and inflating.
Key technical features

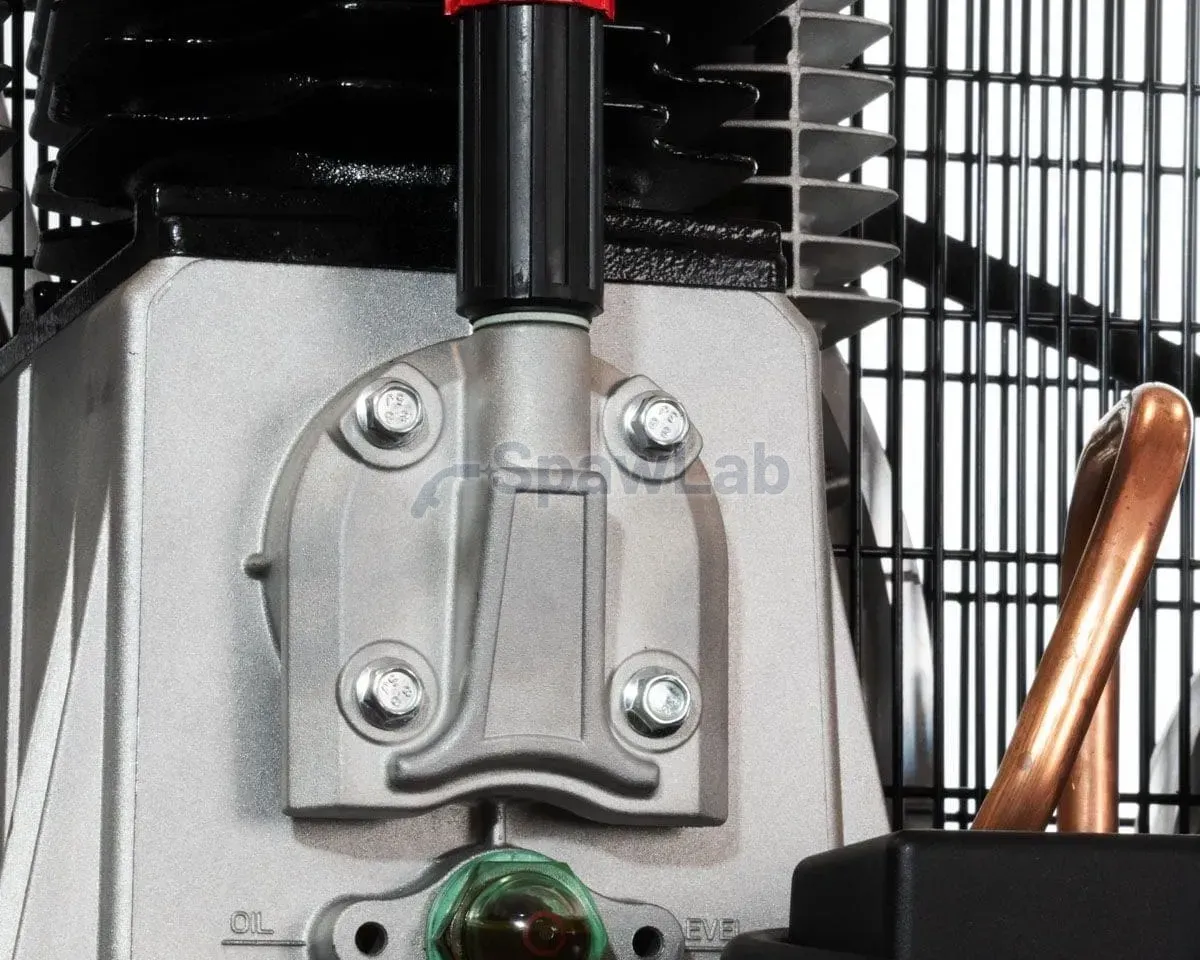

- Two-stage pump: the piston pump compresses air in two stages, which improves efficiency, extends the service life of the unit and reduces the effect of temperature fluctuations.
- Belt drive: helps to reduce wear on some components and lowers the pump

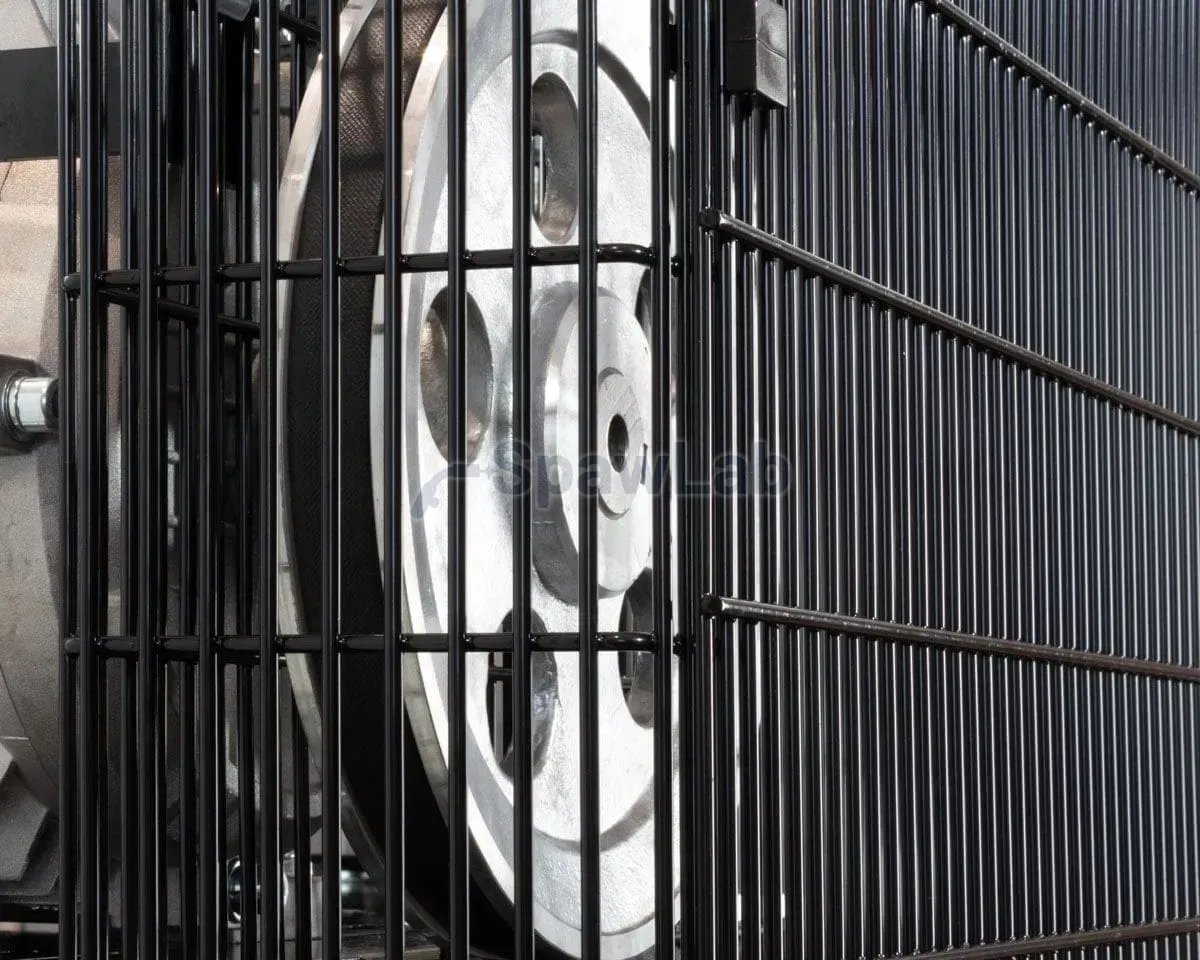

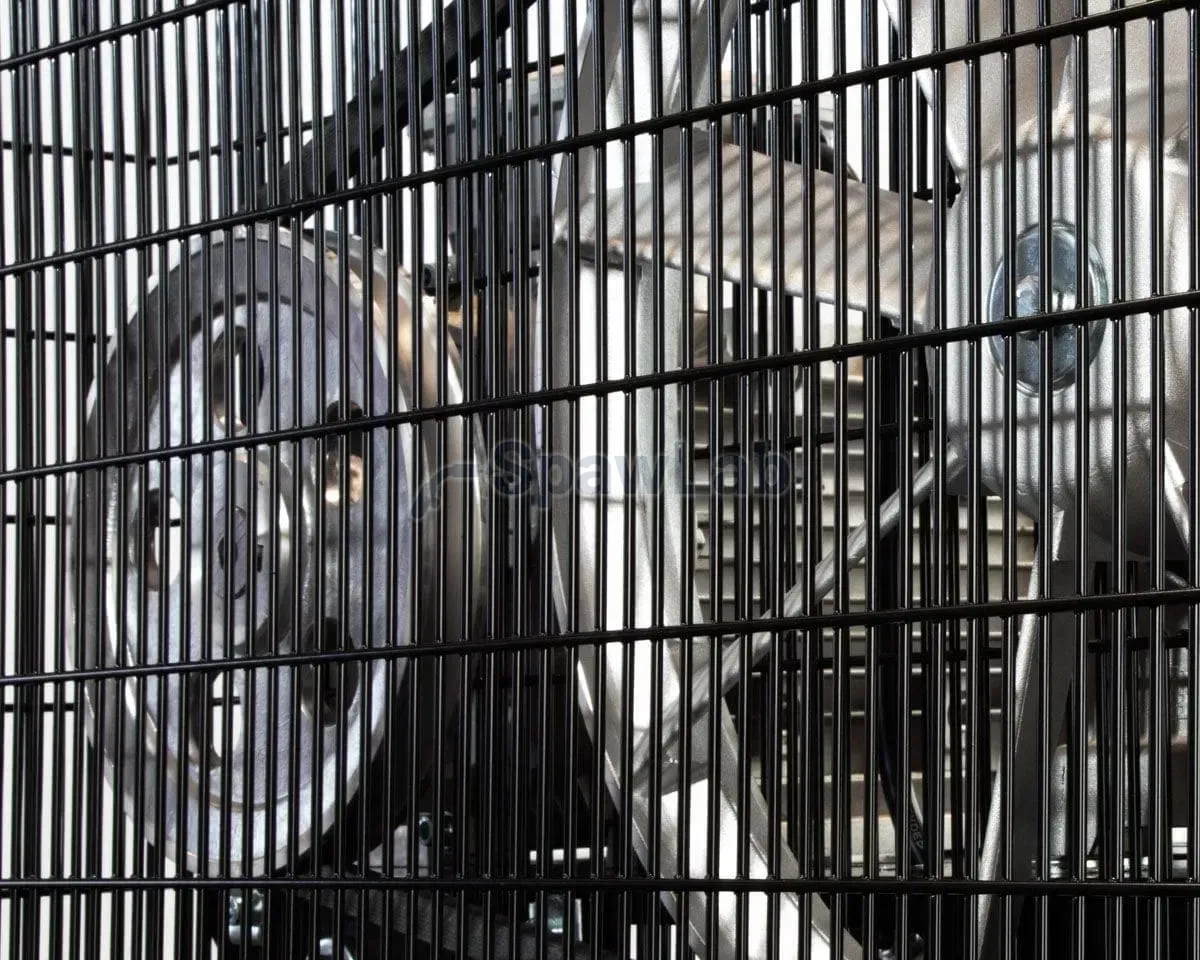

speed, which extends the service life of the compressor. - V-belt in a sturdy housing: improves safety, reduces

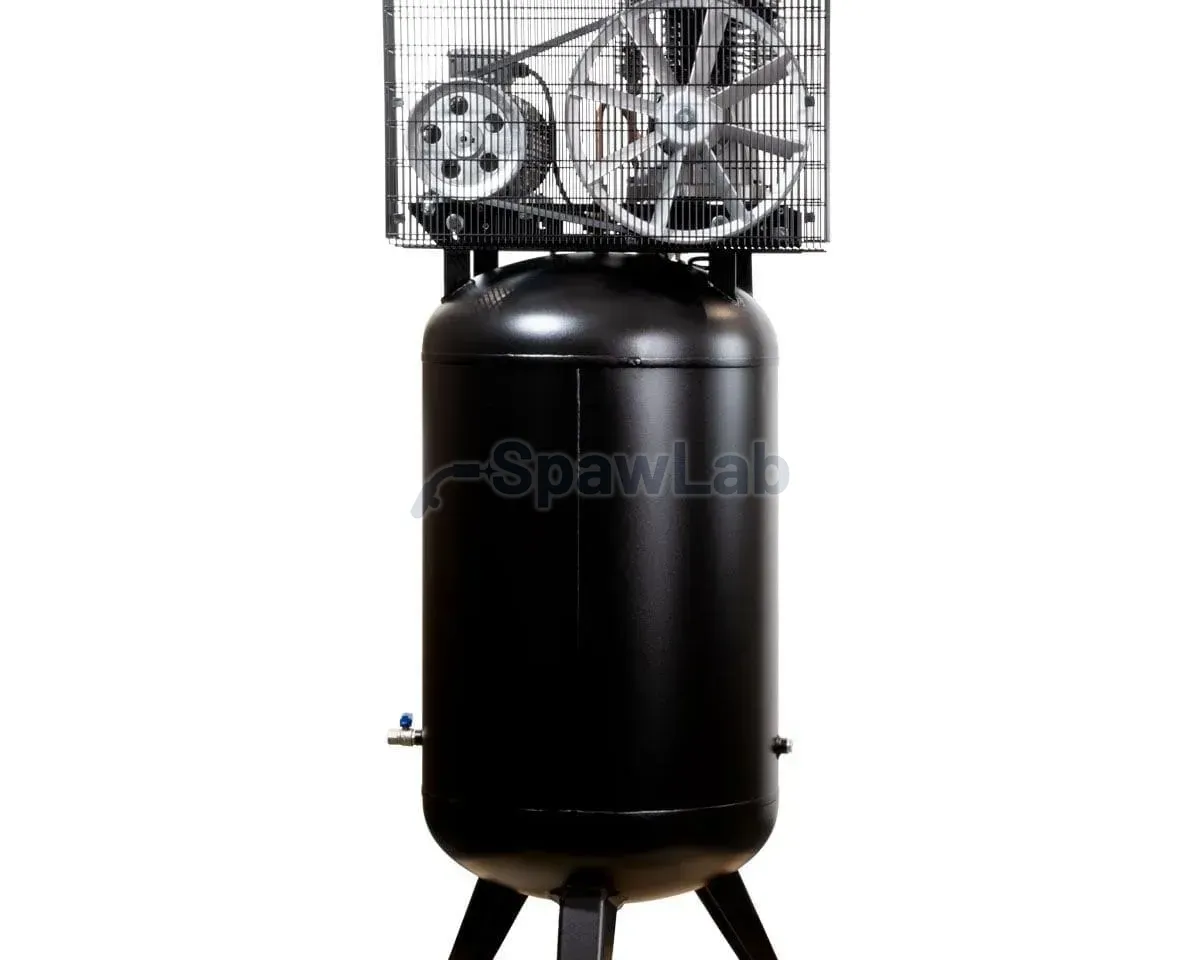

noise and improves pump cooling thanks to additional ventilation channels. - Vertical 270 l tank: allows long periods of work with a high demand for compressed air, and the vertical layout makes the compressor convenient to use where space is limited.
- Fitted with wheels and a handle: for easy transport and mobility of the compressor.
- Compressor powered at 400 V / 50 Hz / 3 Ph: ideal for industrial installations with access to a higher-capacity supply. This allows a more powerful motor and a higher flow of compressed air.
- Made in Europe
- 2-year warranty: from installation and commissioning of the compressor
Individual technical data
| Property | Value |
|---|---|
| SKU | 360115 |
| Intake capacity (l/min) | 628 l/min |
| Air delivery (l/min) | 502 l/min |
| Max. pressure (bar) | 11 bar (145 PSI) |
| Motor power (HP/kW) | 5.5 HP / 4.0 kW |
| Pump type | NB5 |
| Number of pistons | 2 |
| Compression stages | 2 |
| SKU | Intake capacity (l/min) | Air delivery (l/min) | Max. pressure (bar) | Motor power (HP/kW) | Pump type | Number of pistons | Compression stages |
|---|---|---|---|---|---|---|---|
| 360115 | 628 l/min | 502 l/min | 11 bar (145 PSI) | 5.5 HP / 4.0 kW | NB5 | 2 | 2 |
Individual installation data
| Property | Value |
|---|---|
| SKU | 360115 |
| Air tank (l) | 270 l |
| Length (mm) | 860 mm |
| Width (mm) | 850 mm |
| Height (mm) | 2020 mm |
| Weight (kg) | 176 kg |
| Power supply | 400 V / 50 Hz / 3 Ph |
| SKU | Air tank (l) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Power supply |
|---|---|---|---|---|---|---|
| 360115 | 270 l | 860 mm | 850 mm | 2020 mm | 176 kg | 400 V / 50 Hz / 3 Ph |
