HK 600-90 Pro twin-piston compressor 10 bar 4 HP/3 kW 400V 368 l/min 90 l
The HK 600-90 Pro is a solid, productive piston compressor built for intensive use in workshops, service businesses and small industrial plants. A 4 HP (3 kW) motor, a three-phase 400V supply and a 90 l tank give it high output and stable operation. The B3800B compressor pump keeps it durable and efficient even under heavy loads.
B3800B compressor pump: durability and output
- B3800B compressor pump: made in the European Union, the B3800B pump works efficiently at an optimised speed, which extends its service life and reduces component wear.
- Optimised speed: 1400 rpm keeps the compressor running steadily, minimises the risk of overheating and allows longer compression cycles.
- Advanced cooling: enlarged intercoolers and aftercoolers effectively lower the temperature of the compressed air, and a belt pulley with cooling vanes supports the cooling system.
- Durable components: cast-iron cylinders and a reinforced cylinder head stand up to intensive use and extend the service life of the unit.
Advantages of the HK 600-90 Pro
- Ready to use: the compressor comes with a Condor pressure switch with thermal protection and a power cable with plug, so you can connect it quickly and use it straight after installation.
- Metal belt guard: the open design of the belt guard gives an optimal flow of cooling air, which improves cooling and protects the drive mechanism.

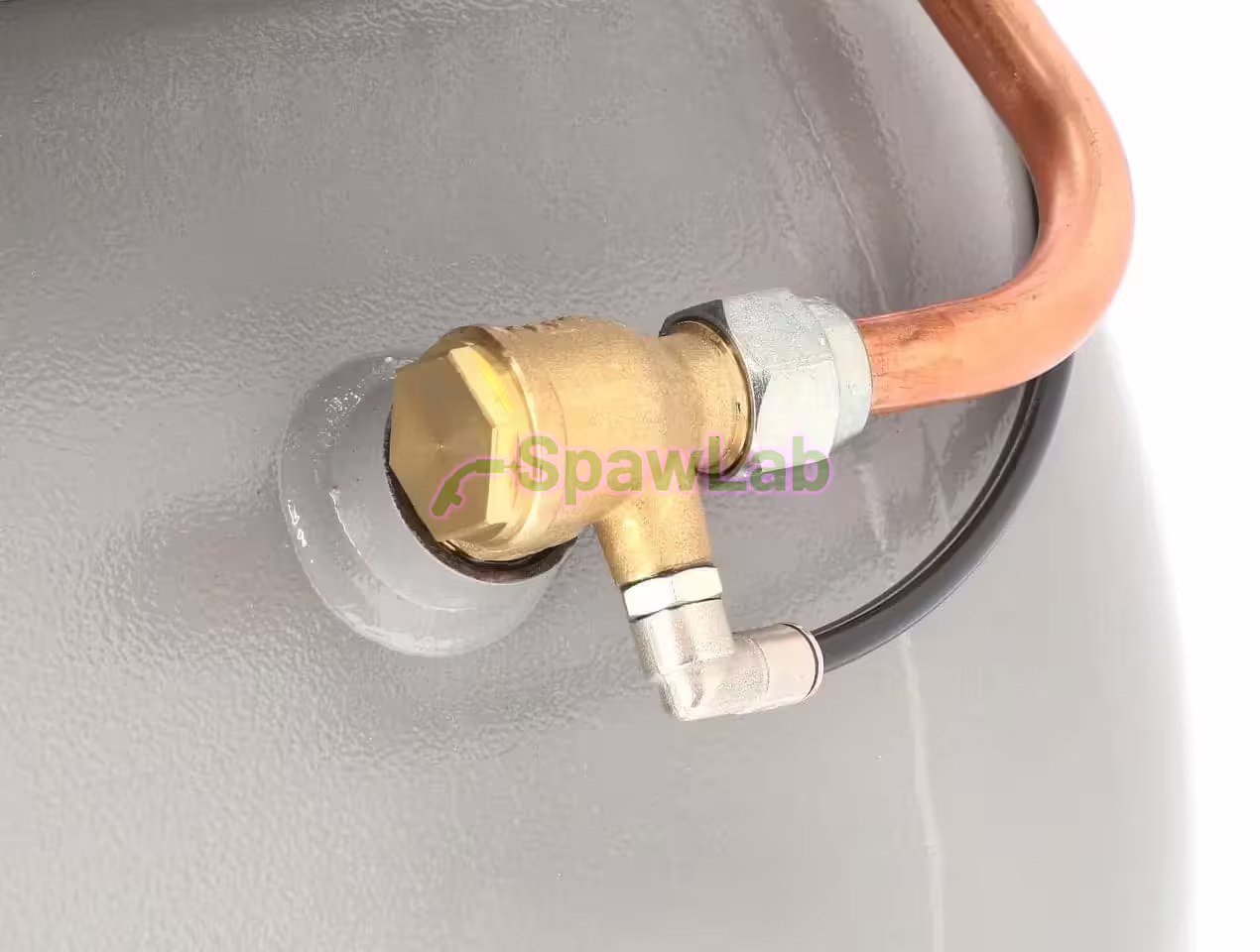

- Resistance to high temperatures: a copper delivery pipe assists cooling and keeps the compressor working efficiently even in tough conditions.
- Noise reduction: a high-efficiency intake filter of innovative design effectively dampens the operating noise, which makes the compressor more comfortable to work with.
Technical specifications
- Motor power: 4 HP / 3 kW
- Power supply: 400 V / 50 Hz / 3 phases
- Maximum pressure: 10 bar
- Air delivery: 368 l/min
- Tank capacity: 90 litres
- Noise level: 77 dB(A)
Applications
The HK 600-90 Pro is well suited to running air tools, inflating and light spray painting. Because it runs on a three-phase 400V supply, it works best where it can be permanently connected to a 400V network, which makes it a versatile unit for industrial and workshop use.
Efficiency and duty cycle
The HK 600-90 Pro is designed for a 50%/50% duty cycle: the compressor runs for 50% of the time and rests for the remaining 50%, which lets the unit cool down. The optimised speed and efficient cooling system keep operating costs down by reducing energy consumption and noise. The solid construction allows long service with minimal maintenance costs.
Warranty and reliability
The HK 600-90 Pro comes with a 3-year warranty, which backs the durability and reliability of the unit even under intensive use. It is made in the European Union from high-quality components and works trouble-free in demanding conditions.
