HK 625-90 Pro twin-piston compressor 10 bar 4 HP/3 kW 400V 415 l/min 90 l
The HK 625-90 Pro is a high-output piston compressor designed for intensive work in workshops, service businesses and small industrial plants. Equipped with a 4 HP (3 kW) motor, a three-phase 400V supply and a 90 l tank, this model offers dependable operation and high efficiency. The K18C compressor pump provides durability and stable running even in demanding conditions.
K18C compressor pump: durability and performance
- K18C compressor pump: Produced in the European Union, the K18C pump delivers high efficiency at an optimized speed, which prolongs its service life and reduces component wear.
- Optimum speed: A speed of 1400 rpm lets the compressor run steadily, minimizes the risk of overheating and allows longer compression cycles.

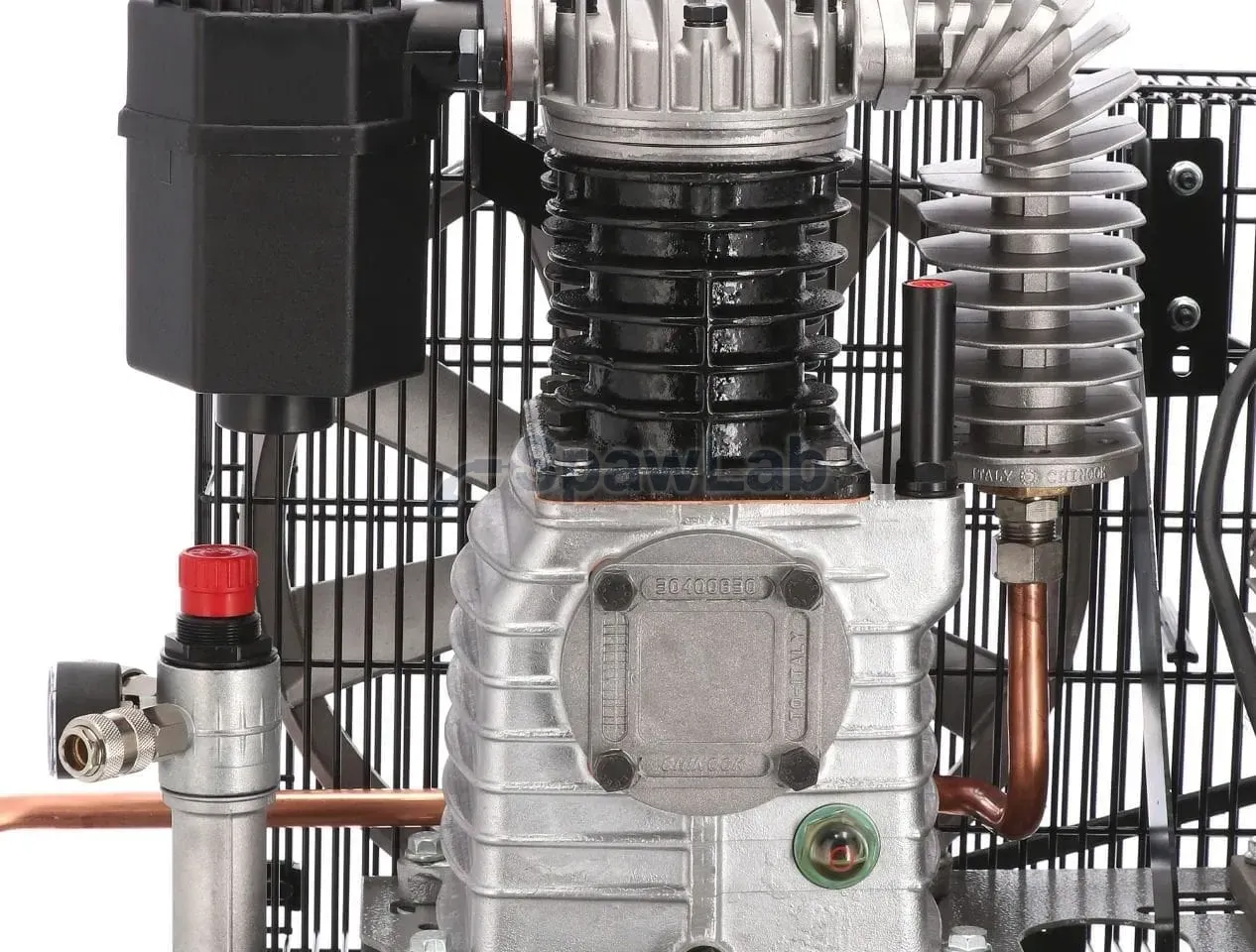

- Advanced cooling: Enlarged intercoolers and aftercoolers effectively lower the temperature of the compressed air, and a belt pulley with cooling fins supports the cooling system.

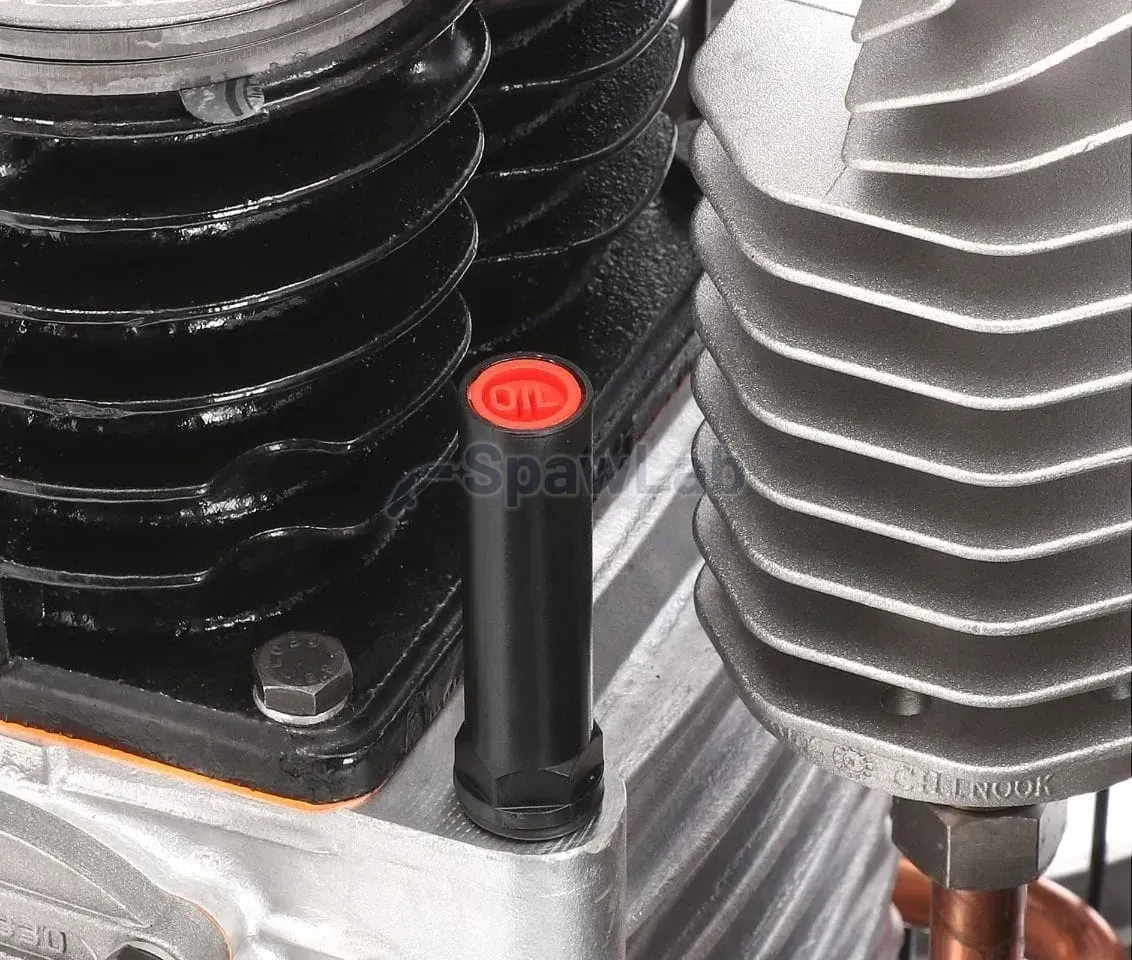

- Durable components: Cast iron cylinders and a reinforced cylinder head make the pump more resistant to intensive use, which extends the life of the unit.
HK 625-90 Pro advantages

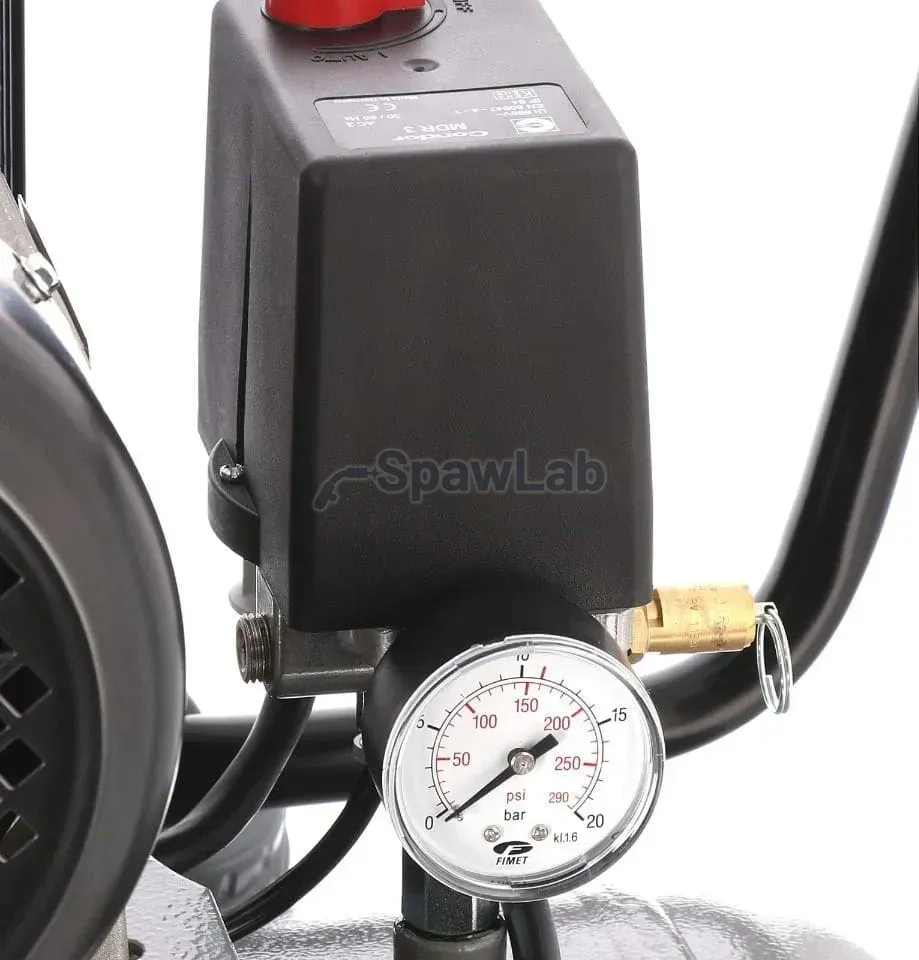

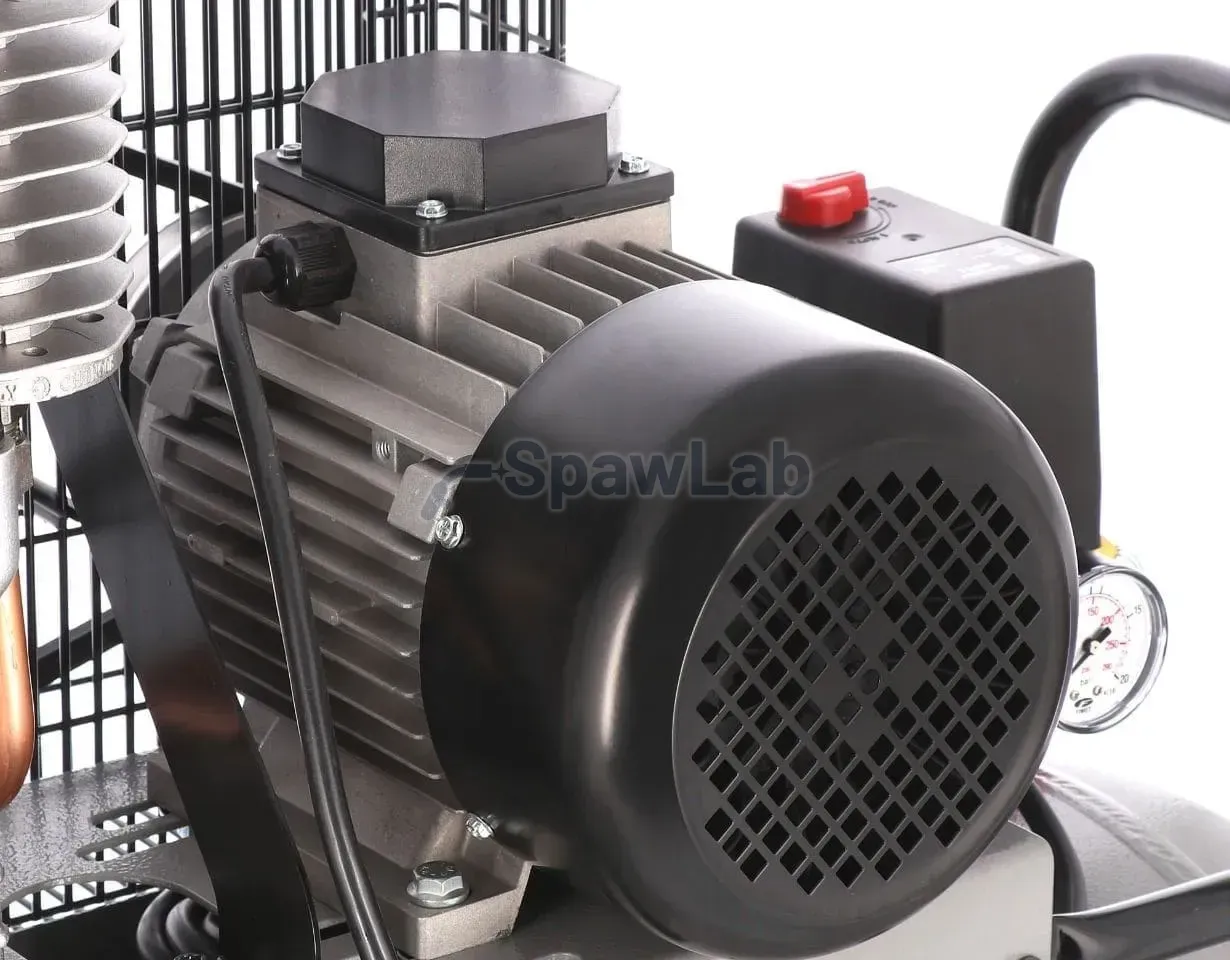

- Ready to use: The compressor comes with a Condor pressure switch with thermal protection and a power cable with plug, so you can connect it quickly and use it straight after installation.

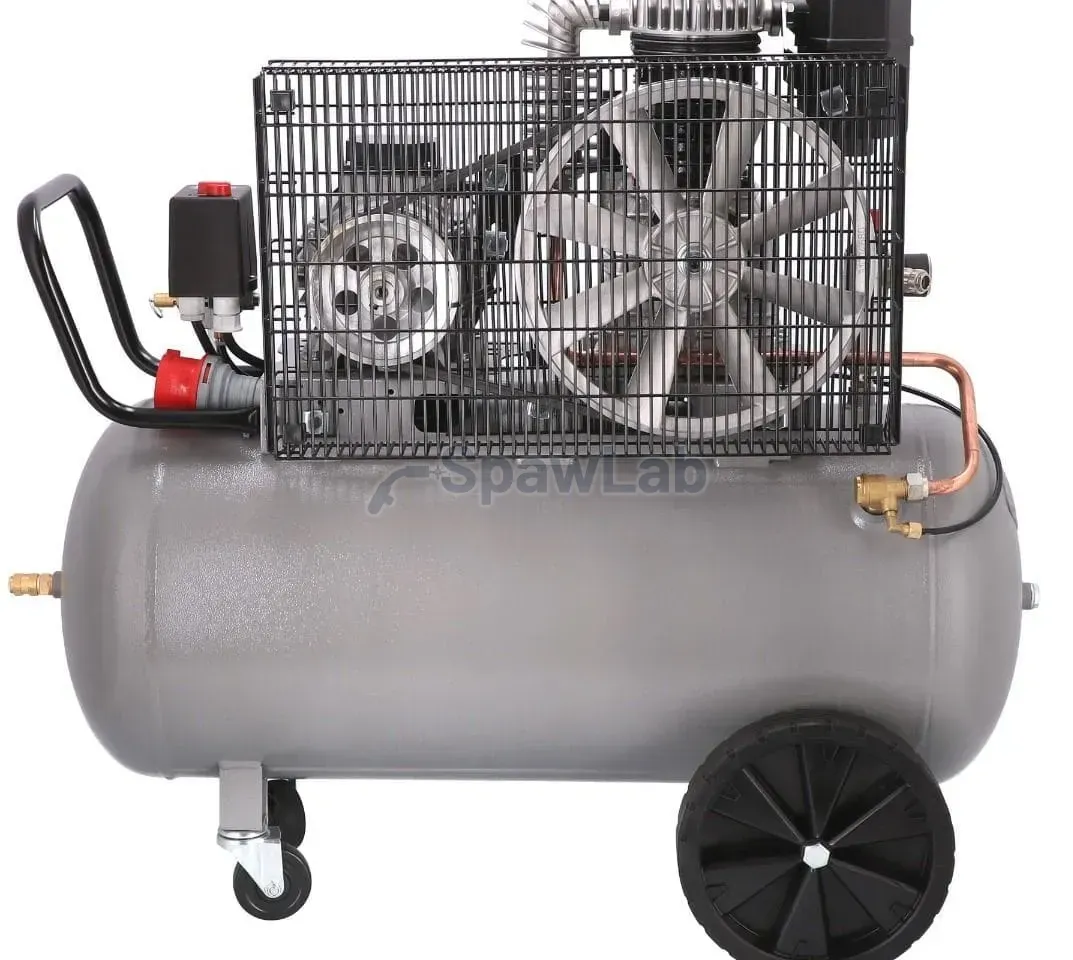

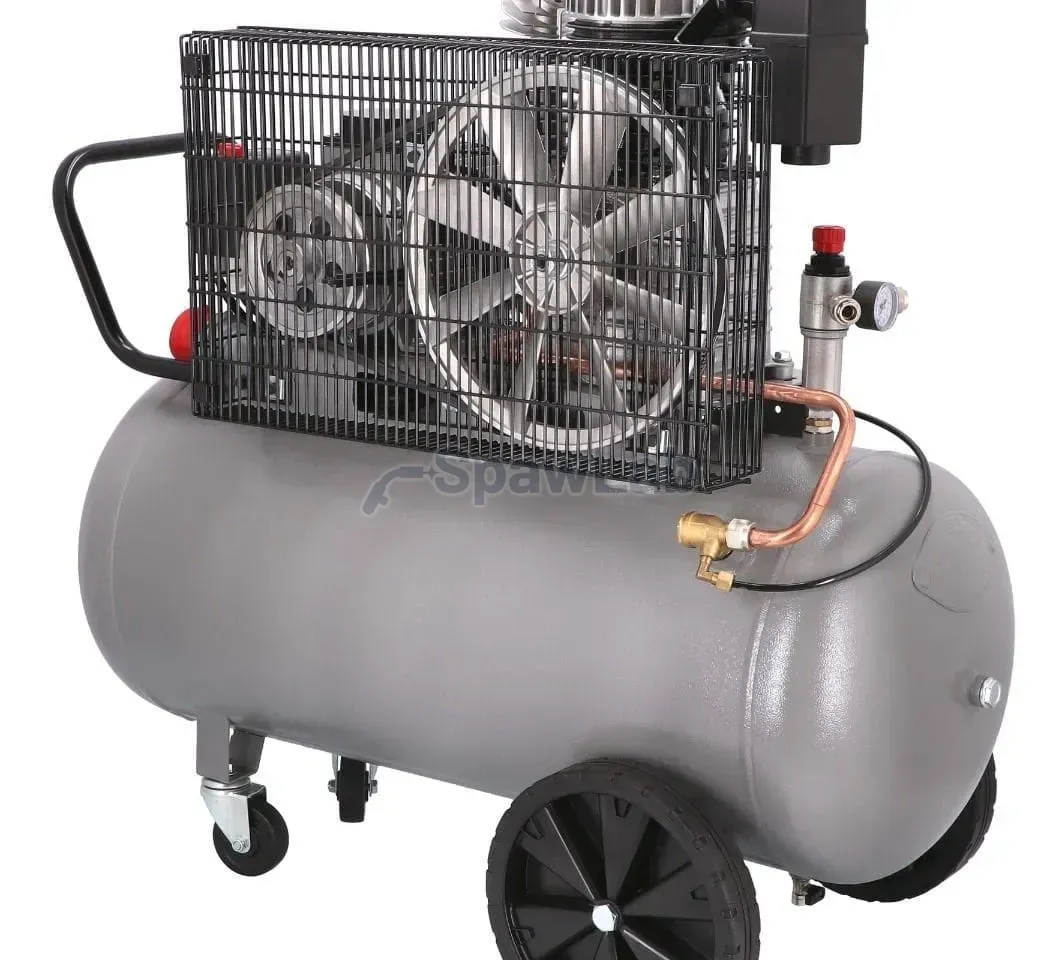

- Metal belt guard: The open design of the belt guard ensures an optimal flow of cooling air, which improves cooling and protects the drive.

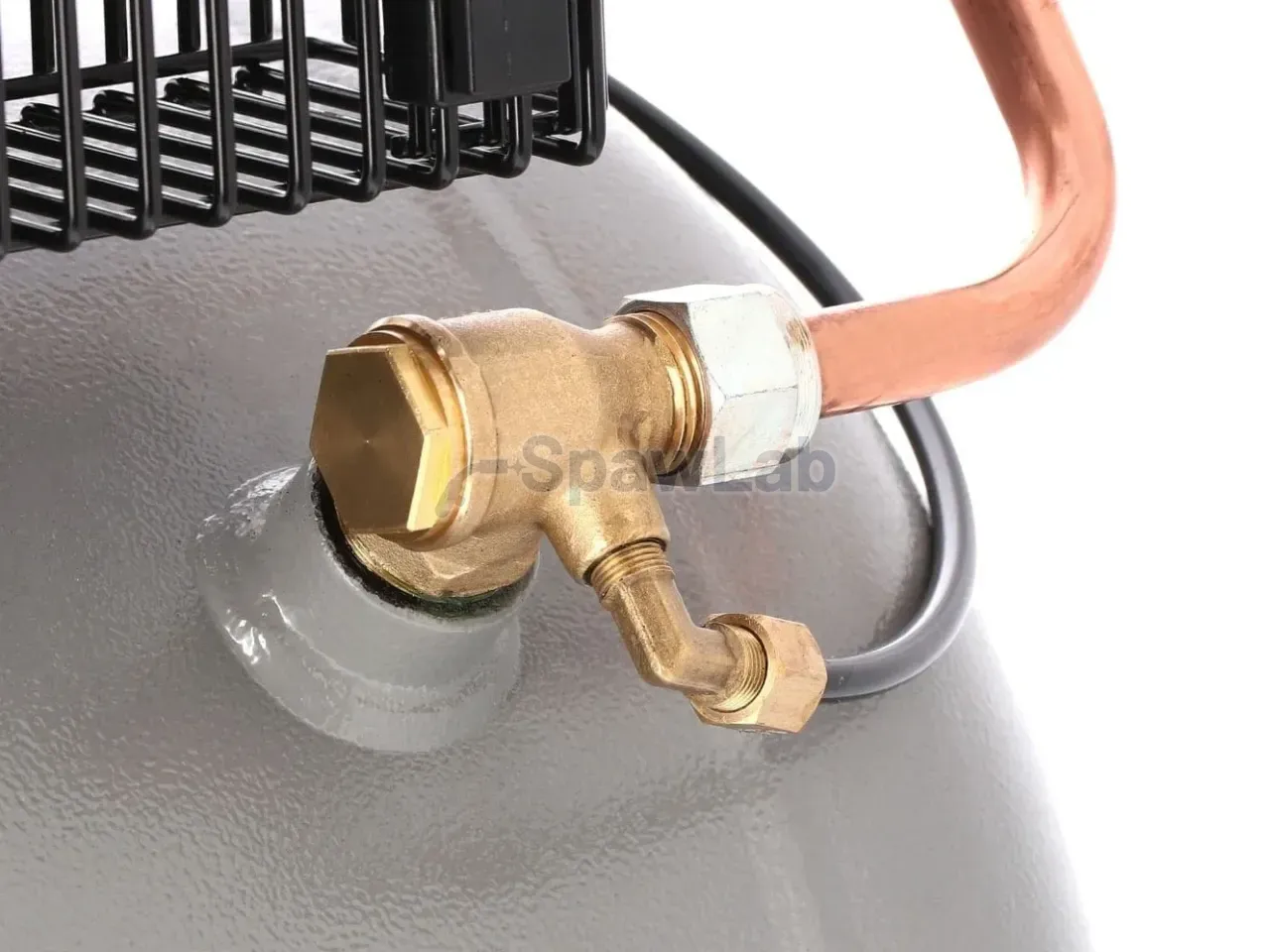

- Resistance to high temperatures: A copper pressure pipe assists cooling, so the compressor keeps working efficiently even in difficult conditions.

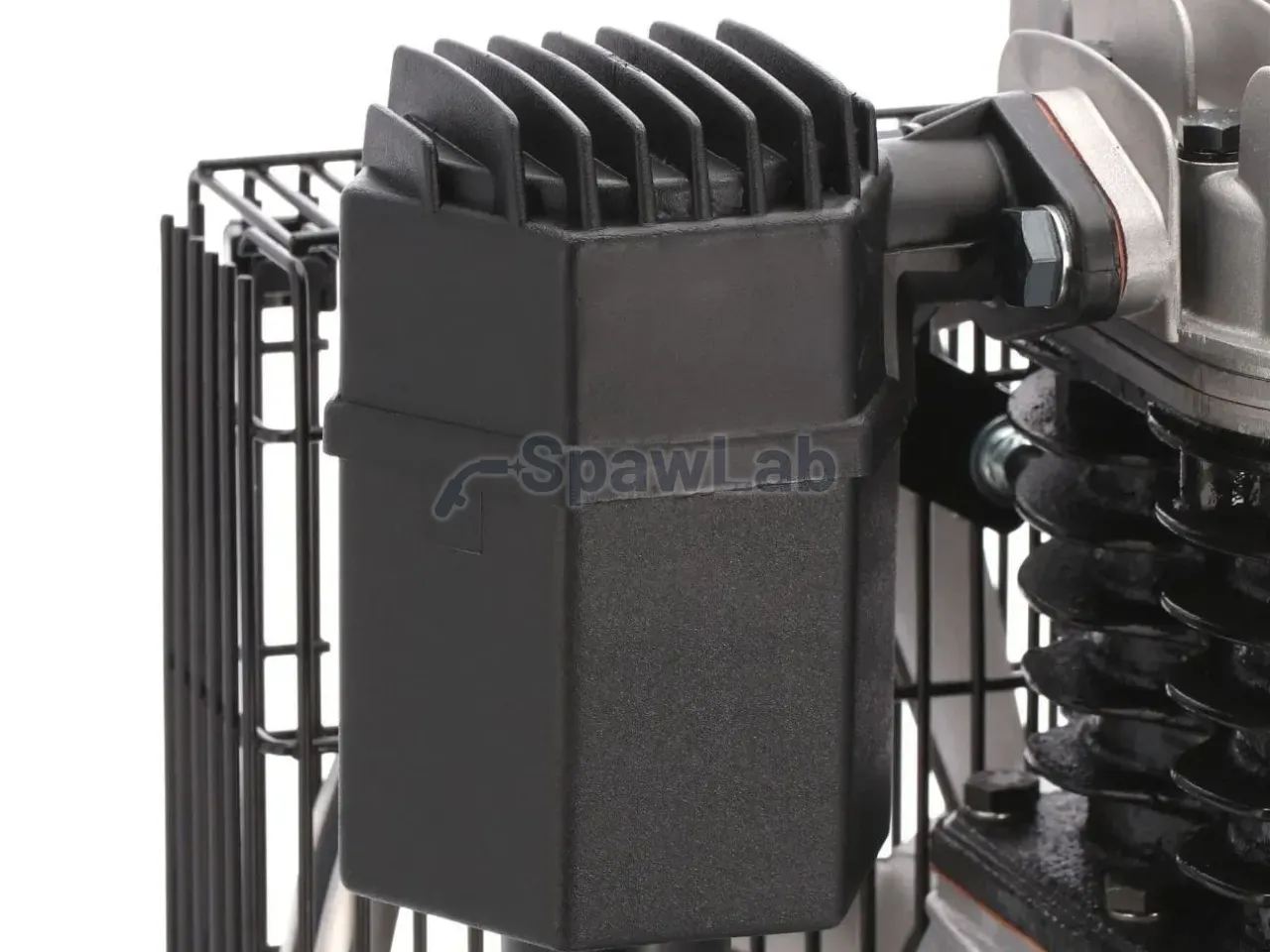

- Noise reduction: A high-efficiency intake filter of innovative design effectively dampens compressor noise, which makes the machine more comfortable to work with.
Technical specifications
- Motor power: 4 HP / 3 kW
- Power supply: 400 V / 50 Hz / 3 phases
- Maximum pressure: 10 bar
- Air delivery: 415 l/min
- Tank capacity: 90 liters
- Noise level: 77 dB(A)
Applications
The HK 625-90 Pro is well suited to powering air tools, inflating and small painting jobs. Its three-phase 400V supply makes it ideal for places with a permanent 400V connection, where it will handle many different industrial and workshop tasks.
Efficiency and duty cycle
The HK 625-90 Pro is designed for a 50%/50% duty cycle: the compressor runs for 50% of the time and rests for the remaining 50%, which lets the unit cool down. The optimized speed and efficient cooling system make the compressor economical to run, with lower energy consumption and less noise. Its solid construction ensures long-term use with minimal servicing costs.
Warranty and reliability
The HK 625-90 Pro compressor comes with a 3-year warranty, which backs its durability and reliability even under intensive use. Made in the European Union from high-quality components, it runs trouble-free in difficult conditions.
