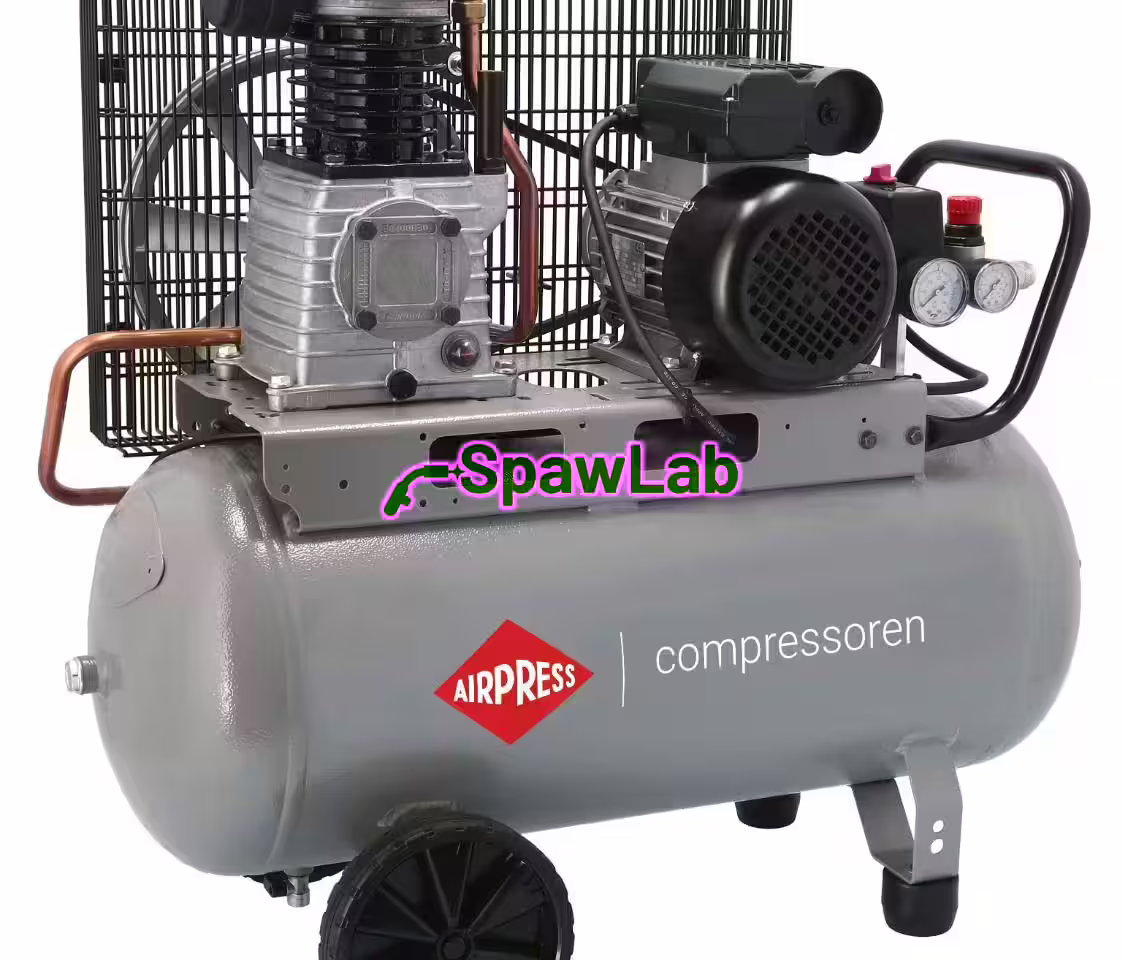

HL 310-50 Pro twin-piston compressor 10 bar 2 HP/1.5 kW 159 l/min 50 l
The HL 310-50 Pro is a compact, professional piston compressor for demanding users who need solid output in a mobile form. Driven by a 2 HP (1.5 kW) motor, this single-phase compressor with a 50 l tank is well suited to service businesses, car repair workshops and light industrial work. Its K11 compressor pump keeps it reliable and productive under heavy use.
K11 compressor pump: durability and output
- K11 compressor pump: made in the European Union, the K11 pump delivers high output at a low speed, which means a long service life and less component wear.
- Optimised speed: 990 rpm allows stable, efficient operation and minimises the risk of overheating, even during long work cycles.
- Advanced cooling: enlarged intercoolers and aftercoolers effectively lower the temperature of the compressed air, and a belt pulley with cooling vanes supports the cooling system.
- Durable components: cast-iron cylinders and a reinforced cylinder head withstand heavy use, which significantly extends the service life of the unit.
Advantages of the HL 310-50 Pro
- Ready to use: the compressor comes with a Condor pressure switch with thermal protection and a power cable with plug, so you can connect it and start working quickly.
- Metal belt guard: the design of the belt guard ensures an optimal flow of cooling air, which improves cooling and protects the drive.
- Mobility: the HL 310-50 Pro has stable wheels and a comfortable handle, so it is easy to move and works well where space is tight.
- Noise reduction: an intake filter of innovative design lowers the noise level for more comfortable work.
- Resistance to high temperatures: a copper delivery pipe assists cooling and keeps the unit efficient even in demanding conditions.
Technical specifications
- Motor power: 2 HP / 1.5 kW
- Power supply: 230 V / 50 Hz / 1 phase
- Maximum pressure: 10 bar
- Air delivery: 159 l/min
- Tank capacity: 50 litres
- Noise level: 73 dB(A)
Applications
The HL 310-50 Pro is a very good choice for basic workshop and industrial jobs such as running air tools, inflating and light spray painting. Its single-phase power supply makes it a practical option wherever access to 400V is limited.
Efficiency and duty cycle
The HL 310-50 Pro is designed for a 50%/50% duty cycle: the compressor runs for 50% of the time and rests for the remaining 50%, which gives the unit time to cool down. The optimised speed saves on running costs by reducing energy consumption and noise. An efficient cooling system and solid construction ensure a long service life with minimal maintenance costs.
Warranty and reliability
The HL 310-50 Pro is covered by a 3-year warranty. Made in the European Union from top-quality components, it stays durable and reliable even under heavy use.
