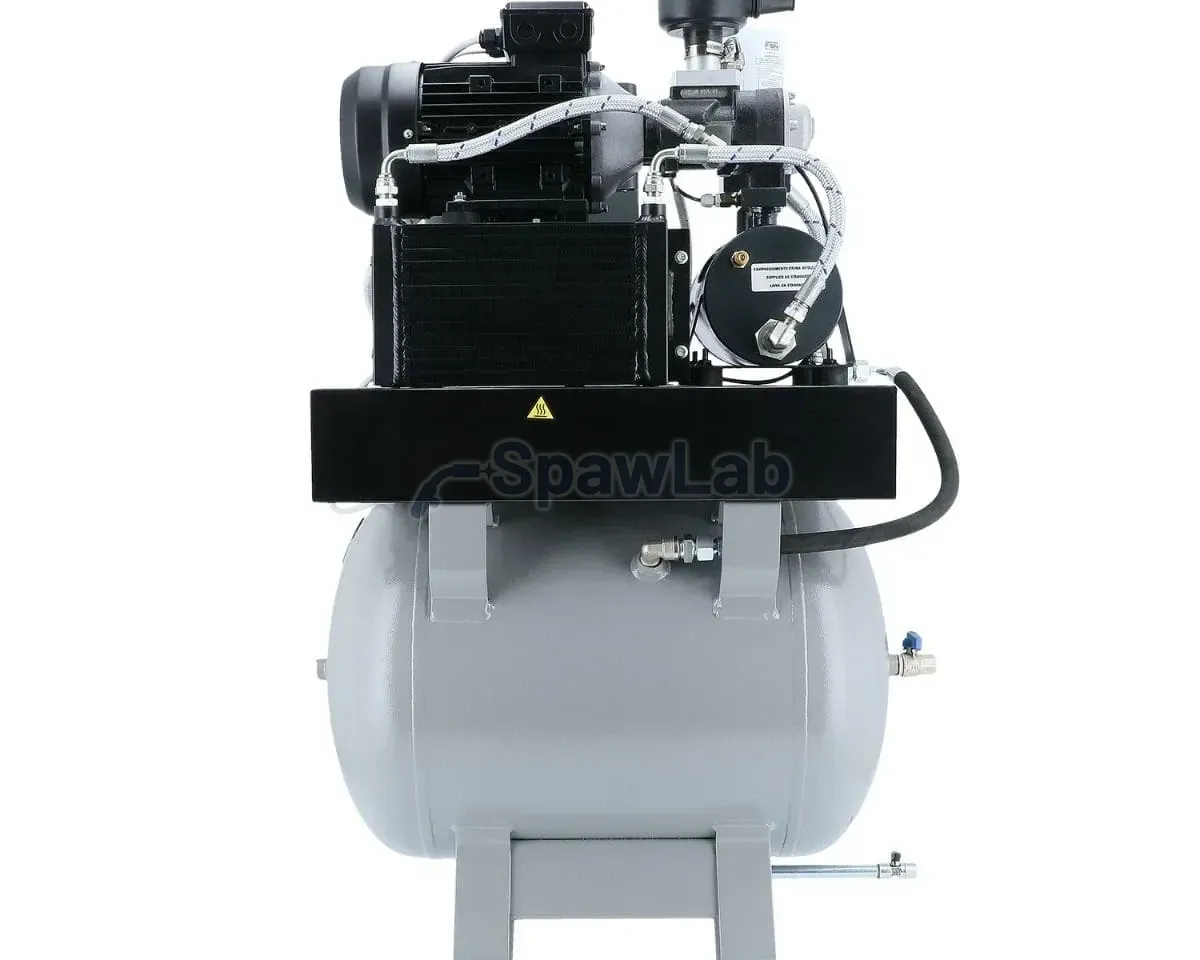

APS 3 Combi Compact 230V screw compressor 10 bar 3 HP/2.2 kW 261 l/min 90 l
Mini screw compressors of the APS Combi Compact series are a brand-new addition to the Airpress range. These compact oil-injected coaxial compressors were designed for industrial use in places where space is limited. Their unusual design, with a vertical oil tank and separator, made it possible to build the smallest screw compressor that is still efficient and economical, and it fits on a floor area of less than 1 m².
The APS 3 Combi Compact compresses air to a maximum pressure of 10 bar and delivers 261 l/min. The well-matched motor output and the 1:1 direct drive let the unit run efficiently and reliably in continuous operation. The painted 90 l tank is durable and resistant to standard industrial conditions. The model also has an intuitive LOGIN ZERO controller that makes operation and monitoring easier.
Key advantages of the APS 3 Combi Compact:
- Compact design: thanks to the vertical oil tank and separator, the unit takes up less than 1 m², which makes it a good fit for tight working spaces.
- 1:1 direct drive: the FS14 screw airend is connected directly to the electric motor, which eliminates energy and pressure losses, raises output and lowers running costs.
- Quiet operation: at a noise level of 65 dB(A), the compressor is one of the quietest in its class. The solid airend enclosure, which also protects the module, further dampens operating noise.
- Painted tank: solid and durable, suited to standard industrial working conditions.
- Mobility: the compact build and small footprint make the unit easy to transport, so it works well for professionals who provide mobile services such as spray foam insulation, textured plaster application and other construction, installation and service work.
Technical specifications:
- Working pressure range: 10 bar
- Motor power: 3 HP / 2.2 kW
- Air flow: 261 l/min
- Noise level: 65 dB(A)
- Tank capacity: 90 l (painted)
- Oil-injected coaxial design
- Screw airend: FS14
- Air connection: 1/2"
- Power supply: 230 V / 50 Hz / 1 phase
- Dimensions: 750 x 465 x 1144 mm
- Weight: 105 kg
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This gives long-term protection for key components and keeps the unit running reliably.
Versatility and reliability
APS Combi Compact series compressors were designed for continuous operation. Thanks to their compact build, output and quiet operation, the unit performs well in many industrial applications. Contact us to find out more.
