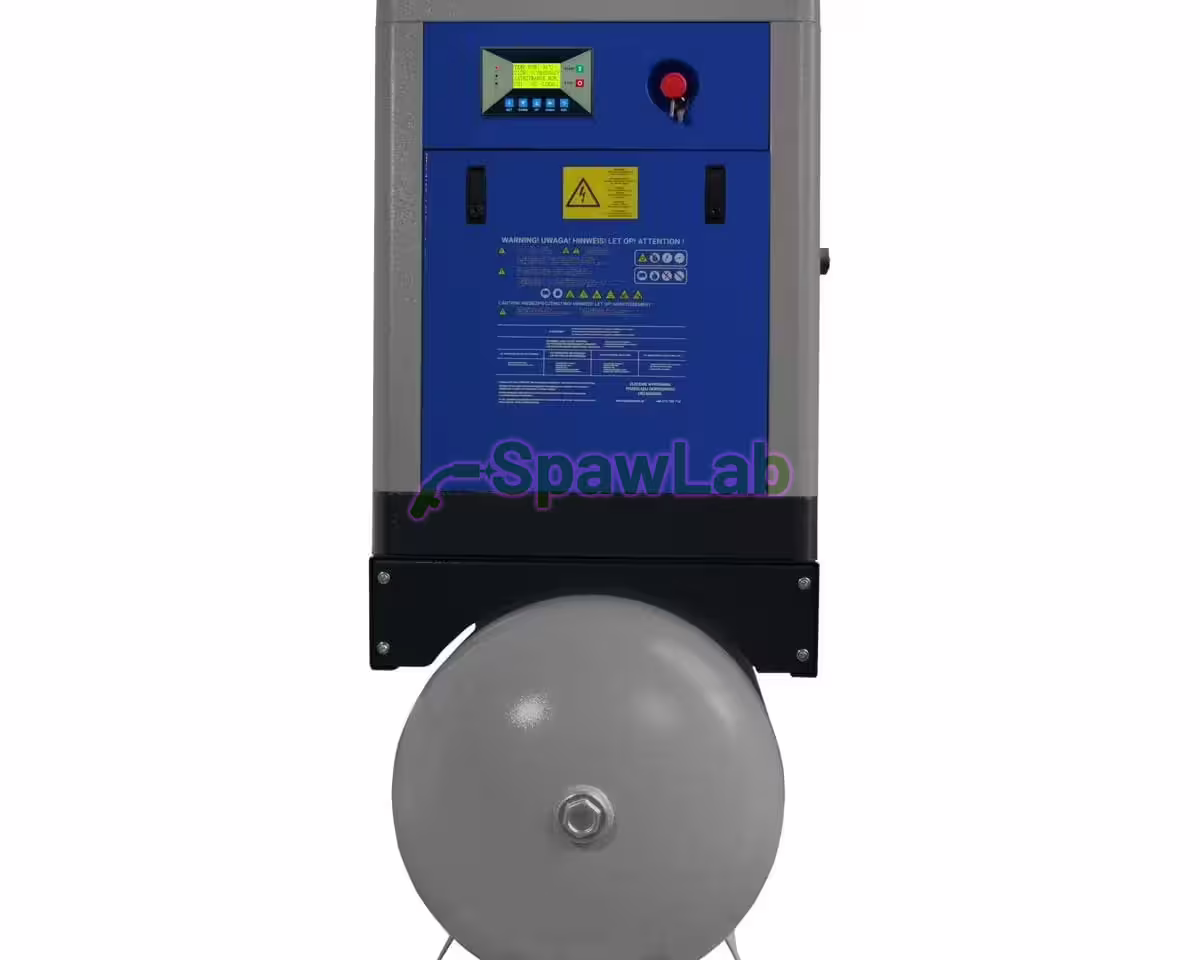

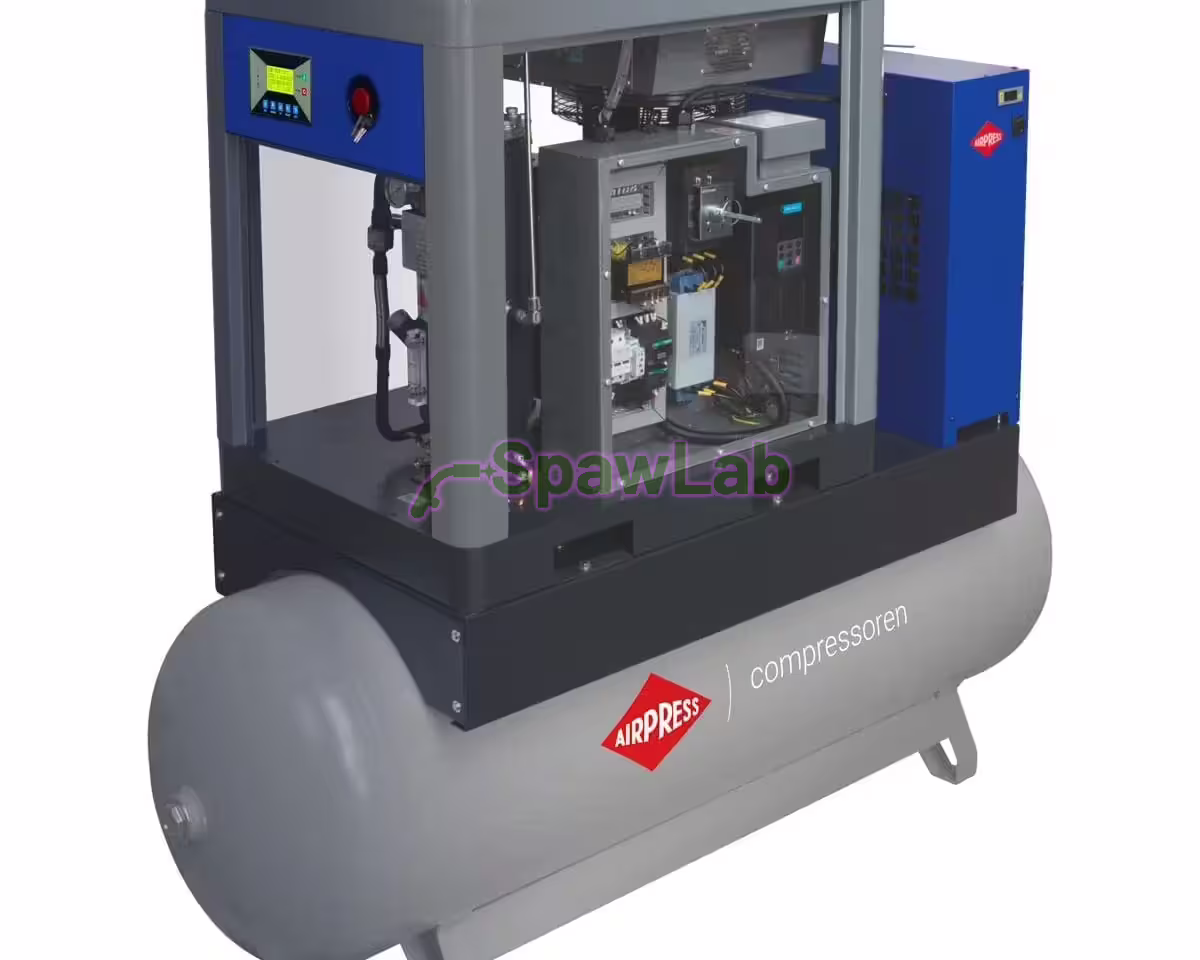

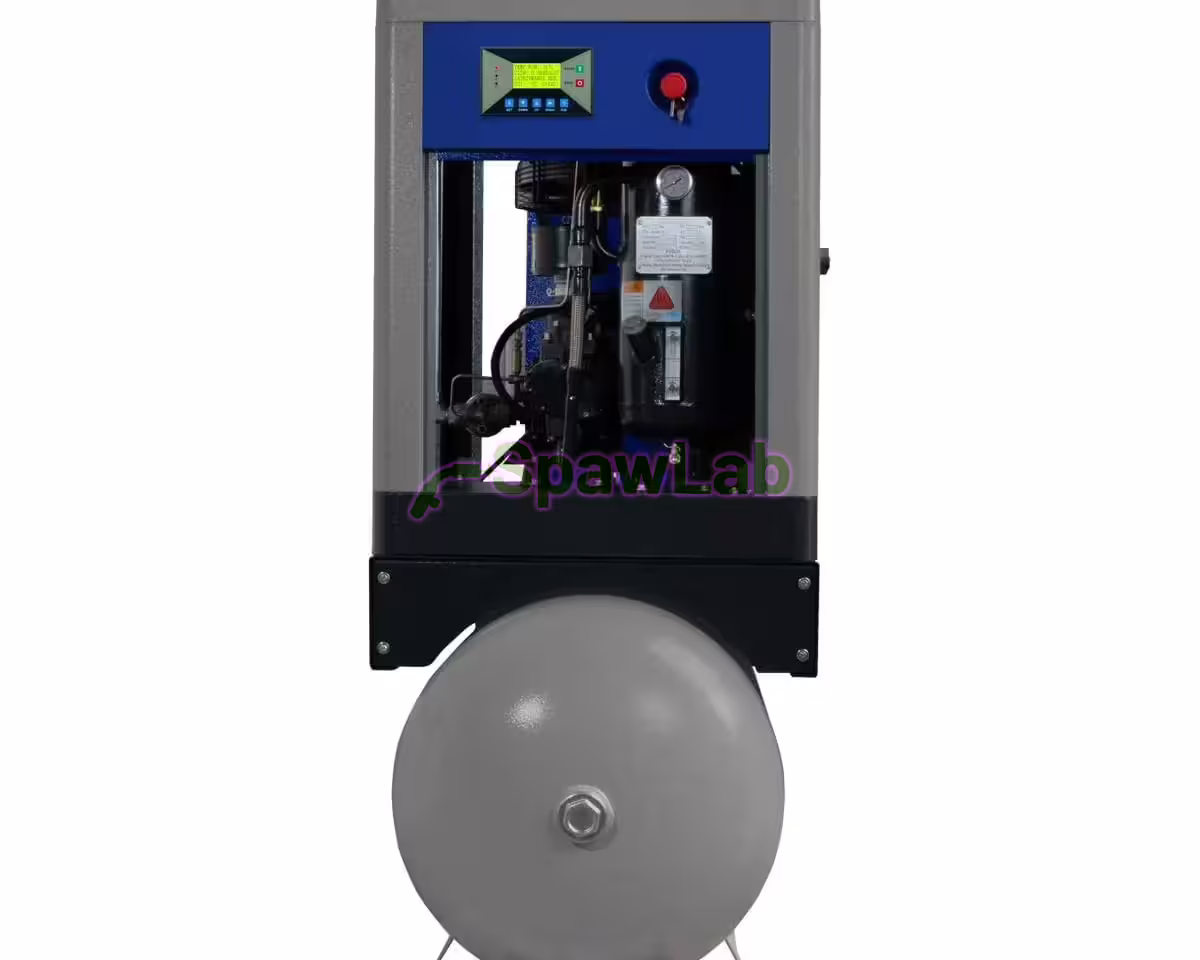

APS 7.5 Combi Dry X screw compressor 10 bar 7.5 HP/5.5 kW 690 l/min 500 l
The APS 7.5 Combi Dry X is a fixed-speed screw compressor designed for the needs of small and medium-sized businesses and workshops. With an integrated air dryer and a 500 litre tank, it provides a steady, reliable supply of high-quality compressed air. The compressor delivers 690 l/min at a maximum working pressure of 10 bar. With its 7.5 HP (5.5 kW) motor, the unit is well suited to applications that call for constant, efficient operation.
Key advantages of the APS 7.5 Combi Dry X:
- Fixed-speed operation: the compressor runs at a set speed, which keeps the compressed air supply stable and reliable, ideal for applications that need a continuous supply.
- Integrated air dryer and air tank: the built-in dryer and the 500 litre tank remove moisture from the air effectively, providing high air quality and protecting tools and pneumatic systems against damage caused by moisture.
- High air delivery: the compressor delivers 690 l/min, which makes it a very good choice for supplying pneumatic tools, production machines and other industrial systems.
- 1:1 direct drive: the direct drive transfers the full motor power to the airend, eliminating energy losses and raising the efficiency of the compressor.
IE3 synchronous motor
The APS 7.5 Combi Dry X compressor is fitted with a modern synchronous motor in the IE3 energy efficiency class, which offers high output at low energy consumption. The motor is 8% more efficient than standard units, which means lower running costs and a longer service life for the unit. Its innovative design minimises the need for servicing and cuts operating costs further.
Advanced MAM-860 controller
The APS 7.5 Combi Dry X compressor is equipped with a modern MAM-860 touch controller for precise monitoring and management of the operating parameters. The intuitive display lets you easily keep track of key parameters such as working pressure and air delivery. The built-in Wi-Fi module provides remote access to the compressor for optimising operation and fast diagnostics. Functions such as automatic restart and weekly operating schedules raise efficiency further and keep operating costs down.
Energy efficiency and low running costs
The APS 7.5 Combi Dry X is highly energy efficient thanks to the IE3 synchronous motor and the 1:1 direct drive. The integrated air dryer removes moisture from the system, which extends the life of pneumatic tools and machines. The 500 litre tank keeps the compressor running steadily even when air demand fluctuates strongly, which makes it a very good choice for many industrial applications.
Technical specifications:
- Working pressure range: 6-10 bar
- Motor power: 7.5 HP / 5.5 kW
- Air delivery: 690 l/min
- Tank: 500 l
- Power supply: 400 V / 50 Hz / 3 phases
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This provides long-term protection for key components and reliable operation.
The APS 7.5 Combi Dry X is a very good solution for companies looking for an energy-saving and reliable screw compressor: fixed-speed operation and a built-in air dryer provide a steady supply of compressed air under different operating conditions.
APS 7.5 Combi Dry X: reliability, output and savings in one unit.
