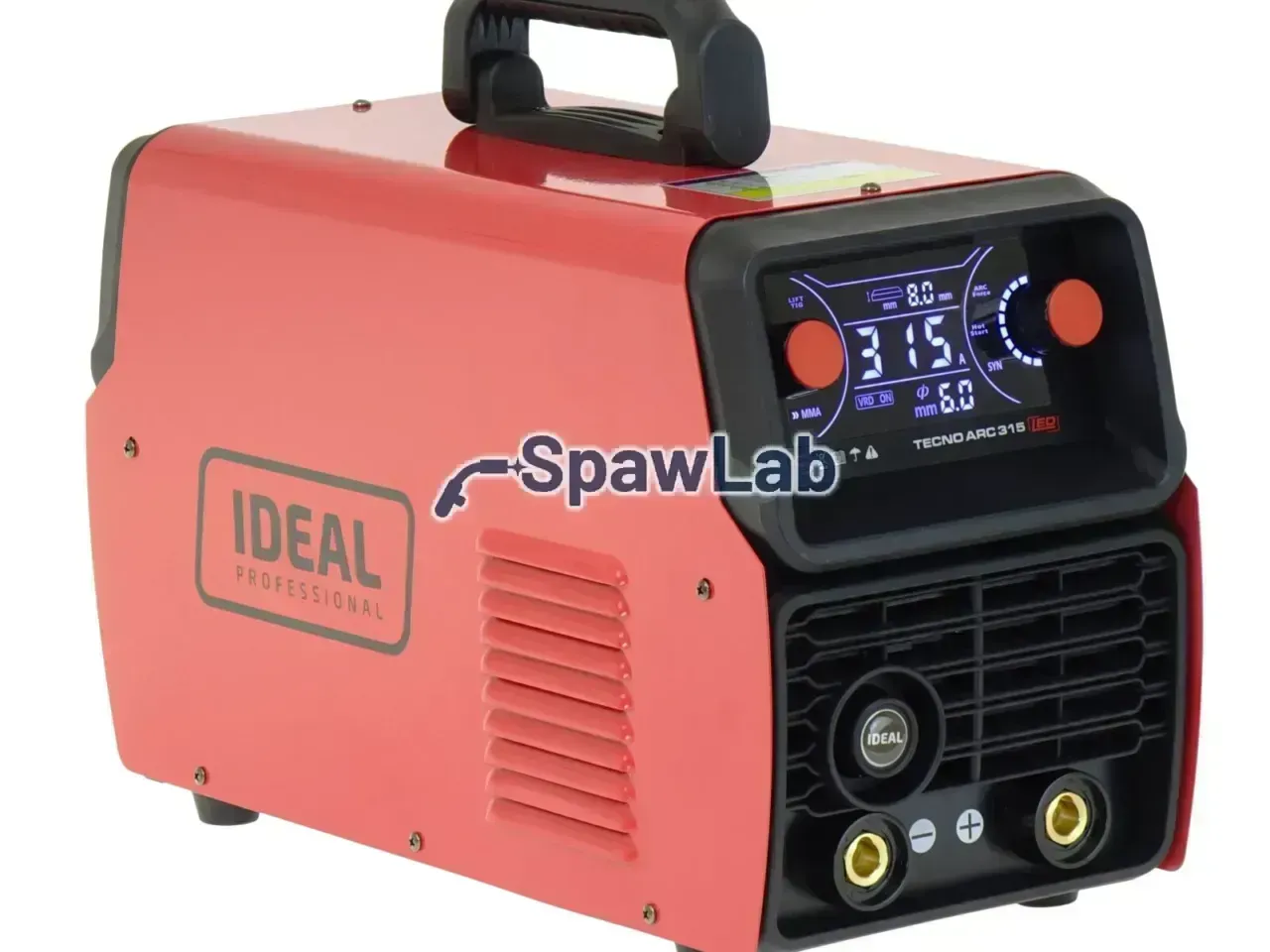

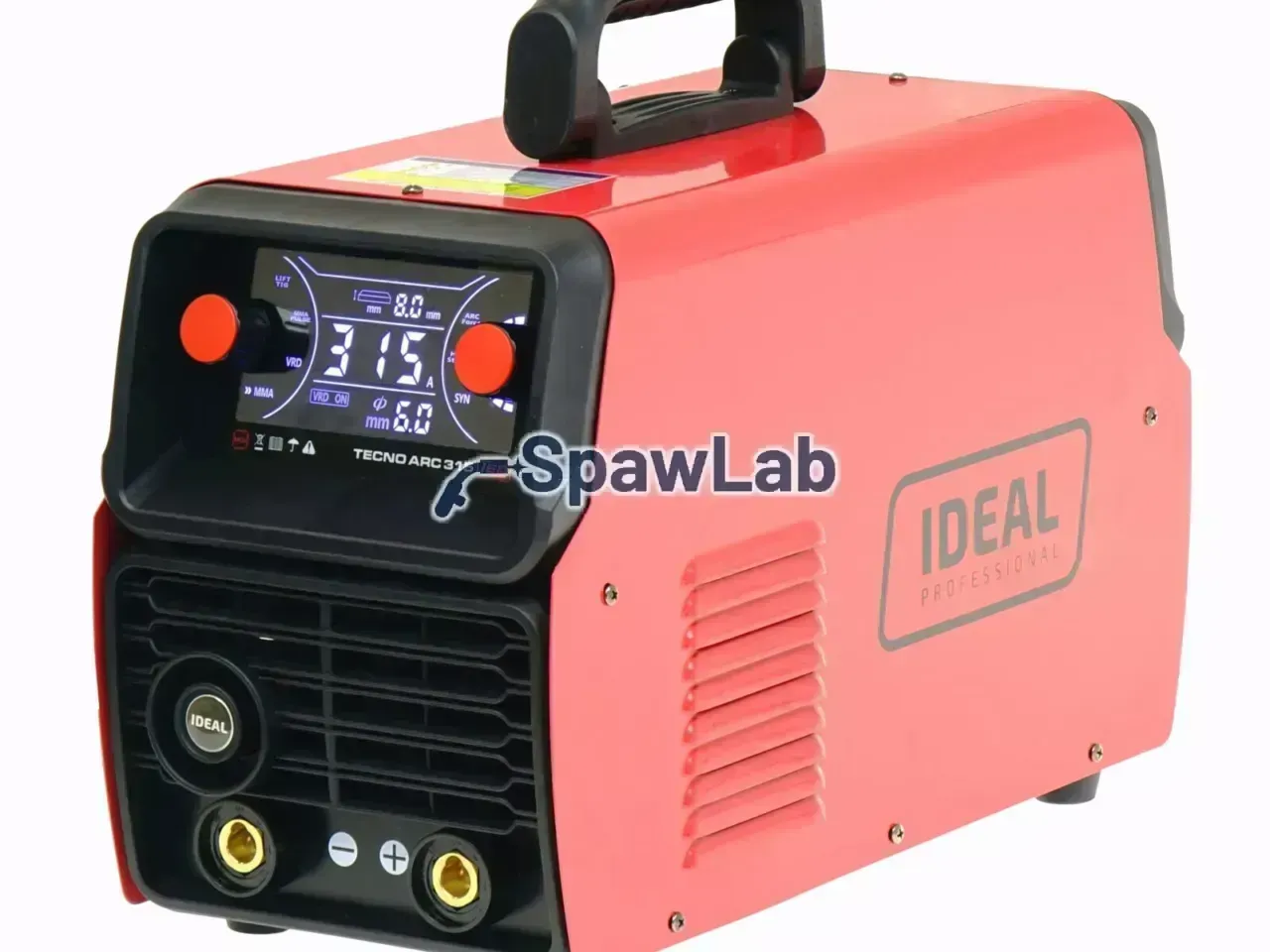

Ideal Tecno ARC 315 LED is a three-phase inverter welder for coated-electrode (MMA) welding and TIG welding on direct current (DC), with contact arc ignition. You power it from a 3 x 400 V supply and set the current steplessly in the 10 to 315 A range, with a duty cycle of 315 A at 60%. It takes rutile, basic, stainless steel and cast iron electrodes 1.6 to 6.0 mm in diameter.
Specifications
- Power supply: 3 x 400 V, 50 Hz, three-phase, with plug
- Input current: 22 A
- Mains protection: C20
- Power: 13 kW
- Open-circuit voltage: 69 V
- Welding current range: 10 to 315 A
- Duty cycle: 315 A at 60%
- Electrode: 1.6 to 6.0 mm
- Protection rating: IP21S
- Weight of machine / set: 16.5 / 17.5 kg
- Dimensions (L x W x H): 490 x 205 x 330 mm
Features
MMA and TIG DC
The main process is MMA with a coated electrode on direct current. TIG welding also runs on direct current, and you strike the arc by contact, touching the workpiece with the electrode. Control is electronic, and you adjust the current steplessly.

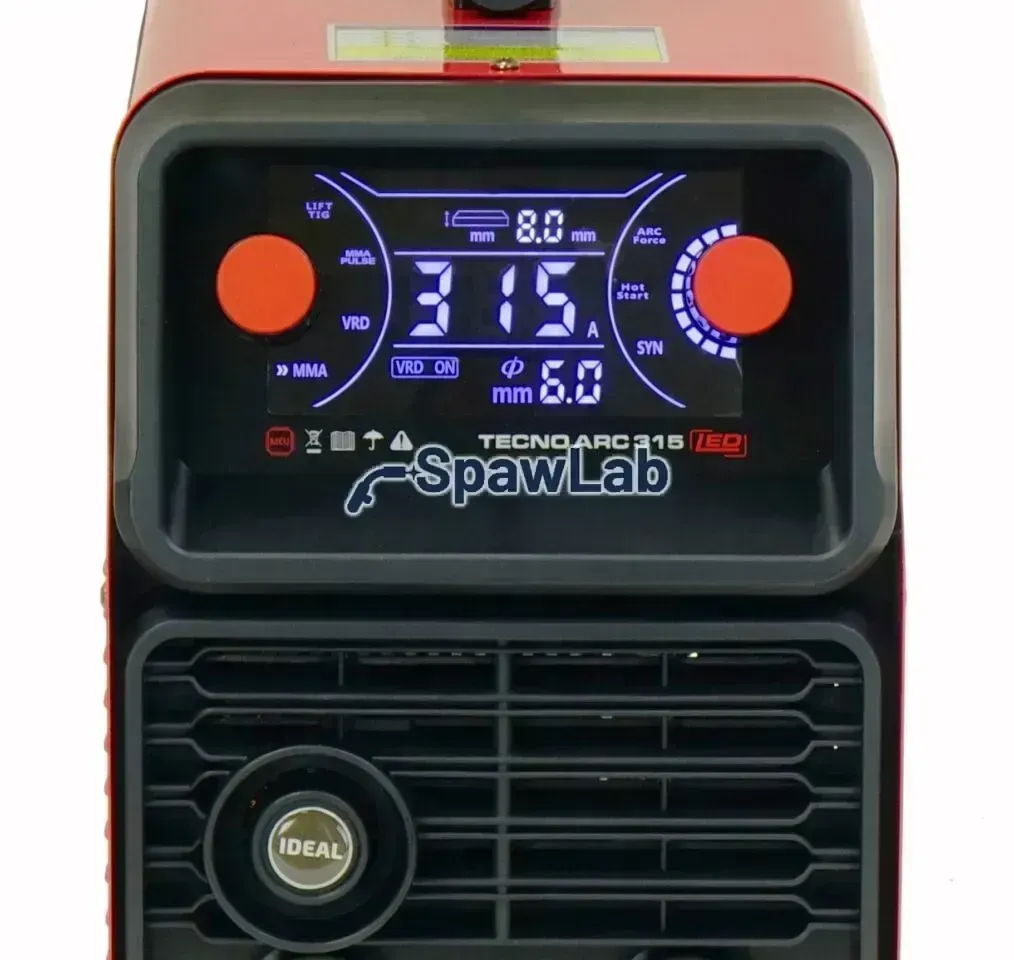

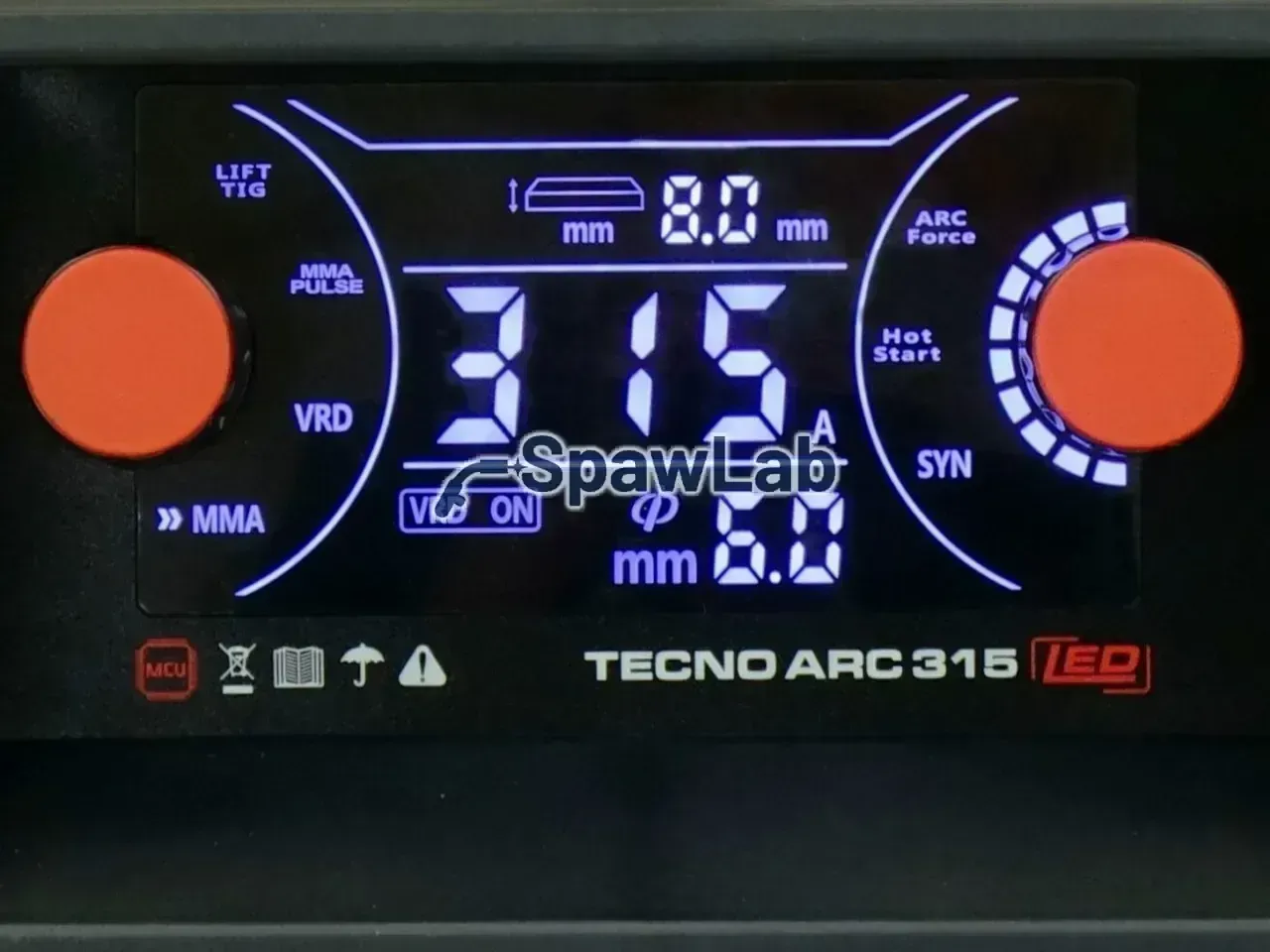

LED display and MMA synergic mode
The clear LED display makes it easier to set the machine precisely. In MMA synergic mode, once you set the current, the welder suggests the electrode diameter and material thickness that match that value.
ARC FORCE, HOT START and ANTI STICK
ARC FORCE adjusts the short-circuit current. It helps molten droplets pass from the electrode into the workpiece and keeps the arc from going out when a droplet touches the weld pool. HOT START gives a higher current at each ignition, so the electrode strikes more easily. ANTI STICK switches off the voltage when the electrode sticks to the workpiece, so you can pull it free easily and no accidental arc forms.
Construction
A fan cools the inside, and a protection circuit guards the machine against overload. With the three-phase supply and current up to 315 A you can weld with electrodes up to 6.0 mm in diameter.

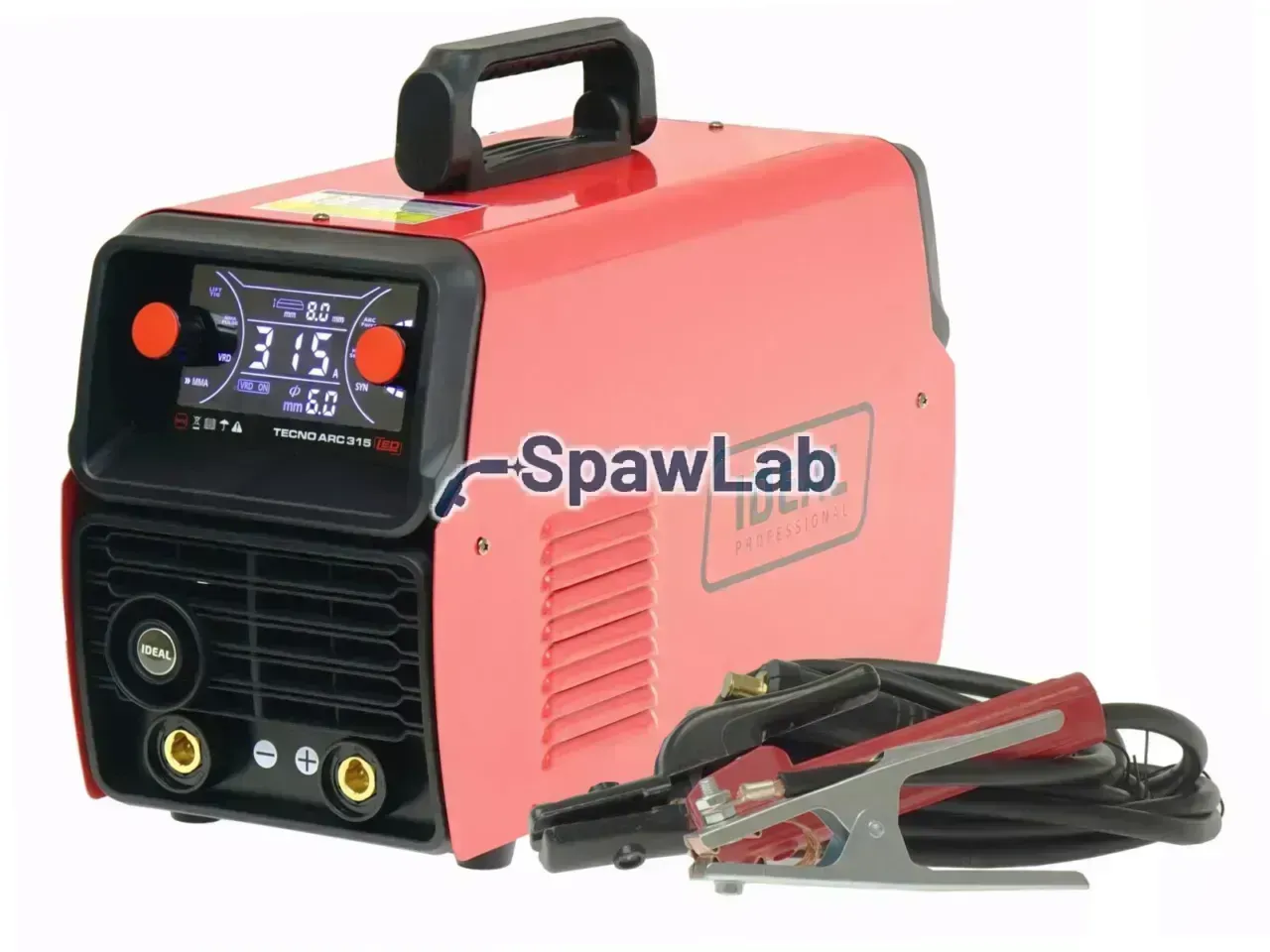

In the box
- MMA electrode cable, 3 m
- Earth cable, 2 m
12-month warranty for professional use. Warranty service works door-to-door, with no transport costs on your side.
