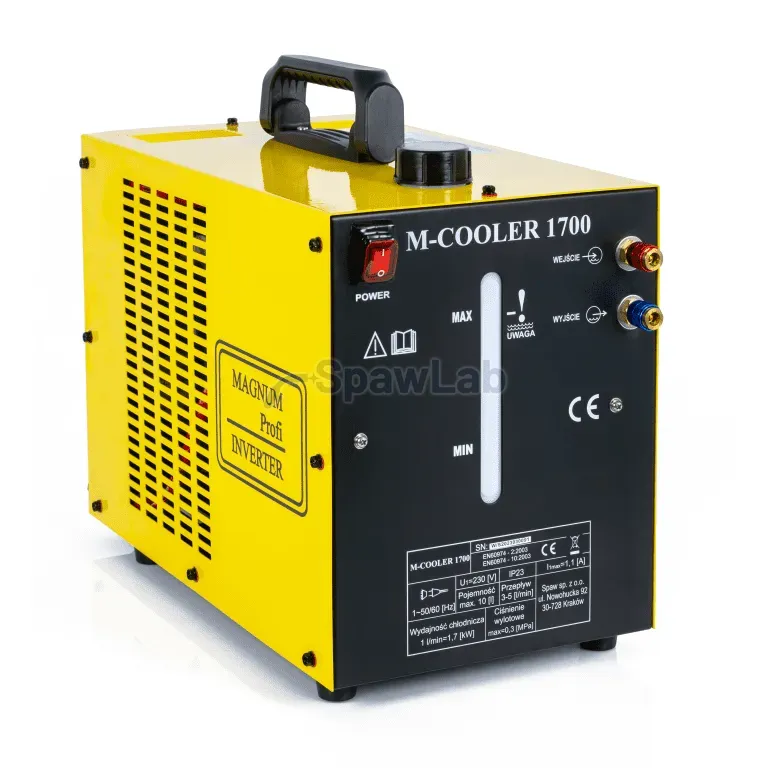

Magnum M-COOLER 1700 welding cooling unit
The Magnum M-COOLER 1700 is a professional welding cooling unit and a key part of the Magnum system for advanced users. Designed for intensive use in fabrication and production workshops, it allows long periods of MIG/MAG and TIG welding at high currents without the risk of overheating the torch. It is a reliable solution that increases productivity and protects your equipment, in line with the Magnum brand philosophy: professional quality at a competitive price.
Key features
High cooling capacity (1700W) for work with high-power torches.
Keeps the torch temperature stable and extends its service life.
Compatible with standard quick couplings and most welding machines.
Efficient pump and copper radiator for maximum efficiency.
Built-in coolant flow sight glass for full control of the cooling process.
Compact, rugged housing, ideal for workshop conditions.
Technical details
Technology analysis
At the heart of the M-COOLER 1700 is an efficient closed cooling circuit. A high-performance pump ensures a constant coolant flow through a copper radiator with a large heat-exchange surface. The whole system is controlled to keep the torch at the optimum working temperature even when welding at the maximum duty cycle. Standard connections allow trouble-free integration with Magnum machines and those of other manufacturers, creating a complete and reliable welding station.
Recommended applications
- MIG/MAG welding with double pulse and high current.
- TIG AC/DC welding of thick aluminium and stainless steel parts.
- Industrial and production applications that require long duty cycles.
- Robotic and automated welding stations.
- Use with liquid-cooled welding torches rated > 300A.

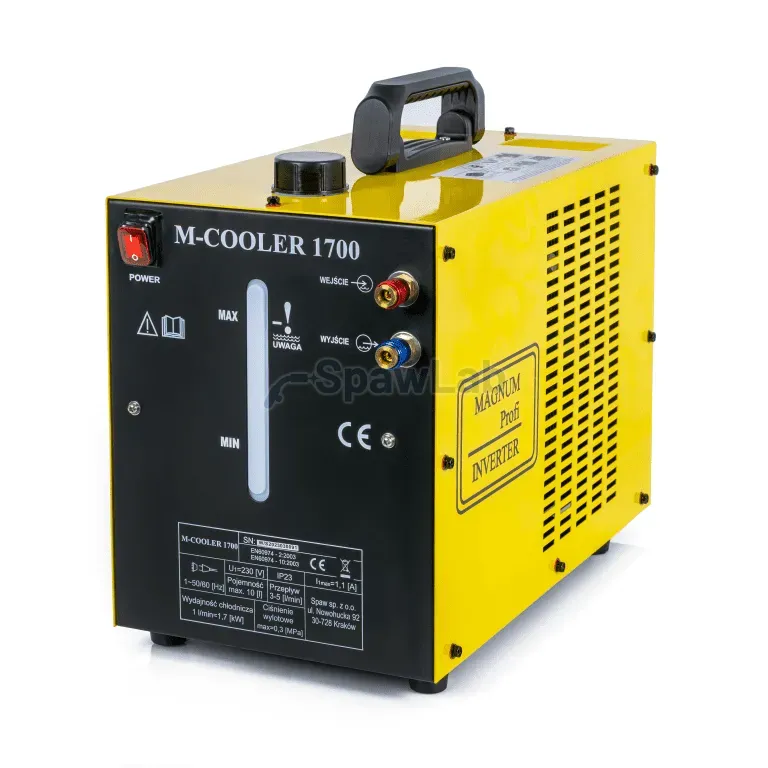

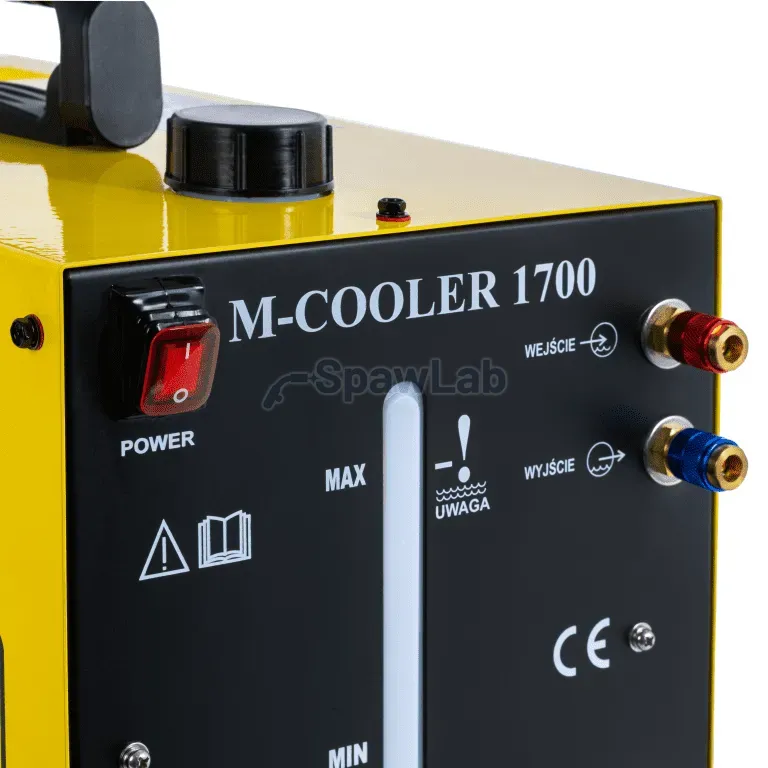

Control panel

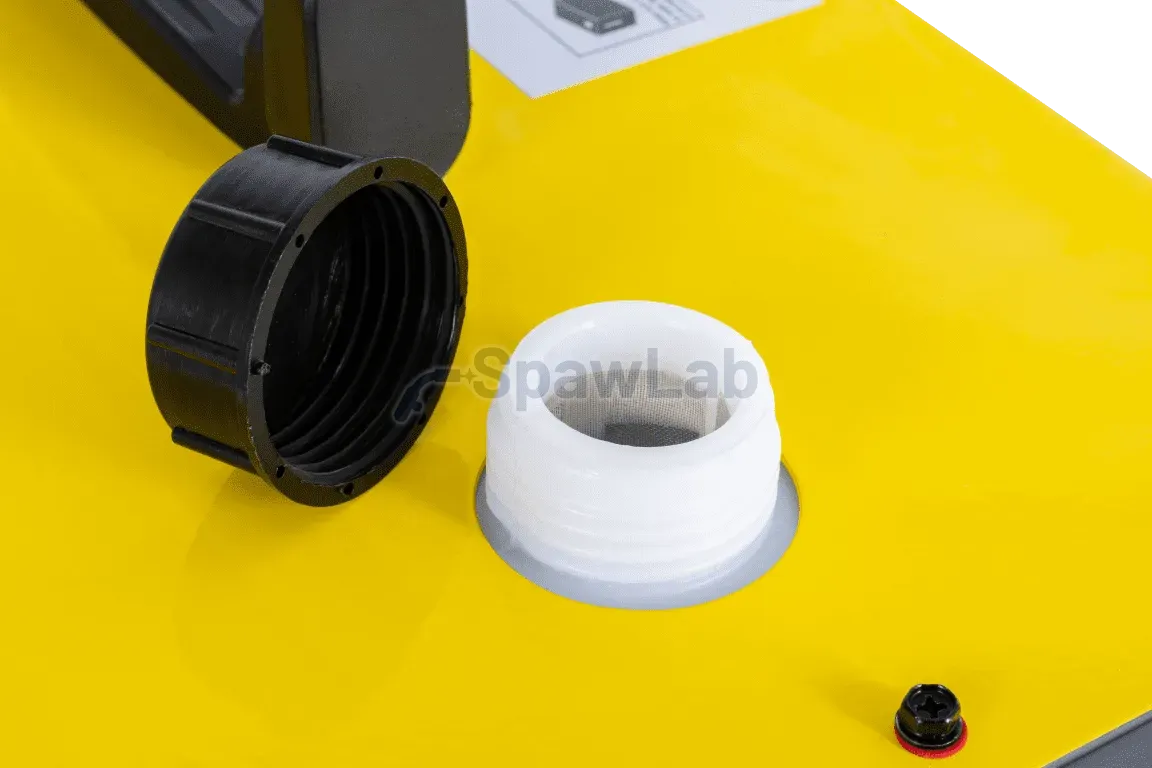

Operating the cooling unit is very simple and intuitive. The front panel has an illuminated power switch and two clear indicators. The coolant flow sight glass lets you monitor the circuit at all times, and a large level indicator makes it easy to check and top up the tank. The unit follows the 'plug and work' principle, which keeps setup time to a minimum.
Product specification
| Feature | Value |
|---|---|
| Power supply | AC 230V / 50Hz |
| Purpose | Accessory for MIG/MAG, TIG |
| Design | Liquid cooling system |
| Cooling power [W] | 1700 |
| Tank capacity [l] | 6 |
| Maximum flow [l/min] | 8.5 |
| Weight [kg] | 14.5 |
What is in the box?
- Magnum M-COOLER 1700 cooling unit
- Connection hoses with quick couplings
- Operating manual in Polish
- Warranty card
About Magnum
Magnum is a Polish brand that has been one of the leaders in the welding market since 1996. Its business model is based on supplying technologically advanced equipment (manufactured in Asia to Polish specifications) at a very competitive price. The brand's strengths are an excellent quality-to-price ratio ("value for money"), a broad product line that forms a complete workshop system, and reliable service with a "door-to-door" warranty, which build customer trust from hobbyists to professional workshops.
