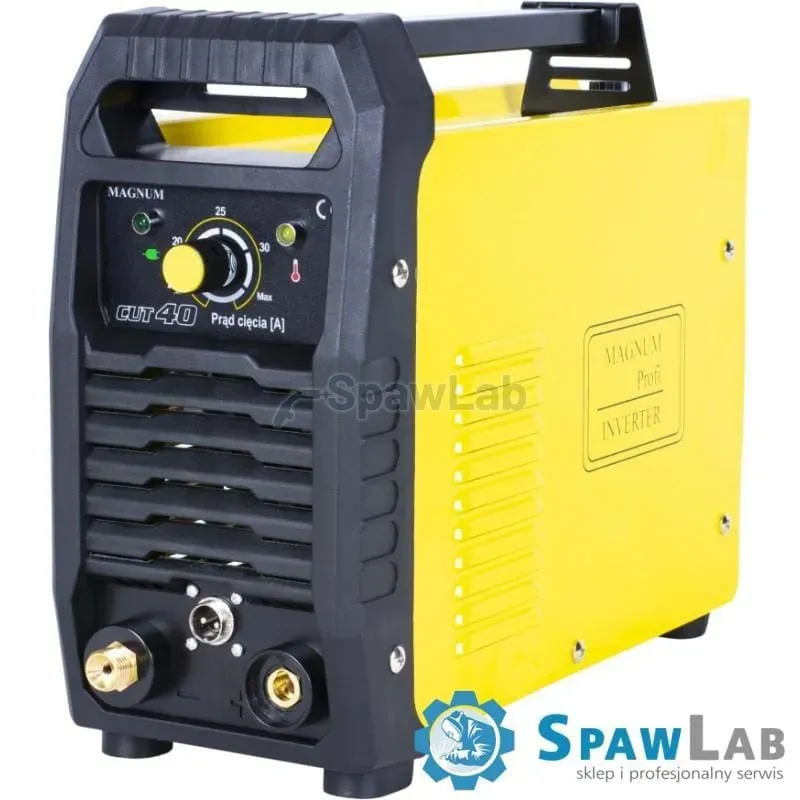

Description

MAGNUM CUT 40 brand plasma cutter is designed for manual air plasma cutting of electrically conductive parts made of carbon and alloy steels, aluminum and its alloys, brass, copper and also cast iron.

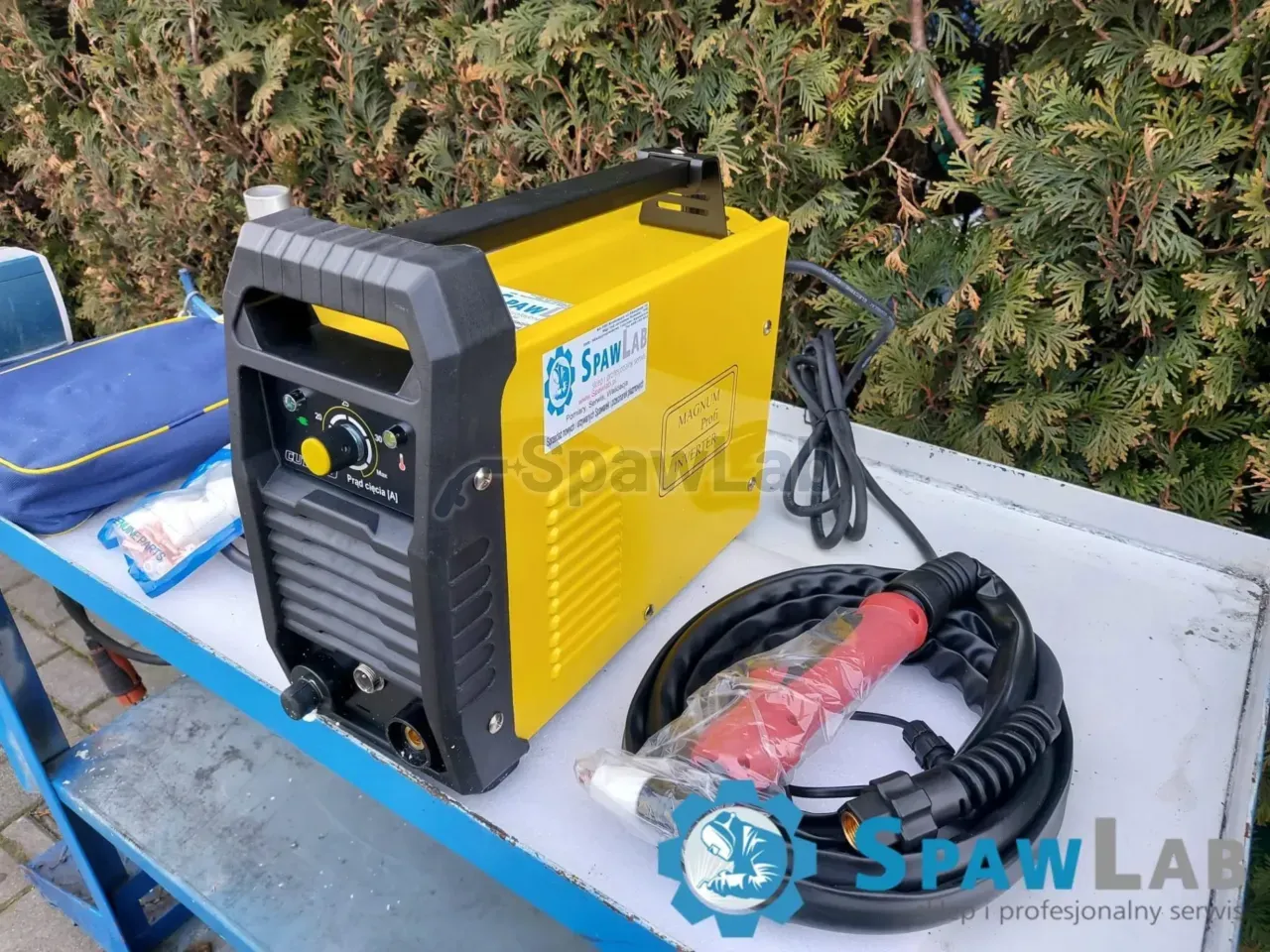

The device is equipped with a torch that allows cutting in hard-to-reach places and in all possible positions. The CUT 40 plasma cutter is equipped with a PT-31 chuck with touch ignition using a high-voltage pulse. The cutter can be used in production processes, workshop work, repair work, as well as cutting scrap metal.

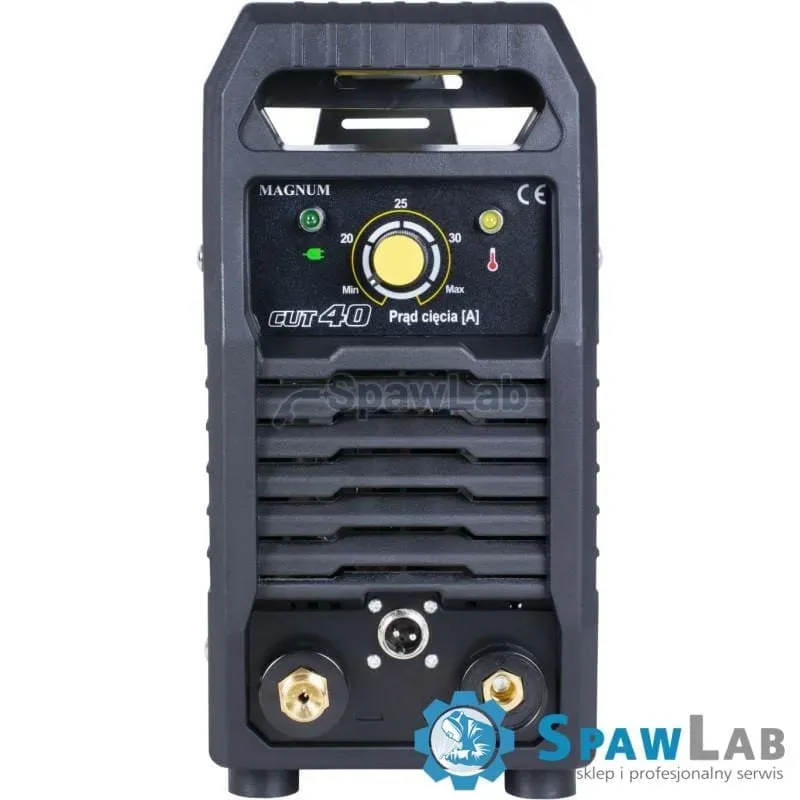

The MAGNUM CUT 40 is built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power loss, increased efficiency and reliability of the power source, and reduced power consumption. The cutter is equipped with overload thermal protection. It has the advantage of low weight and infinitely adjustable cutting current to ensure high quality material cutting.
TECHNICAL DATA:
– cutting current: 15 – 40 A,
– efficiency: 60%,
– power supply: 230 V / 50Hz,
– power supply protection: 20A / C,
– power consumption: 5.5 kW,
– approximate cutting thickness for structural steel: separating max. 10 mm, qualitative max. 8 mm,
– arc ignition: high voltage pulse contact,
– required air pressure: 5 bar,
– air intake: 120 l/min,
– housing protection: IP21S,
– cooling: air – fan,
– idle voltage: 270 V,
– net weight: 6.6 kg.

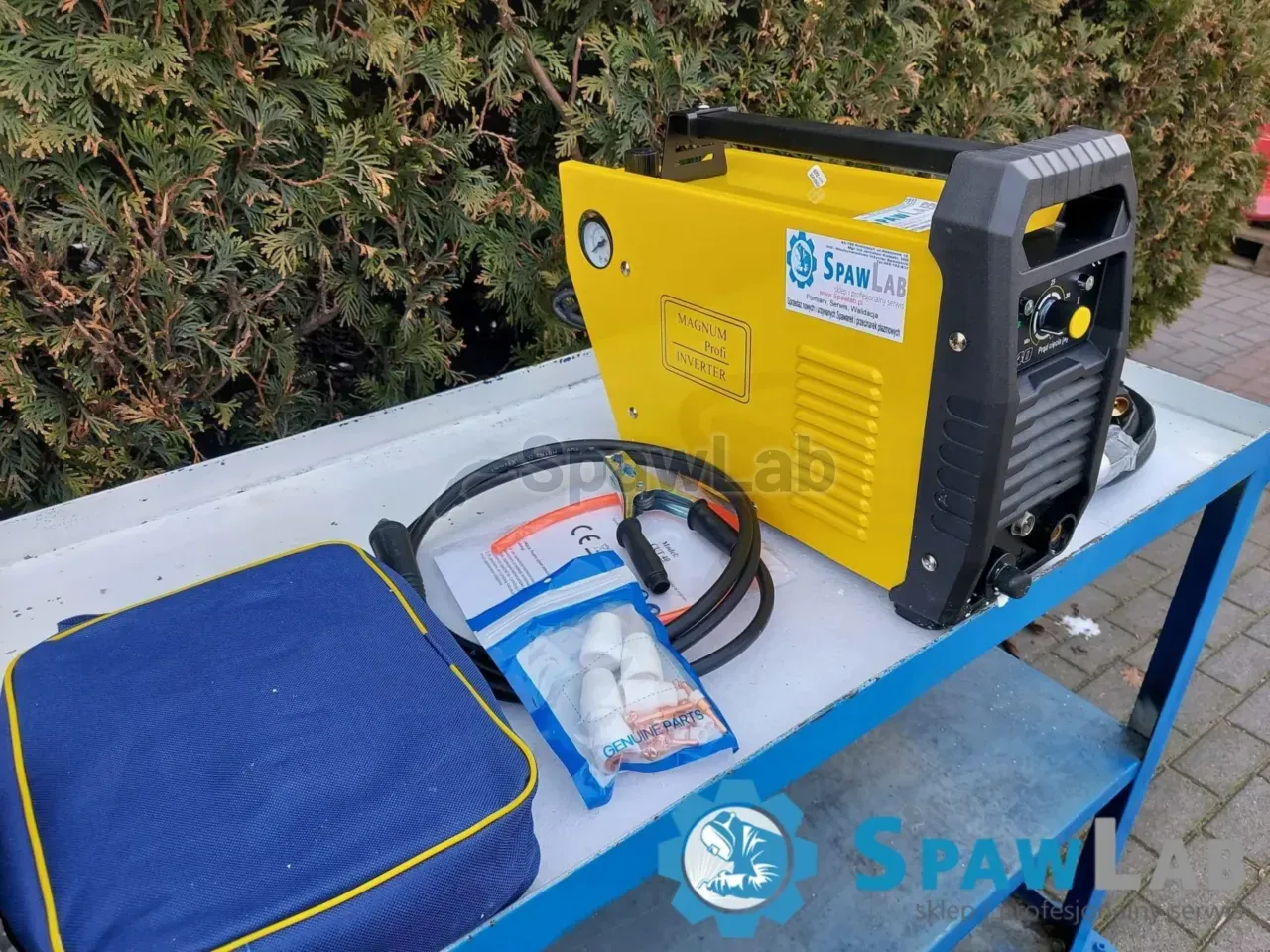

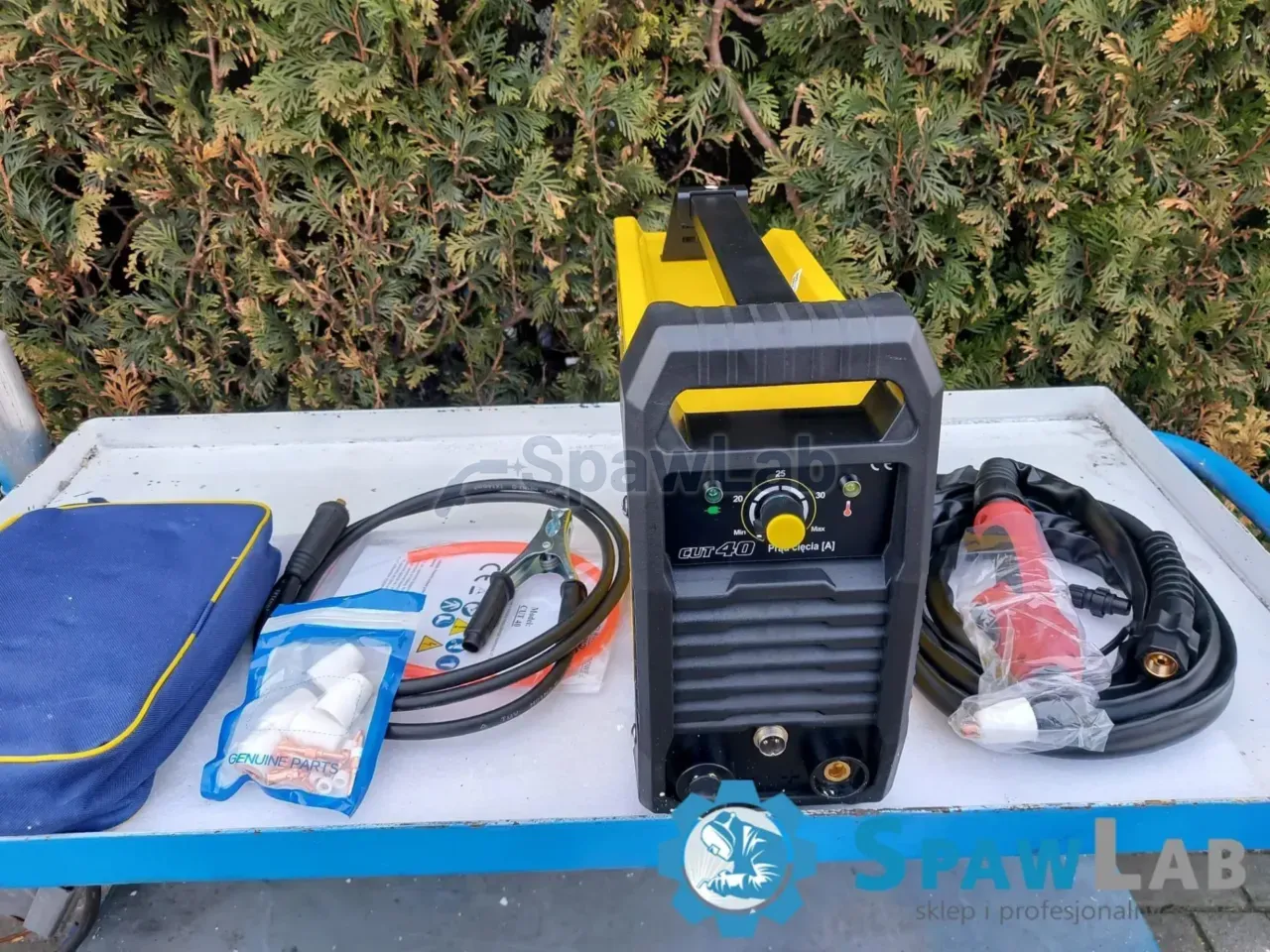

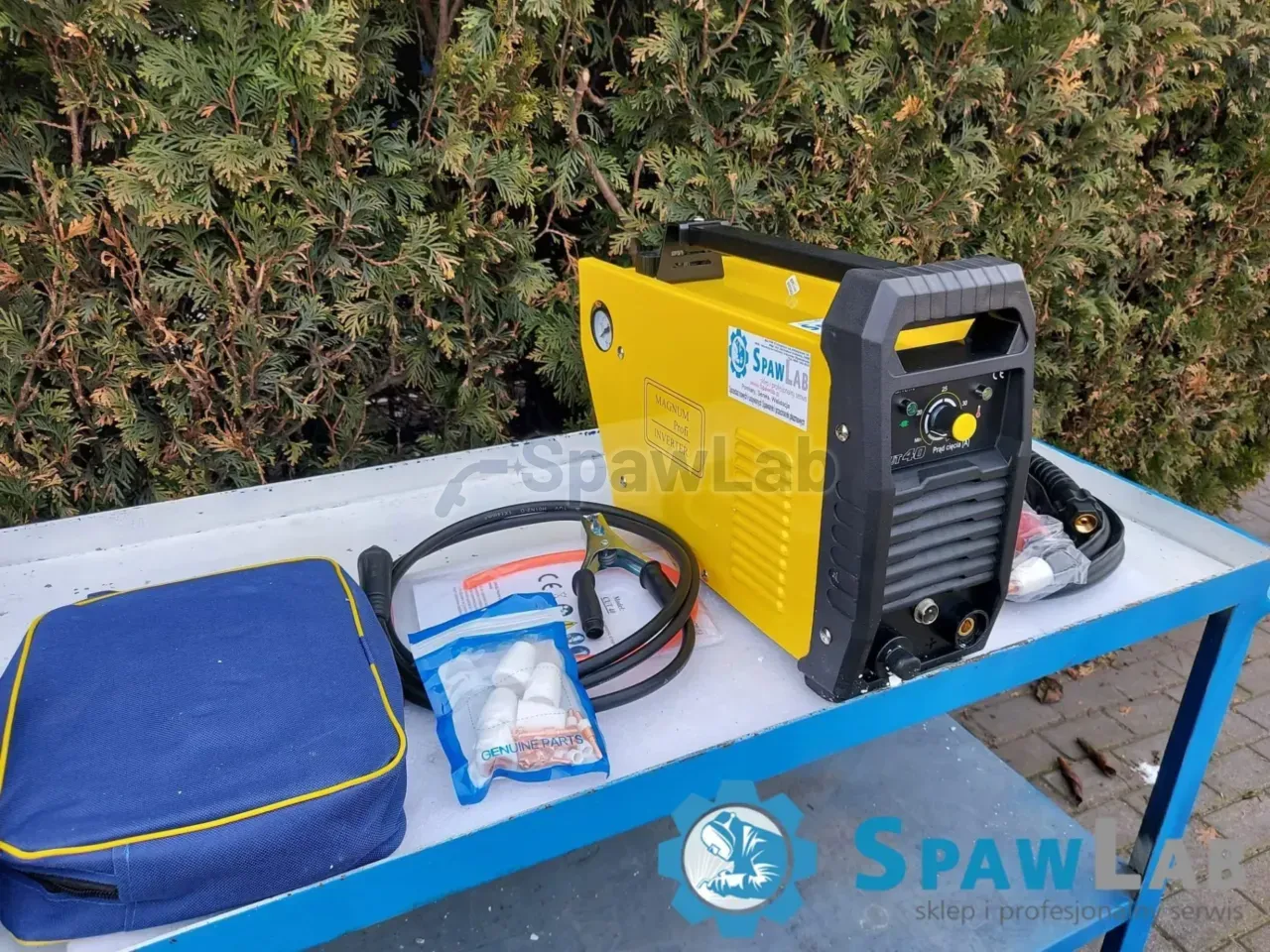

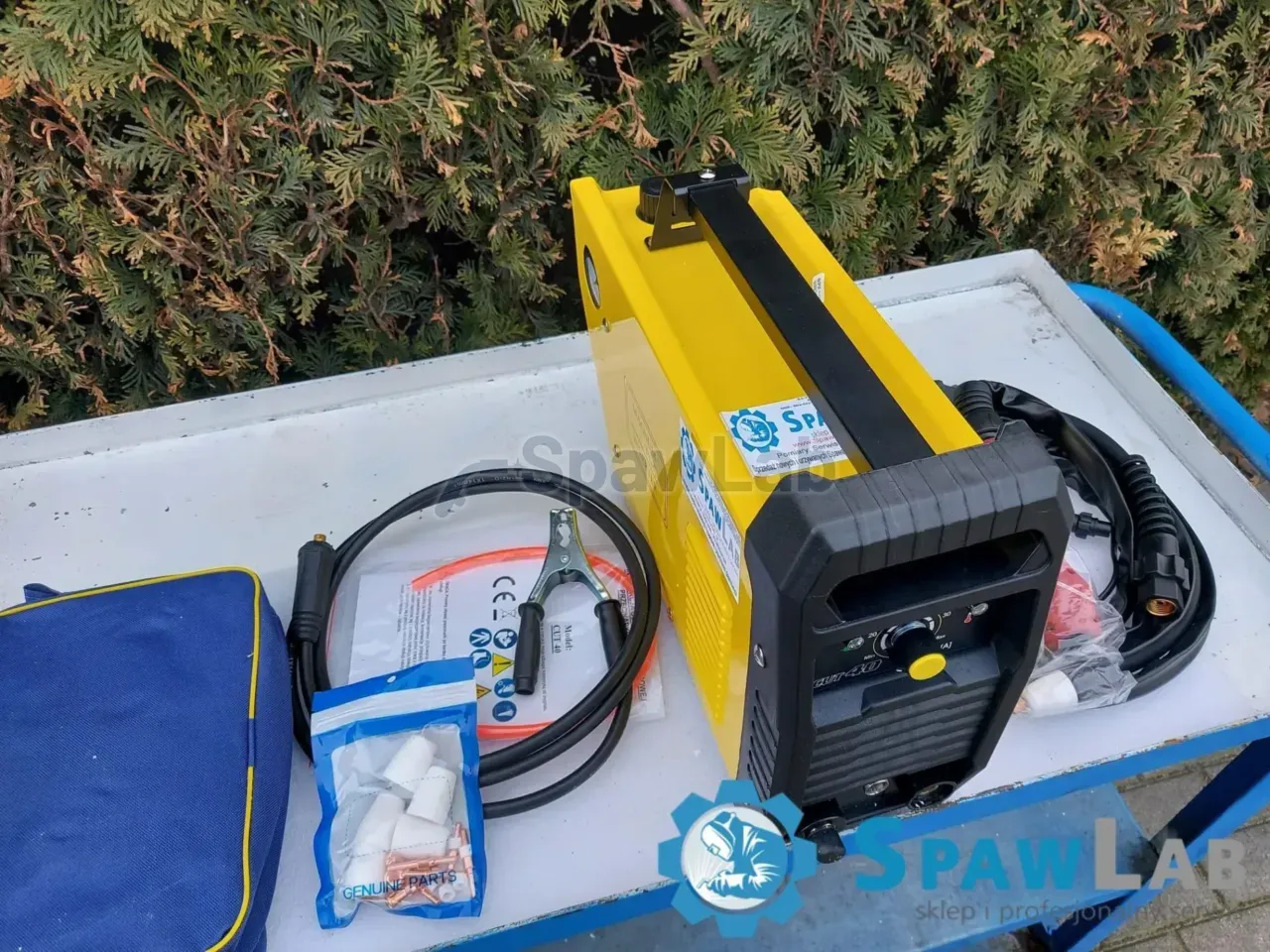

KIT INCLUDES:
– complete device with power plug,

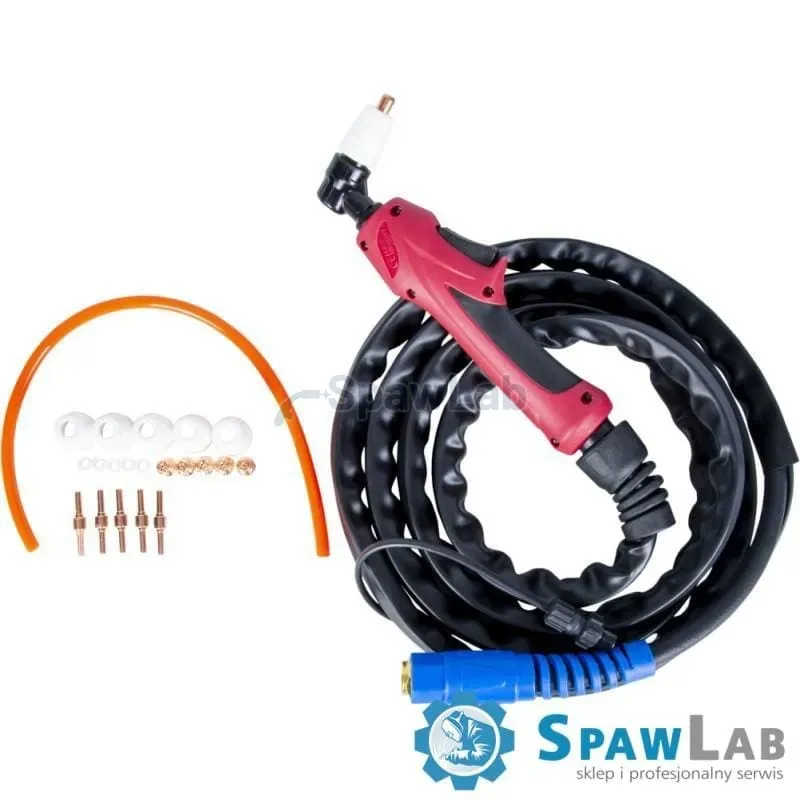

– PT-31 plasma cutting holder,
– ground cable with clamp,

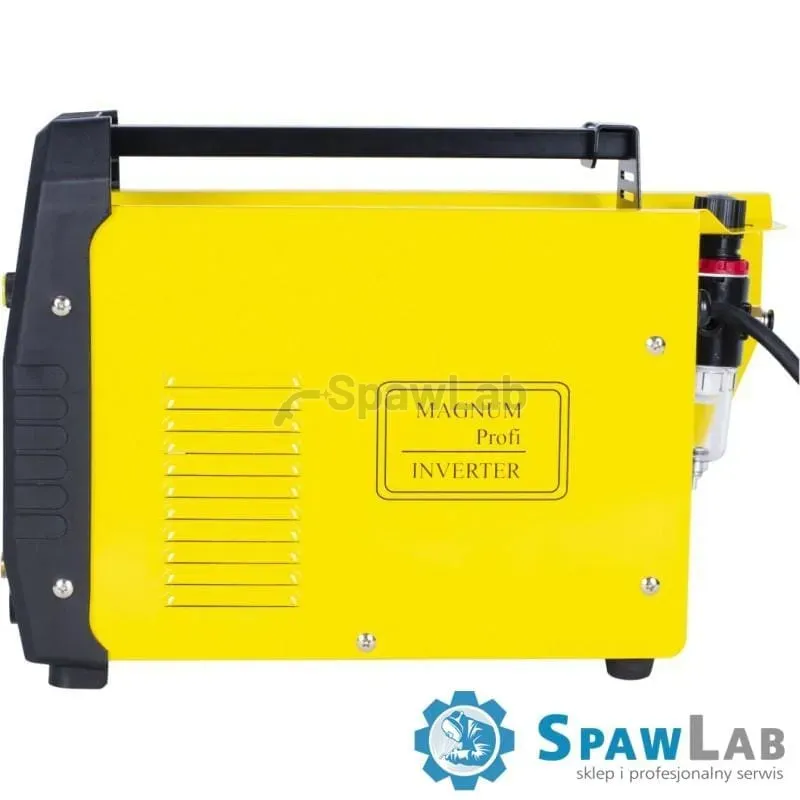

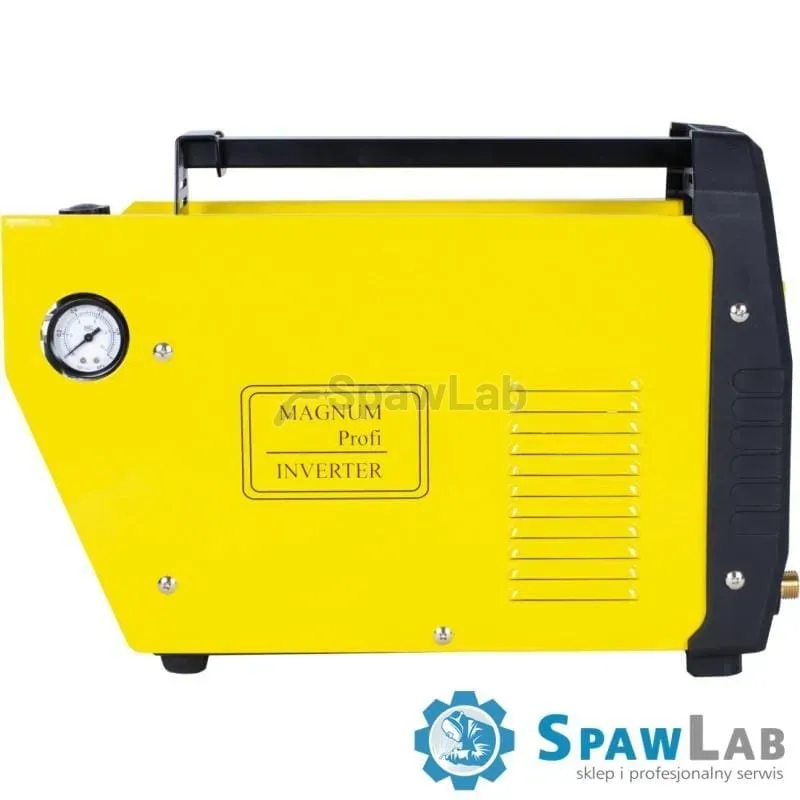

– built-in filter-reducer.
