Description

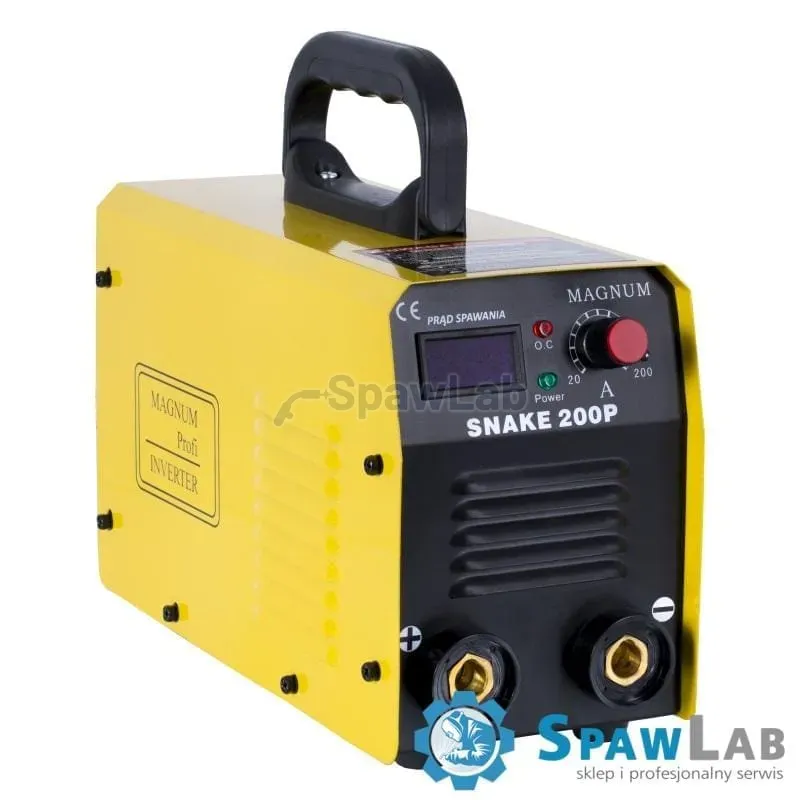

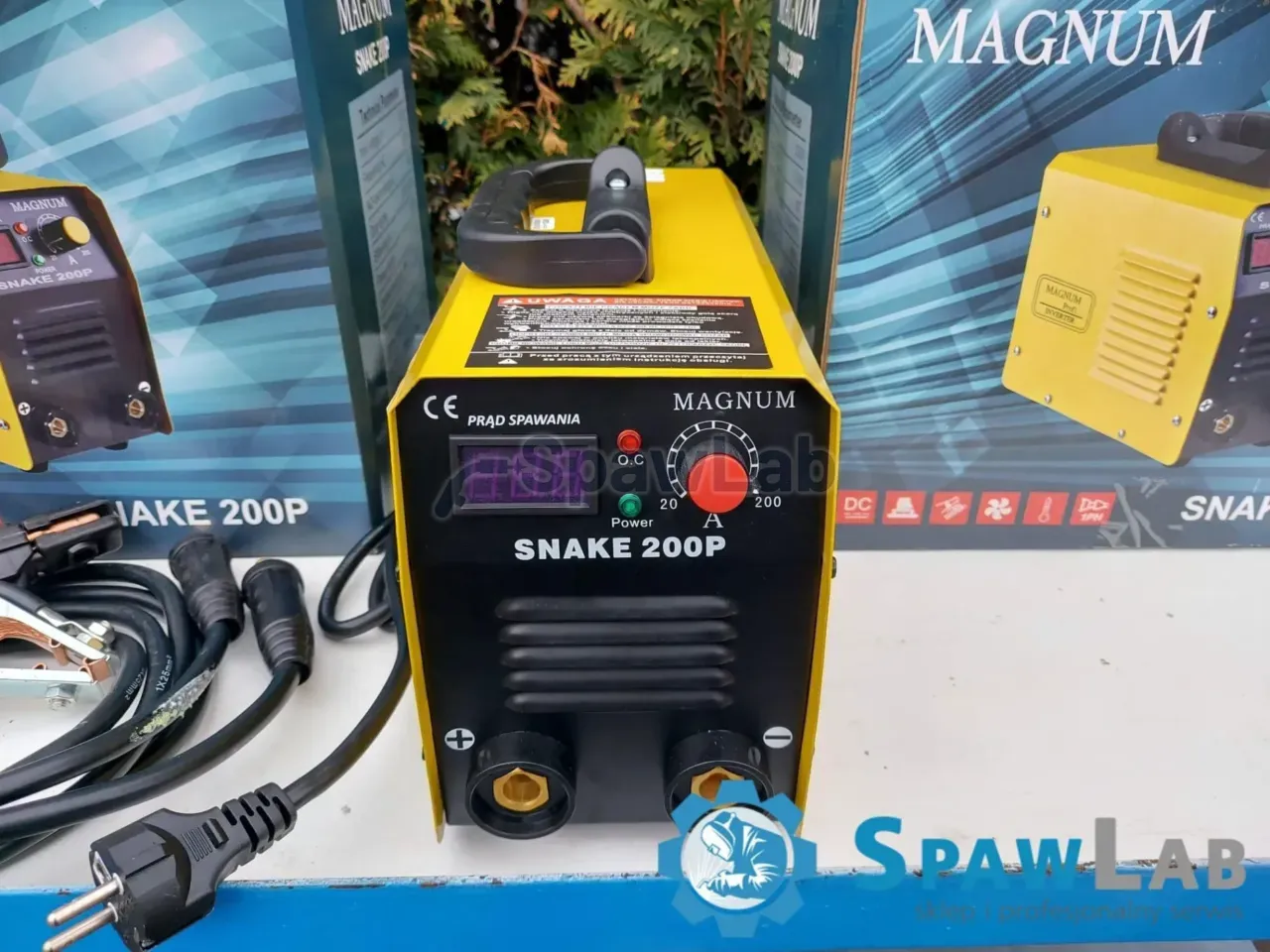

Inverter device SNAKE 200 PS by MAGNUM is a lightweight, portable source of energy. The device can be used to weld various types of unalloyed, low-alloyed, high-alloyed, stainless, heat-resistant steels, copper, cast iron. The device has a high efficiency of 200 A/60% and excellent arc characteristics for rutile and alkaline electrodes.

The devices are based on advanced technology, using IGBT transistors which translates into reduced electromagnetic interference, low power loss, increased efficiency and reliability of the power source, and lower power consumption.

SNAKE 200 PS welder is designed for stationary and field work, performing all kinds of workshop, repair, construction, etc.The welder can also be used for TIG welding using a special TIG handle with a valve (TIG LIFT method). Arc ignition is then carried out by lightly rubbing the non-fusible electrode against the material to be welded.

TECHNICAL DATA:
– Power supply: AC 230 [V] / 50 [Hz]
– Welding current: 10 – 200 [A]
– Idle voltage: 87 [V]
– Power supply protection: 25 [A]
– Efficiency: 60%
– Cooling: fan
– Enclosure protection class: IP21S
– Weight: 3.5 kg

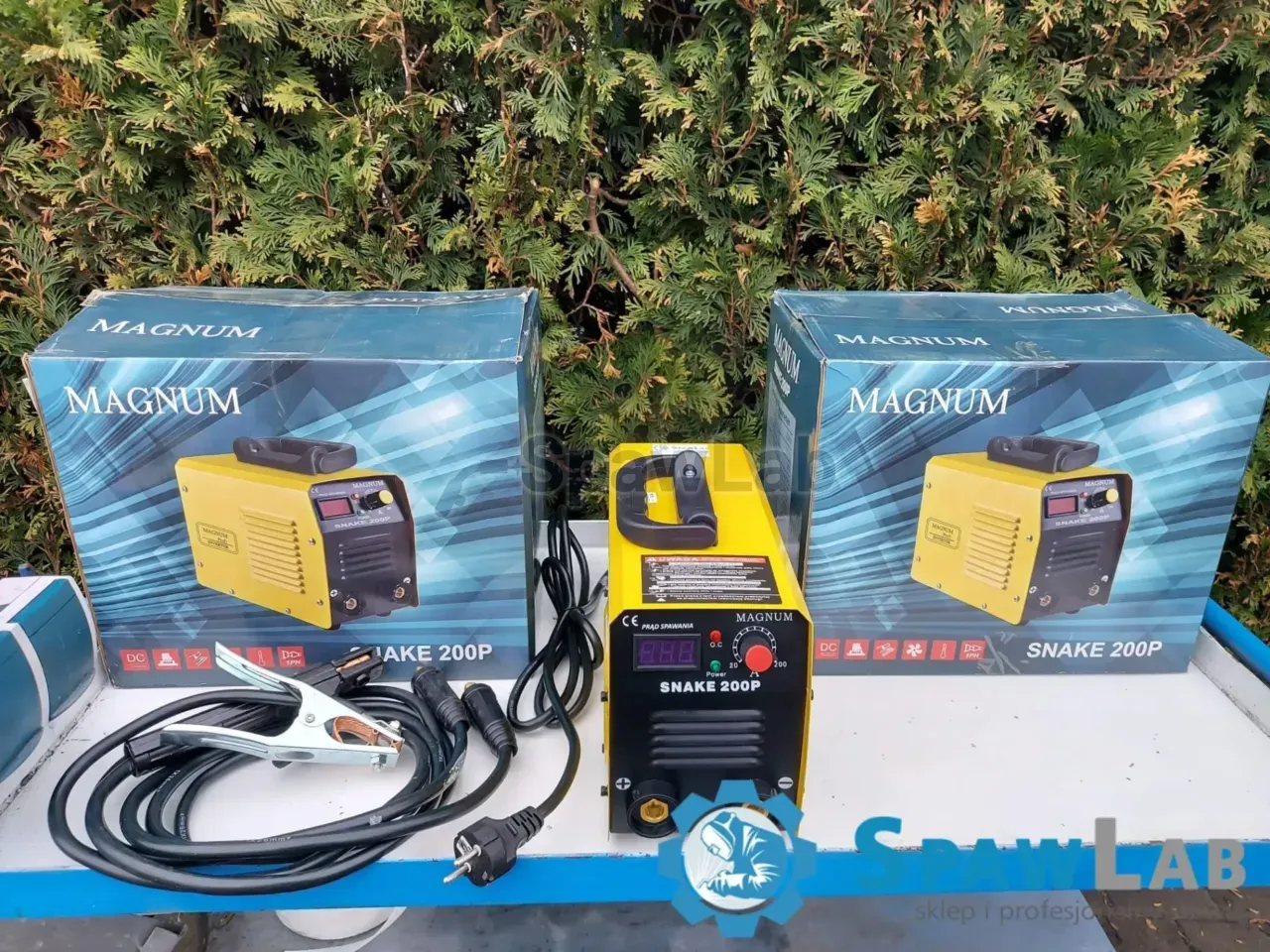

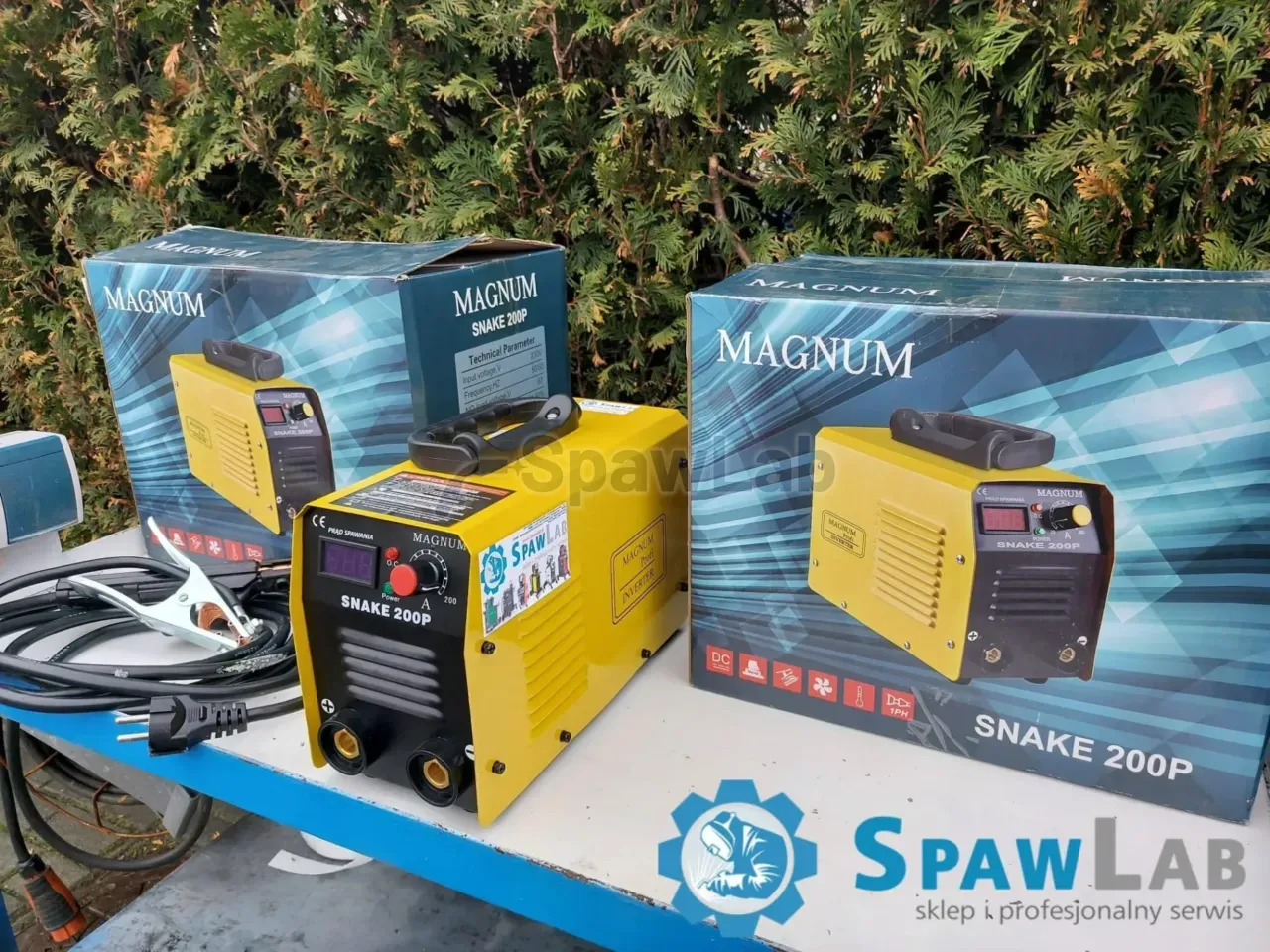

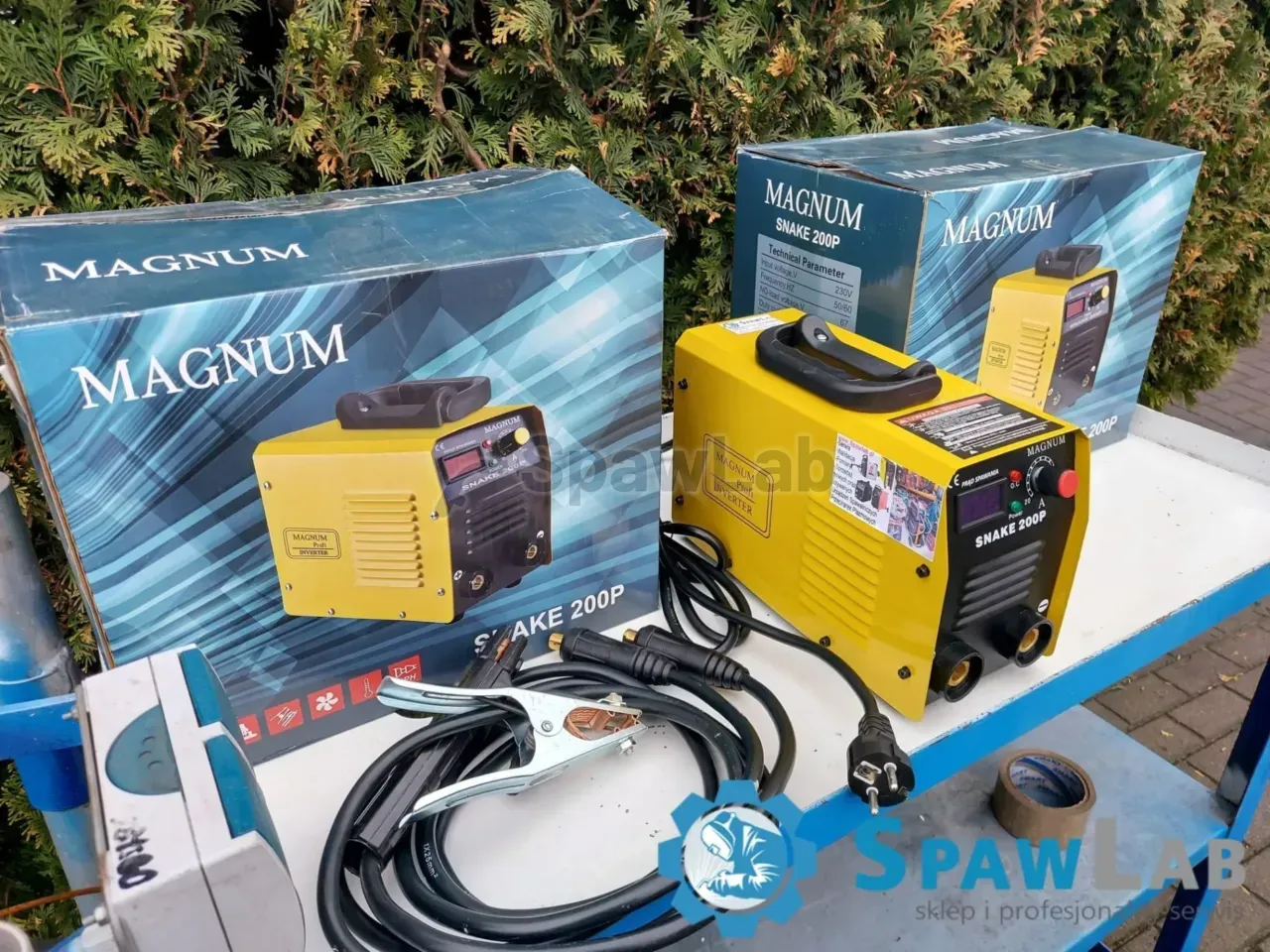

KIT INCLUDES:
– Complete SNAKE 200PS,
– MMA working cable,
– Ground wire with clamp

Description

MMA welding current [A].

200

Manufacturer

MAGNUM

Efficiency [%].

60

Power supply protection [A].

25

Power supply

230 V

ANTI STICK function

YES

ARC FORCE function

YES

MMA function

YES

TIG LIFT function

YES
