A compact, economical and efficient solution for professional and continuous use.
CNC interface for connecting a plasma cutting table.
Product description
- For stainless steel, aluminium, steel, non-ferrous metals and also for metals with a painted surface
- For thin sheet and for thick plate
- The hermetically sealed board protects against moisture and corrosion. That also makes the machine suitable for hard and demanding conditions.
- Suitable for work with a generator, for example in company workshops, ports, chemical plants, schools, in metal structure building, on building sites, ships or on farms.
- Pilot ARC: the set cutting current is released only when the plasma arc is struck.
- Perforated sheet can be cut thanks to the pilot arc.
- Contactless arc striking, without HF
- CNC interface for connecting a plasma cutting table
| Technical data | CRAFT-CUT 123 CNC | |
| Max. quality cut in steel (ST37) | mm | 45 |
| Max. separation cut in steel (ST37) | mm | 55 |
| Max. quality cut in stainless steel | mm | 45 |
| Max. separation cut in stainless steel | mm | 55 |
| Max. quality cut in aluminium | mm | 30 |
| Max. separation cut in aluminium | mm | 35 |
| Duty cycle | % | 60 |
| Current at ED 100% and 40°C | A | 100 |
| Cutting current range | A | 20-120 |
| Supply voltage | V | 400 V |
| Required generator power | kVA | >25 kVA |
| Air consumption | l/min | 200 at 5 bar |
| Working pressure | bar | 6.5 |
| Open circuit voltage | V | 420 |
| Insulation class | H | |
| Dimensions (l x w x h) | mm | 700 x 240 x 445 |
| Weight | kg | 32.8 |
Scope of delivery
- 6 metre Zeta 110A torch
- 3 m earth cable 10 mm² with 300 A clamp

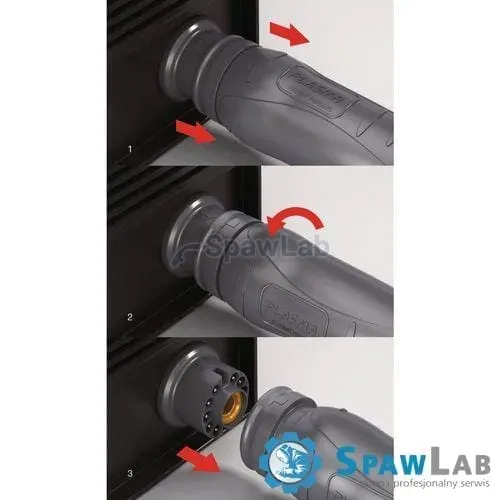

- Trafimector central connector
