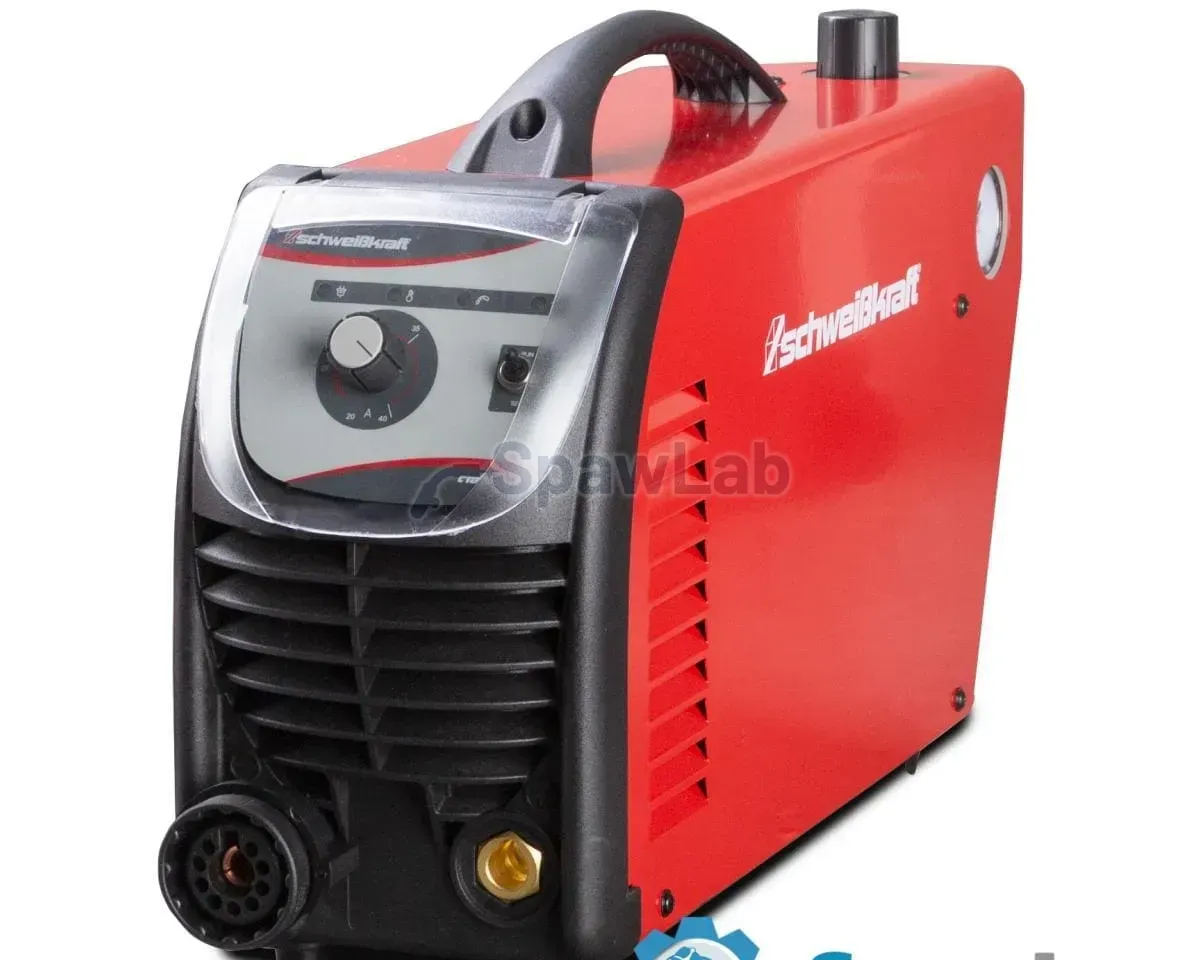

Description

Compact, economical and efficient solution for professional and continuous use.

Product description

• For stainless steel, aluminum, steel, non-ferrous metals and also for those with a painted surface
• For thin sheets and for thick plates
• The hermetically sealed board protects against moisture and corrosion. This also makes it suitable for use in harsh and demanding conditions.
• Suitable for generator work, such as in factory workshops, ports, chemical plants, schools, metal construction, construction sites, ships or on farms.
• ARC pilot : the set cutting current is activated only when the plasma arc is struck.
• Ability to cut perforated sheets thanks to the pilot arc.
• Non-contact arc ignition, no HF


  Technical data		CRAFT-CUT 41
  Max. quality cutting of steel (ST37)	mm	10 – 15 (depending on the security)
  Max. separating cut of steel (ST37)	mm	20
  Max. quality cutting of stainless steel	mm	15
  Max. separation cut of stainless steel	mm	20
  Max. quality cutting of aluminum	mm	14
  Max. aluminium parting cut	mm	16
  Duty cycle	%	50
  Current at ED 100% and 40°C	A	30
  Cutting current adjustment range	A	20-40
  Supply voltage	V	230 V
  Generator power required	kVA	>7.4 kVA
  Air consumption	l/min	120 at 5 bar
  Operating pressure	bar	6
  Idle state voltage	V	320
  Insulation class		H
  Dimensions (L x W x H)	mm	460 x 145 x 280
  Weight	kg	8,5

  Scope of supply

  • S65 6-meter plasma torch
  • 3-meter 6 mm² ground wire with 300 A tick clamp
  • Standard central connector
  • Pressure regulator with filter equipped with plug connector
