- For fast, easy welding from all sides
- Simple operation

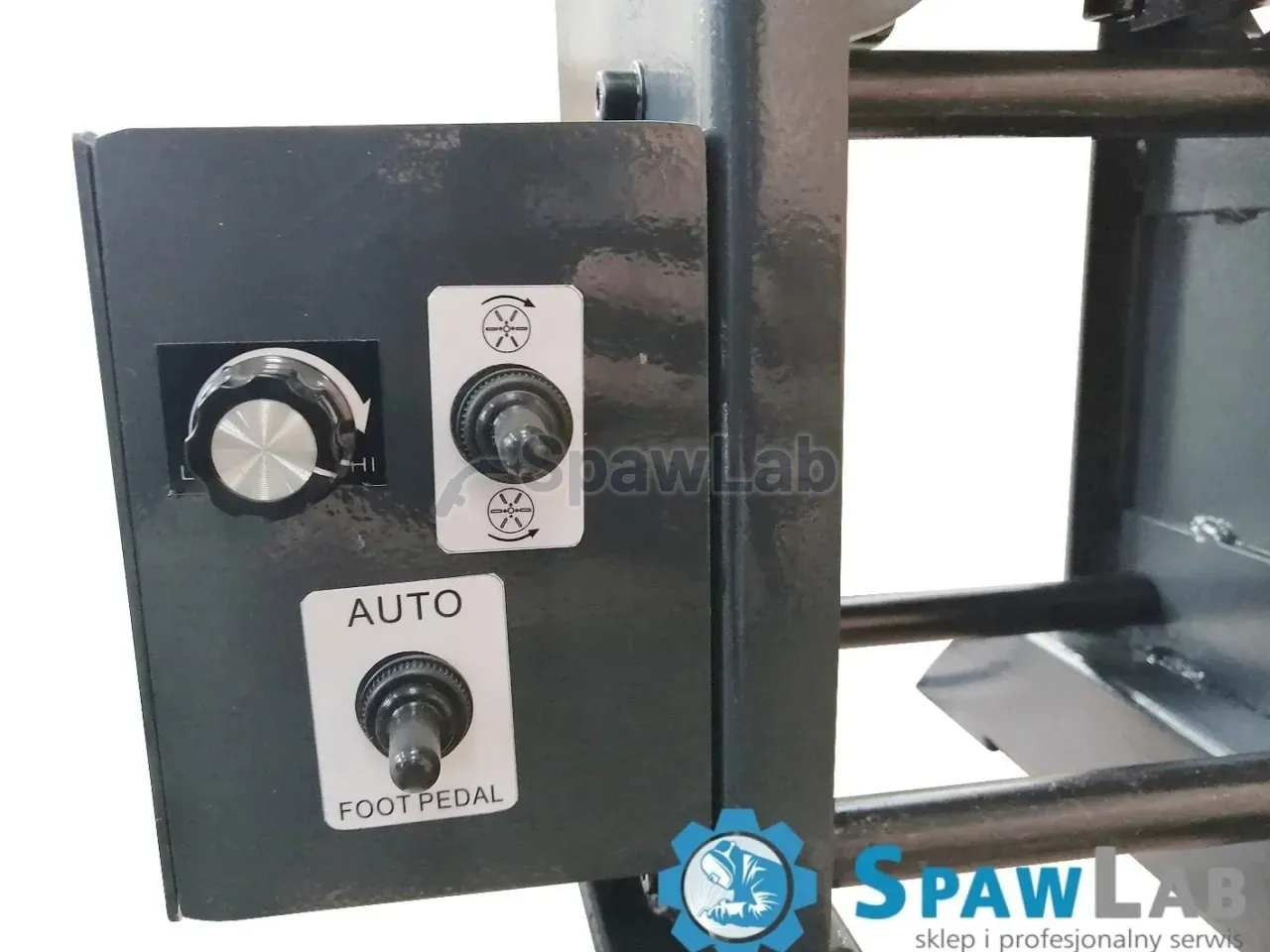

- Stepless adjustment of the table rotation speed, clockwise/anticlockwise
- Control electronics protected by a sturdy, closed housing

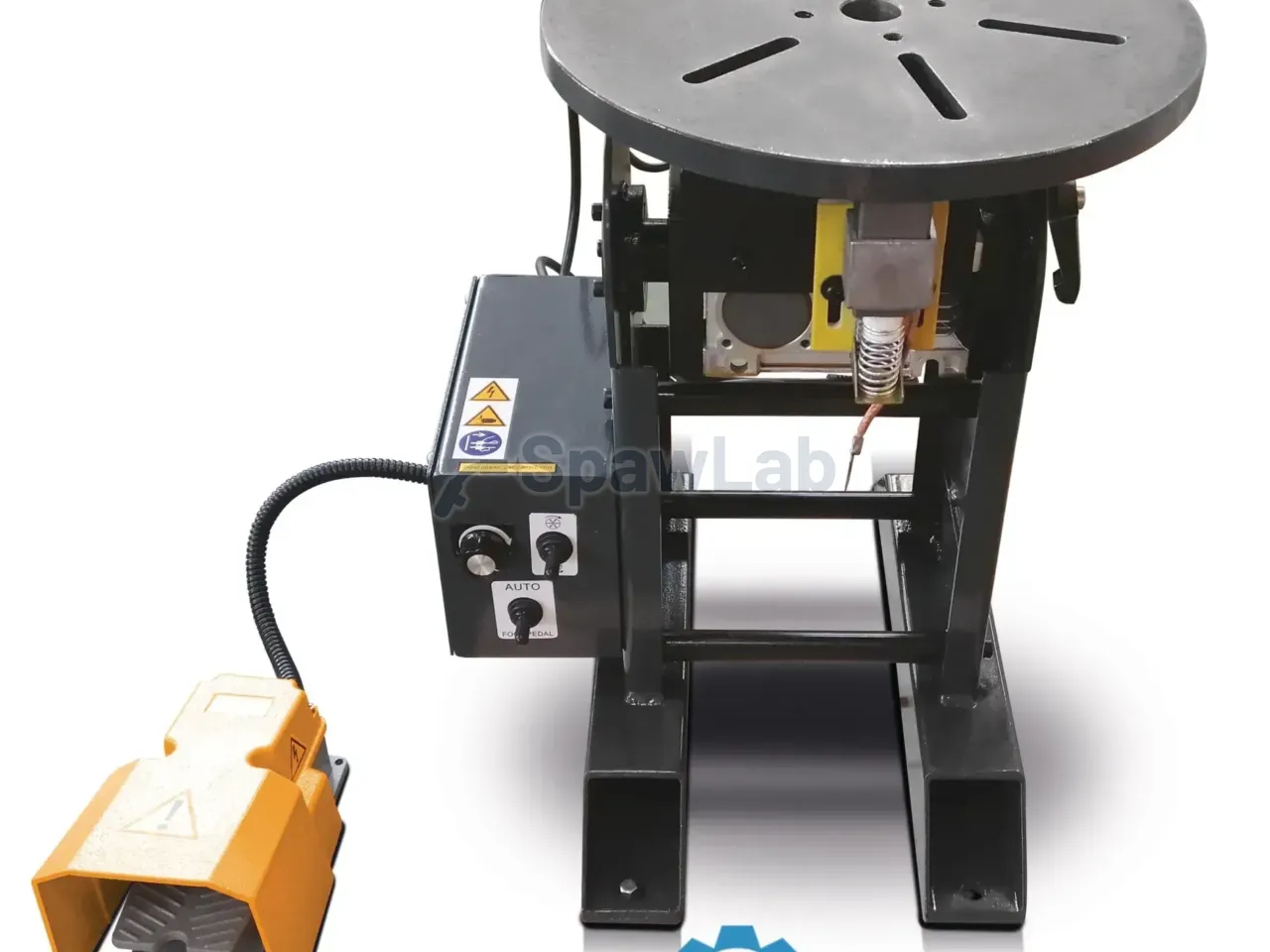

- Foot switch for start/stop
Dimensions and weights
| Length (product) approx. | 410 mm |
| Width/depth (product) approx. | 470 mm |
| Height (product) approx. | 475 mm |
| Weight (net) approx. | 38 kg |
| Max. bolt circle | 295 mm |
| Turntable diameter | 330 mm |
Technical data
| Drive type | manual |
| Load capacity, table horizontal | 350 kg |
| Load capacity, table vertical | 120 kg |
| Speed | 0-5 min⁻¹ |
| Permissible welding current | 300 A |
| Table tilt angle | 0-135° |
Foot switch cable length
2 m
Electrical data
| Input power | 125 W |
| Supply voltage | 230 V |
Mains frequency
50 Hz
