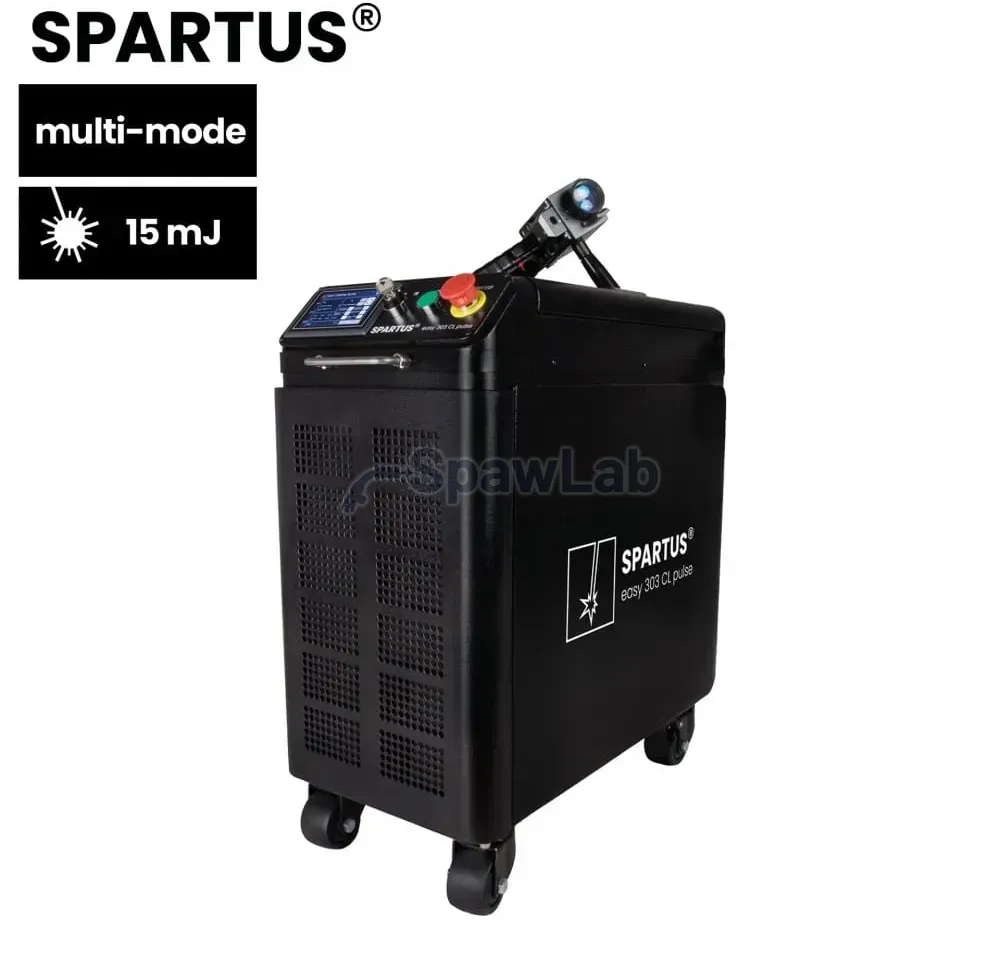

SPARTUS Easy 303CL Pulse pulsed laser cleaner: precision cleaning, the modern way
An innovative pulsed laser cleaner that combines productivity, safety and the latest fibre laser technology.
Laser cleaning based on fibre laser pulses
The SPARTUS Easy 303CL Pulse laser cleaner uses a pulsed fibre laser source that emits a high energy density beam in short, controlled pulses. Each pulse acts locally on the material surface and causes the contaminants to vaporise or detach on a microscopic scale, without affecting the structure of the substrate. Unlike continuous wave technology, pulsed cleaning gives you full control over the beam energy and minimal heating of the material, so the process is safe even for delicate and precision parts.
The source in the SPARTUS Easy 303CL Pulse is a 300 W fibre laser emitting at a wavelength of 1064-1080 nm. A modern pulsed resonator delivers a single pulse energy of up to 15 mJ and a repetition rate of up to 4000 kHz, which translates into high productivity with maximum precision.
Pulsed technology is ideal for cleaning:
- rust, paint, oil and grease,
- oxides, weld discolouration and deposits,
- resins, adhesives and protective coatings,
- casting and injection moulds, tools, machine parts,
- metal, stone and ceramic surfaces and historic items that need a gentle approach.
SPARTUS laser cleaning is a process without contact, without chemicals and without damage, combining industrial efficiency with full respect for environmental principles.
Intuitive control interface

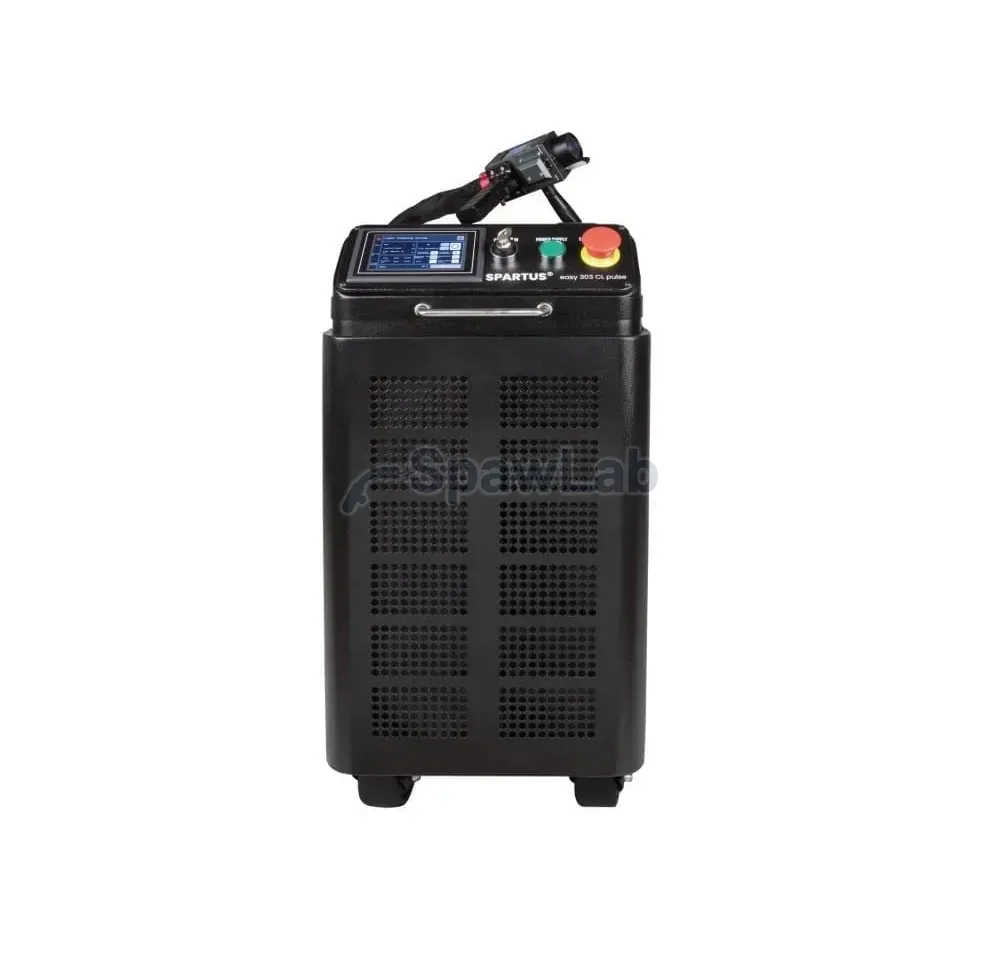

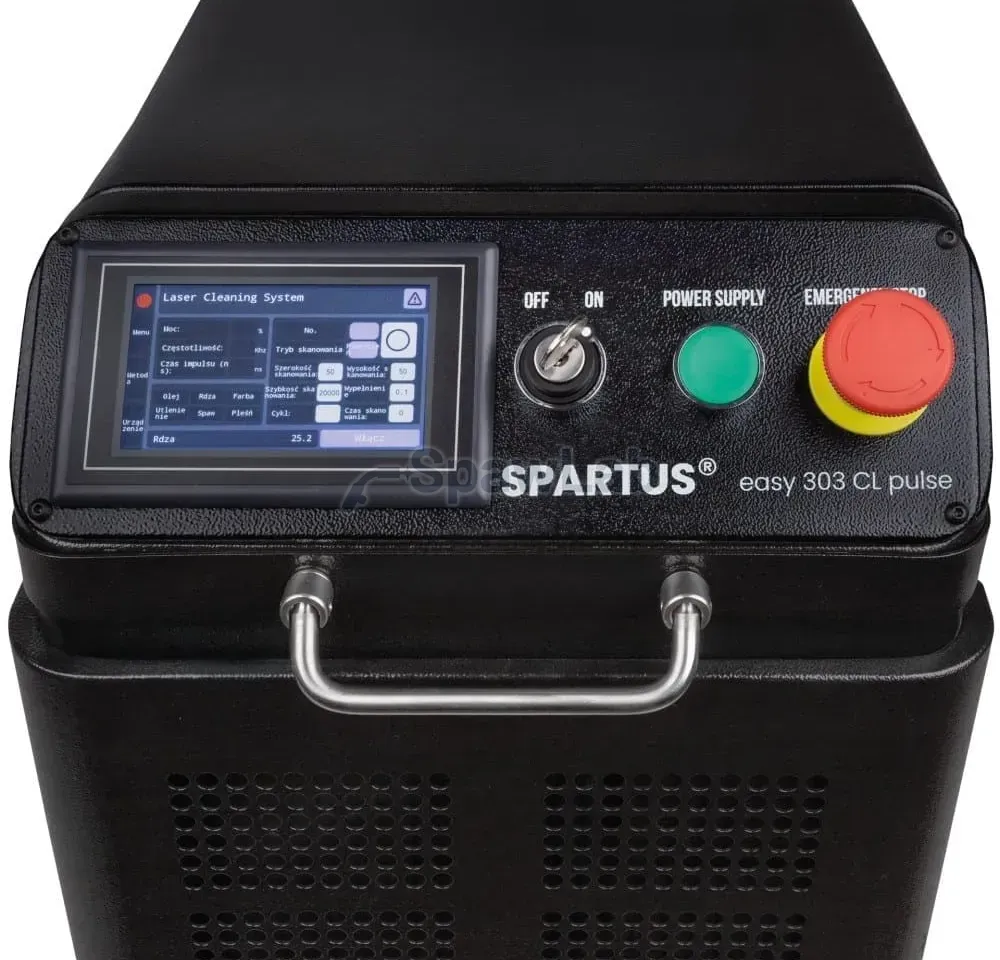

The SPARTUS Easy 303CL Pulse has a modern control panel with a touchscreen for quick setting of all working parameters. The system is designed for simple operation: even complex settings can be entered in moments, without interrupting work.
The operator can:
- select one of 9 scan modes,
- adjust power, frequency and pulse width,
- set the scan speed and scan range,
- save and recall custom cleaning profiles.

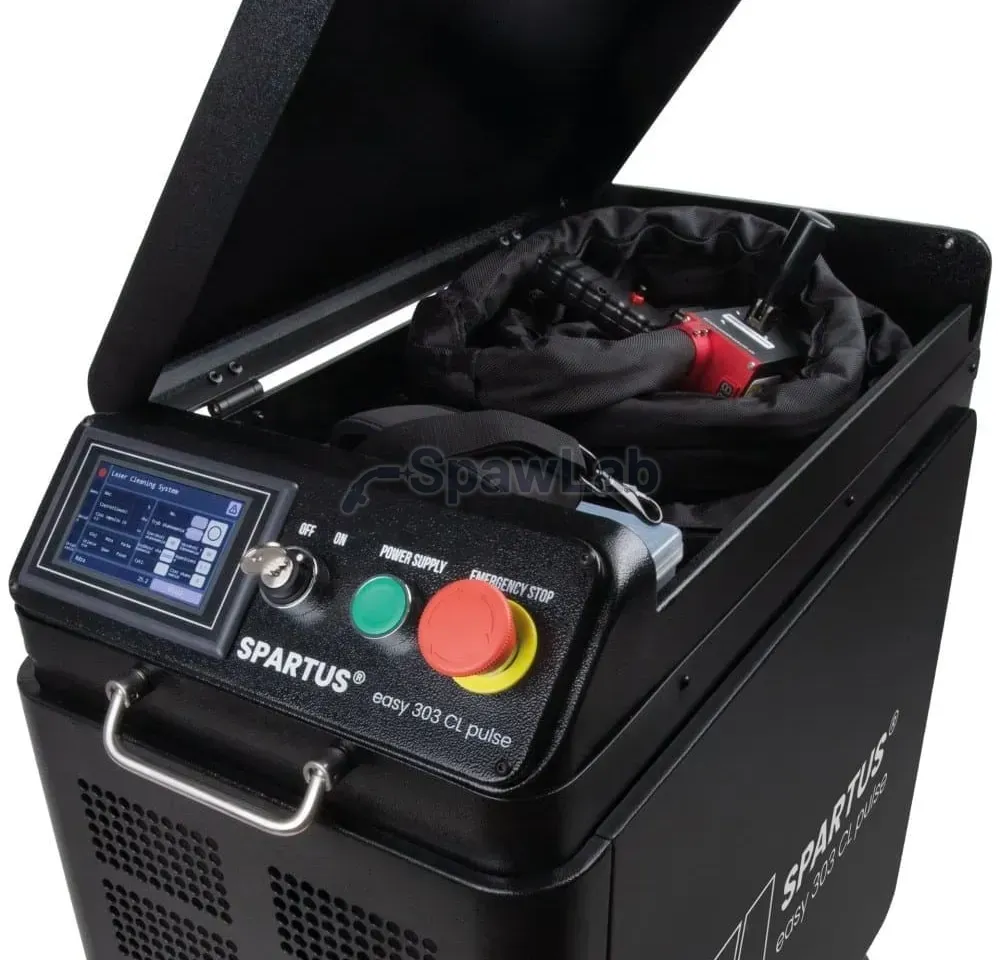

The system works in several languages, and the built-in safety features, a safety key and an emergency stop button, ensure safe operation in typical workshop conditions.
Nine working modes, precision in every job
The SPARTUS Easy 303CL Pulse offers nine laser beam scan modes that let you match the cleaning method precisely to the surface and the type of dirt. You can choose from modes such as: linear, rectangular, circular, spiral, sinusoidal, ring, rotary and two rectangular modes with different fill directions.
Each mode moves the laser beam in a different pattern, which allows:
- effective cleaning of large, flat surfaces,
- gentle removal of contaminants from parts with complex shapes,
- precise spot and local treatment.
Choosing the right mode lets you increase process productivity, reduce energy consumption and get the best visual result without damaging the base surface.
Modern head with distance sensor

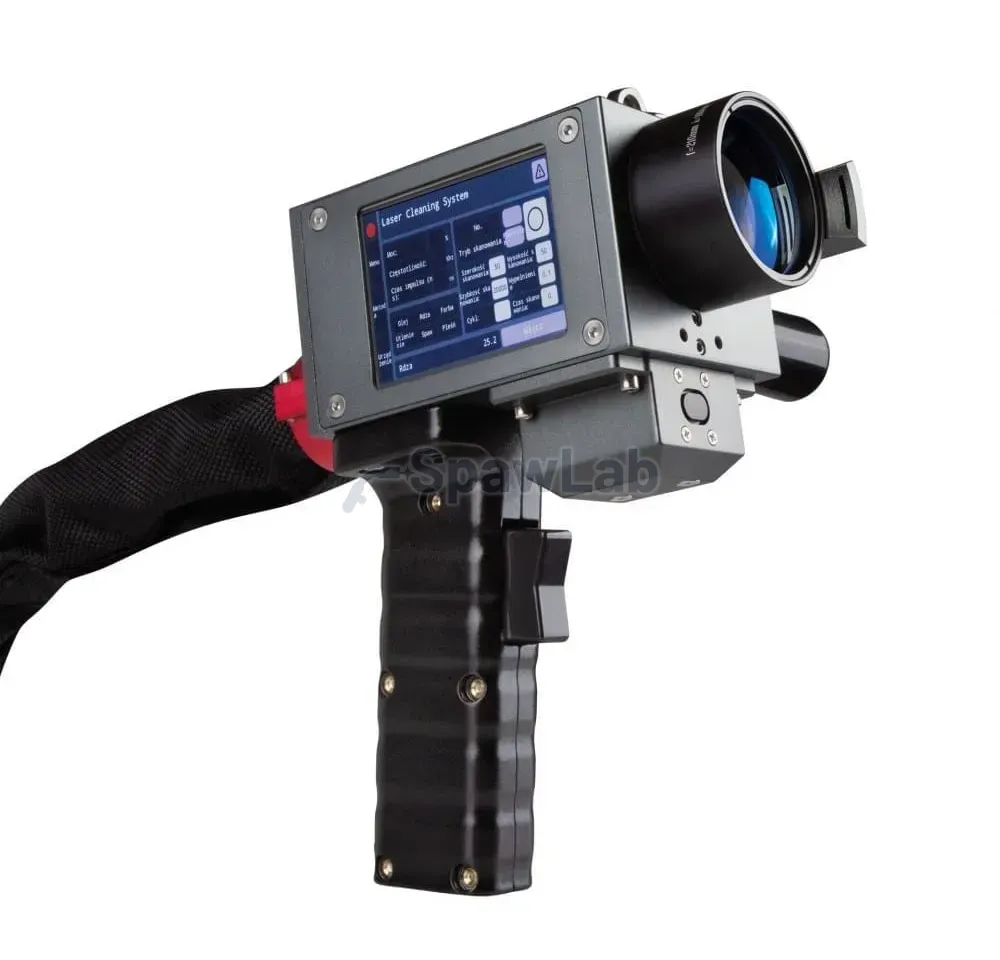

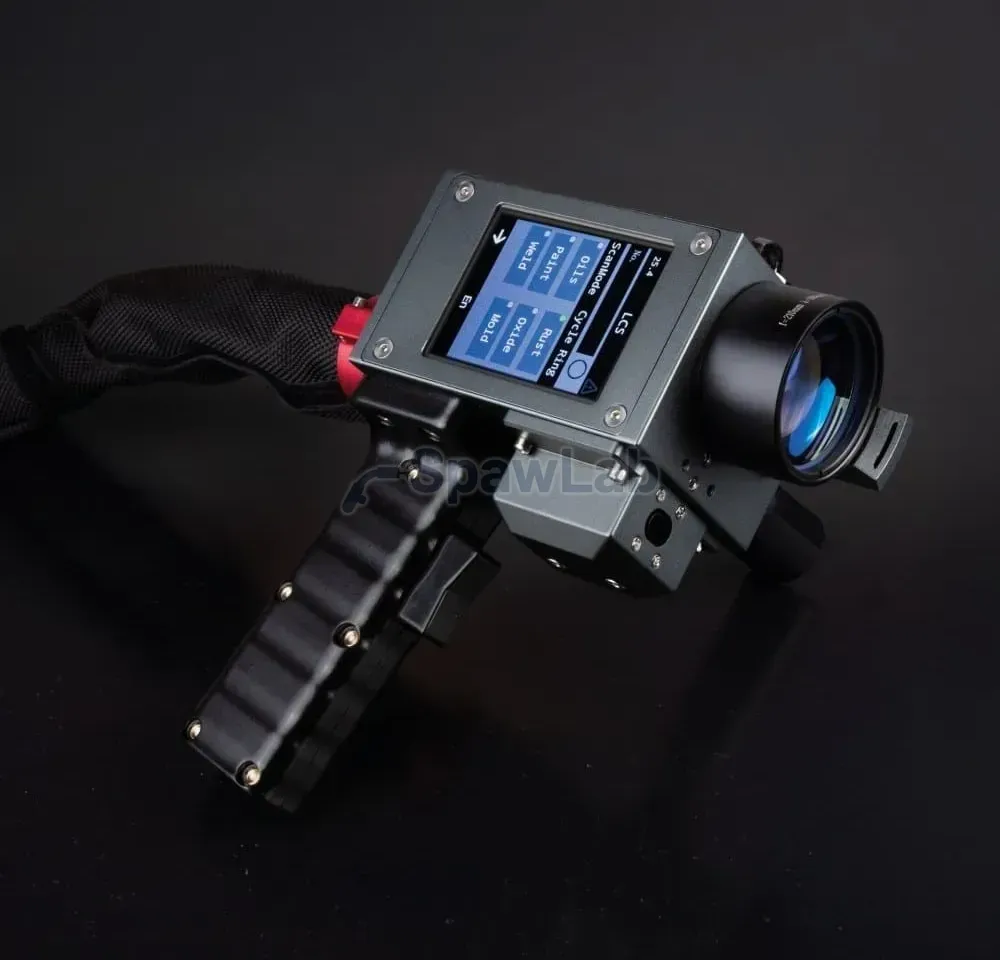

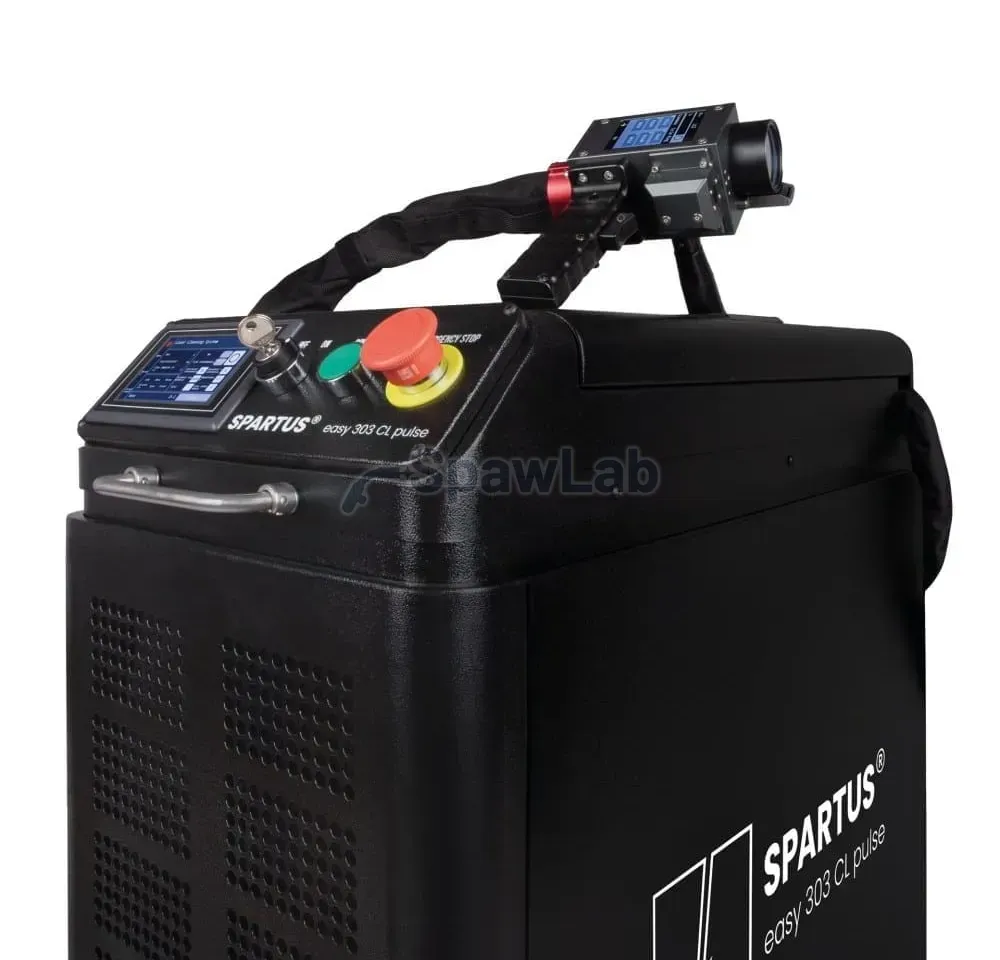

The SPARTUS Easy 303CL Pulse comes with a new generation ergonomic cleaning head that combines precise operation with maximum ease of use.
The built-in control panel lets the operator manage working parameters directly, without reaching for the main unit. This speeds up work considerably and improves safety when cleaning parts of different shapes and in different positions.
The key element of the head is the TOF laser distance sensor (Time of Flight), which measures the distance between the lens and the surface being cleaned in real time. The head display shows a clear distance indicator: a green signal means the optimum focal range, while red warns that the range has been exceeded. This way the operator always works with the beam correctly focused, which means an effective and safe process.
The protective glass is easy to replace, and the durable design keeps the head reliable even in long-term use.
Mobile design for convenient work

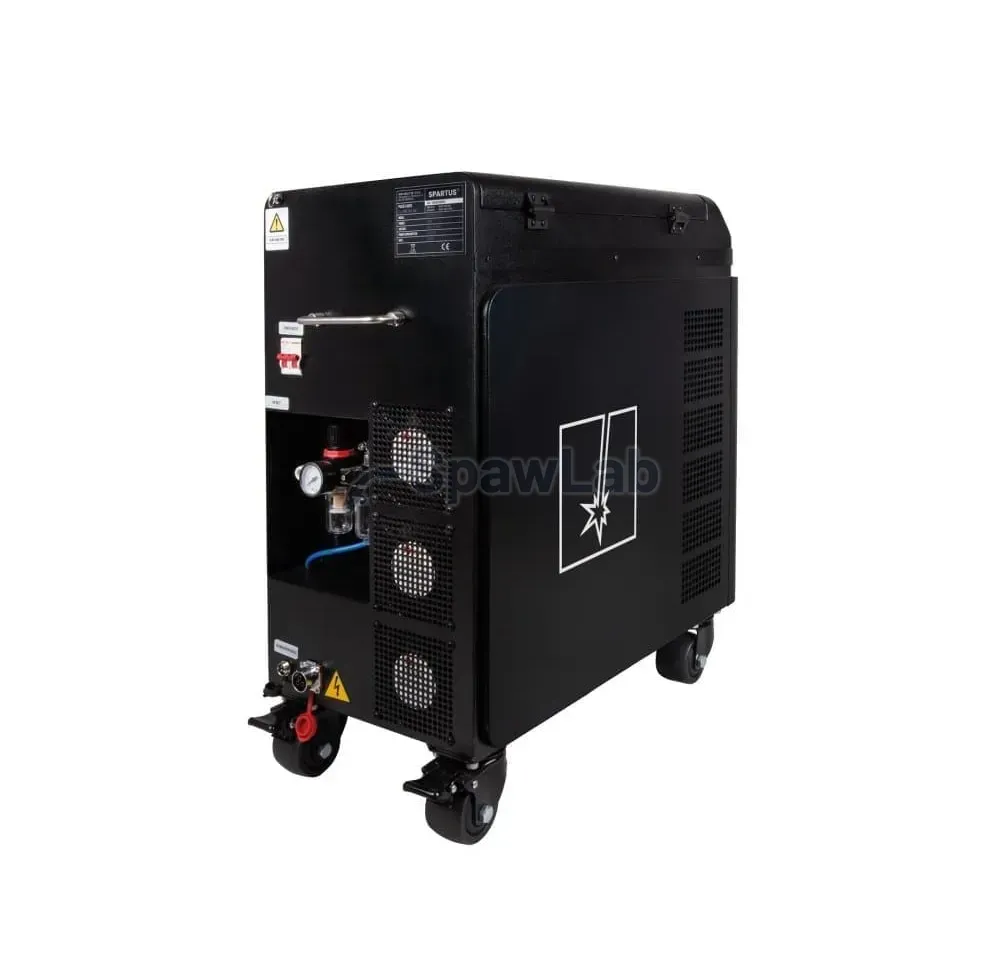

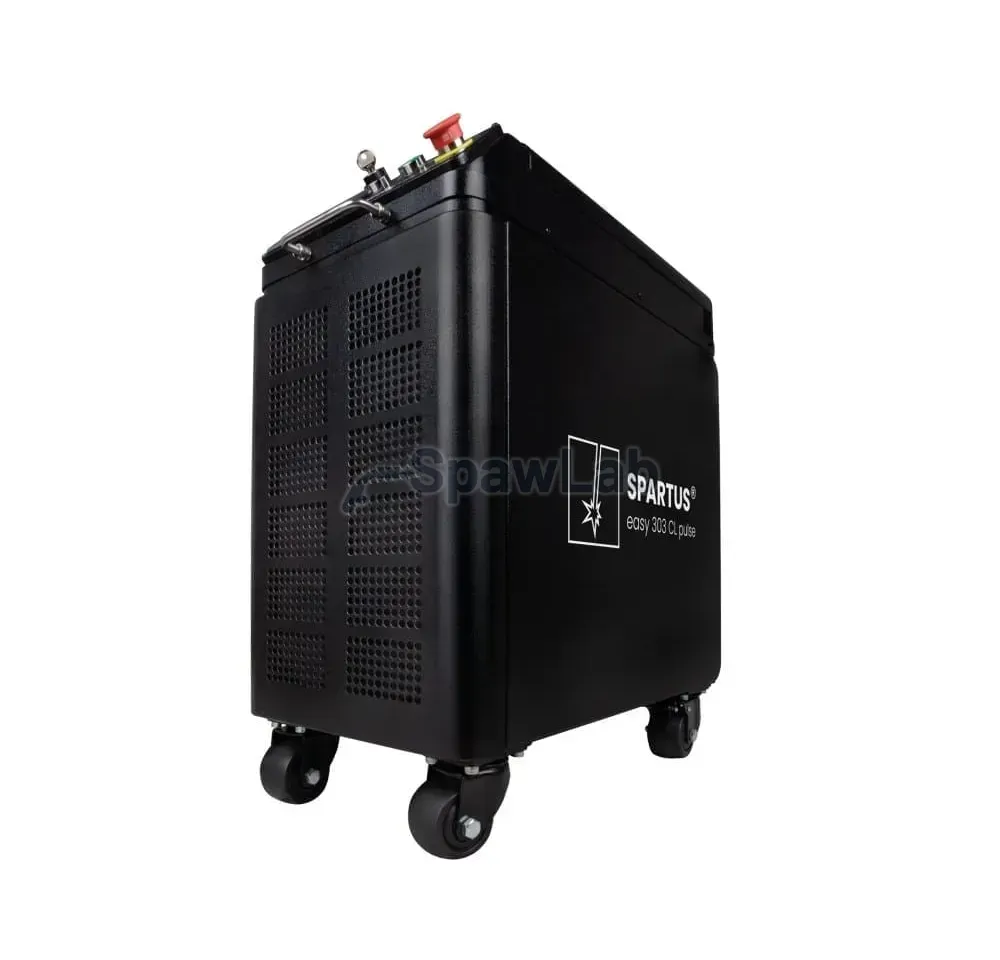

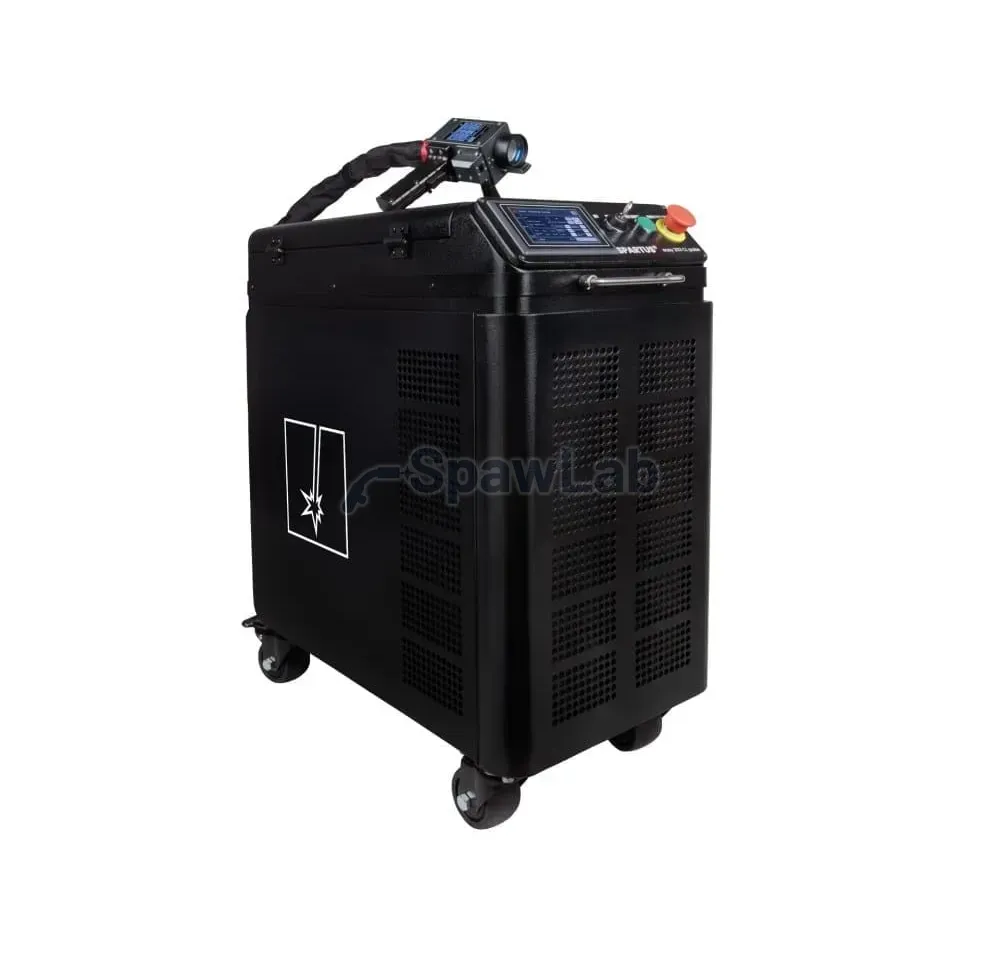

The SPARTUS Easy 303CL Pulse is designed for mobility and user comfort. The solid housing on stable castors makes it easy to move the unit around the workplace, and the ergonomic transport handle allows safe and convenient manoeuvring. The compact dimensions let you set up the cleaner even in a confined workshop or production space.
SPARTUS Easy 303CL Pulse, new generation cleaning
The SPARTUS Easy 303CL Pulse combines modern laser technology, high precision and a reliable design. With its pulsed fibre source, nine working modes and intelligent control system, the unit removes contaminants from a variety of surfaces effectively and safely, without contact, without chemicals and without risk of damaging the material.
It is a compact, mobile and environmentally friendly solution that suits both industry and specialist workshops and sets a new standard for laser cleaning in its class.
Warranty
SPARTUS laser cleaners are covered by a 24-month warranty.
Demonstrations
You can arrange a demonstration of SPARTUS laser cleaners anywhere in the country. To book a presentation, please contact your welding equipment supplier. If the cleaner meets your expectations and you decide to buy it, the demonstration is completely free of charge. Take this opportunity to see how our solutions can transform your production processes.
