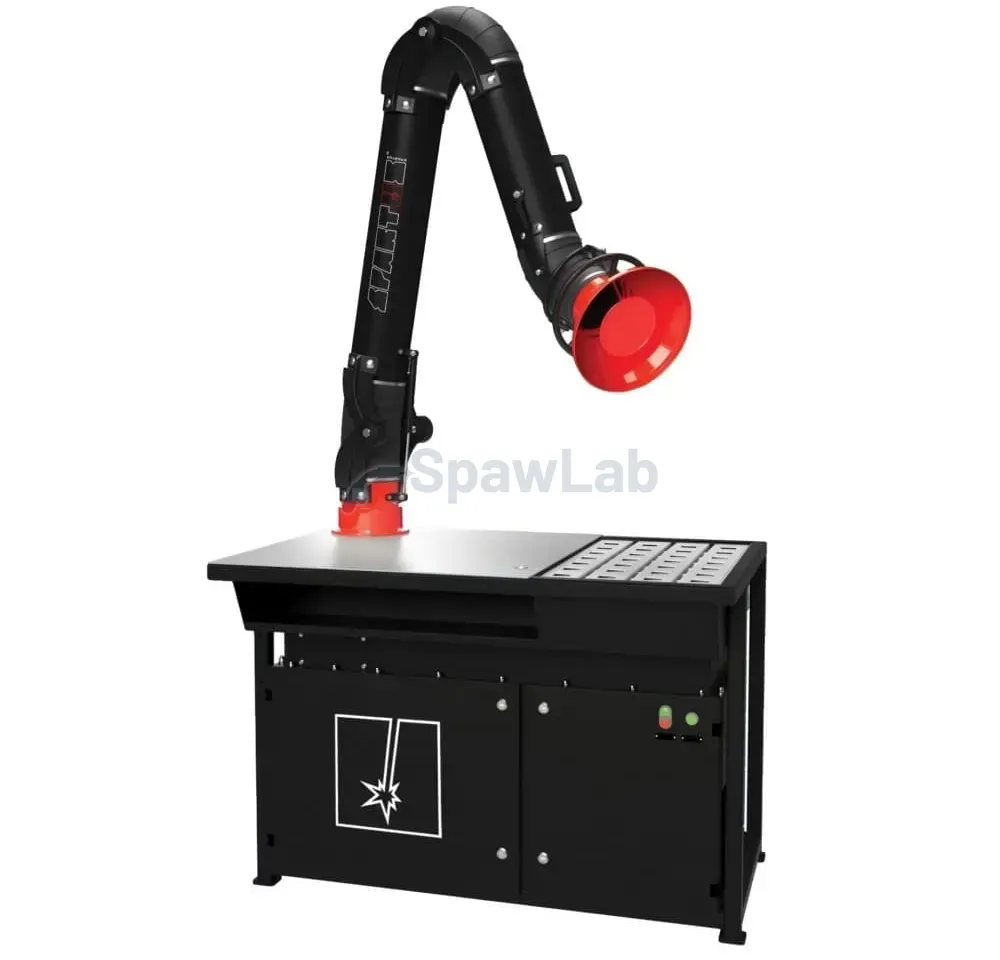

Spartus welding table with fume extraction and welding fume filter

SPARTUS® welding table with fume extraction and welding fume filter

The SPARTUS® welding table is designed for heavy-duty workshop tasks such as welding and grinding. It effectively removes contaminants both above the table surface and within the reach of the extraction arm. The table is built from durable welded square profiles for a long service life. The integrated ProVent extraction and filtration unit, rated at 1.1 kW with a nominal airflow of 1000 m³/h, removes contaminants efficiently thanks to an advanced filtration system. A pre-filter (spark arrestor) and a cartridge filter module separate contaminants reliably, and the cartridges can be cleaned manually or automatically with a timer switch. The table has two independent extraction systems, a downdraft intake in the table surface and an extraction arm, each with its own damper, so you can control the airflow precisely. The table surface has a conductive anti-corrosion coating, and you can easily connect the earth cable to the terminals on both sides of the table.

• High extraction performance: The table is equipped with a ProVent extraction and filtration unit rated at 1.1 kW with an airflow of 1000 m³/h.

• Durable, solid construction: Thanks to its welded steel structure, powder coated except for the work surface, the table offers a long service life and resists mechanical damage and corrosion.

• Flexible adjustment and use: Dampers in the arm and in the table let you freely split the airflow between the two extraction points and match the extraction to the task at hand.

• Easy operation and maintenance: The filter cartridge cleaning system and easy access for cartridge replacement make maintenance much simpler, which means lower running costs and more efficient work.

Applications:

• A workstation for workshop, welding and grinding tasks, as well as other work that calls for a durable table structure and protection against harmful contaminants.
