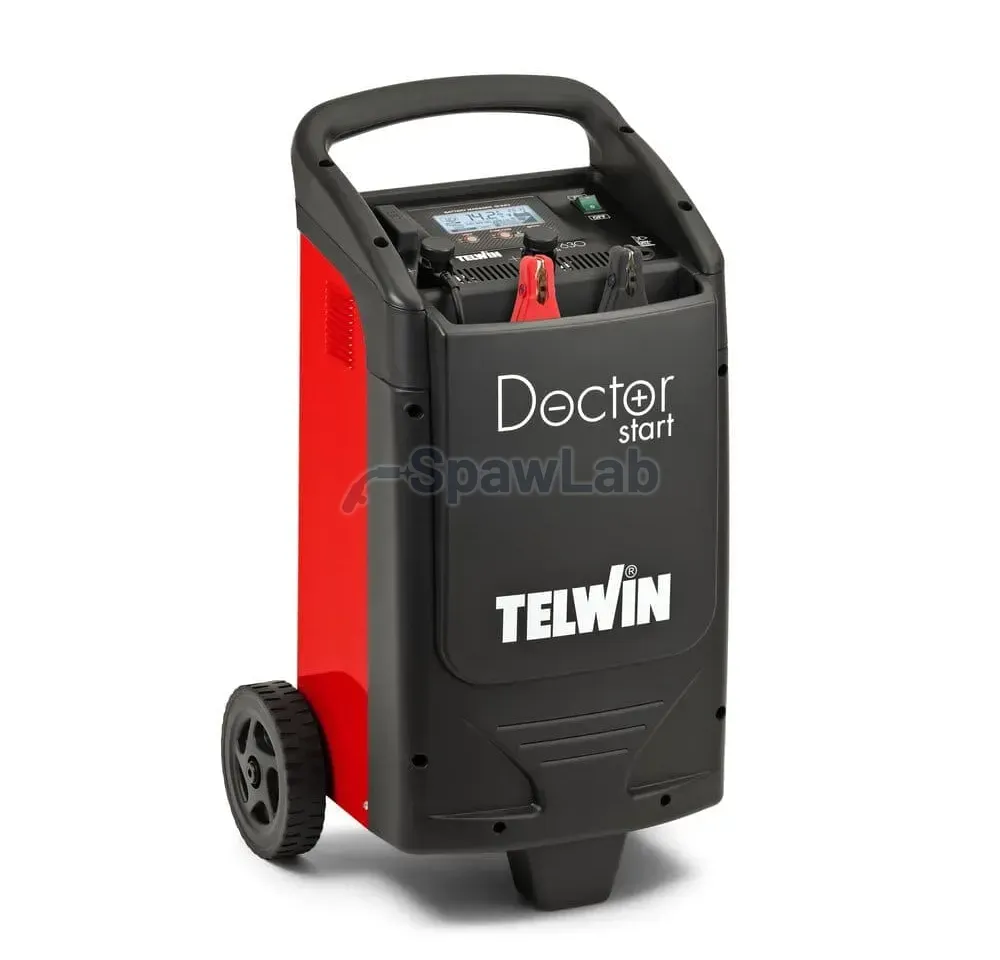

TELWIN DOCTOR START 630: Smart Starting Power and Professional Care for 12/24V Batteries.
Picture this: a key vehicle in your fleet lets you down at the worst possible moment. Or the battery in a piece of agricultural machinery goes flat just before urgent field work. For a professional, every minute of downtime is a loss. The TELWIN DOCTOR START 630 is not an ordinary charger with a starting function. It is an advanced, multifunctional energy management centre for 12V and 24V batteries, designed for the most demanding applications in car workshops, truck service centres, agriculture and transport fleets.
The DOCTOR START 630 is a reliable partner that not only brings an immobilised vehicle back to life in no time with its powerful starting function, but also looks after the condition of every battery. Equipped with the innovative PULSE TRONIC technology, this smart system charges and maintains batteries (WET, GEL, AGM, MF, PbCa, EFB and even Li with the appropriate setting) in an 8-phase, fully automatic process. Forget about sulphated or deeply discharged batteries: the recovery function restores their performance, extends their life and saves you money.
That is not all. The TELWIN DOCTOR START 630 is also a precise diagnostic tool. In a few moments you can check the battery state of charge, its cranking capacity (CCA) and whether the alternator in the vehicle is working properly. The SUPPLY function provides a stable power source during service work such as battery replacement, protecting the vehicle electronics against data loss. All information is shown clearly on the digital LCD display, which makes operation intuitive and convenient.
By investing in the DOCTOR START 630, you invest in peace of mind, efficiency and professionalism. It is a unit that will quickly become an indispensable part of your workshop, minimising downtime and maximising productivity. Whether you manage a truck fleet, service the latest cars or need reliable support for agricultural machinery, the TELWIN DOCTOR START 630 delivers power and intelligence you can rely on.
Discover the Advanced Features of the TELWIN DOCTOR START 630 230V 12-24V
PULSE TRONIC Technology: the Smart Brain of Your Battery
At the heart of the TELWIN DOCTOR START 630 is the groundbreaking PULSE TRONIC technology, which takes battery charging and maintenance to a whole new level. This is not ordinary charging but an 8-phase, fully automatic cycle that adapts intelligently to the condition and type of each battery (WET, GEL, AGM, MF, PbCa, EFB and even Li).
The system starts with an analysis of the battery condition and then, if it detects the need, moves on to pulse desulphation (DESULFATION), bringing even badly neglected cells back to life. The next stages are charging with the main current (BULK), absorption (ABSORPTION) to reach 100% charge, voltage drop monitoring (MONITOR), a pulse maintenance (PULSE) phase that holds the optimum state of charge for a long time, and a final check (CHECK). For a professional, this means the certainty that each battery is treated individually, which maximises its life, performance and reliability. Forget the risk of overcharging or undercharging: PULSE TRONIC keeps an eye on everything.
Complete Diagnostics: Your Workshop Expert for Batteries and Alternators
The TELWIN DOCTOR START 630 is much more than a battery charger and starter. It is also an advanced diagnostic tool that provides key information about the condition of the battery and the vehicle charging system. In a few simple steps you can run a battery voltage test, check the cranking capacity (CCA - Cold Cranking Amps), which is key to assessing the real condition of the battery, and verify that the alternator is working properly.

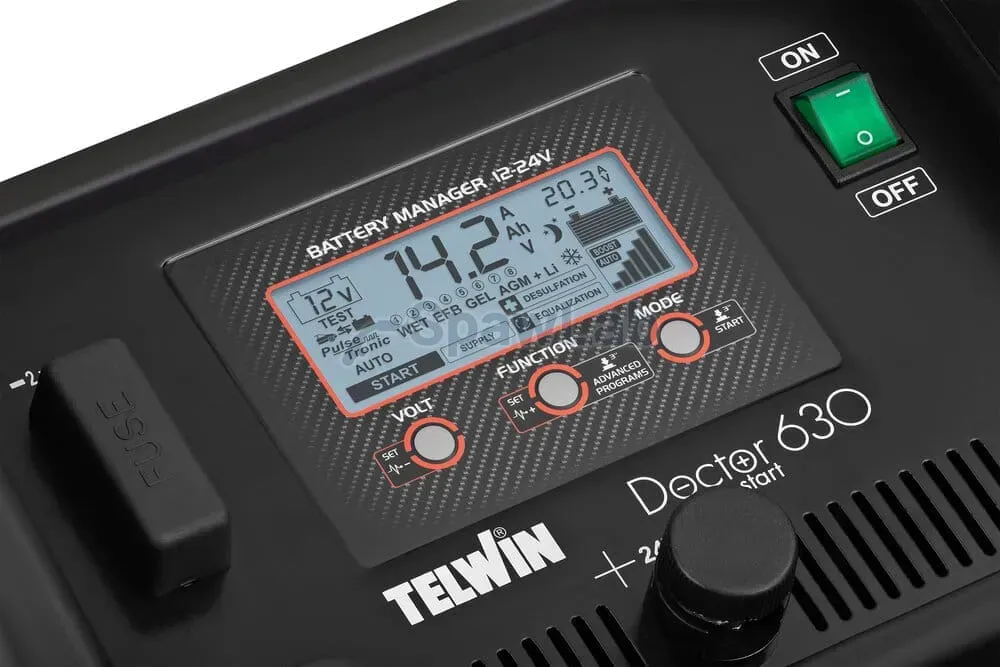

All test results are shown clearly on the digital LCD display. For a professional workshop, this means the source of a problem can be found quickly, whether it is a weak battery or a faulty alternator. This lets you provide service at the highest level, giving customers an accurate diagnosis and effective solutions and building trust and a reputation as an expert.
Reliable Starting and the Safe SUPPLY Function: Power and Stability Always at Hand
When every second counts and the vehicle has to move at once, the TELWIN DOCTOR START 630 shows its real power. The starting assistance function delivers up to 570A of peak current, enough to start many petrol and diesel engines in cars, vans, trucks, agricultural machinery or boats, on 12V and 24V systems. This versatility makes it an invaluable tool in every professional workshop.
The SUPPLY function is also extremely useful. In this mode the DOCTOR START 630 works as a stabilised power source and holds the voltage in the vehicle electrical system, for example during battery replacement. This is key to protecting the advanced electronics of modern cars, preventing the loss of settings and codes or even damage to control units. A professional can therefore carry out service work safely and efficiently, without worrying about unforeseen complications.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalogue number | 829342 |
| EAN code | 8004897981529 |
| Supply voltage | 230V - 1 ph (50/60Hz) |
| Power (charging / starting) | 2 kW / 10 kW |
| Charging voltage | 12V / 24V |
| Effective charging current (12V) | 90 A |
| Effective charging current (24V) | 45 A |
| Average charging current (EN60335-2-29) (12V) | 70 A |
| Average charging current (EN60335-2-29) (24V) | 35 A |
| Starting current (1V/C EL) | 360 A |
| Maximum peak starting current (BOOST) | 570 A |
| Minimum capacity of charged batteries (12V) | 10 Ah |
| Maximum capacity of charged batteries (12V) | 1050 Ah |
| Minimum capacity of charged batteries (24V) | 10 Ah |
| Maximum capacity of charged batteries (24V) | 600 Ah |
| Charging current adjustment steps | Stepless (electronic) |
| Supported battery types | WET, GEL, AGM, MF, PbCa, EFB, Li (12V/24V) |
| Diagnostic functions | Battery test, Cranking capacity test (CCA), Alternator test |
| Overall dimensions (L x W x H) | 365 x 460 x 755 mm |
| Weight | 25 kg |
Key Features and Benefits
- Advanced PULSE TRONIC Charging Technology: The heart of the unit, which automatically manages an 8-phase charging and maintenance process for all battery types (WET, GEL, AGM, MF, PbCa, EFB, Li). The system monitors voltage, current and temperature and selects the optimum parameters at every stage, from battery analysis through pulse desulphation and main charging to maintenance and testing. For a professional, this means maximum battery life, the certainty of a full charge without the risk of overcharging or damage, and time saved thanks to automation.
- Powerful Starting Assistance (12V/24V): The DOCTOR START 630 delivers an impressive starting current of up to 570A, enough to start many kinds of vehicles, from cars and vans to trucks, agricultural tractors and boats, with either 12V or 24V systems. A professional gains a universal tool that copes with most critical situations, eliminating downtime and getting the vehicle back to work quickly, which is key in commercial use.
- Full Diagnostics of the Battery and Charging System: The unit offers advanced test functions: checking the voltage at the terminals, assessing the cranking capacity of the battery (CCA) and verifying that the vehicle alternator is working properly. The results are shown on a clear LCD display. For a mechanic or service technician, this is invaluable help in diagnosing power supply problems quickly and accurately, which translates into better service and satisfied customers.
- Recovery Function (DESULFATION) and Battery Reclaiming: A special pulse program lets you try to recover sulphated or deeply discharged batteries that standard chargers would treat as faulty. The process can restore part or all of the battery performance and postpone the need to replace it. For the user, this is a direct saving on new batteries and a more environmentally friendly approach.
- SUPPLY Function, Stabilised Power Source: The DOCTOR START 630 can work as a stabilised power source (e.g. during battery replacement in modern vehicles), holding the voltage in the electrical system and protecting sensitive on-board electronics against data loss or damage. For a professional, this guarantees safe work on advanced automotive systems and minimises the risk of costly mistakes.

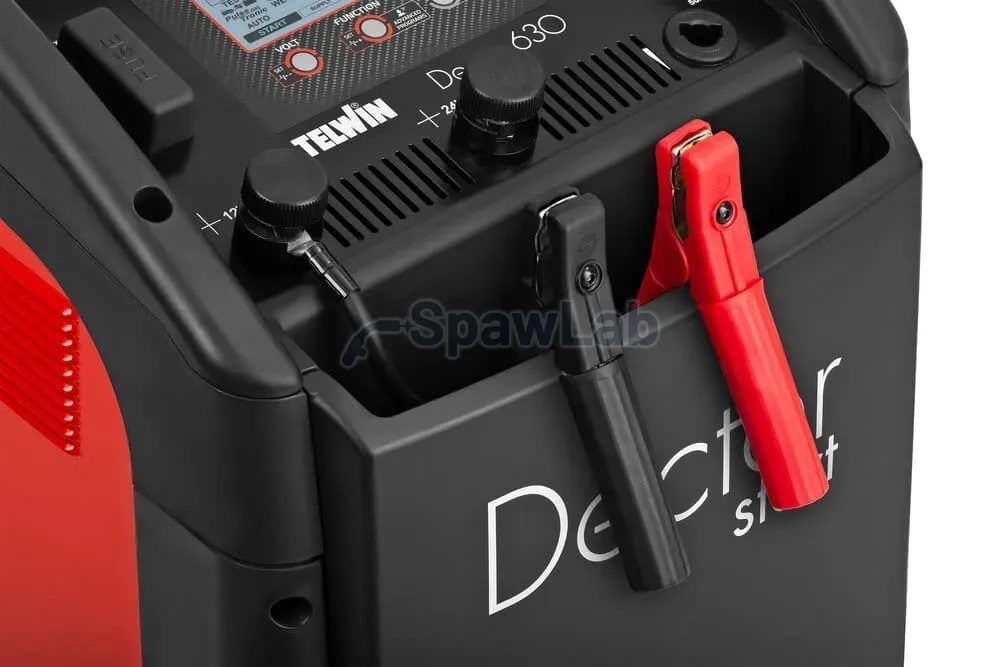

- Smart Protections and Intuitive Operation: The unit has a number of protections: against reverse polarity, short circuit at the clamps, overload, overvoltage and connection to a damaged battery. The large, clear LCD display and simple user interface make operation intuitive even for less experienced operators. This means safe and efficient work in typical workshop conditions.
Product Applications
- Professional car workshops: diagnostics, charging and starting of cars and vans.
- Truck and bus service centres: servicing 24V batteries, starting heavy vehicles.
- Agriculture: charging and starting batteries in tractors, combine harvesters and other agricultural machinery.
- Boatbuilding and motorboating: maintaining and starting batteries in boats and yachts.
- Transport companies and vehicle fleets: keeping batteries fully operational, fast call-outs.
- Roadside assistance: a reliable energy source for emergency starting of vehicles on site.
- Demanding hobbyists and owners of several vehicles: complete battery care in the garage.
Summary: TELWIN DOCTOR START 630 230V 12-24V, Your Best Investment
The TELWIN DOCTOR START 630 is an investment in top quality, reliability and versatility. By combining a powerful starting function, smart Pulse Tronic charging and advanced diagnostic capabilities, this unit becomes an indispensable partner for every professional. Give yourself peace of mind, minimise downtime and raise the service standard in your workshop. Choose technology you can trust: choose the TELWIN DOCTOR START 630 and feel the difference a truly professional tool makes.
Catalogue number: 829342
EAN code: 8004897981529
