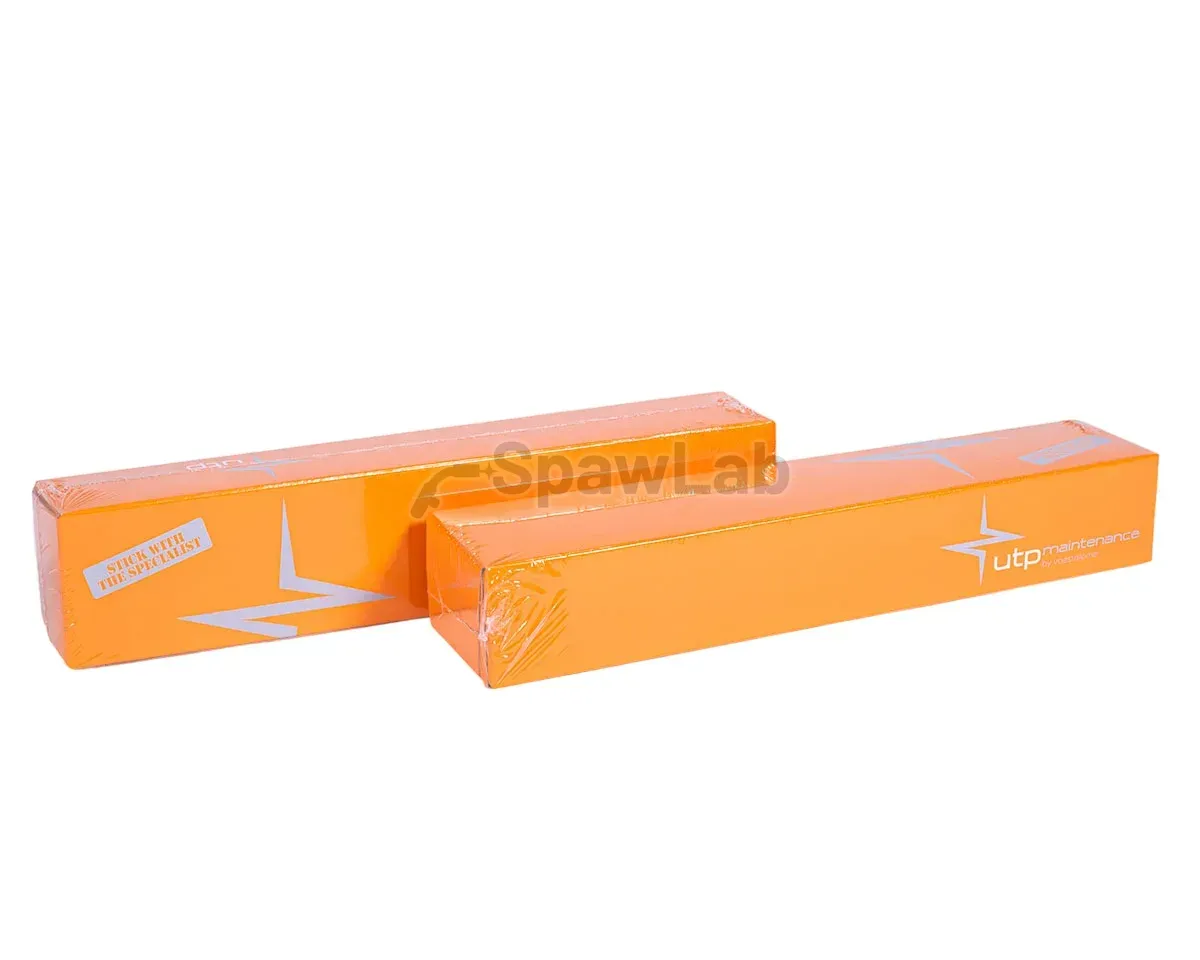

Thermanit 690 stick electrode: UTP Maintenance stick electrodes in a box
Thermanit, stick electrode, nickel alloys

Thermanit 690 stick electrode

EN ISO classificationEN ISO 14172: E Ni 6152 (NiCr30Fe9)
AWS classificationAWS A5.11 / SFA-5.11: ENiCrFe-7
Price on request
Give us the diameter and the quantity, we will quote during working hours

Spawlab is the data controller. We will use your data only for replying to this price enquiry. See the privacy policy for details.

Authorised distributorvoestalpine Böhler Welding
Courier shippingfrom the warehouse in Krotoszyn
Data sheetcomposition, properties, specifications
Wire selectionhelp from a welding engineer
Manufacturer data sheet
Application Specifications Manufacturer datasheet Fits Substitute Bought together
Application

What Thermanit 690 stick electrode is used for

Thermanit 690 is a basic coated nickel base electrode of the E Ni 6152 / ENiCrFe-7 type. The deposit has high resistance to stress corrosion cracking in pure water environments and resistance in oxidizing media, for example nitric acid. The manufacturer points in particular to applications in nuclear power.

The base material is 2.4642 (UNS N06690), known as Alloy 690. With this electrode you join materials of the same and of similar composition, and you also clad low alloy and stainless steels. Work is done on DC with the electrode positive, in the 3.2 and 4.0 mm diameters.

  • Classification EN ISO 14172: E Ni 6152 (NiCr30Fe9)
  • AWS classification A5.11 / SFA-5.11: ENiCrFe-7
  • Coating: basic
  • Current: DC+
  • Diameters: 3.2 / 4.0 mm
  • Lengths: 350 mm

Make claddings on low alloy steel after preheating the part and lay them thin, to limit dilution with the base material. Nickel does not tolerate contamination with sulfur, so remove grease, chalk and marker pen traces from the groove. Keep the current at the lower limit for the diameter, the arc short and the bead narrow. On work in nuclear plant keep records of the batch and of the storage conditions of the electrodes.

Manufacturer datasheet

Chemical composition and properties from the manufacturer datasheet

Datasheet PDF

Typical weld metal values from the voestalpine Böhler Welding data sheet, issue 04/2023. The minimum or the range guaranteed by the maker is given in brackets. The figures depend on the heat treatment condition and the shielding gas stated in the row and do not replace testing the joint to your own WPS.

Chemical composition, wt.-%
CSiMnCrNiNbFe
0,030,53,828,0balance1,88,5
Welding data and approvals
Polaritydirect current, electrode positive (DC+)
Datasheet edition04/2023
Mechanical properties of the all-weld metal, typical values
Condition Yield strength Re, MPa Tensile strength Rm, MPa Elongation A, % Impact energy KV, J at 20 °C
u 380 600 35 100
  • u: untreated, as-welded
Fits

For which materials and machines

Base materials
  • 2.4642
  • UNS N06690
  • Alloy 690

current: DC+

Process and machines

Stick electrode, works on any sound machine for this process: welders.

Used welders New welders Ask us to help you choose
Technical substitute

A substitute for this consumable

We will find a substitute with the same classification, diameter and shielding gas over the phone: +48 669 162 833.
