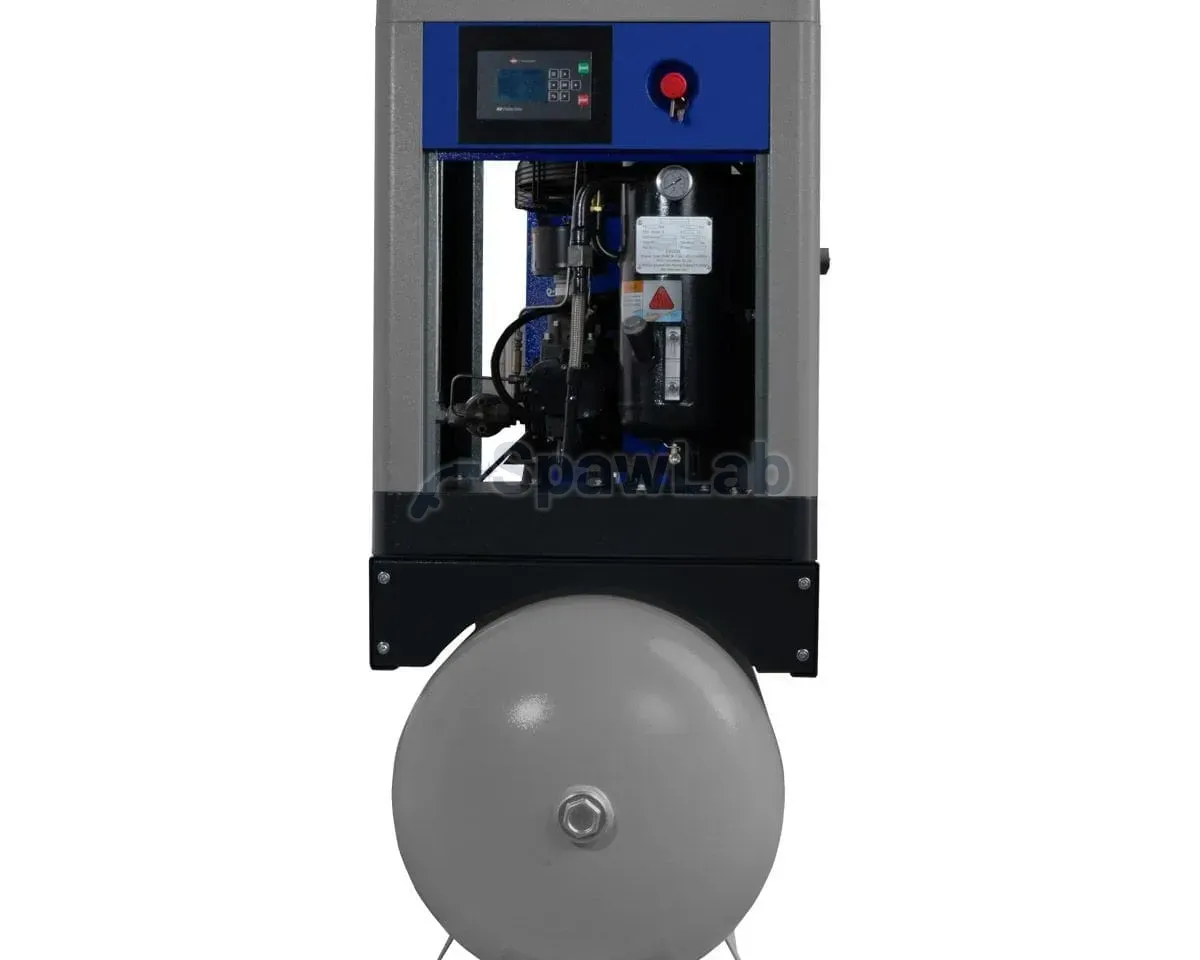

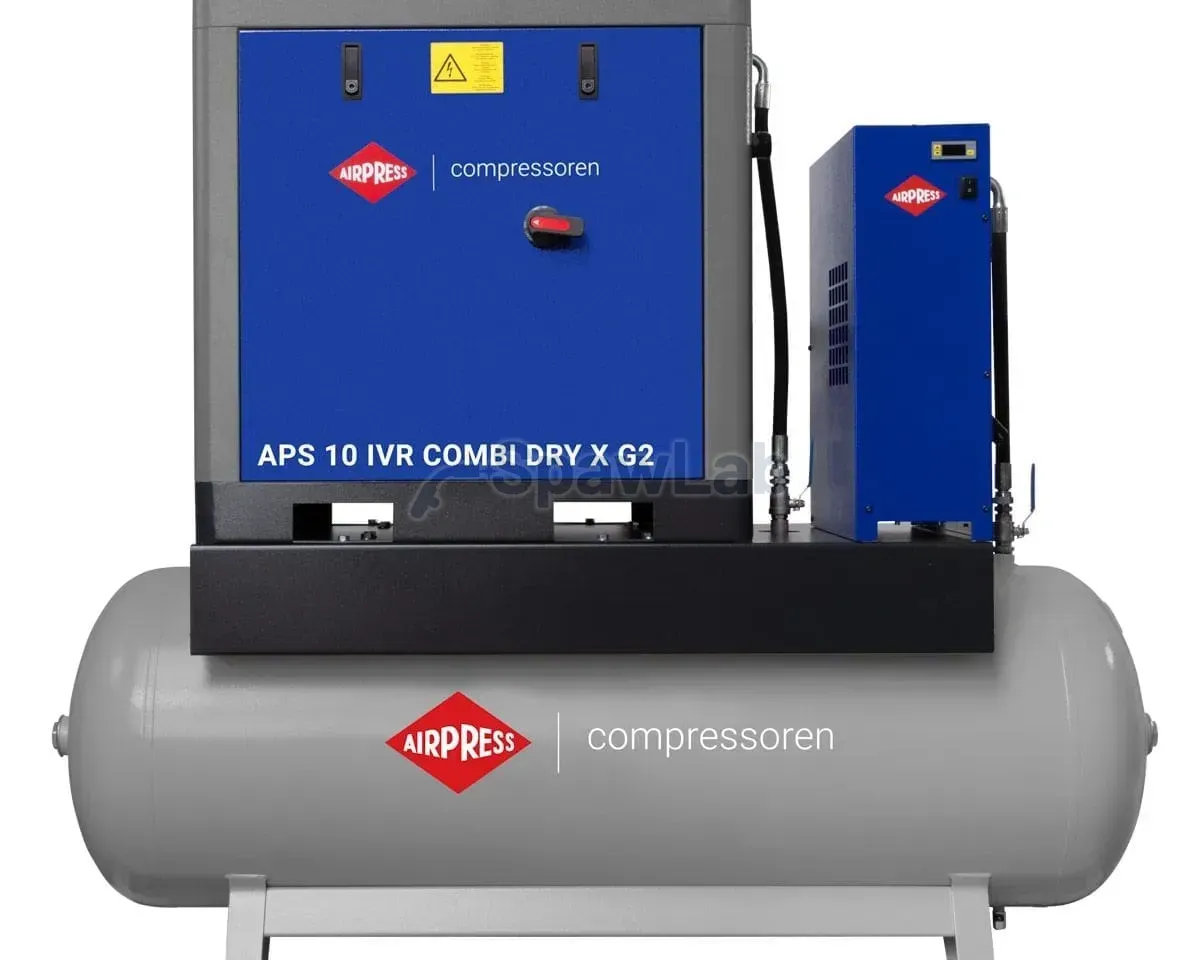

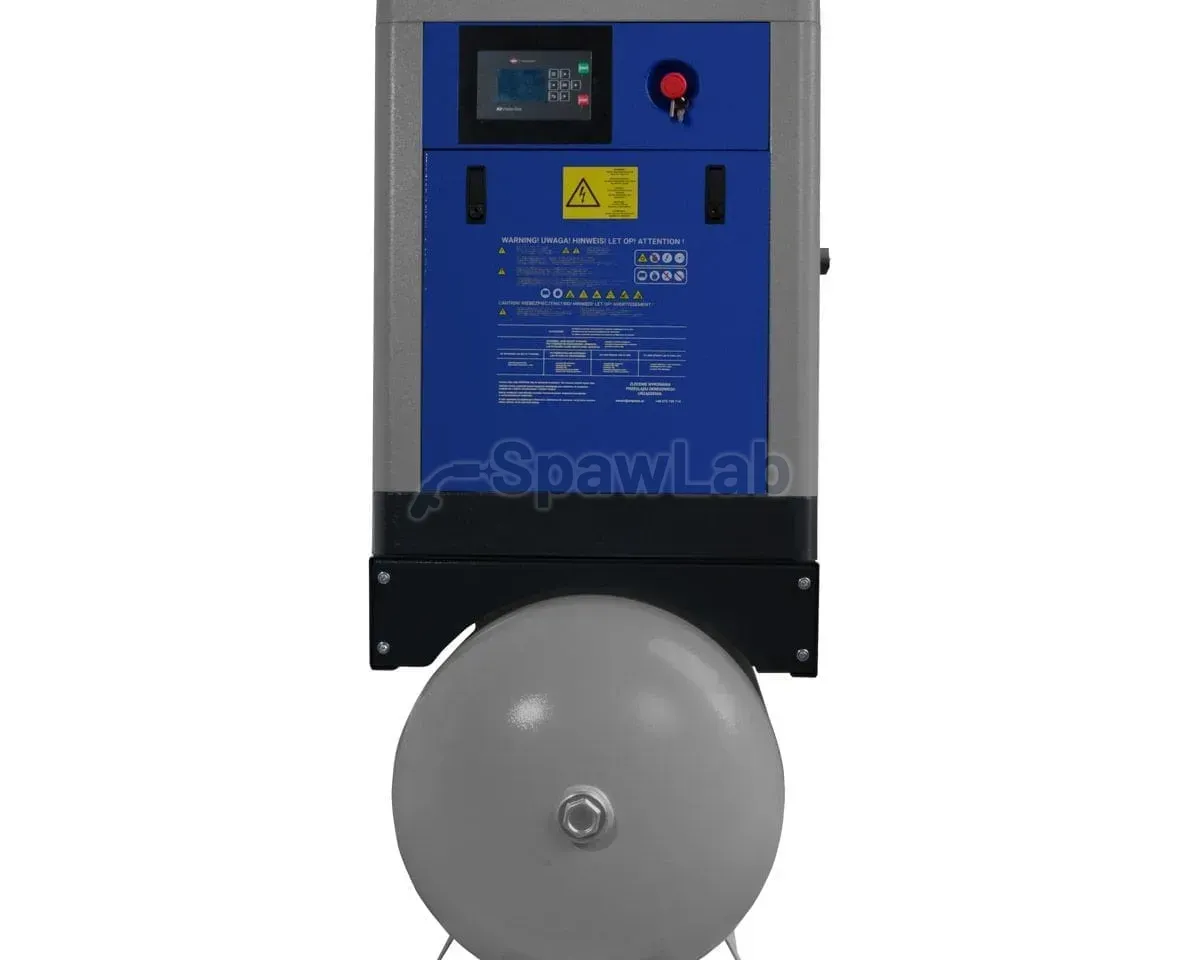

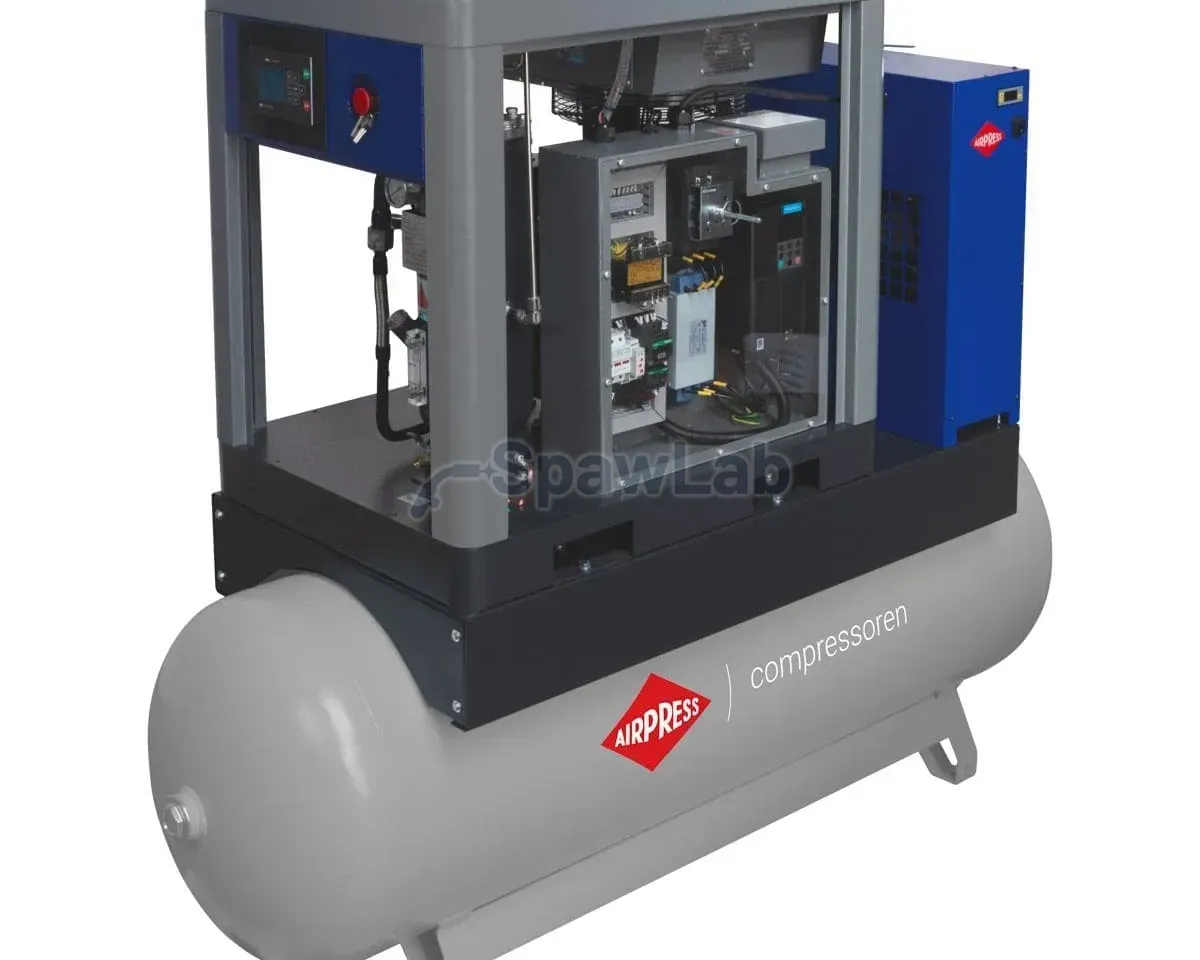

APS 10 IVR Combi Dry X G2 screw compressor 10 bar 10 HP/7.5 kW 380-1050 l/min 500 l
The APS 10 IVR Combi Dry X G2 is a variable-speed screw compressor with an integrated air dryer and a 500 litre tank, built to give industrial users a steady, dependable supply of compressed air. With IVR variable-speed technology, the compressor automatically matches its speed to the current air demand, which brings substantial energy savings. It delivers 380 to 1050 l/min at a maximum working pressure of 10 bar, and its 10 HP (7.5 kW) motor gives you the output and reliability needed under demanding working conditions.
Key advantages of the APS 10 IVR Combi Dry X G2:
- IVR variable-speed technology: the compressor has a variable-speed system that automatically adjusts its speed to the current air demand, saving up to 40% energy compared with conventional fixed-speed models.
- Integrated air dryer and air tank: the air dryer and the 500 litre tank remove moisture from the air effectively, providing high air quality and stable pressure in pneumatic systems, which extends the life of tools and machines.
- High air delivery: an air delivery range of 380 to 1050 l/min makes the compressor well suited to applications with varying compressed air demand, such as industry, production and service workshops.
- 1:1 direct drive: the direct drive transfers the full motor power to the airend, eliminating energy losses and raising the efficiency of the compressor.
IE3 synchronous motor
The APS 10 IVR Combi Dry X G2 compressor is fitted with a modern IE3 synchronous motor with high energy efficiency and low running costs. The motor is 8% more efficient than conventional motors, which means lower energy consumption and a longer service life for the compressor. Its innovative design reduces the need for servicing, which cuts operating costs further.
Advanced AirVision controller
The APS 10 IVR Combi Dry X G2 compressor comes with the advanced AirVision control panel, which gives you full control over the operating parameters. On the intuitive touch display you monitor and manage the working pressure, air delivery and other key parameters. The built-in Wi-Fi module provides remote access to the compressor, so you can optimise its operation and react quickly to any problems. Functions such as automatic restart, an operating schedule and intelligent cooling fan control raise efficiency and reduce energy consumption.
Energy efficiency and low running costs
The APS 10 IVR Combi Dry X G2 is highly energy efficient thanks to IVR technology and the IE3 synchronous motor. The integrated air dryer removes moisture from the air, which reduces the risk of failure of pneumatic tools and equipment and extends their service life. The 500 litre tank keeps the compressor running steadily even when air demand fluctuates strongly, which makes it a very good choice for demanding industrial applications.
Technical specifications:
- Working pressure range: 6-10 bar
- Motor power: 10 HP / 7.5 kW
- Air delivery: 380-1050 l/min
- Tank: 500 l
- Power supply: 400 V / 50 Hz / 3 phases
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This provides long-term protection for key components and reliable operation.
The APS 10 IVR Combi Dry X G2 is a very good solution for companies looking for an efficient, energy-saving screw compressor: variable-speed technology, an integrated air dryer and a large tank keep it running reliably even in the toughest conditions. The compressor helps you keep running costs under control and gives you full control over compressed air production.
APS 10 IVR Combi Dry X G2: savings, reliability and output in one unit.
