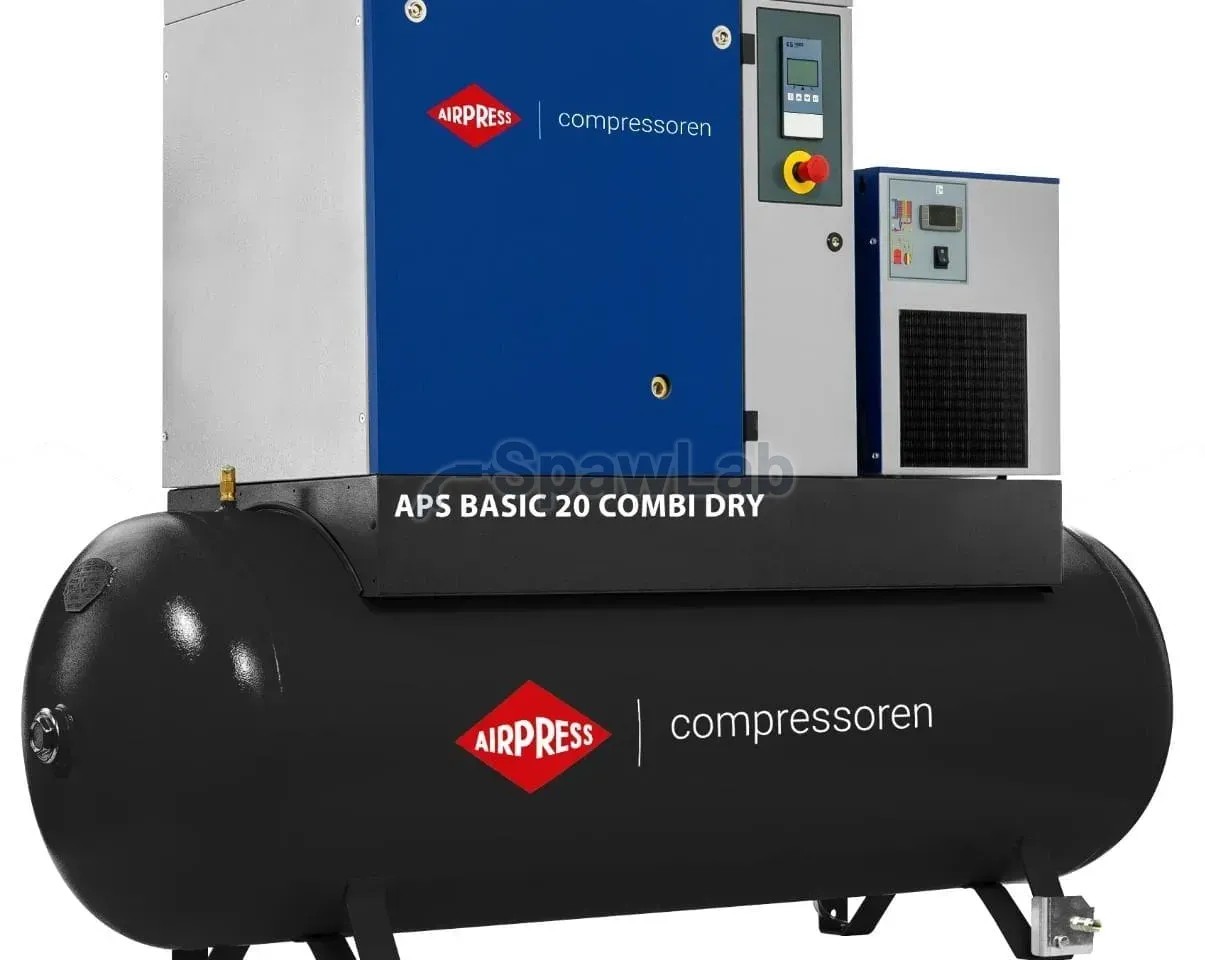

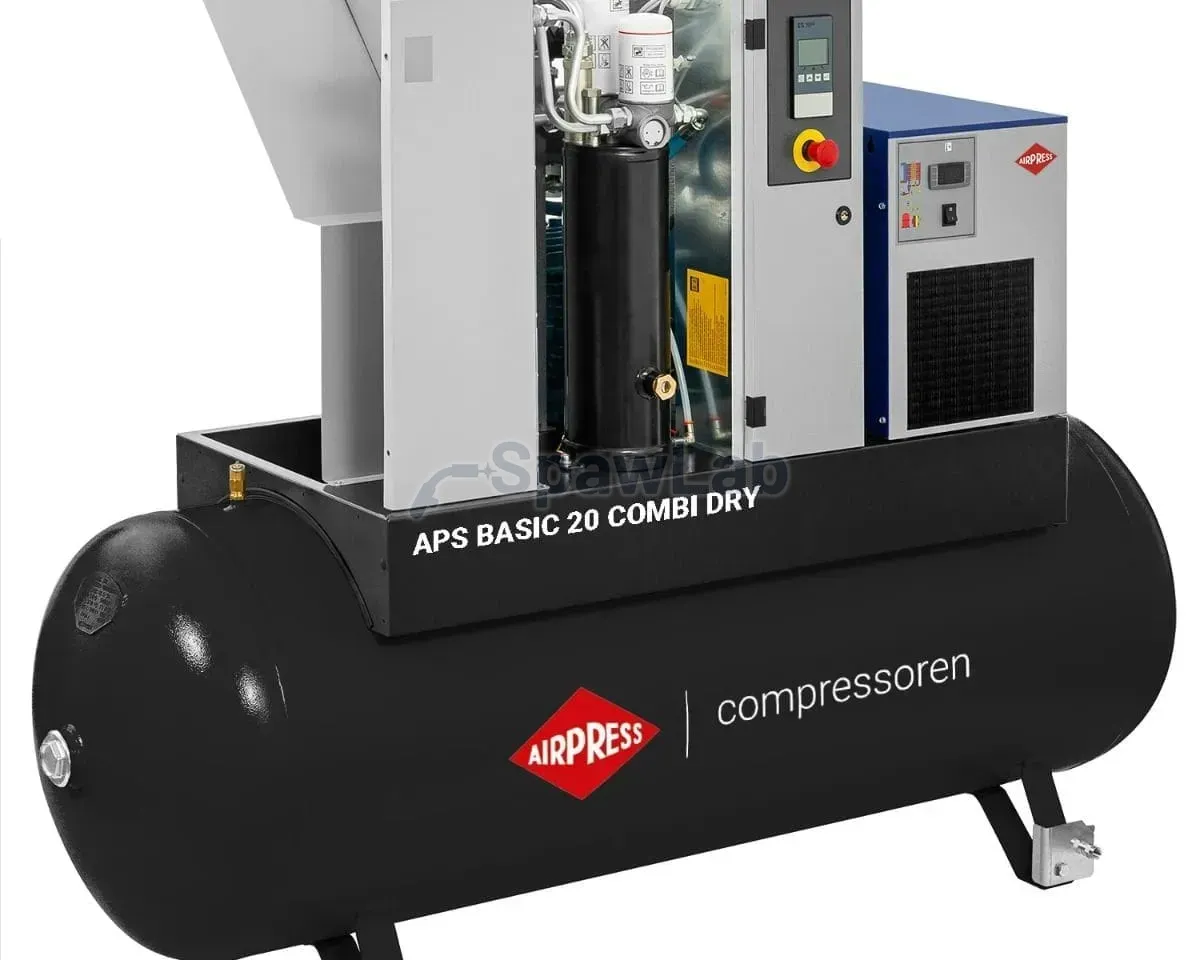

APS 20 Basic Combi Dry screw compressor 13 bar 20 HP/15 kW 1332 l/min 500 l
The APS 20 Basic Combi Dry is a screw compressor with an air delivery of 1332 l/min, designed for demanding industrial environments. With a working pressure of up to 13 bar and a 20 HP (15 kW) motor, this model is well suited to applications that need large volumes of high-quality compressed air. The compressor has an integrated air dryer that removes moisture effectively and supplies clean, dry air. The 500 l tank and an advanced cooling system ensure high output and reliable operation over the long term.
APS Basic Combi Dry technology
The APS 20 Basic Combi Dry combines modern compression and air treatment technology. The integrated air dryer removes moisture from the air, protecting pneumatic systems against corrosion and extending their service life. The compressor is highly energy efficient thanks to its belt drive, which keeps energy losses low. The cooling system ensures quiet and reliable operation, which makes the APS 20 Basic Combi Dry a very good choice for long-term use in large industrial plants.
- Air dryer: the integrated air treatment system supplies clean, dry air and protects machines against moisture.
- Belt drive: efficient power transmission and minimal energy losses, which translate into lower running costs.
- IE3 motor: a motor in the high IE3 energy efficiency class that reduces energy consumption and lowers operating costs.
- Cooling system: an advanced cooling system ensures quiet and reliable operation and minimises the risk of overheating.
Air delivery and air quality
With an air delivery of 1332 l/min, the APS 20 Basic Combi Dry is well suited to large industrial applications such as supplying pneumatic systems and machines in production processes. Thanks to the integrated air dryer, the compressor supplies high-quality air in line with ISO 8573-1. Removing moisture from the air minimises the risk of damage and failure of equipment and keeps it working reliably and efficiently for a long time.
Technical specifications:
- Working pressure range: up to 13 bar
- Motor power: 20 HP / 15 kW
- Air delivery: 1332 l/min
- Tank capacity: 500 l
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This provides long-term protection for key components and reliable operation.
Energy efficiency and reliability
The APS 20 Basic Combi Dry is designed to lower energy consumption and reduce operating costs. With an IE3 class motor and a belt drive, the compressor runs with minimal energy losses. The efficient cooling system keeps operation stable, and the integrated air dryer maintains high air quality throughout operation, which means reliability and a long service life in harsh industrial conditions.
Versatile applications
The APS 20 Basic Combi Dry performs well in many demanding industrial applications, such as supplying pneumatic tools, production machines and pneumatic systems. With its high air delivery of 1332 l/min and a tank capacity of 500 l, the compressor is well suited to large industrial plants that need a continuous supply of high-quality compressed air. The air dryer provides clean air, which is essential in many applications with strict air quality requirements.
An investment in quality and reliability
The APS 20 Basic Combi Dry is a sound investment in a reliable, energy-saving compressor that delivers high air quality and dependable operation for many years. Modern technologies such as the air dryer, belt drive and cooling system keep running costs low and output at the highest level. This unit will raise productivity in large industrial plants while saving a lot of energy and running reliably for a long time.
