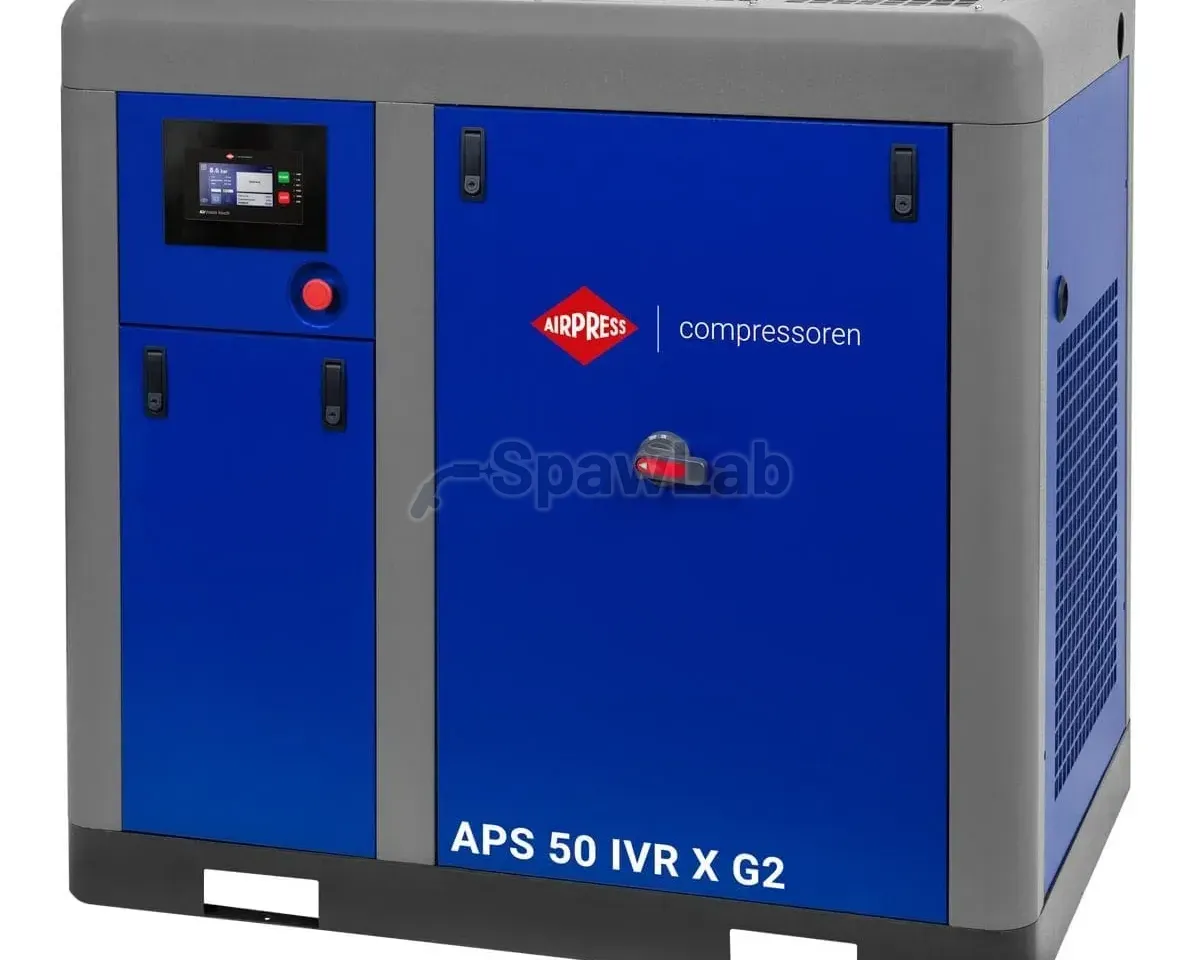

APS 50 IVR X G2 screw compressor 10 bar 50 HP/37 kW 1970-6510 l/min
The APS 50 IVR X G2 is a variable-speed screw compressor designed to supply compressed air in the most demanding industrial applications. It performs well in manufacturing, the automotive industry, metalworking, electronics and on assembly lines, wherever flexibility and energy efficiency are critical. With a 50 HP (37 kW) motor, the compressor delivers 1970 to 6510 l/min at a maximum working pressure of 10 bar and keeps output high even when working conditions change.
Key advantages of the APS 50 IVR X G2:
- Variable-speed operation (IVR): the APS 50 IVR X G2 automatically adjusts its speed to the current compressed air demand, which brings substantial energy savings of up to 40% compared with fixed-speed compressors.
- High air delivery: an air delivery range of 1970 to 6510 l/min makes this compressor well suited to supplying many kinds of pneumatic tools, CNC machines and other industrial systems with varying air demand.
- 1:1 direct drive: transferring power directly from the motor to the airend eliminates energy losses, which raises efficiency considerably and lowers operating costs.

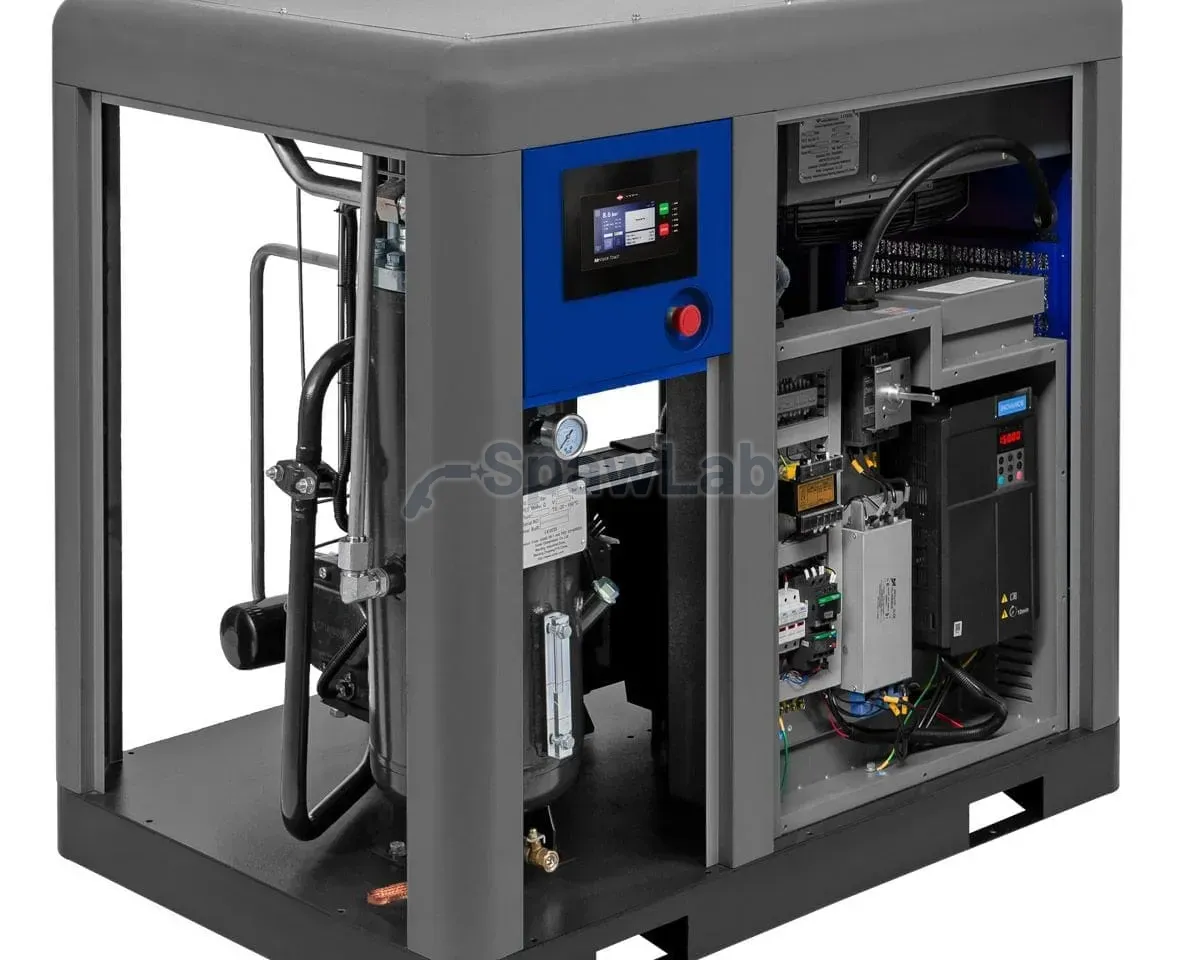

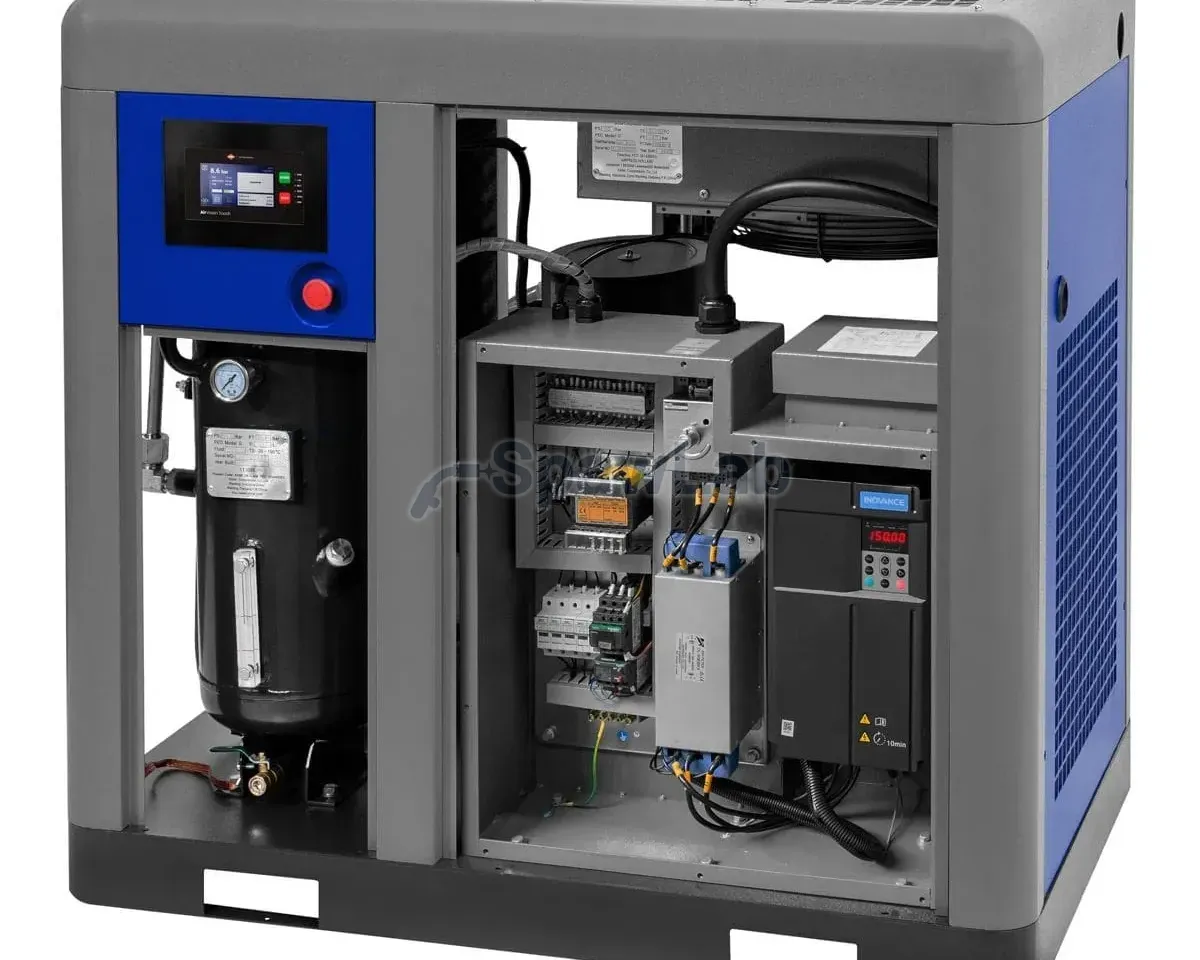

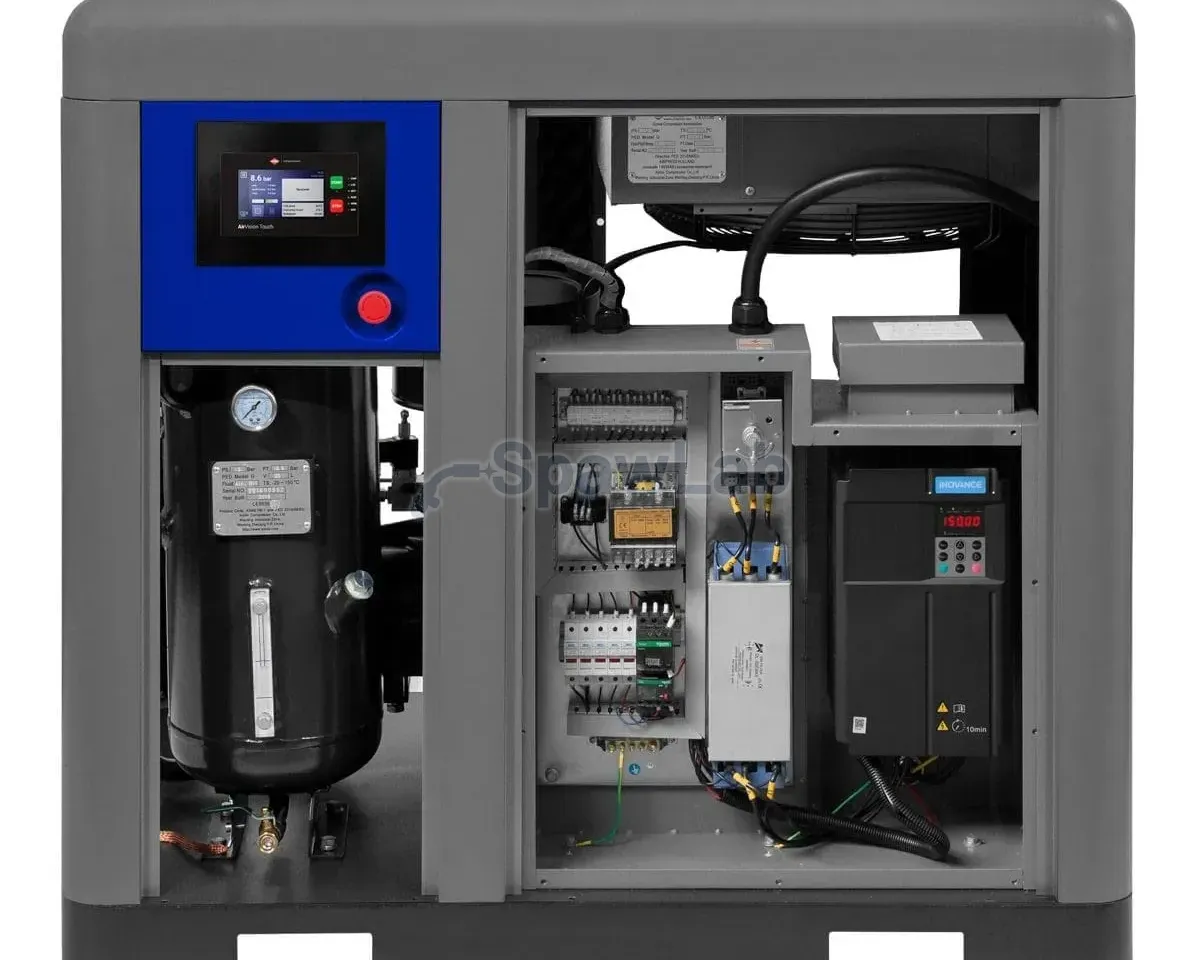

Synchronous motor with inverter
The APS 50 IVR X G2 compressor is fitted with a modern synchronous motor with an inverter that matches the rotational speed to current needs and optimises energy consumption. The inverter adapts the motor dynamically to air demand, which saves energy and reduces running costs. The IE3 efficiency class motor is 8% more efficient than standard units, and its innovative bearingless design minimises maintenance costs and extends the service life of the unit.

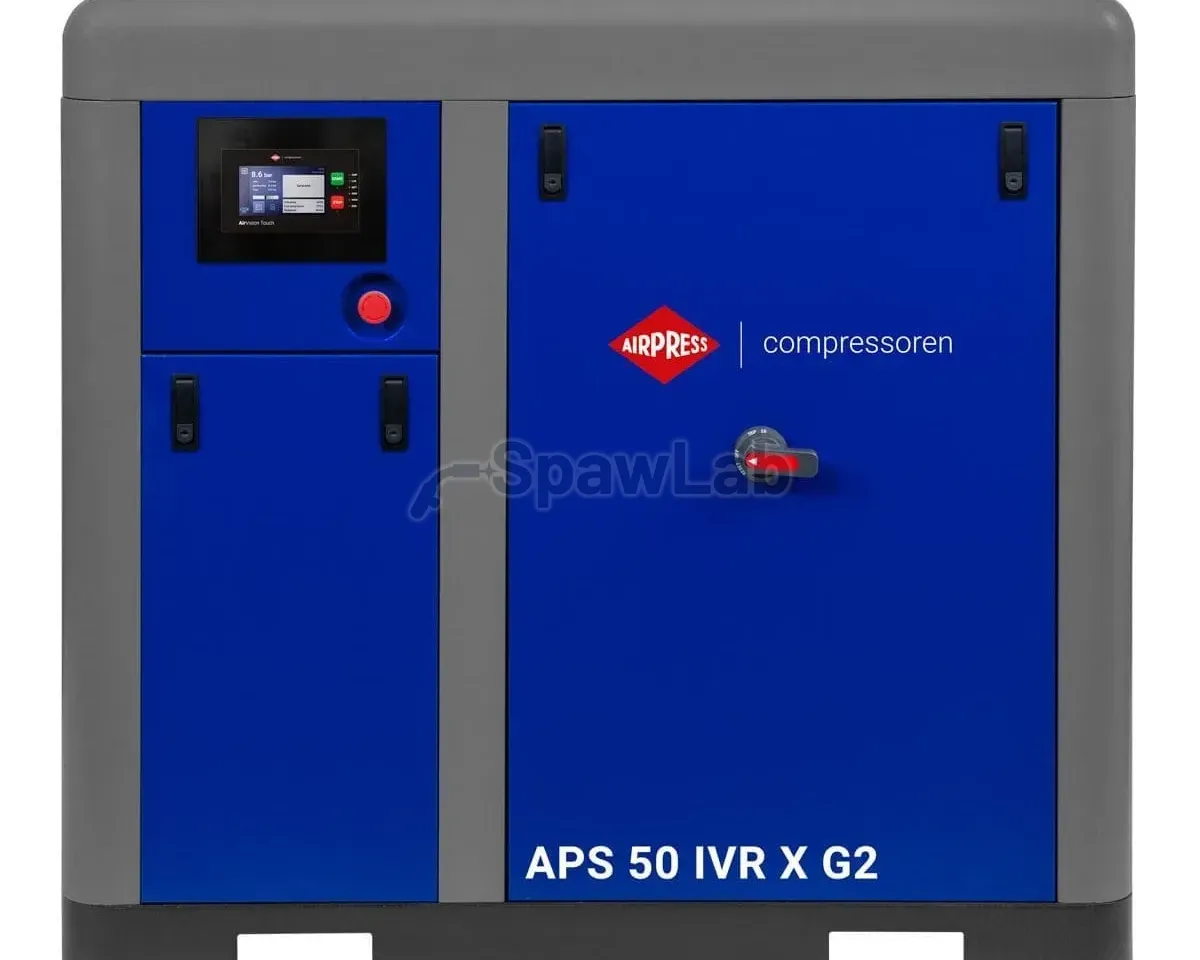

Advanced AirVision controller
The APS 50 IVR X G2 compressor has a modern AirVision touch control panel that gives you full control over the unit. The built-in Wi-Fi module lets you monitor the compressor remotely and adjust operating parameters from anywhere. The AirVision panel offers functions such as automatic restart, weekly programming and intelligent cooling fan control, which optimise energy consumption further and reduce operating costs. The service notification system lets you react quickly to any problem and keeps the compressor running safely without interruption.
Energy efficiency and low running costs
With a synchronous motor with inverter and a direct drive, the APS 50 IVR X G2 compressor is highly energy efficient. The variable-speed drive optimises energy consumption by matching the operation of the compressor to actual needs. Intelligent cooling fan control runs the fan only when necessary, which cuts energy consumption further. The bearingless design minimises maintenance costs, and the long service life makes the compressor an economical choice for long-term industrial use.
Technical specifications:
- Working pressure range: 6-10 bar
- Motor power: 50 HP / 37 kW
- Air delivery: 1970-6510 l/min
- Power supply: 400 V / 50 Hz / 3 phases
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This provides long-term protection for key components and reliable operation.
The APS 50 IVR X G2 is the right choice for companies looking for a flexible, energy-saving screw compressor with high output. With its variable-speed drive with inverter, efficient synchronous motor and advanced AirVision control system, the compressor offers reliability, output and significant energy savings in many industrial applications.
APS 50 IVR X G2: flexibility, savings and advanced technology in one unit.
