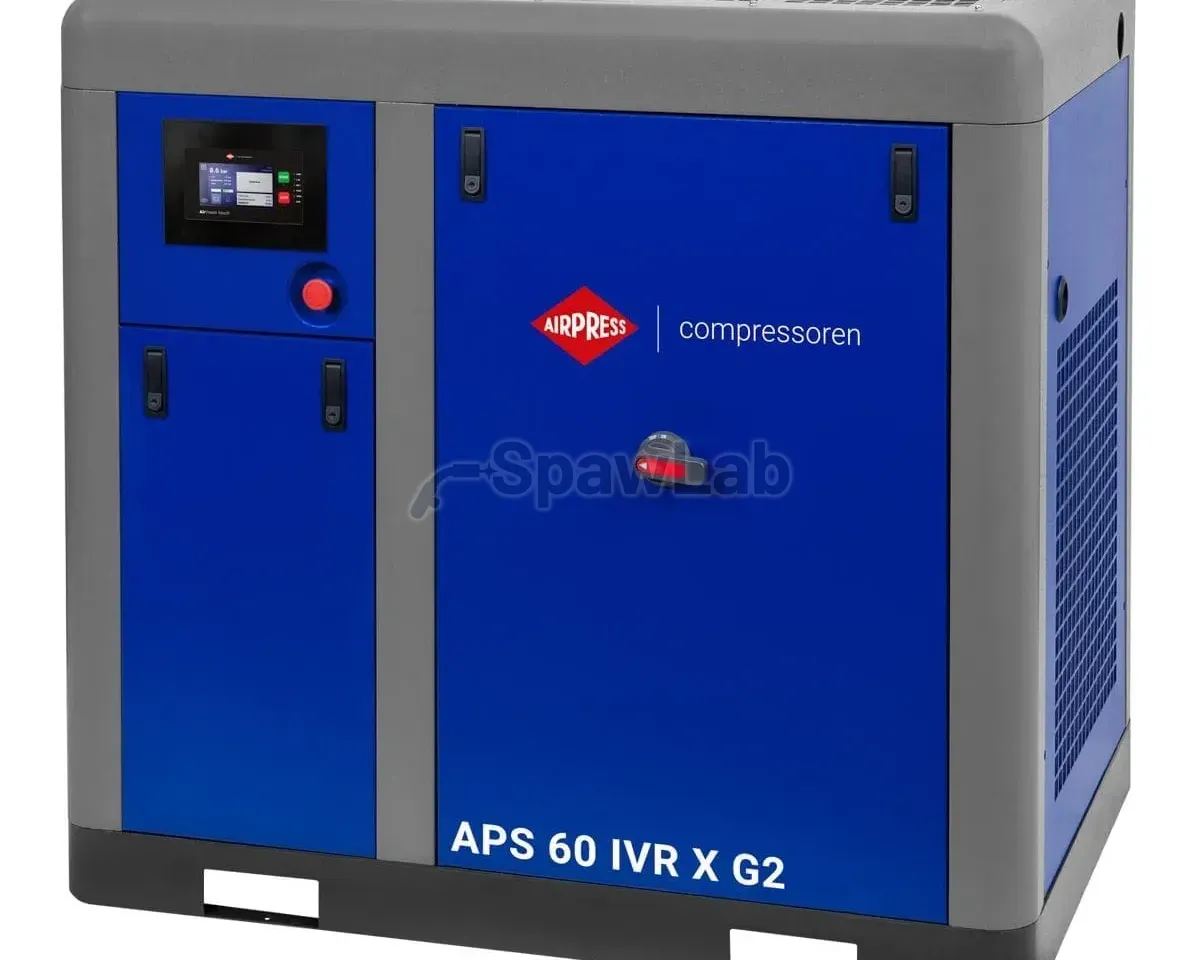

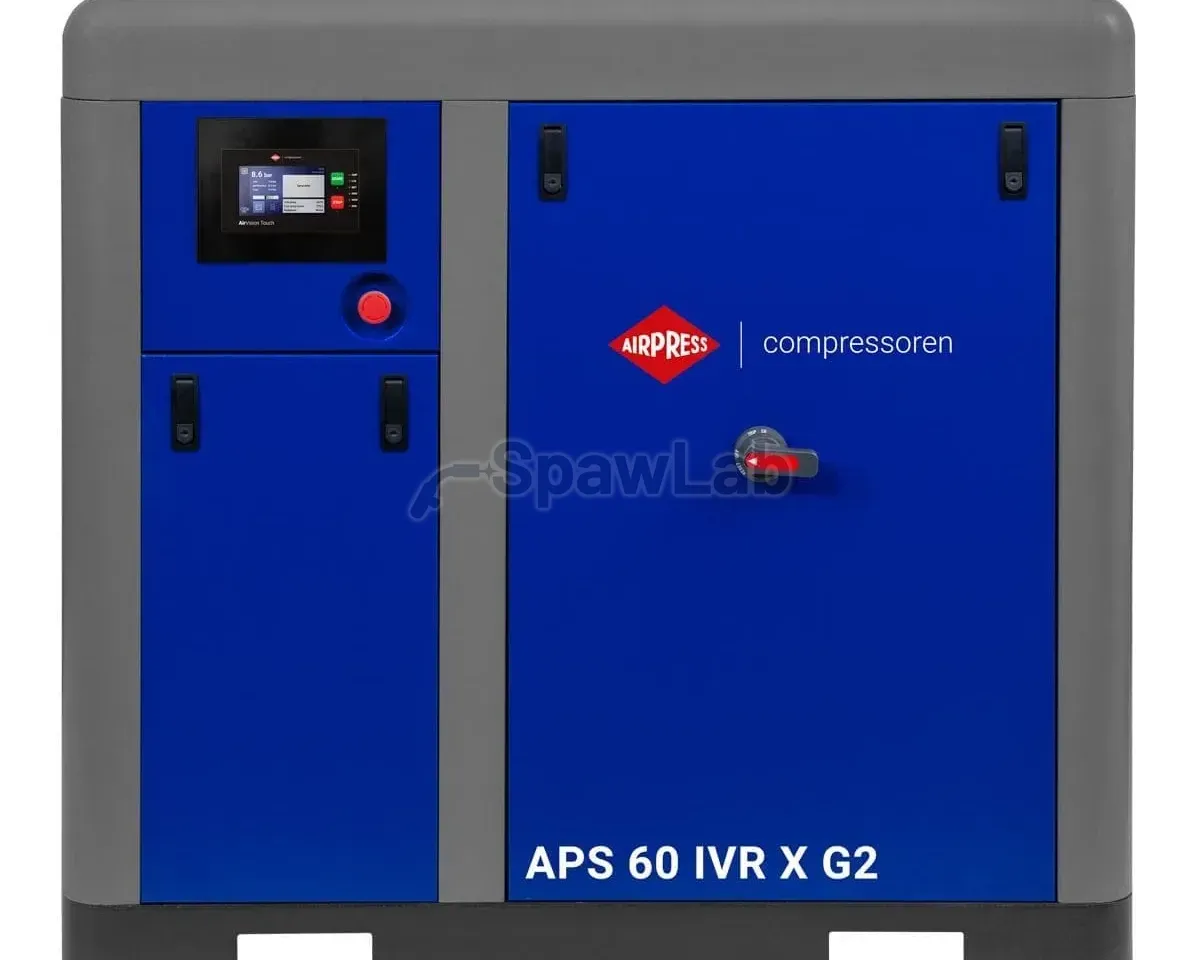

APS 60 IVR X G2 screw compressor 10 bar 60 HP/45 kW 2330-7710 l/min
The APS 60 IVR X G2 is a modern variable-speed screw compressor designed for maximum energy efficiency and for supplying compressed air in many industrial applications. It performs well in manufacturing, the automotive industry, metalworking, electronics and on assembly lines, where flexibility and reliability matter. With a 60 HP (45 kW) motor, the compressor delivers 2330 to 7710 l/min at a maximum working pressure of 10 bar and keeps output and efficiency high even under changing loads.
Key advantages of the APS 60 IVR X G2:
- Variable-speed operation (IVR): the APS 60 IVR X G2 adjusts its rotational speed to the current compressed air demand, which saves up to 40% energy compared with fixed-speed compressors and lowers operating costs.
- High air delivery: an air delivery range of 2330 to 7710 l/min makes this compressor well suited to supplying pneumatic tools, CNC machines and other industrial systems that need a variable air flow.
- 1:1 direct drive: the direct drive eliminates energy losses by transferring the full power from the motor to the airend, which raises efficiency and reduces running costs.
Synchronous motor with inverter
The APS 60 IVR X G2 compressor is fitted with a synchronous motor with an inverter that adapts the motor speed to current needs. The inverter optimises energy consumption, which brings considerable savings over long-term operation. The IE3 efficiency class motor is up to 8% more efficient than standard drive units, and the innovative bearingless design minimises maintenance costs and extends the service life of the unit.
Advanced AirVision controller
The APS 60 IVR X G2 compressor has a modern AirVision touch control panel that gives you full control over the compressor. The built-in Wi-Fi module lets you monitor and manage the compressor remotely from anywhere. The system offers functions such as automatic restart, weekly programming and intelligent cooling fan control, which lowers energy consumption further. The AirVision panel also sends fast service notifications when irregularities occur, which helps you keep the unit fully operational.
Energy efficiency and low running costs
The APS 60 IVR X G2 compressor is highly energy efficient thanks to its variable-speed drive with inverter and synchronous motor. The compressor automatically adapts to current production needs, which reduces energy consumption considerably and optimises operating costs. Intelligent cooling fan control runs the fan only when necessary, which cuts energy consumption further. The innovative bearingless motor design reduces the need for maintenance and gives the unit a long service life.
Technical specifications:
- Working pressure range: 6-10 bar
- Motor power: 60 HP / 45 kW
- Air delivery: 2330-7710 l/min
- Power supply: 400 V / 50 Hz / 3 phases
Warranty on screw compressors
Our screw compressors come with a standard 3-year warranty, which can be extended to 48 or 60 months. This provides long-term protection for key components and reliable operation.
The APS 60 IVR X G2 is a very good solution for companies looking for an energy-saving screw compressor with high output. With its variable-speed drive with inverter, efficient synchronous motor and advanced AirVision management system, the compressor offers reliability, output and significant energy savings in many industrial applications.
APS 60 IVR X G2: flexibility, savings and advanced technology in one unit.
