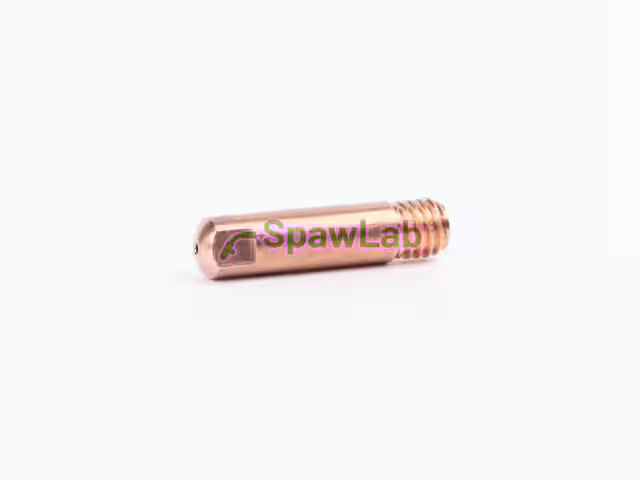

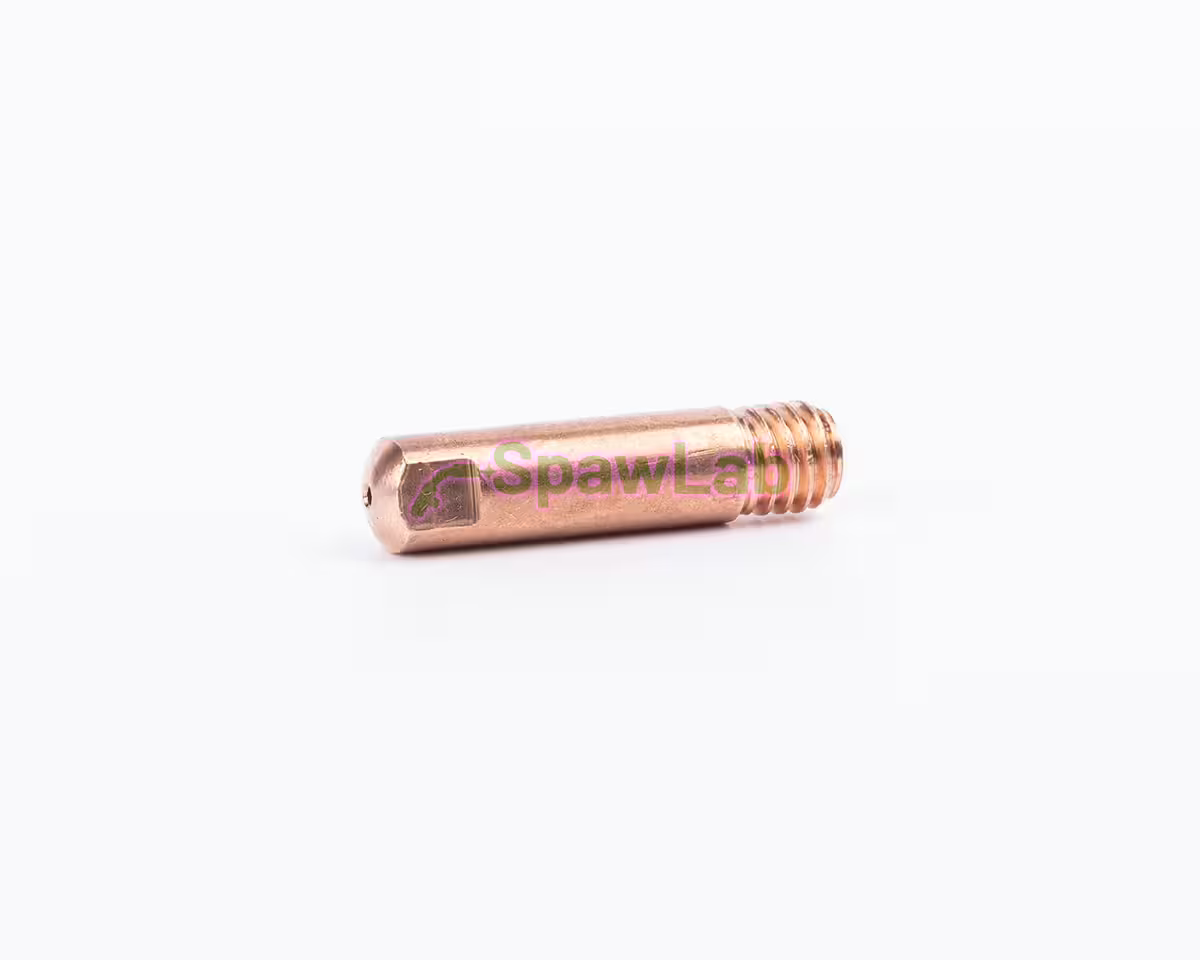

Böhler Welding contact tip made of electrolytic copper (ECu) for 1.0 mm wire, M6 x 1 thread, 25 mm long. It fits the MT 150 G MIG/MAG torch.
What it is for
The contact tip transfers current to the wire and guides it into the arc. Replace it when the bore is worn, the arc becomes unstable or the wire feeds unevenly.
| Part number | 82.16.56811 |
|---|---|
| Brand | Böhler Welding |
| Material | ECu (electrolytic copper) |
| Version | standard |
| Wire diameter | 1.0 mm |
| Thread | M6 x 1 mm |
| Length | 25 mm |
| Drawing item no. (price list 2026/27) | 3 (MT 150 G) |
| Pack quantity | 10 pcs |
Fits
Also order
Useful when replacing contact tips:
- Tip holder M6 for MT 150 G (5 pcs)
- Gas nozzle for MT 150 G (5 pcs)
- Gas nozzle spring for MT 150 G (100 pcs)
- Insulated steel liner red 1.0 to 1.2 mm, 3 m
FAQ
Which wire is this tip for?
For 1.0 mm wire. The same version in other sizes: 0.8 mm.
Are CuCrZr tips available for the MT 150 G?
No. For the MT 150 G the Böhler 2026/27 price list only has ECu M6 tips, 25 mm long: standard 0.8 and 1.0 mm and aluminium wire versions 0.8 and 1.0 mm.
Does it fit the MT 350 G or MT 440 W?
No. The MT 350 G, MT 440 W, MT 540 W and PP Plus 401 D use M8 tips, 30 mm long, for example ECu M8 1.0 mm.
You are buying from the authorised Böhler Welding distributor and service partner in Poland: with a VAT invoice and courier shipping from Krotoszyn, also within the EU.
