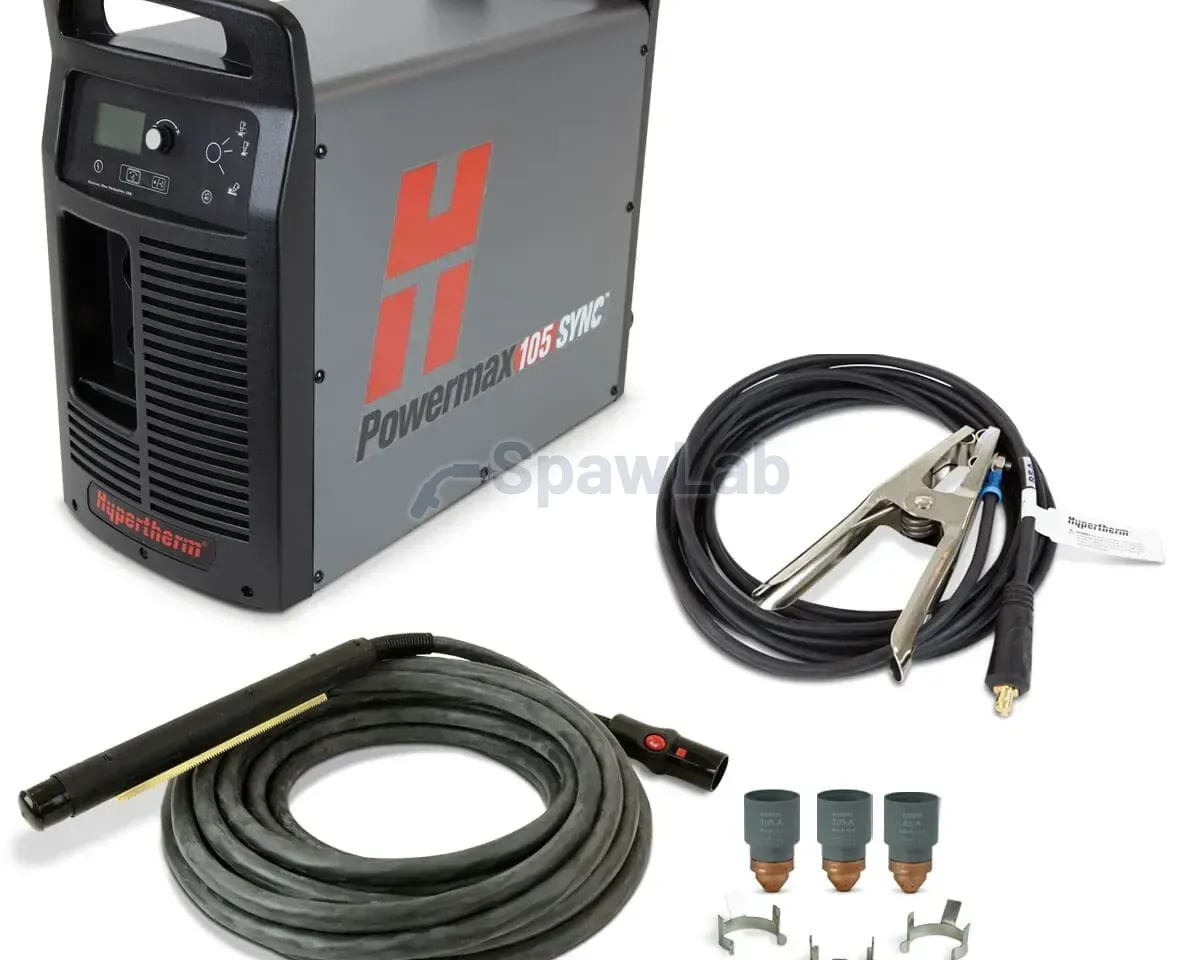

Hypertherm Powermax105 SYNC (059693): Industrial Output for Your CNC Table
Extend what your shop can do with the Hypertherm Powermax105 SYNC kit (part no. 059693). This is a powerful mechanised cutting system, ready to integrate and built to raise productivity and handle thick material. It combines 105 amps with the simple, error free handling of the SYNC platform, which makes it the right upgrade for any CNC table. You cut faster, take on thicker plate and lower your running costs, which opens the door to more demanding and more profitable jobs.
Mechanised Kit Specification (059693)
| Part number | 059693 |
| Output current | 30-105 A |
| Rated duty cycle (40°C) | 80% @ 105 A / 100% @ 94 A |
| Recommended cut thickness (steel) | 32 mm (at 500 mm/min) |
| Production pierce capacity (steel) | 22 mm |
| Torch included | SmartSYNC 180° machine torch |
| Torch lead length | 7.6 m (25 ft) |
| CNC interface | Built in CPC port and RS-485 serial port |
A Closer Look at the Features
Real Cutting Power: Thick Plate at High Speed
105 amps combined with a CNC table means one thing: a sharp rise in productivity. The Powermax105 SYNC handles production cutting of steel 32 mm thick while holding high travel speeds. That translates directly into more finished parts per hour. Worth knowing: its ability to pierce 22 mm in production is decisive in automated processes. It lets you run complex cutting programs without slowing down, lifting the torch or drilling start holes, which shortens total cycle time and improves the return on the job.
SYNC Intelligence in Automated Production
In a production environment, repeatability is what decides the outcome. The SYNC platform was built to deliver it. The single piece intelligent cartridge with an RFID chip removes the risk of mistakes during changeover. The system sets the cutting parameters itself, so every part in a batch comes out the same. That cuts scrap and removes costly rework. The SYNC platform also collects data. With the optional reader you can analyse cartridge wear, the number of starts and the running time, which lets you track production costs precisely and optimise the process, a real step towards Industry 4.0.
Kit 059693: Full Plug and Play Integration
This particular part number is more than a power supply and a torch. It is a complete, factory prepared package for professional CNC integration. It comes as standard with a CPC port and an RS-485 serial port. These interfaces are the common language for communication with CNC table controllers. They allow automatic control of the key functions, such as starting and stopping the arc and passing signals from the torch height control (THC). By choosing the 059693 kit, you get a plug and play answer that minimises the time and cost of installing and commissioning the system on a new or existing plasma table, and that works reliably from the start.
Add Power to Your CNC Table with the Powermax105 SYNC.
- Industrial output: cut and pierce thick plate at high speed.
- Error free operation: SYNC technology gives repeatability and cuts scrap.
- Ready to integrate: factory fitted with CNC communication ports.
Contact us and take production in your shop to the next level.
