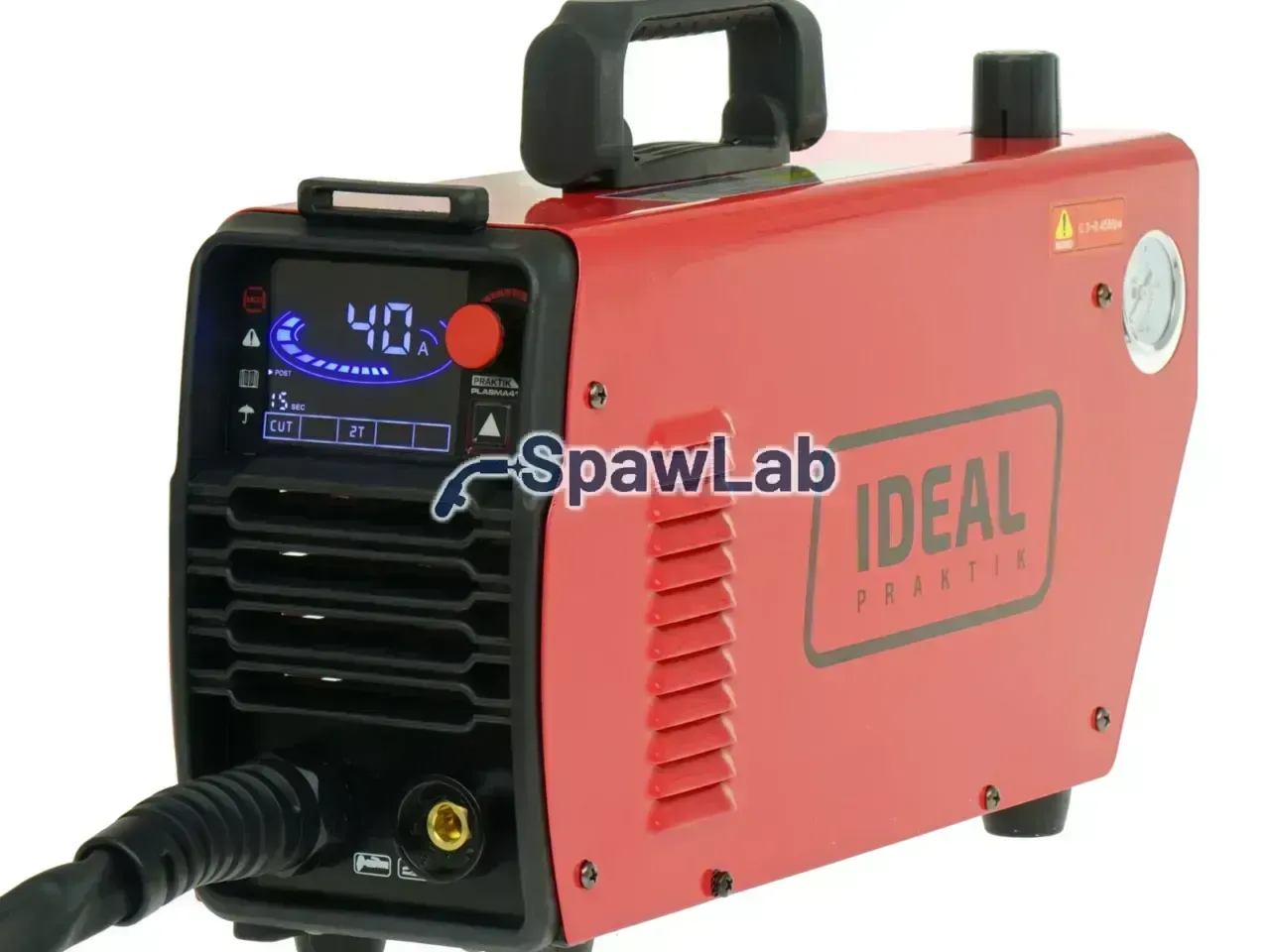

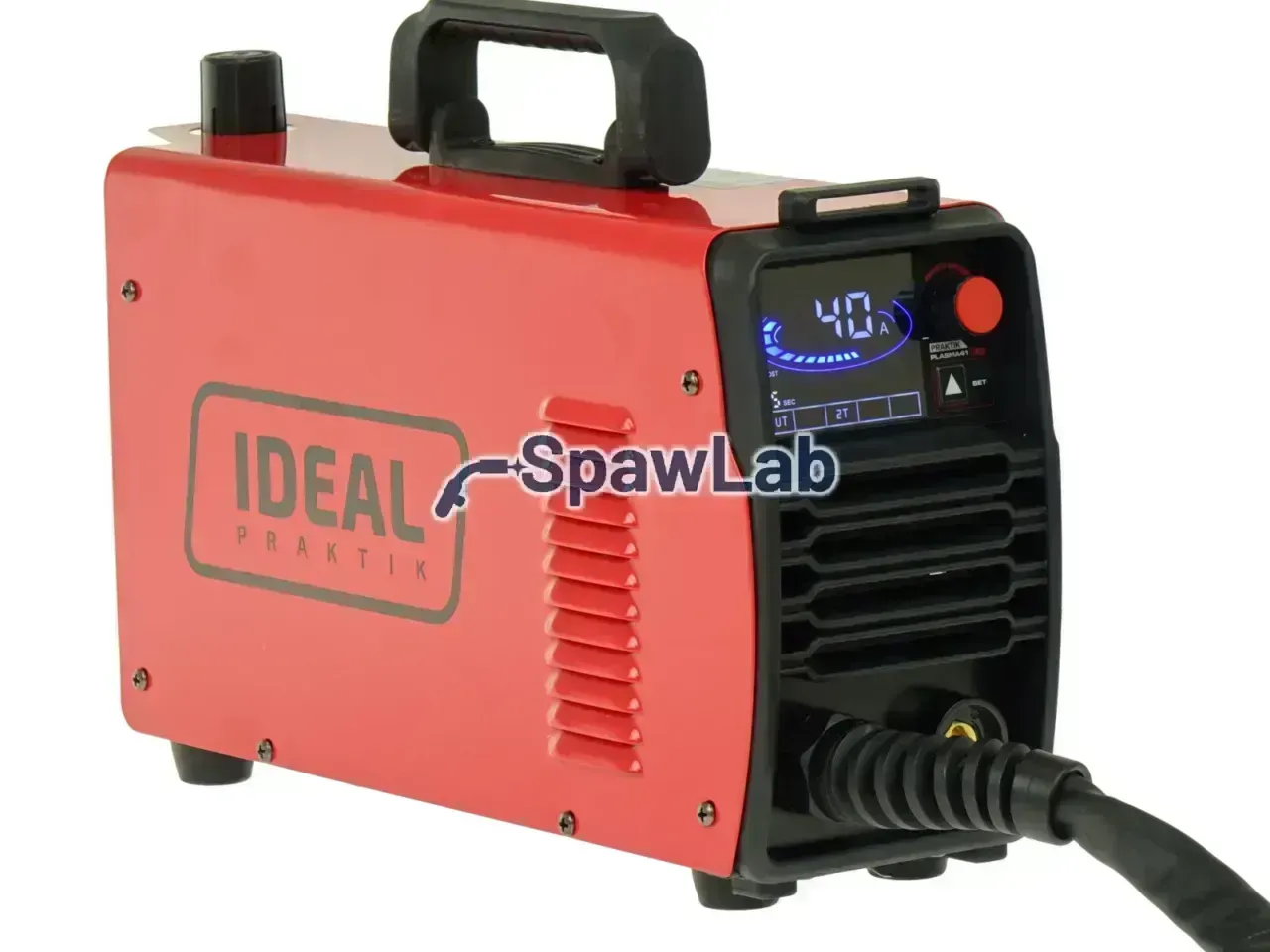

Praktik Plasma 41 LED is a 230 V inverter plasma cutter with cutting current up to 40 A. It cuts steel, stainless steel, aluminium, brass and copper without distortion. It makes severance cuts up to 16 mm and quality cuts up to 12 mm. It weighs 7 kg, so you can easily carry it from the workshop to jobs on site.
Specifications
- Power supply: 230 V, 50 Hz, single-phase, with plug
- Mains protection: C20A
- Power: 5 kW
- Open-circuit voltage: 296 V
- Cutting current range: 20 to 40 A, stepless
- Maximum current: 40 A at 30%
- Current at 60% duty cycle: 28 A
- Cutting thickness (max.): severance 16 mm, quality 12 mm
- Compressed air pressure: 5 to 6 bar
- Compressed air flow: 100 l/min
- Protection rating: IP 21S
- Weight: 7 kg
- Dimensions (L x W x H): 420 x 125 x 215 mm
- Packaging dimensions: 525 x 230 x 320 mm
Features
CUT and GRID modes
The cutter has two operating modes. CUT is for continuous cutting, and GRID is for intermittent work.
2T and 4T torch trigger
In 2T you cut as long as you hold the trigger. In 4T the trigger latches, which makes long cuts easier.
Torch cooling after cutting
After the cut ends, the torch is still cooled, and you adjust how long this cooling lasts. A fan cools the inside of the unit, and overload protection guards it during longer work.

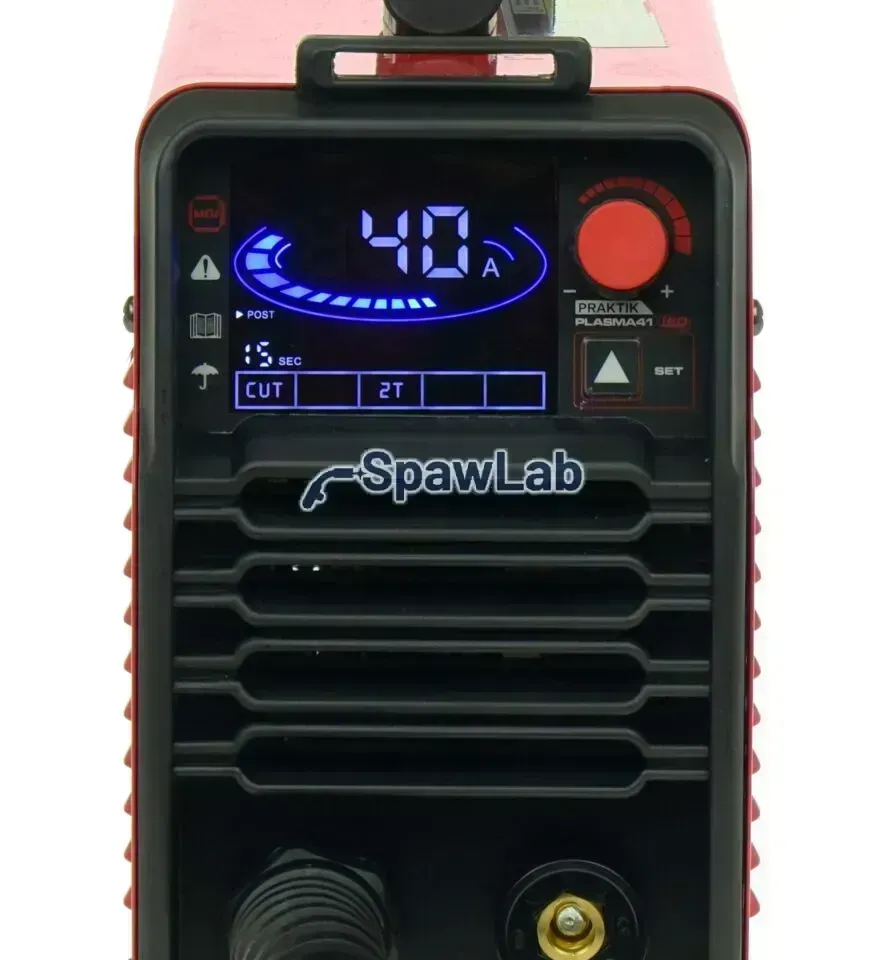

Control

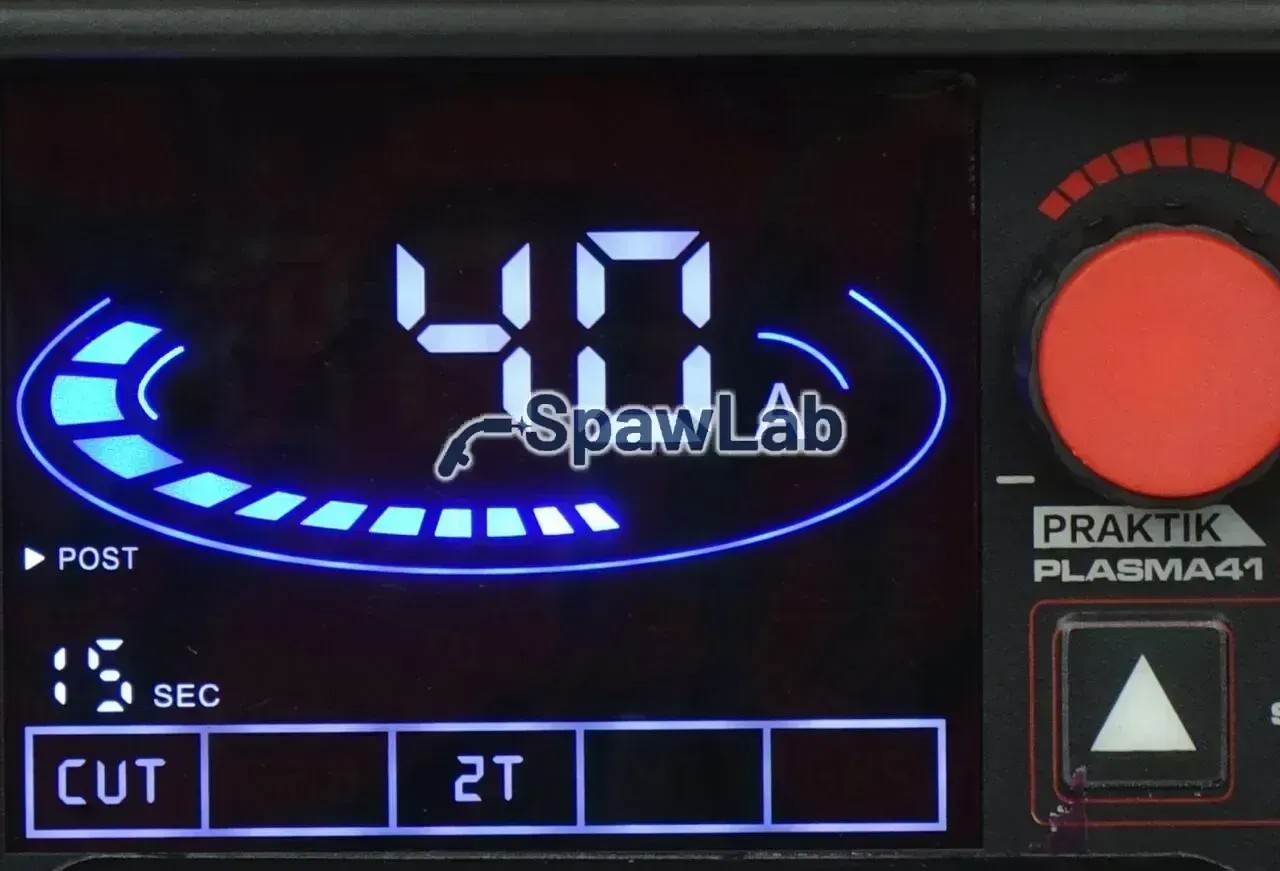

You adjust the cutting current steplessly, and control is electronic. The LED display is readable even in very bright light. For operation you need compressed air at 5 to 6 bar and 100 l/min.

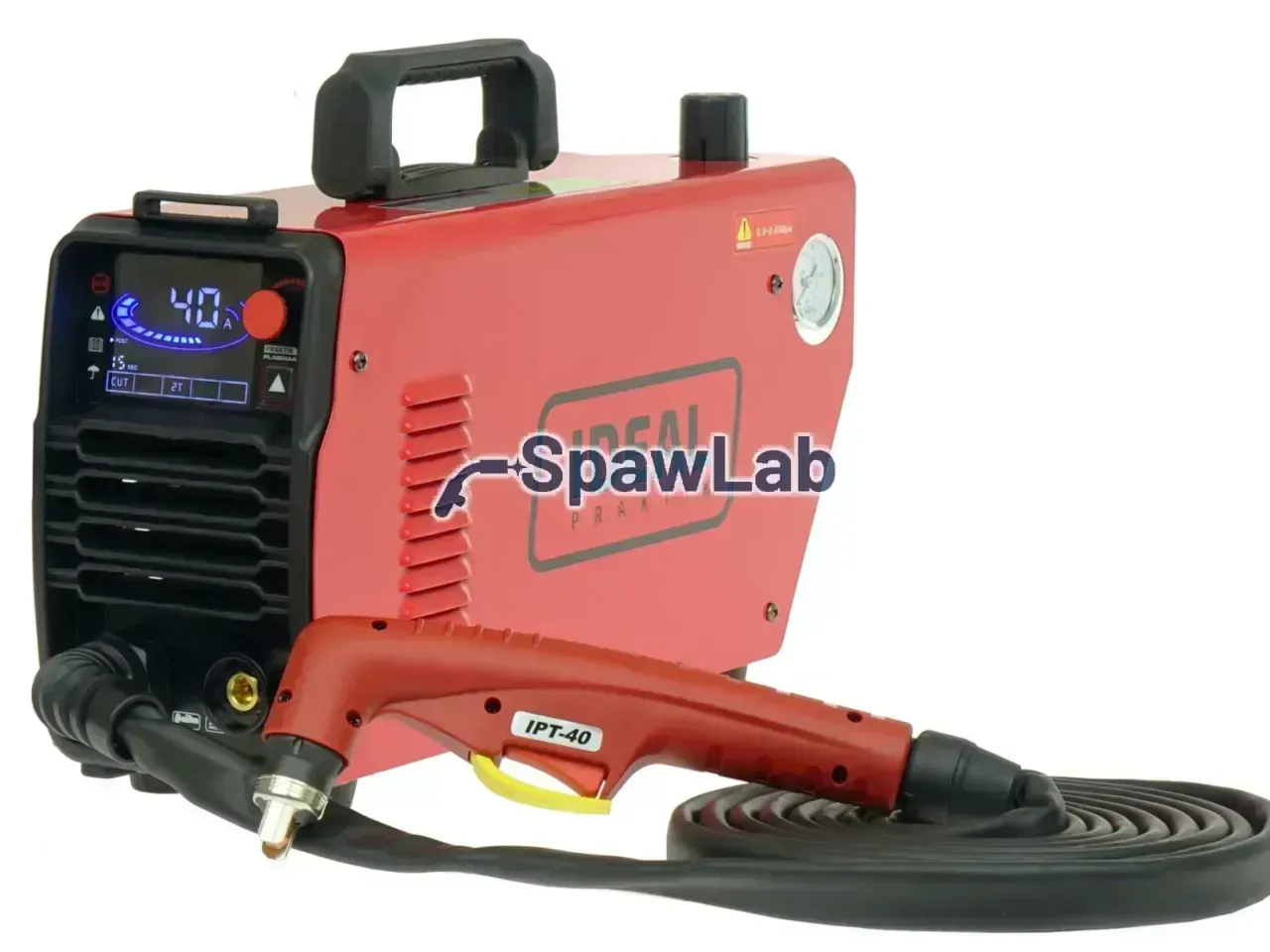

In the box
- IPT40 manual plasma torch, fixed connection, 4 m
- Earth cable, 2 m
