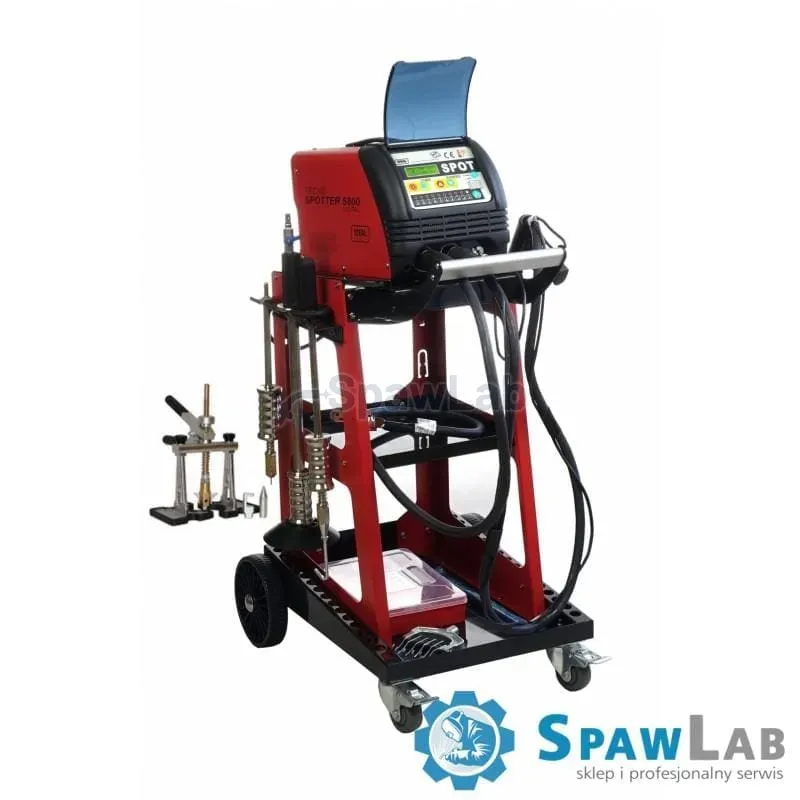

Tecno Spotter 5800 Max is a microprocessor-controlled machine for pulling, single-sided spot welding, patching and heating sheet metal with a carbon electrode. It is used mainly for car body repairs. Two-phase 400 V supply, without plug.
Specifications
- Welding current: maximum 3800 A, rated 3000 A, stepless adjustment
- Welding time: 0 to 99 ms
- Max. sheet thickness for single-sided spot welding: 0.8 + 0.8 mm
- Power: 10 kW
- Power supply: 400 V, 50 Hz, input current 32 A
- Dimensions (L x W x H): 350 x 220 x 250 mm
Features
Control and operating modes
You change settings on the panel. Once you choose the tool, the machine selects the welding current and work cycles itself, and you can also set time and current manually. Operating mode: automatic (starts on contact with the material) or manual (starts with the trigger on the gun).
Cooling and protection
A fan cools the machine. It has overload, overvoltage and undervoltage protection.

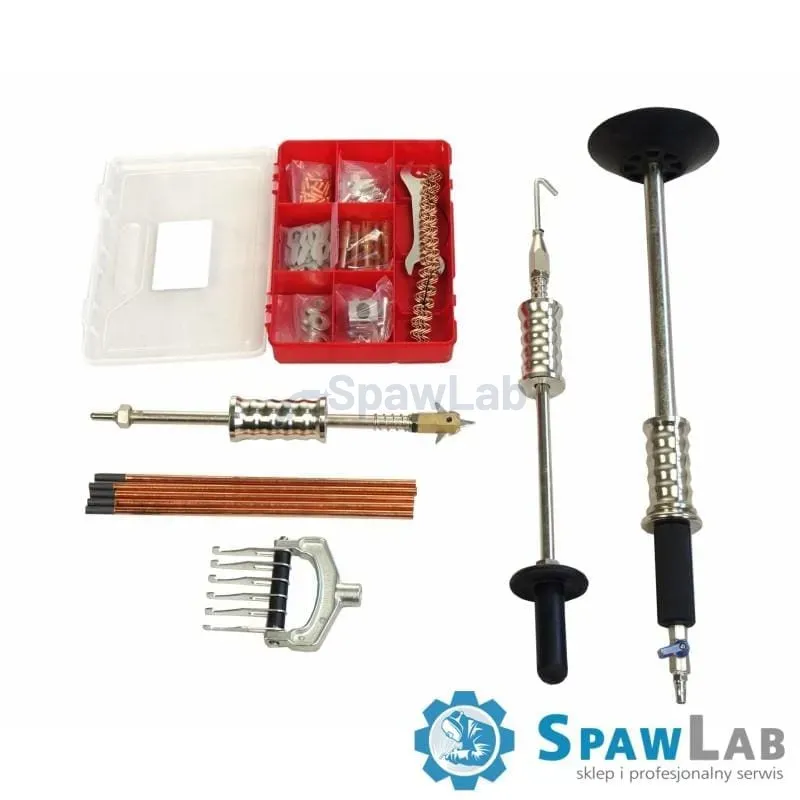

Included
- trolley
- work cable with gun
- earth cable with clamp
- accessory case: M10 to M12 washers, triangular washers, shrinking electrodes, weld-on studs, wiggle wire, OT rings
- slide hammer with holder for triangular washers
- slide hammer with hook for M10 to M12 washers
- slide hammer with pneumatic suction cup
- Quick Puller
12-month warranty for professional use, door-to-door service with no transport costs on your side.
