TECNO SPOTTER 8000 is a microprocessor-controlled machine for pulling, single-sided spot welding, patching and heating sheet metal with a carbon electrode. It is mainly for car body repairs.
Technical data
- Power supply: 400 V, 50 Hz, two-phase, without plug
- Input current: 50 A
- Maximum power: 19 kW
- Welding current: max. 5400 A, stepless adjustment
- Output voltage: 1 to 13 V
- Welding time: 0 to 99 ms
- Sheet thickness for single-sided spot welding: 0.8 + 0.8 mm
- Weight of machine / set: 49 / 80 kg
- Dimensions (L x W x H): 570 x 370 x 890 mm
Features

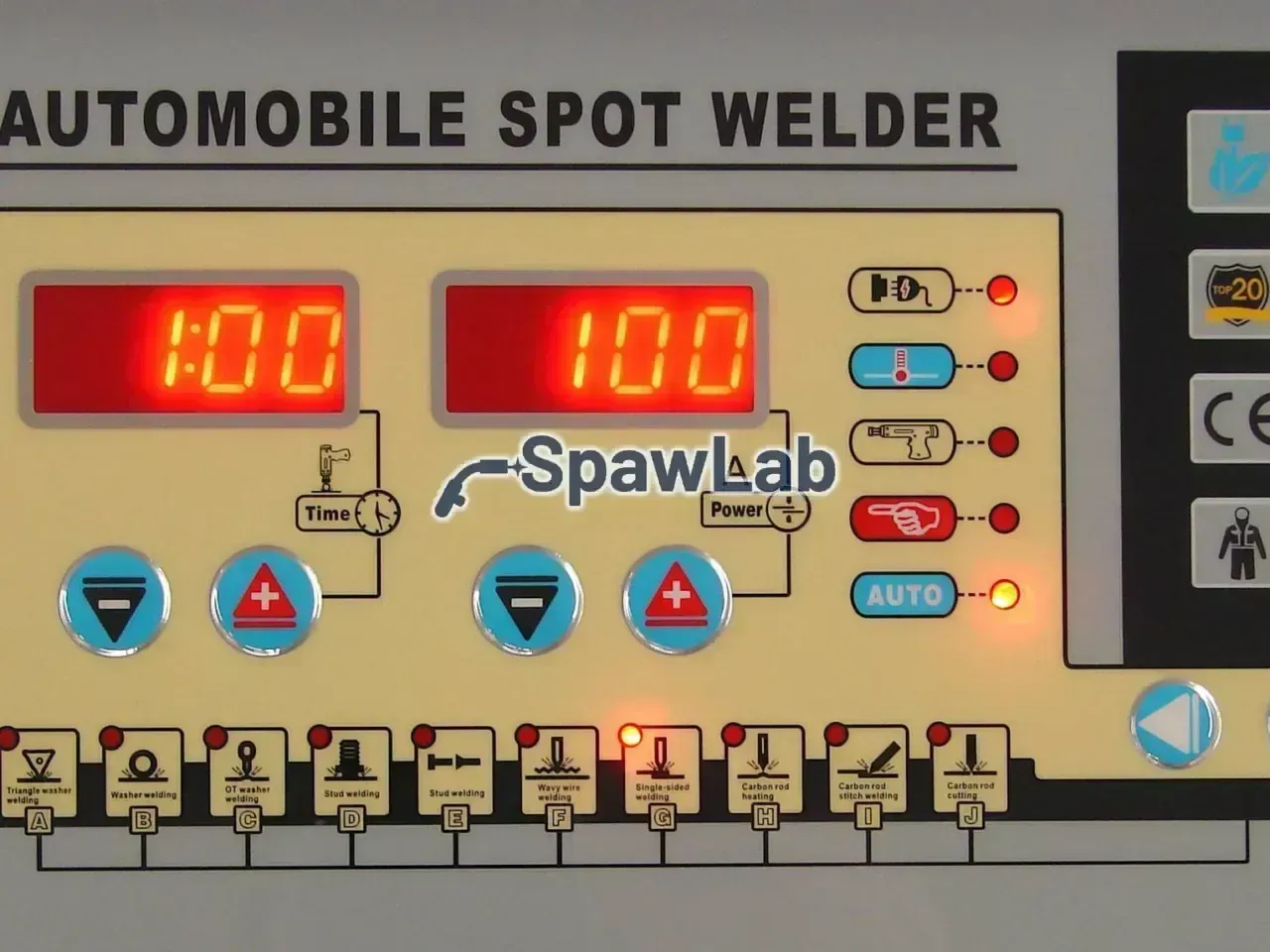

- Control panel: once you select the tool, the machine sets the welding current and work cycles. You can also set the time and current by hand.
- Cooling and protection: fan, overload, overvoltage and undervoltage protection.
In the set
- Trolley
- Work cable with gun
- Earth cable with clamp
- Accessory box: M10 and M12 washers, wiggle wire, wiggle wire electrode, spot welding electrode, triangle washers, shrinking electrodes

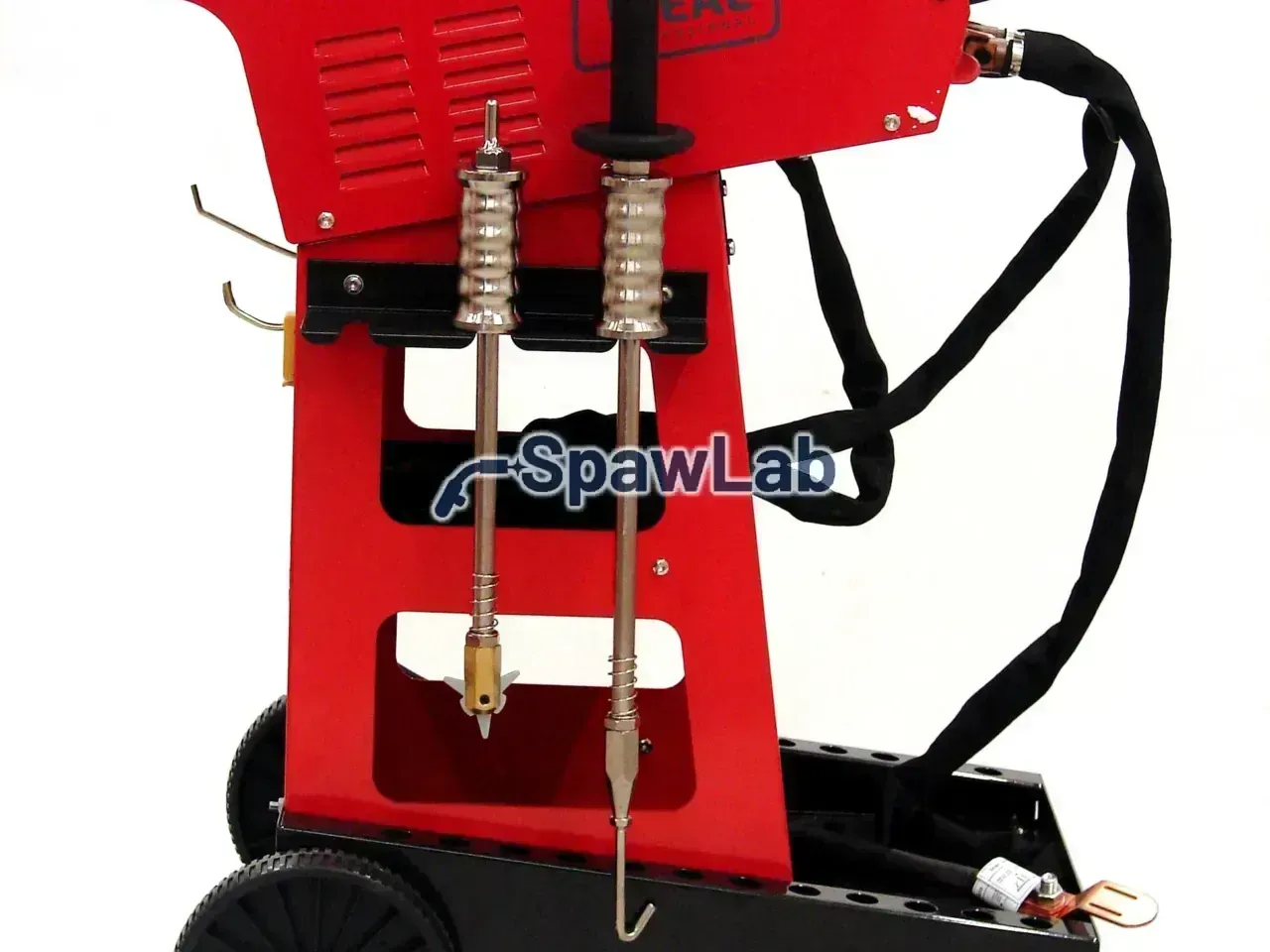

- Slide hammer with hook for M8 to M12 washers
- Slide hammer with holder for triangle washers
- Rubber suction cup for shallow dents
- 6-pin handle for pulling wiggle wire
- Kit for spot welding nails, washers and rivets, for upsetting, pulling and welding two sheets
Warranty
12 months for professional use, door-to-door service with no transport costs.
