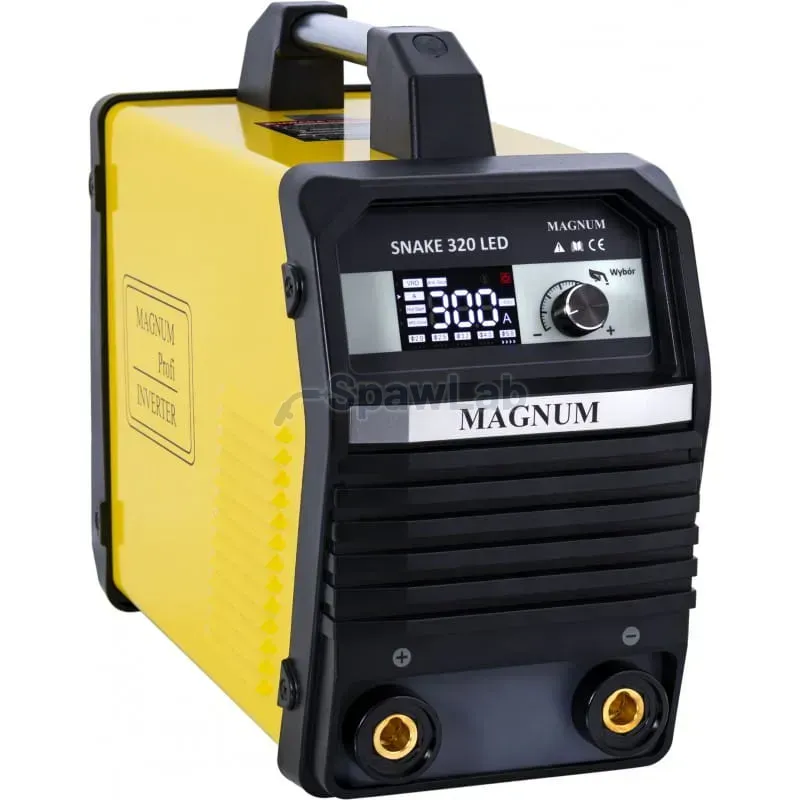

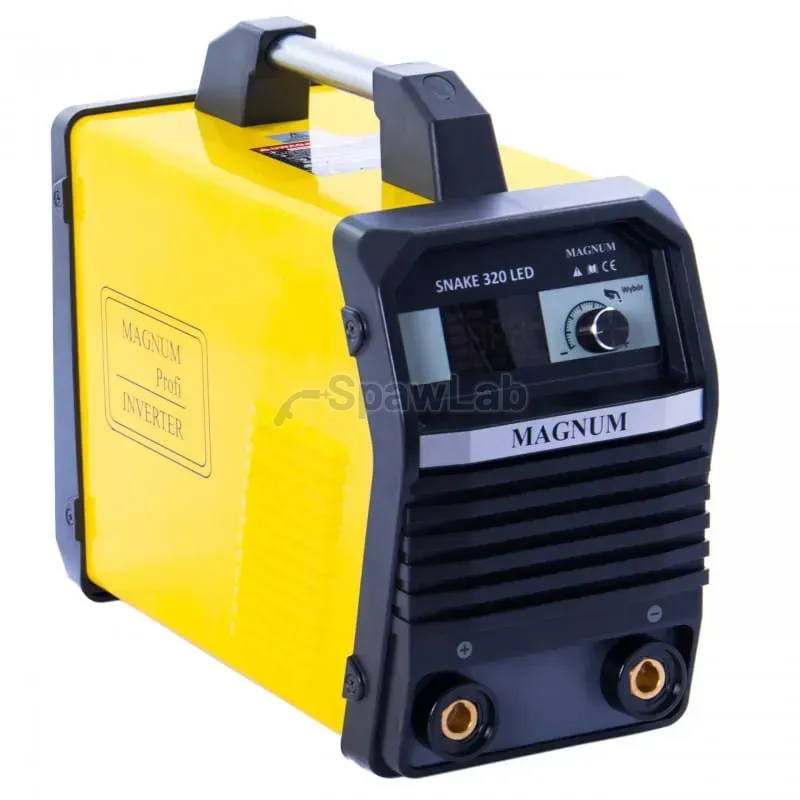

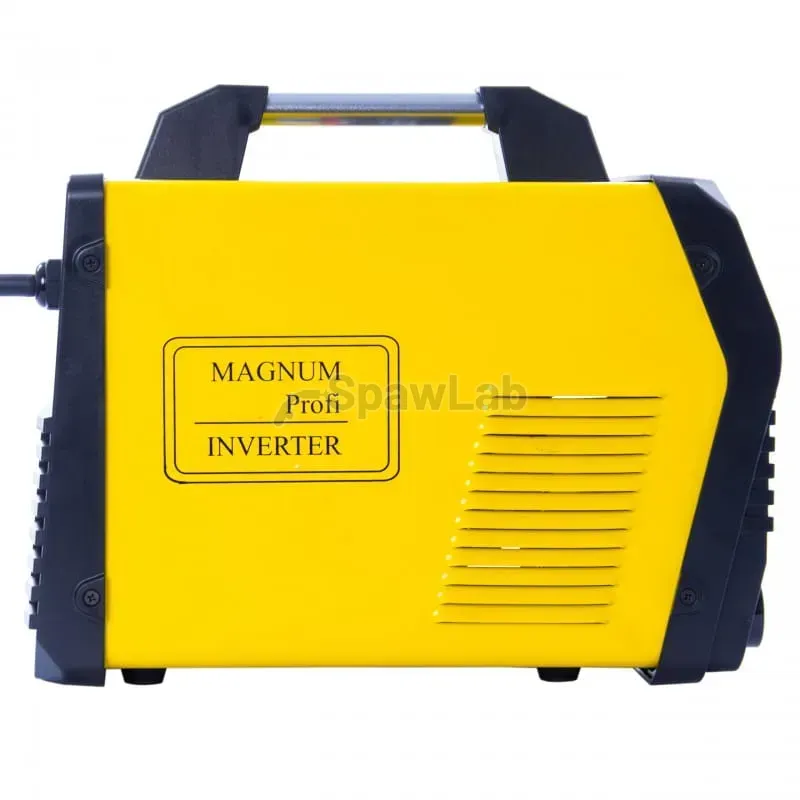

Magnum SNAKE 320 LED 400V Inverter Welder
The Magnum SNAKE 320 LED is a professional MMA inverter welder built for the heaviest industrial and workshop work. Fed from a three-phase 400V mains supply, it delivers a strong welding current of 300A at a high duty cycle of 60%. Thanks to advanced IGBT technology and full adjustment of the Arc Force, Hot Start and VRD functions, the machine gives absolute control over the welding process, welds of the highest quality and maximum operator safety.
Key features
Strong output: a welding current of 300A at a duty cycle of 60%
Three-phase 400V supply for stable running in industrial conditions
Modern IGBT inverter technology for high efficiency and a stable arc
Full adjustment of the arc dynamics (Arc Force) and of the hot start (Hot Start)
VRD function (Voltage Reduction Device) for maximum safety in a damp environment
Legible digital LED display for precise parameter setting
Welds with every type of covered electrode, basic and cellulosic included
Technical details
Technology analysis
The heart of the SNAKE 320 LED are IGBT transistors, which give high energy efficiency, low weight and reliability. The machine carries key functions with full adjustment that put the welder in control. Adjustable ARC FORCE lets you set the arc dynamics, from soft for thin sheet to a hard, aggressive arc with deep penetration for heavy structures. Adjustable HOT START makes striking the arc easier by raising the current for a moment, which is invaluable with difficult electrodes. The VRD safety function lowers the open circuit voltage to a safe level and so reduces the risk of electric shock.
Recommended applications
- Heavy steel structures in industry and on building sites
- Professional metalworking and mechanical shops
- Assembly and renovation work on site
- Welding pipelines and tanks
- The shipyard sector and plant maintenance

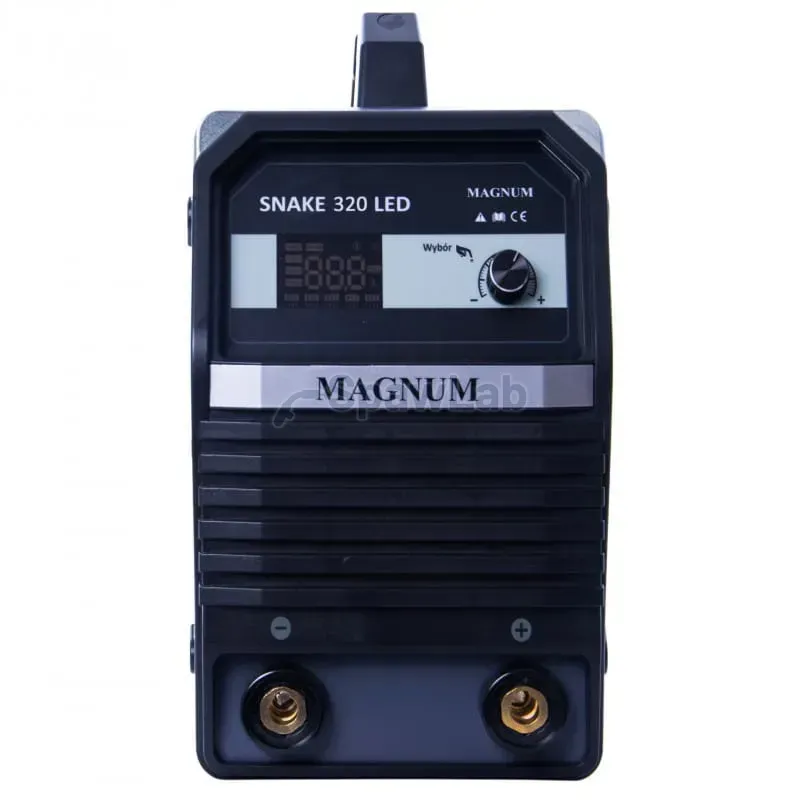

Control panel
The control panel of the SNAKE 320 LED was laid out for professionals who value precision and simplicity. Its central element is a large, bright digital LED display that shows the welding current value without ambiguity. Parameters are set steplessly with ergonomic knobs for the welding current and for the Arc Force and Hot Start values. A dedicated switch turns the VRD function on or off quickly, depending on what the workplace calls for.
Product specification
| Feature | Value |
|---|---|
| Power supply | AC 400V / 50Hz |
| Welding methods | MMA, TIG DC Lift |
| Build technology | IGBT inverter |
| Maximum welding current [A] | 300 |
| Duty cycle [%] | 60% at 300A |
| Welding current adjustment range | 20 - 300 A |
| Functions | Adjustable Arc Force, Adjustable Hot Start, VRD, Anti-Stick |
| Maximum power draw [kVA] | 11.2 |
| Weight [kg] | 12.5 |

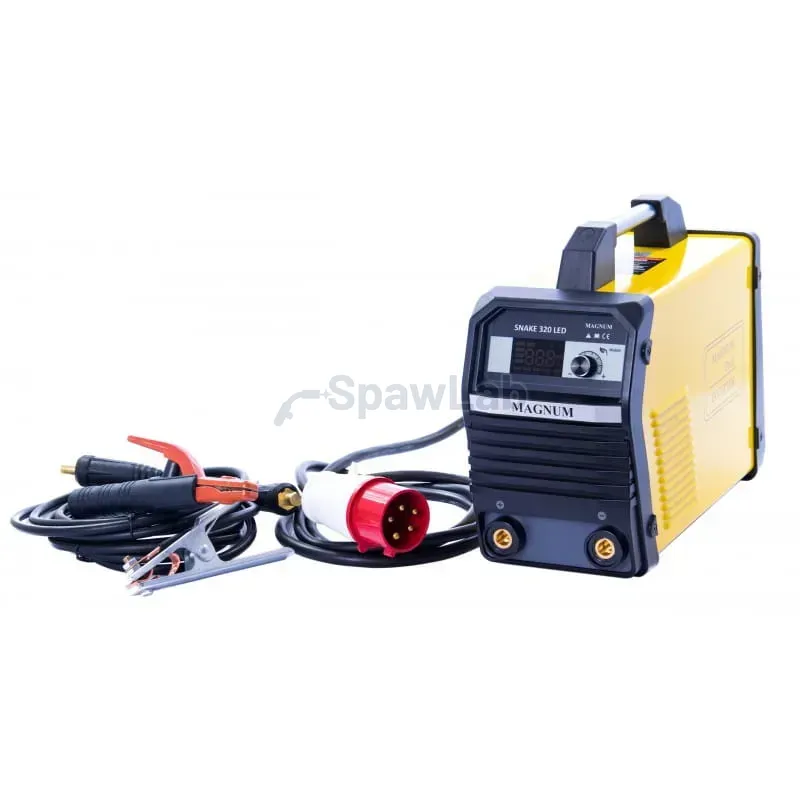

What do you get in the set?
- Magnum SNAKE 320 LED 400V machine
- MMA electrode holder (3m cable)
- Earth cable with clamp (3m cable)
- User manual in Polish
- Warranty card
About the Magnum brand
Magnum is a Polish brand that has been one of the leaders on the welding market since 1996. Its business model rests on supplying technically advanced machines (built in Asia to Polish specification) at a very competitive price. The strength of the brand is its excellent value for money, an offer that forms a complete workshop ecosystem, plus dependable service and a door-to-door warranty, which build customer trust, from hobbyists to professional workshops.
