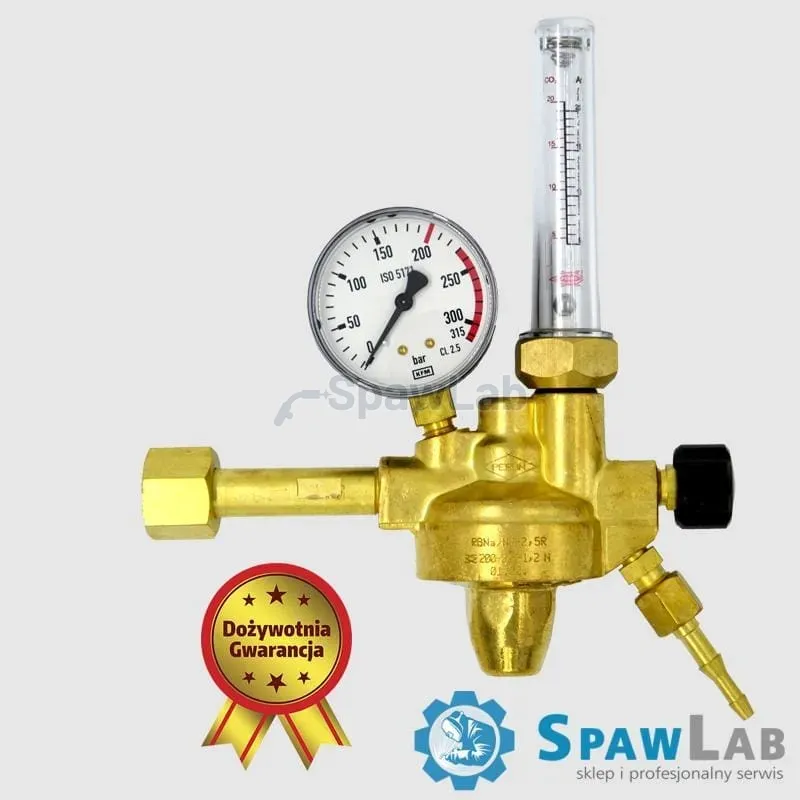

The RBNa/Nd-2,5R cylinder regulator is a single-stage, lever-free regulator that lowers the pressure of gases taken directly from the cylinder to a constant outlet (working) pressure set by the manufacturer. At the outlet it has a gas flow rotameter scaled in dm3/min with two scales, which measures the gas flow at the regulator outlet. The regulator has an outlet valve with a hose tail for rubber hose with an inside diameter of Ø 4 or Ø 6.3mm, which lets you set the required gas flow. It is also fitted with a safety valve which, if the outlet pressure rises above the permitted level (2.5 bar), releases the excess gas from the low-pressure chamber to the outside. The maximum inlet pressure of the regulator is marked on the pressure gauge with a red line.
APPLICATION:
The RBNa/Nd-2,5R cylinder regulator is used mainly for welding work, for example for gas-shielded welding with carbon dioxide and argon
Item code W212-9360
Identifier 1083
Symbol RBNa/Nd-2,5R
EAN code 5902768535099
