Welder Fantasy is a brand set up by the company FACHOWIEC in 1991. TIG/MMA inverter welders, MIG/MAG semi-automatic welders, plasma cutters and the other equipment carrying the Welder Fantasy mark have been winning over thousands of workshops and companies in Poland and abroad for many years. The Welder Fantasy brand means:
- Top quality machines,
- Reliability guaranteed,
- High working parameters,
- A leader on the Polish market.
IGBT technology - Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an insulated gate. It puts together the easy control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. IGBT technology markedly extends the reliable service life of welding machines.
A high duty cycle of 60% on the machine.
"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK - see the protection certificate document

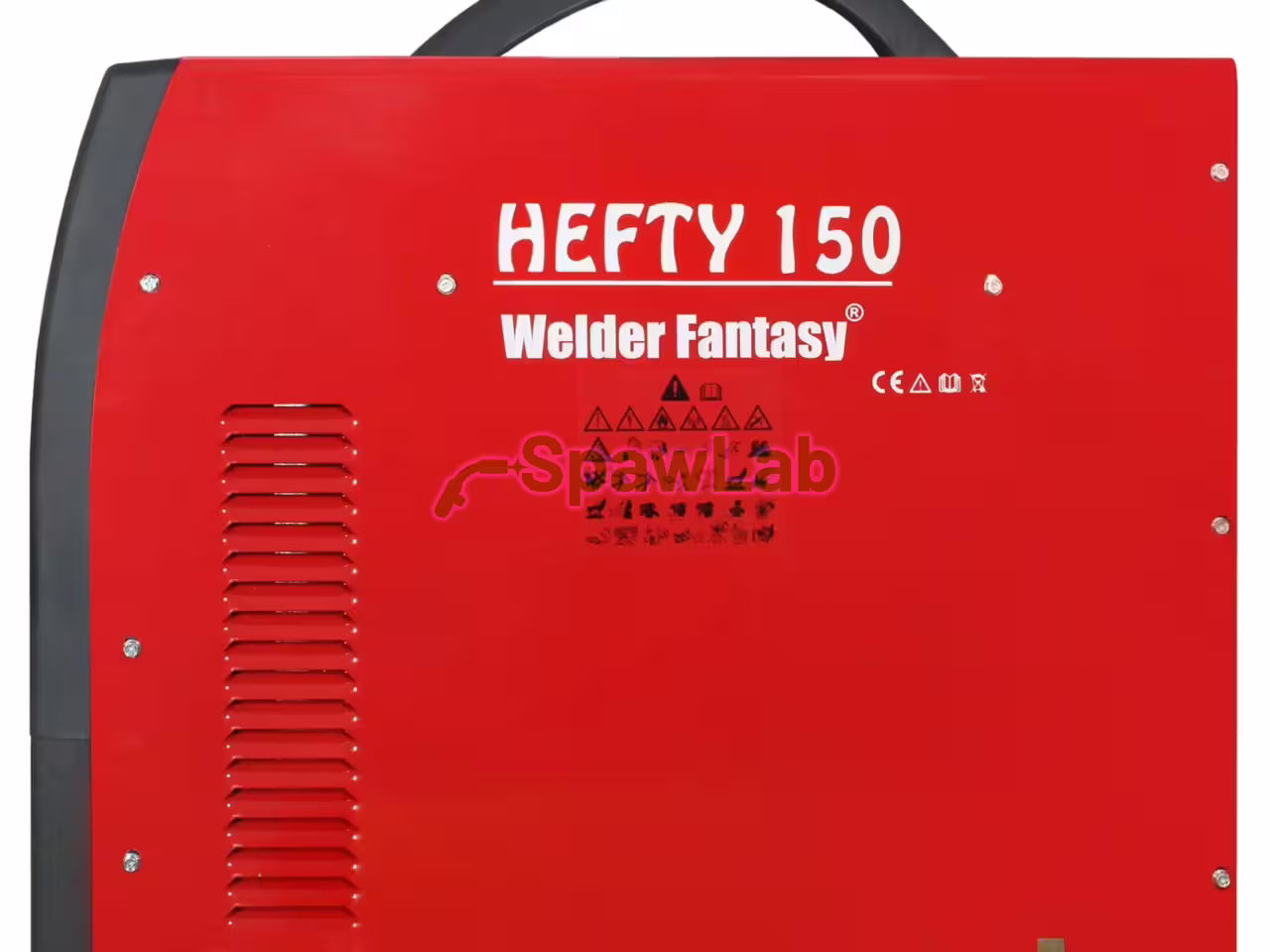

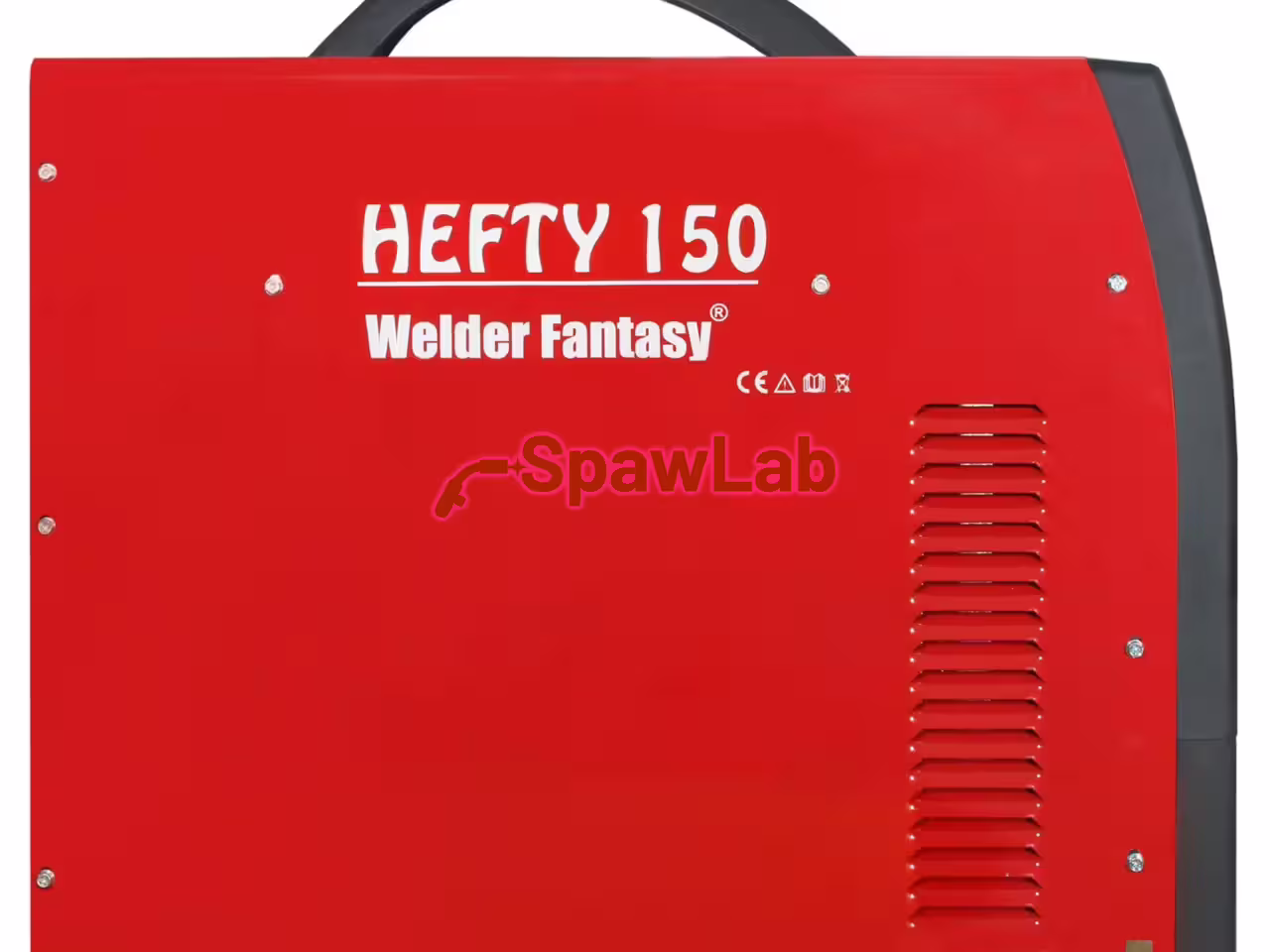

The Welder Fantasy plasma cutter HEFTY 150 is made for cutting electrically conductive parts made of carbon and alloy steels, aluminium and its alloys, brass, copper and cast iron as well.
Plasma cutters from the new HEFTY series have a 60% duty cycle in cutting, which allows unhurried work in normal workshop conditions, industrial ones included.
The cutter can be connected to a cooling unit and used with a liquid cooled torch. On the control panel the user can choose between water cooling and air cooling. The unit also has a built in air pressure sensor that blocks arc striking when the pressure is too low.

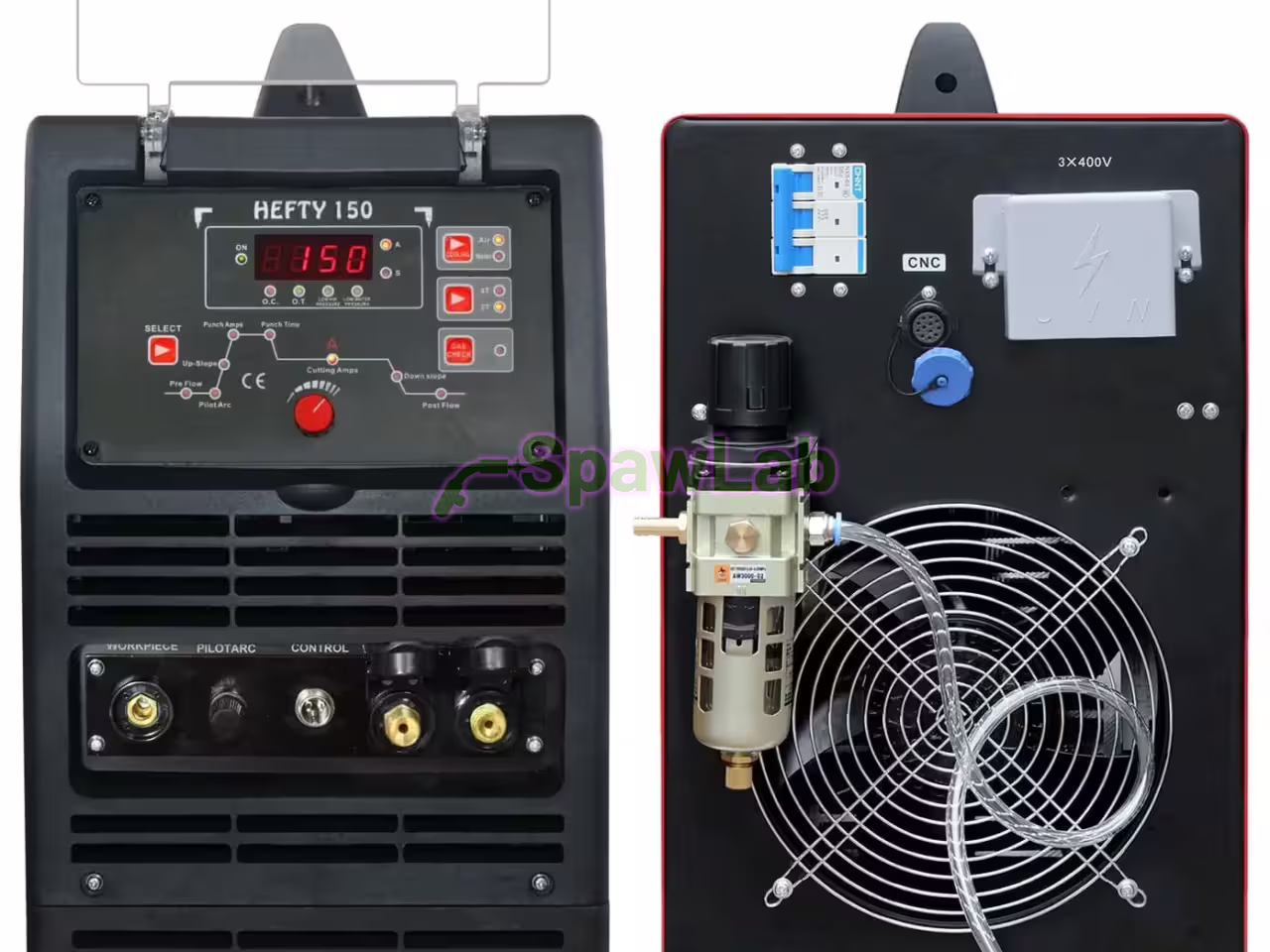

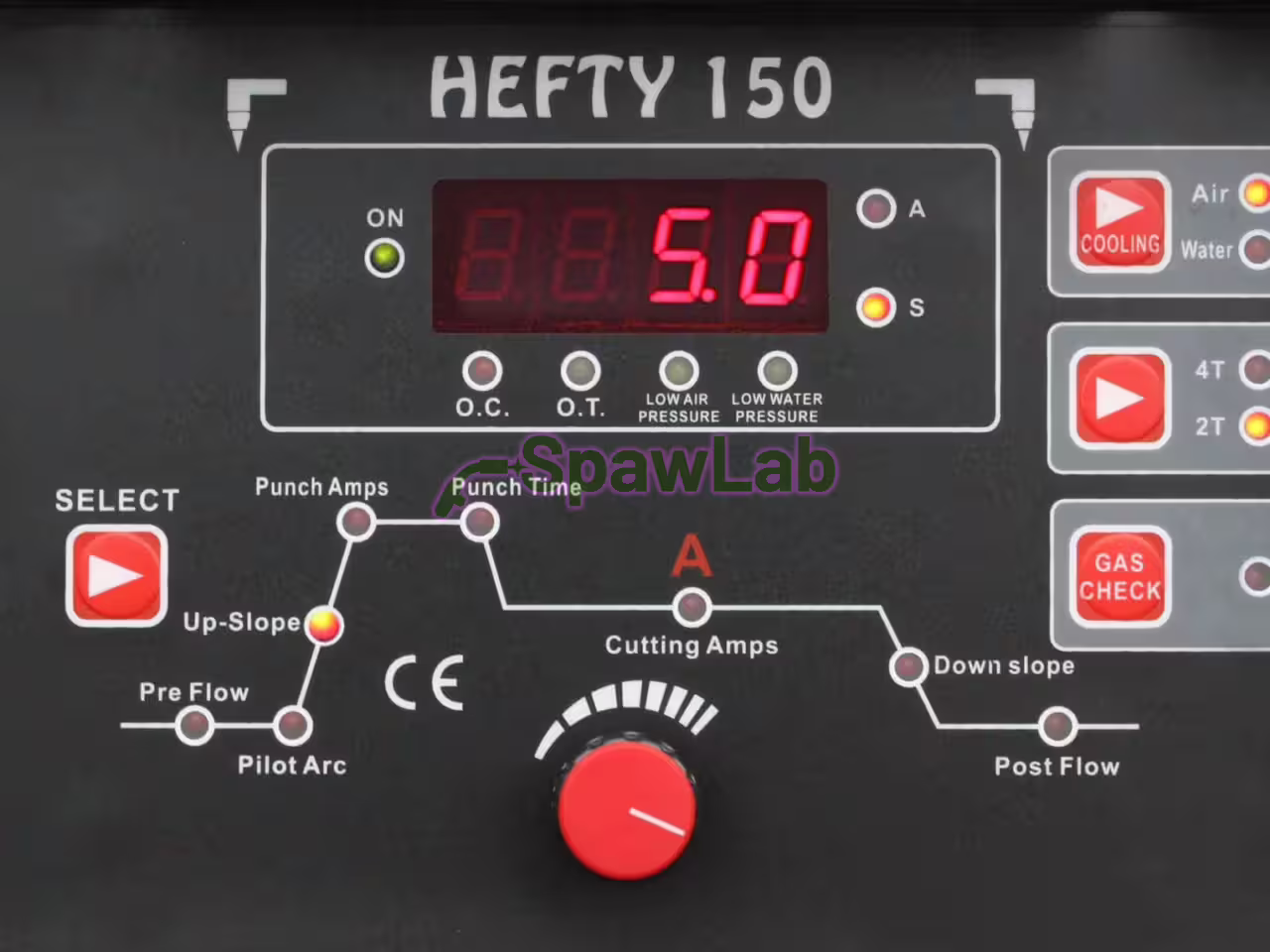

A machine with above average working parameters (a full set of torches and extra accessories are included) will meet the needs of demanding workshops and industrial companies. The unit has a detailed control panel that allows the following parameters to be set:
- air flow before the arc is struck,
- pilot arc,
- current rise time,
- piercing current,
- piercing current time,
- cutting current.
- current down slope time,
- air flow after the arc goes out.
Note. The machine can be connected to a CNC machine.
Features of Welder Fantasy HEFTY plasma cutters:
- high 60% duty cycle,
- units built on IGBT technology,
- compact housing and low weight,
- arc striking in two-stroke or four-stroke mode (2T/4T),
- monitoring of excessive current,
- monitoring of excessive temperature,
- stepless cutting current control,
- LCD display of current parameters.

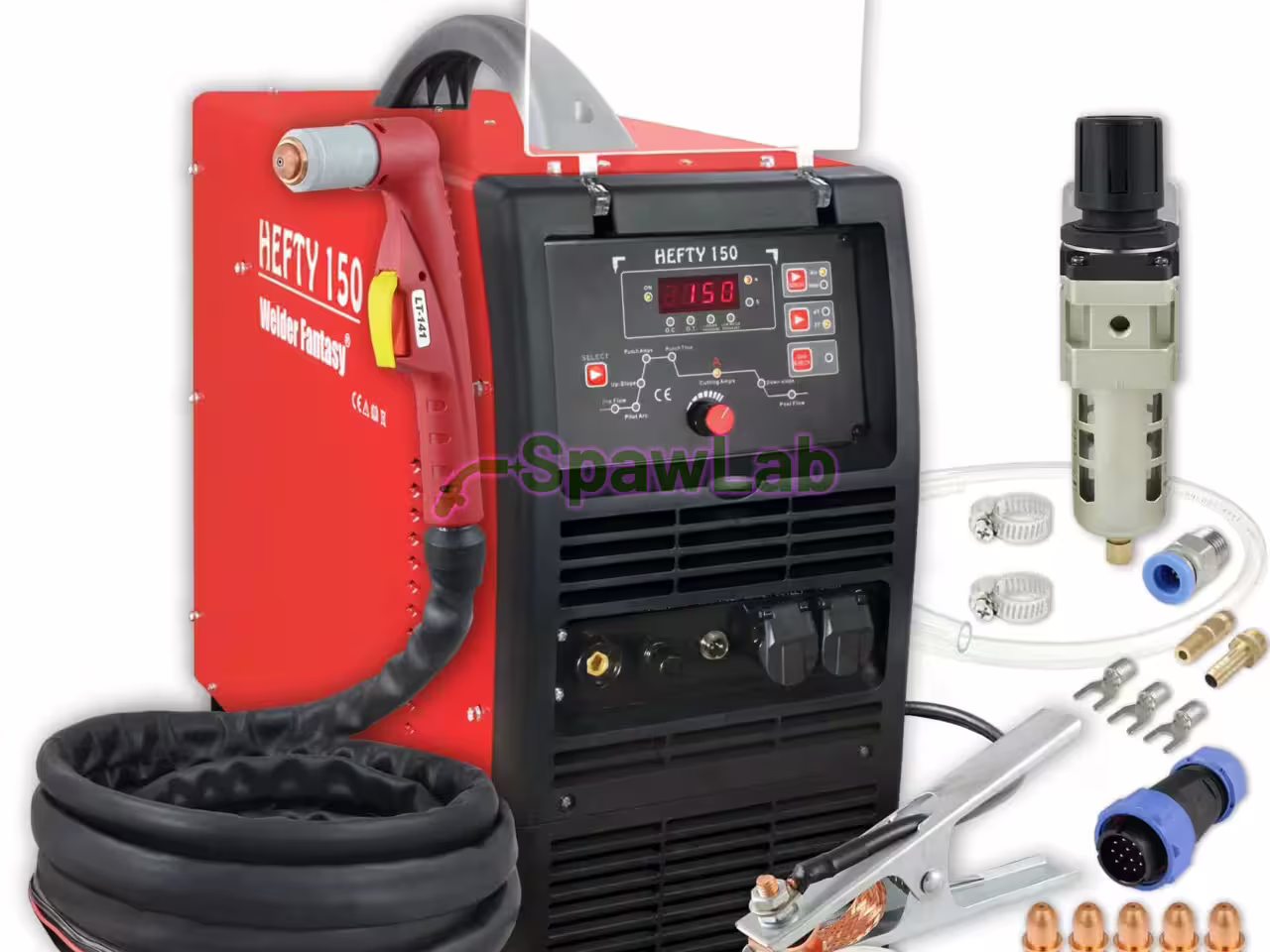

The complete set contains:
- WF HEFTY 150 cutter

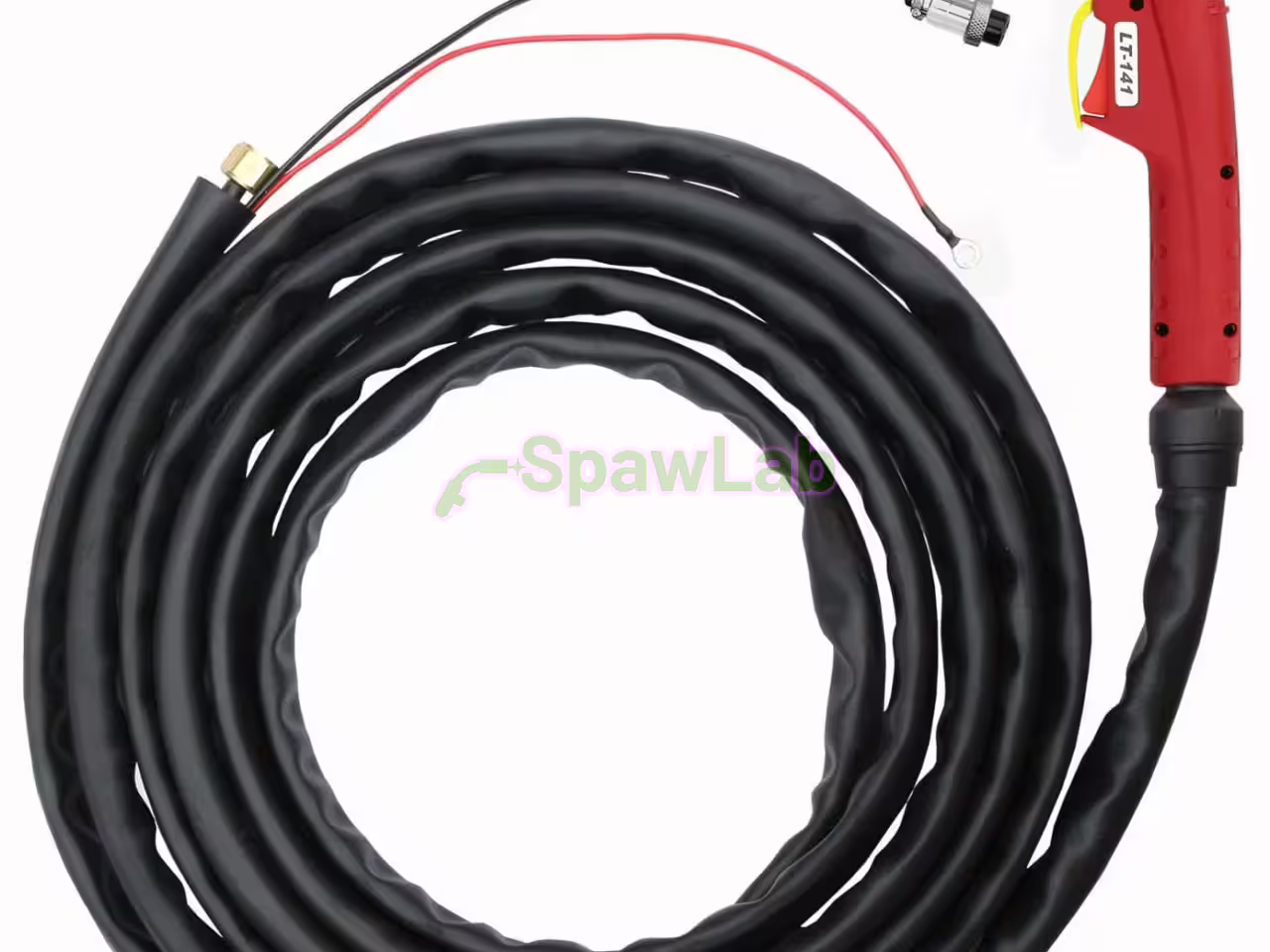

- LT-141 plasma torch 6 m

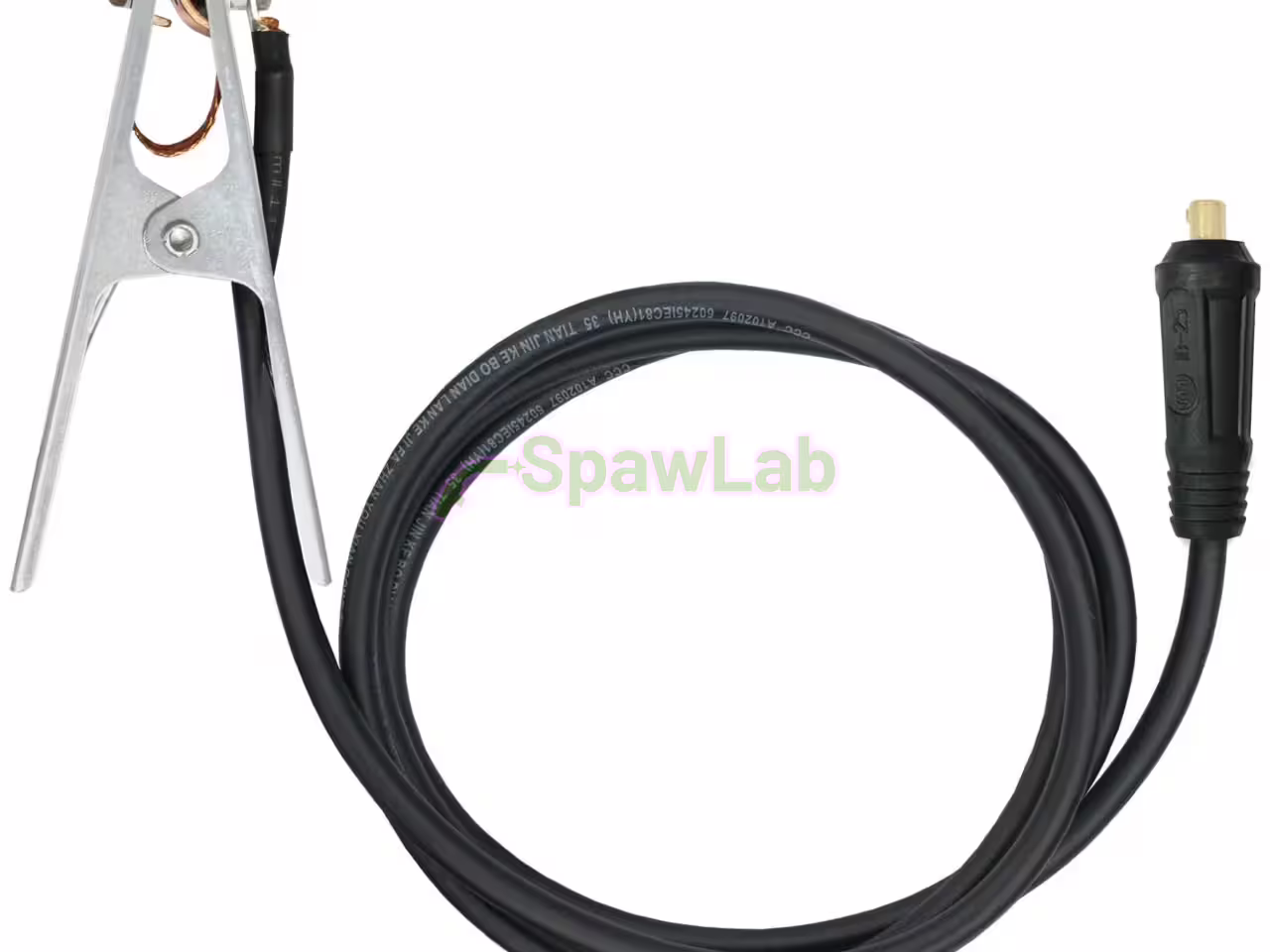

- earth clamp lead 3 m

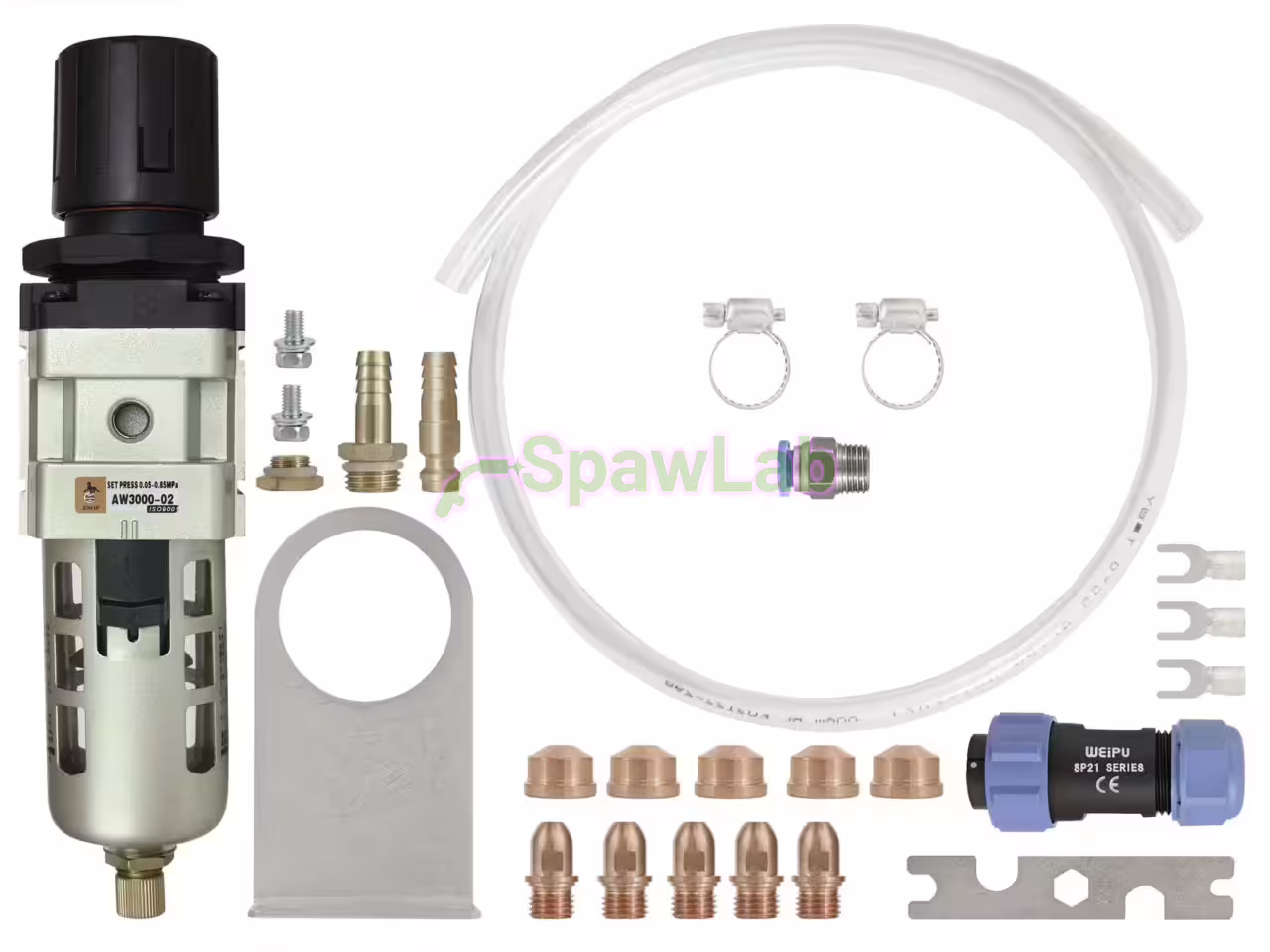

- consumable parts + air filter
- manual in Polish
TECHNICAL DATA:
|
Supply voltage [V] |
400 |
|
Power input [kVA] |
19 |
|
Max quality cut [mm] |
30 |
|
Max severance cut [mm] |
50 |
|
Cutting current [A] |
20-150 |
|
Duty cycle [%] |
60 |
|
Weight [kg] |
54 |
|
Dimensions [mm] |
700*285*640 |
