Welder Fantasy is a brand set up by the company FACHOWIEC in 1991. TIG/MMA inverter welders, MIG/MAG wire fed welders, plasma cutters and the remaining equipment carrying the Welder Fantasy mark have for many years been trusted by thousands of workshops and companies in Poland and abroad. The Welder Fantasy brand stands for:
- Top build quality,
- Reliability you can count on,
- High operating parameters,
- A leader on the Polish market.
IGBT technology, Insulated Gate Bipolar Transistor, is a modern solution based on bipolar transistors with an insulated gate. It combines the easy control of field effect transistors with the high breakdown voltage and the fast switching of bipolar transistors. Using IGBT technology markedly extends the reliable service life of welding machines.
A high duty cycle for this machine: 60%.

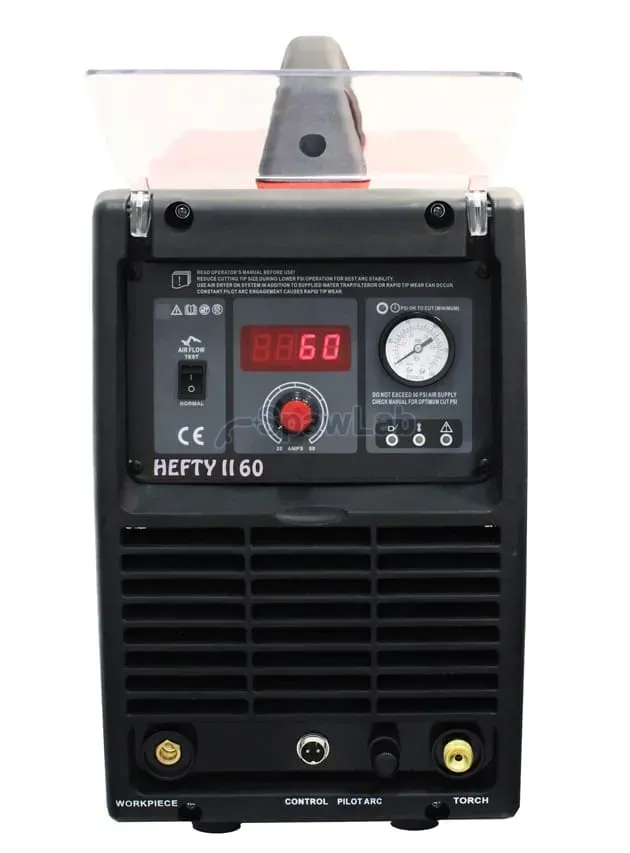

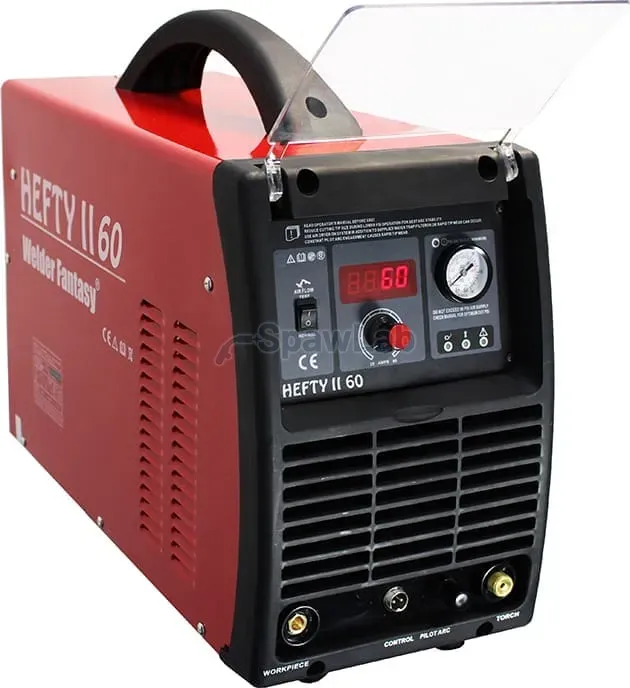

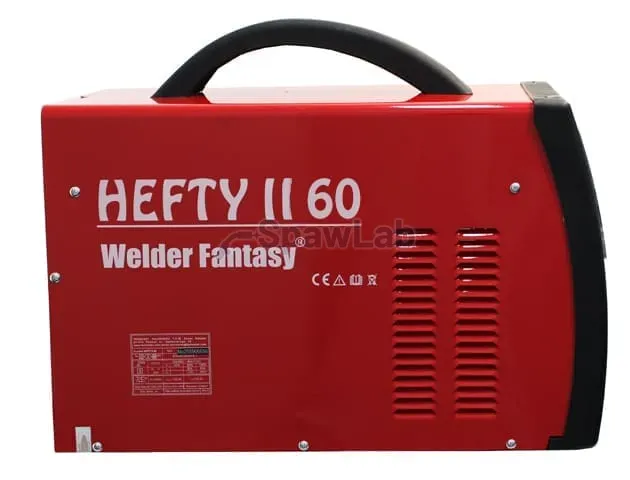

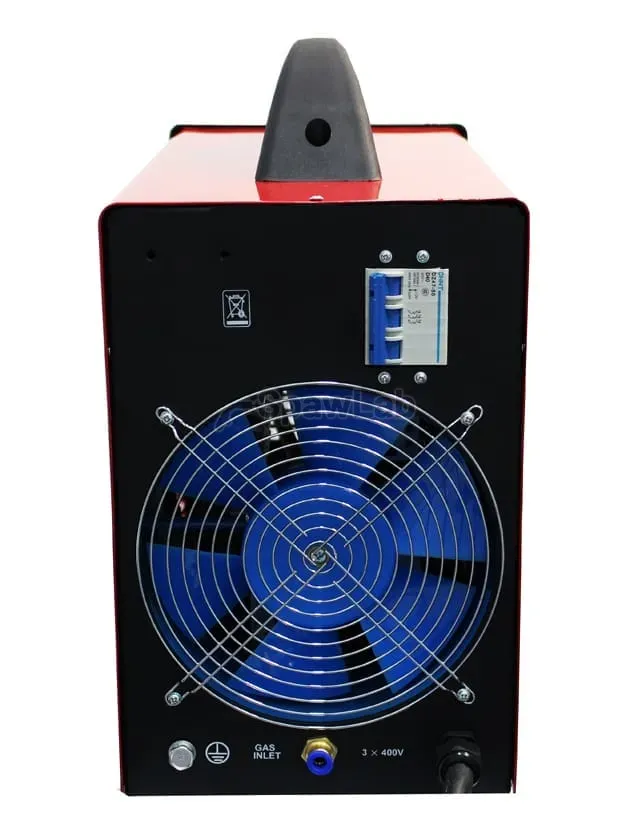

The plasma cutter Welder Fantasy HEFTY II 60 is intended for cutting electrically conductive parts made of carbon and alloy steel, aluminium and its alloys, brass, copper and also cast iron. Plasma cutters from the new HEFTY series have a 60% cutting duty cycle, which allows comfortable work in typical workshop conditions, industrial ones included. Thanks to the use of the latest IGBT transistors the machine keeps running and is free of breakdowns. This cutter will find work in car workshops, in shipbuilding, in sheet metal and locksmith shops and in many other trades.
"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK -see the protection certificate document
The HEFTY plasma sources can be adapted to CNC machines. To choose the right torch, please contact our shop staff.
Features of Welder Fantasy HEFTY plasma cutters:
- high 60% duty cycle,
- machines in IGBT technology,
- non contact pilot arc ignition system, HF,
- compact housing and low weight,
- a dedicated air regulator with a filter,
- a pressure gauge for checking the air pressure,
- stepless cutting current adjustment,
- protection against air pressure that is too low,
- gas TEST function,
- a transparent, lift up cover over the control panel,
- digital display of the cutting current.

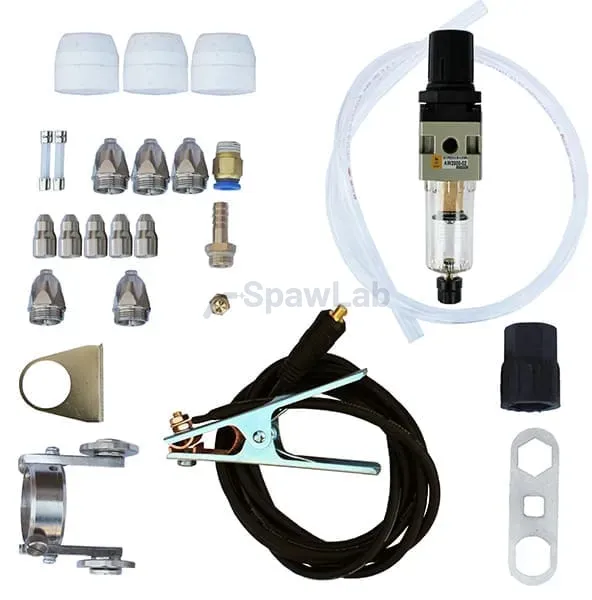

The complete set contains:
- cutter Welder Fantasy HEFTY II 60,

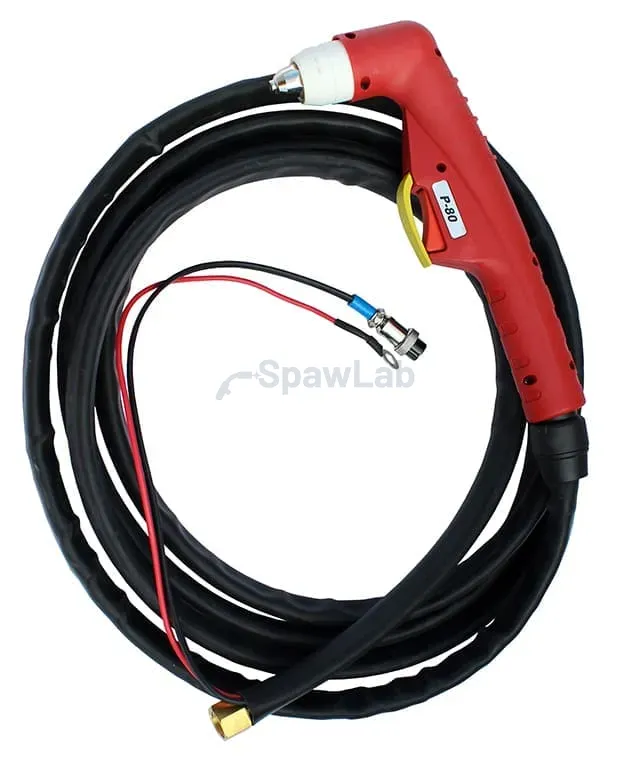

- plasma torch P80-4m,
- earth lead 3m,
- consumable parts (nozzles, electrodes, ceramic shield cups),
- circle cutting trolley,
- air filter regulator,
- operating manual in Polish and a warranty card.

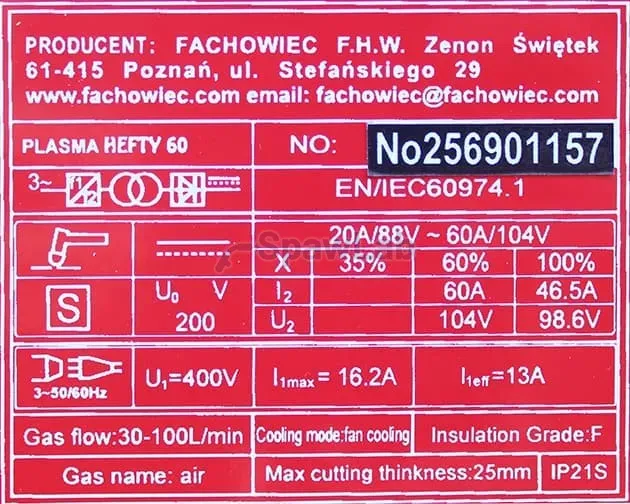

TECHNICAL DATA:
|
Power supply |
3~400V 50 Hz |
|
Power input [kVA] |
8.8 |
|
Minimum time delay fuse [A] |
20 |
|
Weight [kg] |
20 |
|
Dimensions [mm] |
570*230*430 |
|
PLASMA PARAMETERS |
|
|
Cutting current [A] |
20-60 |
|
Duty cycle 60% [A] |
60 |
|
Duty cycle 100% [A] |
46.5 |
|
Arc ignition |
HF / contact |
|
Quality cut thickness [mm] |
22 |
|
Severance cut thickness [mm] |
25 |
|
Air consumption [l/min] |
150 |
|
Air pressure [bar] |
4-6 |
